PM7574 datasheet, PDF - EEWORLD Datasheet

PM7574: Description1-CH 8-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, CDIP18; Categorysemiconductor logic; File Size651KB，8 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

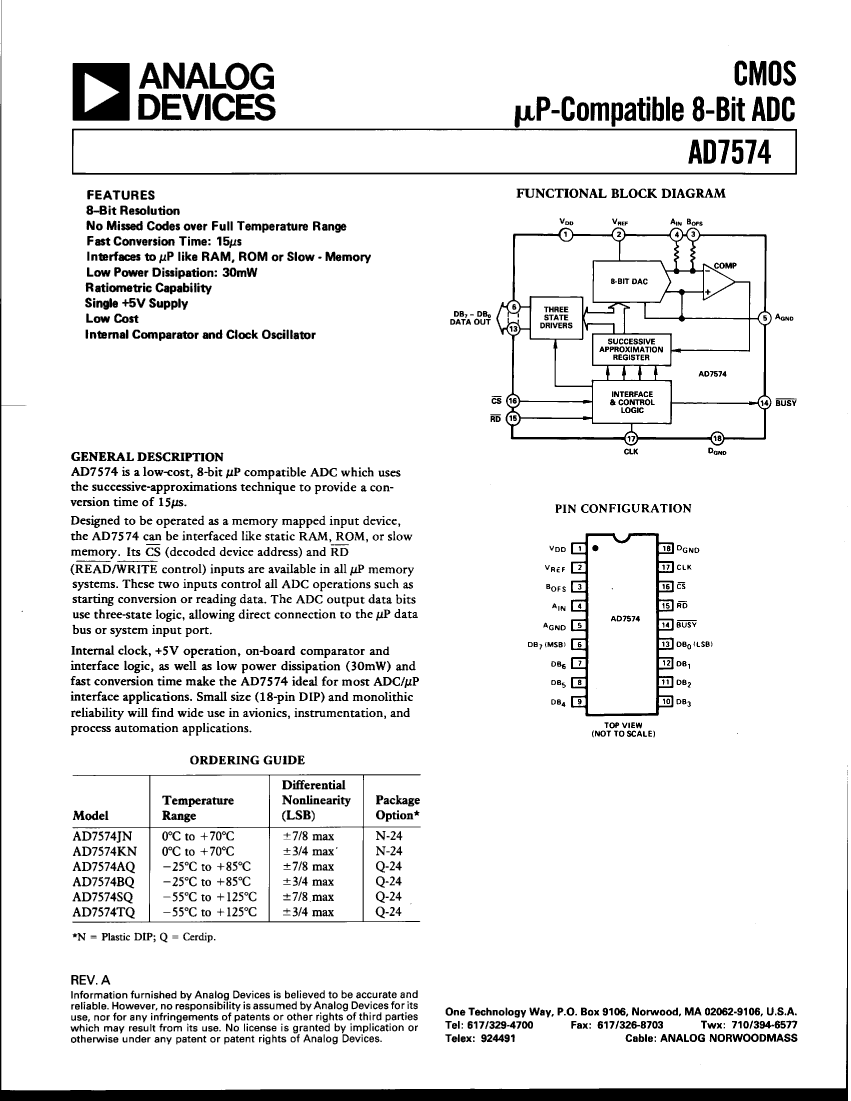

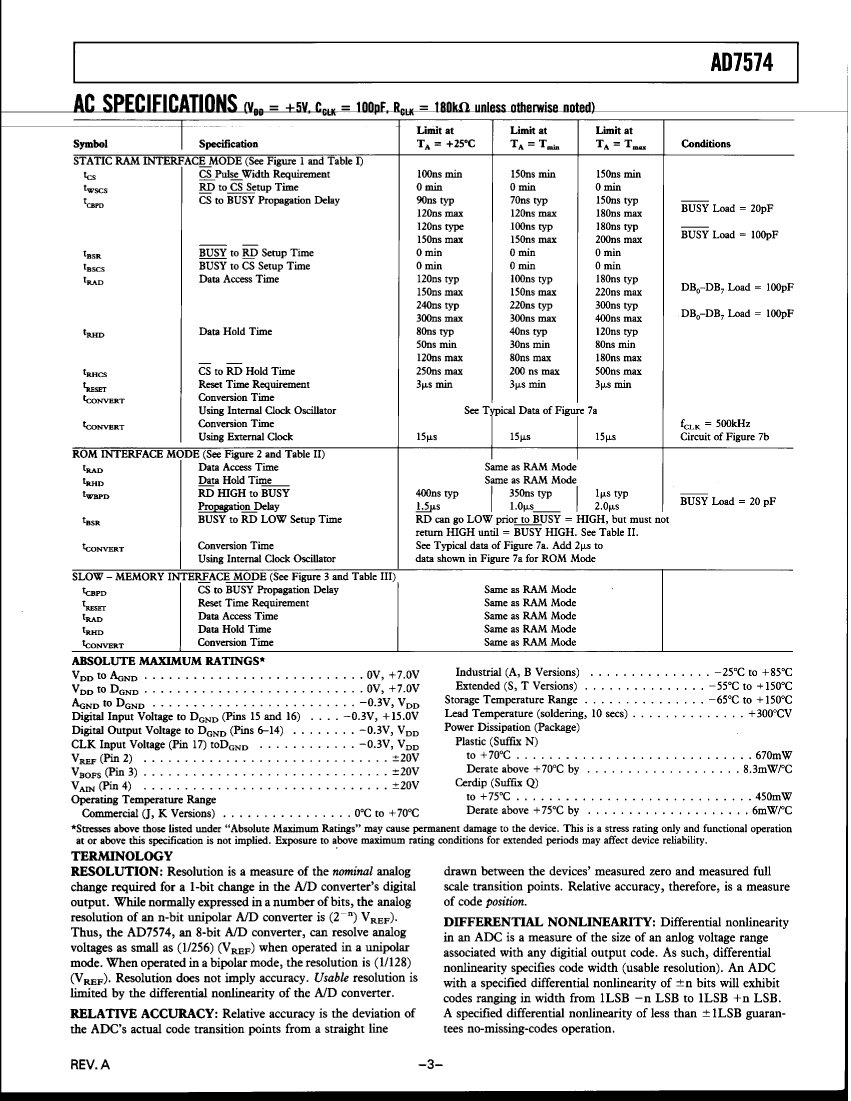

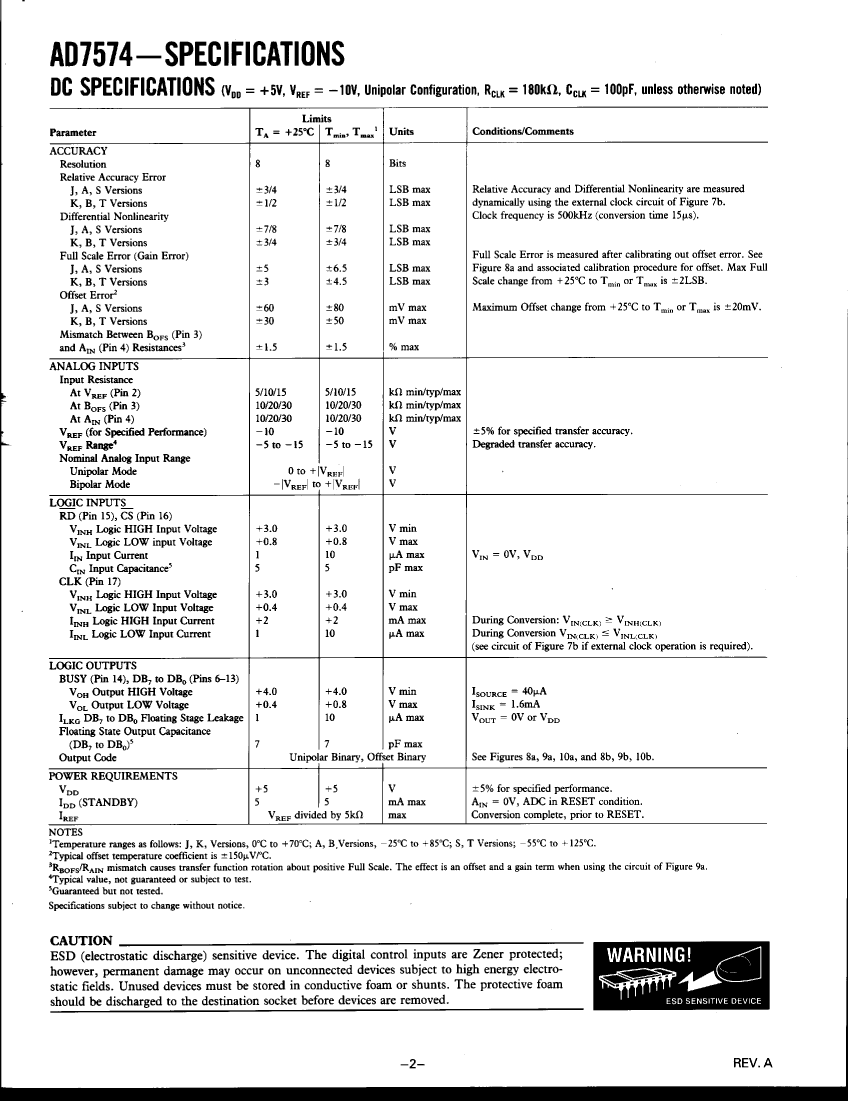

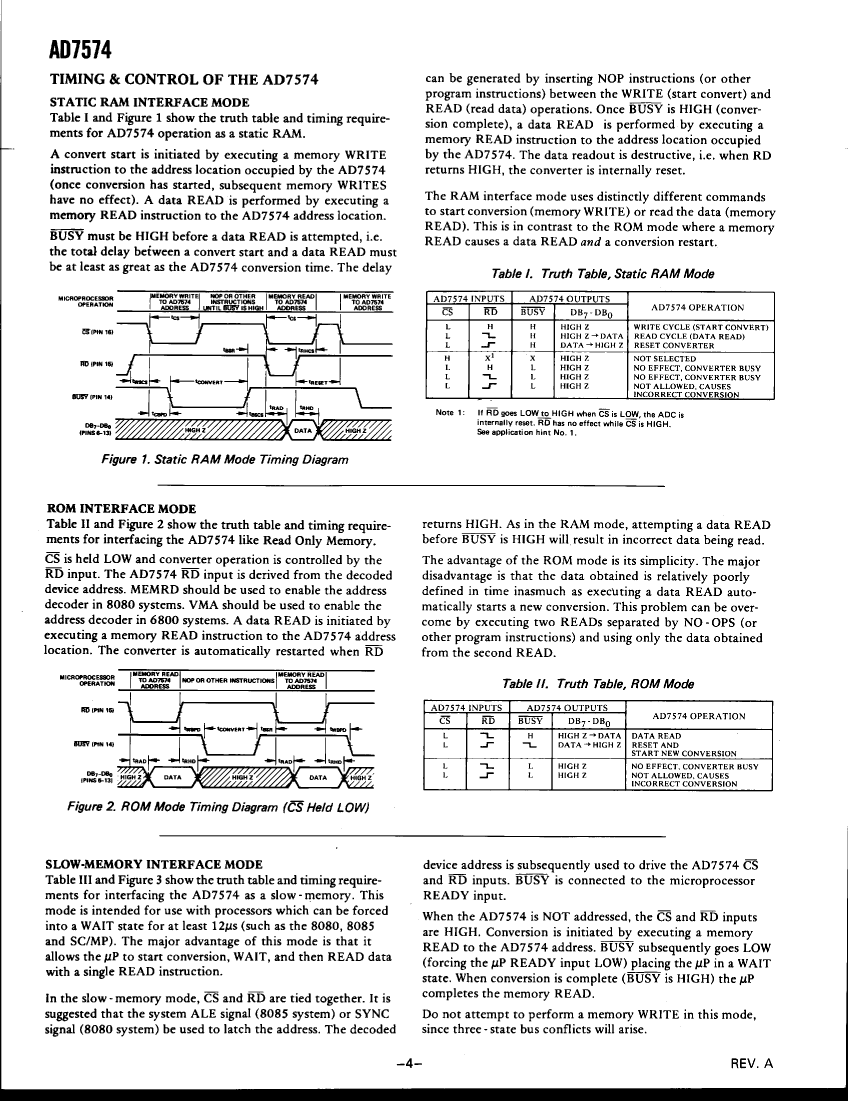

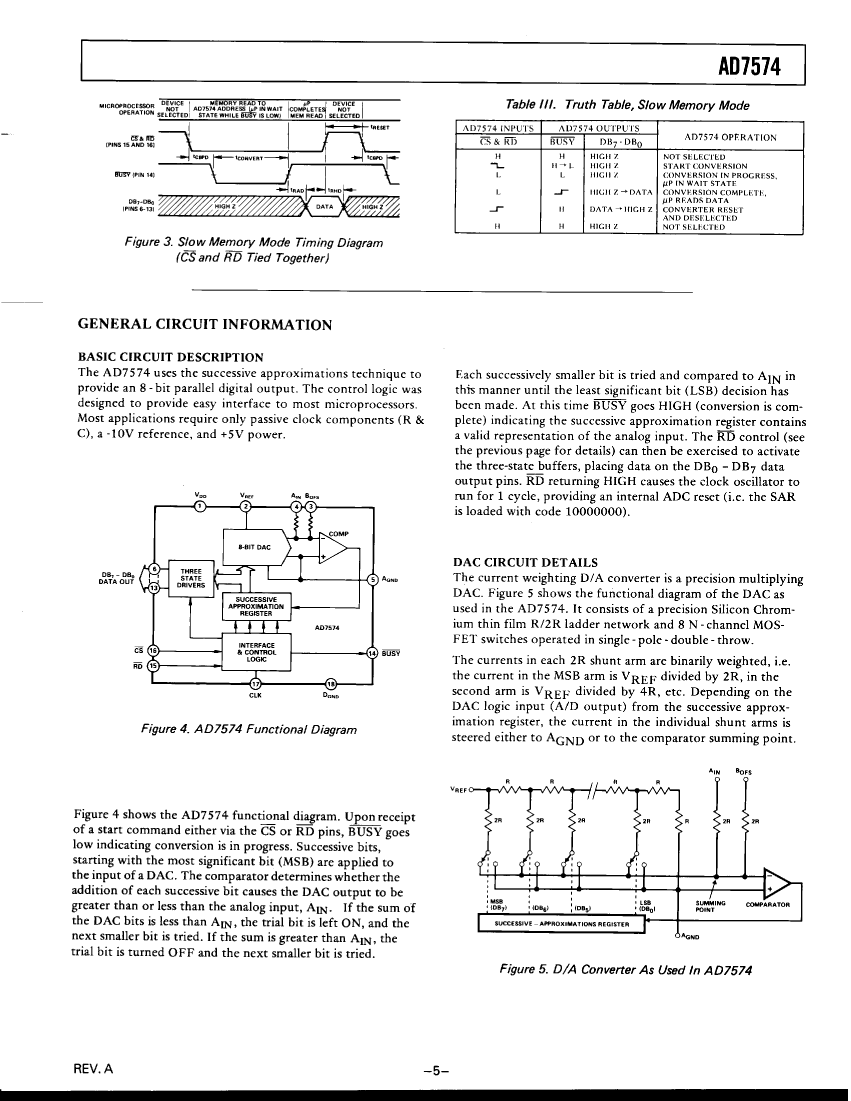

PM7574 Overview

1-CH 8-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, CDIP18

Parameter Name	Attribute value
Number of functions	1
Number of terminals	18
Maximum operating temperature	85 Cel
Minimum operating temperature	-25 Cel
Rated supply voltage	5 V
Maximum conversion time	15 uS
Maximum linear error	0.1950 %
Maximum limit analog input voltage	20 V
Minimum limit analog input voltage	-20 V
Processing package description	CERDIP-18
state	ACTIVE
Craftsmanship	CMOS
packaging shape	RECTANGULAR
Package Size	IN-LINE
Terminal form	THROUGH-HOLE
Terminal spacing	2.54 mm
terminal coating	NOT SPECIFIED
Terminal location	DUAL
Packaging Materials	CERAMIC, GLASS-SEALED
Temperature level	OTHER
Output format	PARALLEL, 8 BITS
Type of converter	SUCCESSIVE APPROXIMATION
Number of digits	8
Output bit encoding	BINARY
Number of analog channels	1

	PM7574	AD7574	AD7574KN
Description	1-CH 8-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, CDIP18	1-CH 8-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, CDIP18	1-CH 8-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, CDIP18
Number of functions	1	1	1
Number of terminals	18	18	18
Maximum operating temperature	85 Cel	85 Cel	85 Cel
Minimum operating temperature	-25 Cel	-25 Cel	-25 Cel
Rated supply voltage	5 V	5 V	5 V
Maximum conversion time	15 uS	15 uS	15 uS
Maximum linear error	0.1950 %	0.1950 %	0.1950 %
Maximum limit analog input voltage	20 V	20 V	20 V
Minimum limit analog input voltage	-20 V	-20 V	-20 V
Processing package description	CERDIP-18	CERDIP-18	CERDIP-18
state	ACTIVE	ACTIVE	ACTIVE
Craftsmanship	CMOS	CMOS	CMOS
packaging shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package Size	IN-LINE	IN-LINE	IN-LINE
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal spacing	2.54 mm	2.54 mm	2.54 mm
terminal coating	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Terminal location	DUAL	DUAL	DUAL
Packaging Materials	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
Temperature level	OTHER	OTHER	OTHER
Output format	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS
Type of converter	SUCCESSIVE APPROXIMATION	SUCCESSIVE APPROXIMATION	SUCCESSIVE APPROXIMATION
Number of digits	8	8	8
Output bit encoding	BINARY	BINARY	BINARY
Number of analog channels	1	1	1
