Film capacitors – Power Electronic Capacitors
General purpose applications
Preliminary data
B32360 ... B32364
Metallized polypropylene film capacitors - aluminum case for general purpose
applications

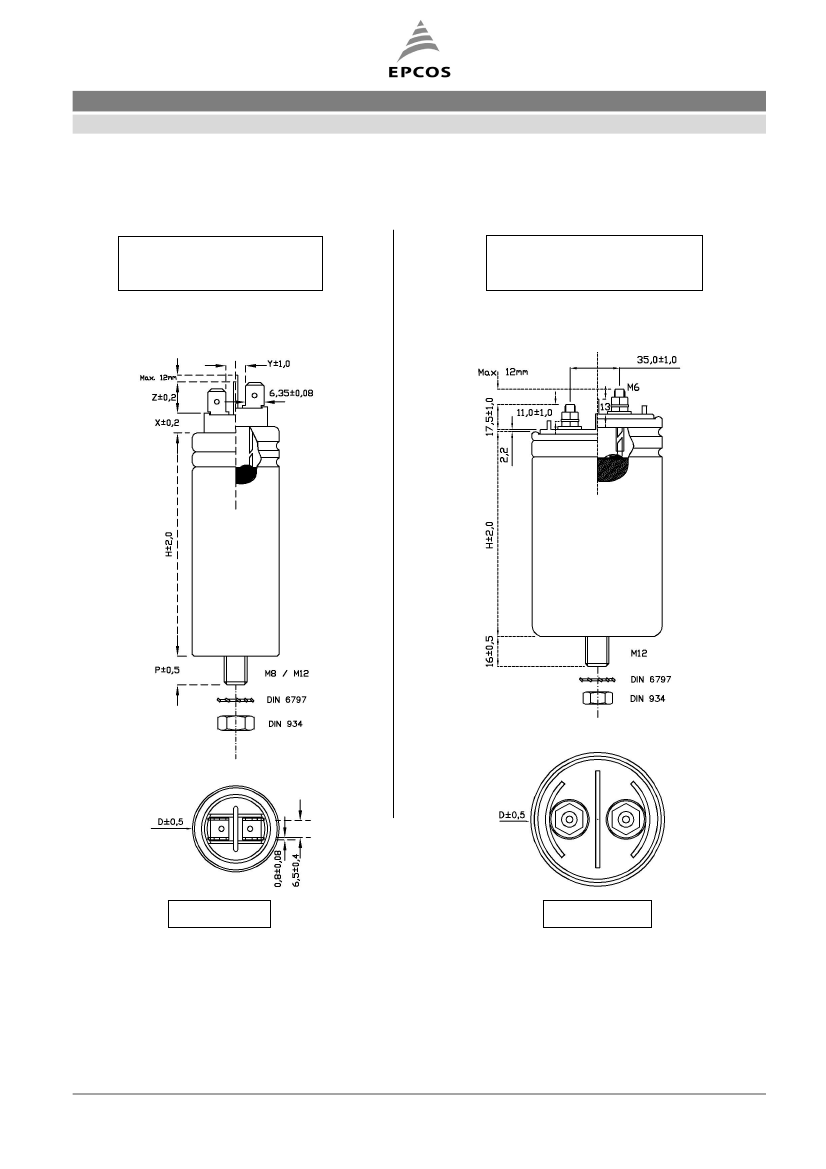

B32360
Fast-on terminals
B32361
M6 screw terminals
Before Safety
Device operation
After Safety
Device operation
Before Safety
Device operation
After Safety
Device operation
Picture 1
Picture 2
X=
Z=
5 mm (D < 53 mm)
0 mm (D
≥
53 mm)
13.5 mm (D < 53 mm)
13 mm (D
≥
53 mm)
Y=
P=
8.30 mm (D
≥
40 mm)
6.30 mm (D < 40 mm)
10 mm (M8)
16 mm (M12)
FK PC PEC
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 12
May 2009
Film capacitors – Power Electronic Capacitors
General purpose applications
Preliminary data

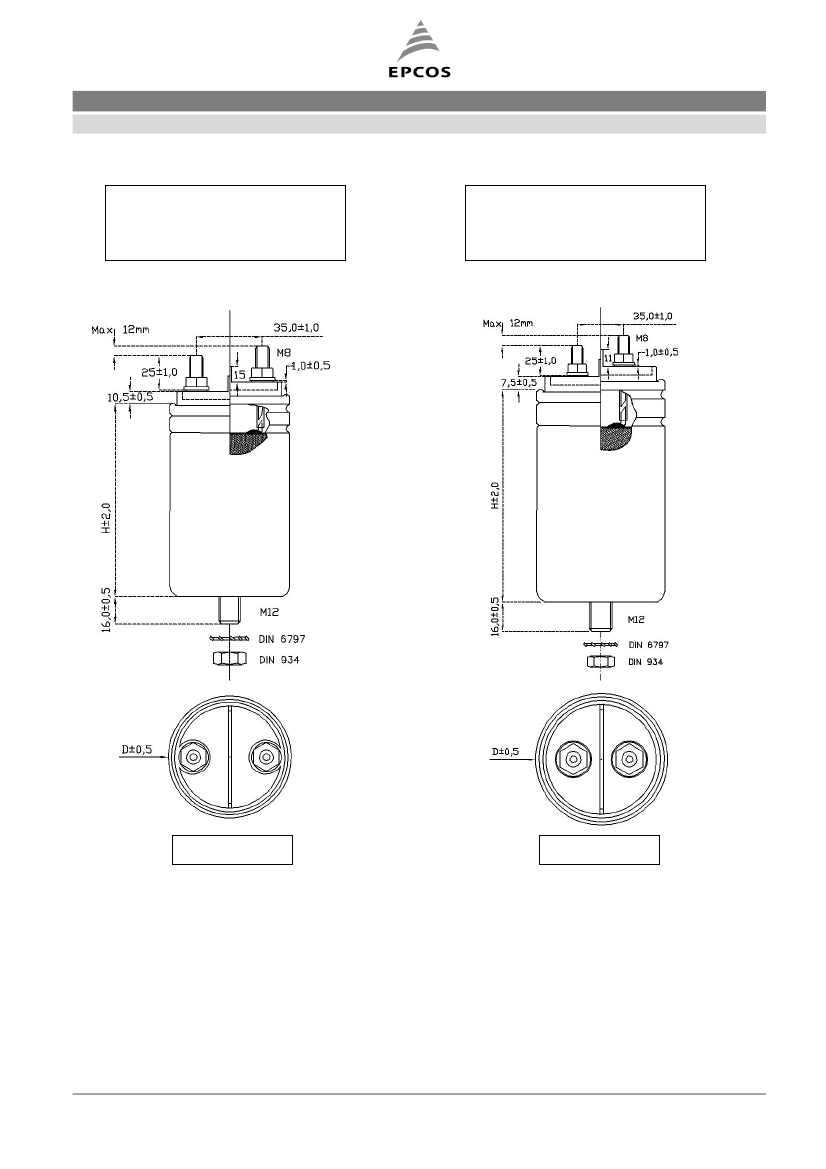

B32364
M8 screw terminals
D < 75mm
Before Safety
Device operation
After Safety
Device operation
B32360 ... B32364
B32364
M8 screw terminals
D
≥
75mm
Before Safety
Device operation
After Safety
Device operation
Picture 3
Picture 4
FK PC PEC
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 3 of 12
May 2009
Film capacitors – Power Electronic Capacitors
General purpose applications
Preliminary data
B32360 ... B32364

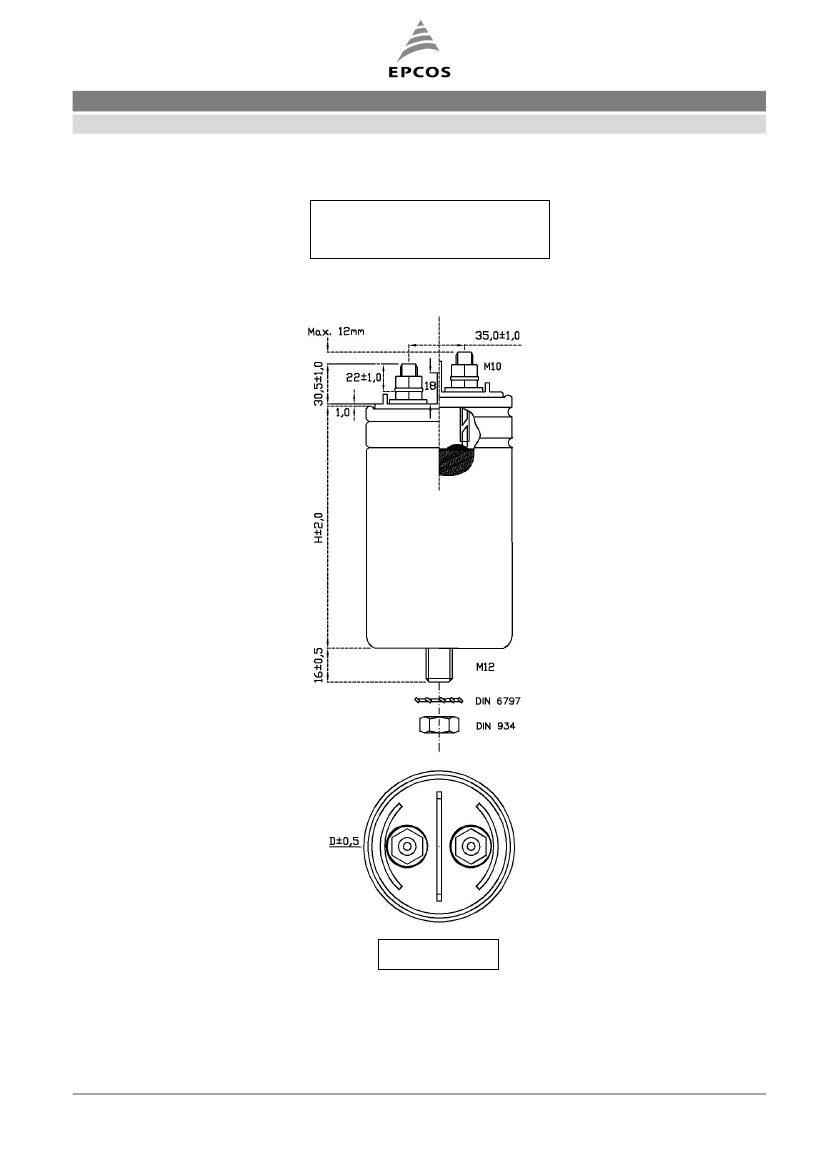

B32362
M10 screw terminals
Before Safety
Device operation
After Safety
Device operation
Picture 5
FK PC PEC
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 4 of 12
May 2009
Film capacitors – Power Electronic Capacitors
General purpose applications
Preliminary data
B32360 ... B32364
Specifications and characteristics
Rated capacitance C
R
:
Tolerance:
Rated AC
voltage
V
RMS
250 V
330 V
480 V
Rated AC
voltage
V
R
350 V
460 V
680 V
3 µF … 600 µF
±5%
Repetitive
peak voltage
V
N
750 V
900 V
1200 V
Non repetitive
peak voltage
V
s
1125 V
1350 V
1800 V
V
R
V
RMS
Test data
Voltage between terminals V
TT
:
Voltage between terminals and aluminum can V
TC
:
Dissipation factor tan
at 100 Hz:
Life test:
Life expectancy:
Climatic category:
stg
*:
min
:
max
**:
hs
***:
Max. permissible humidity:
Max. permissible altitude:
*:
**:
***:
2.15 · V
RMS
, 2 s
3000 V AC
RMS
, 2 s
≤
1.0 · 10
-3
IEC 61071
100000 hours for V
RMS
|C/C|
≤
3%
40/70/21
–40 °C ... +85 °C
–40 °C
+70 °C
+85 °C
95% (t
test
= 21 days)
2000 m above sea level
Considering mounting position with terminals to the top. For other mounting position, please request evaluation.
hs
– maximum temperature allowed at the capacitors hot spot.
stg
– Storage temperature.
Mechanical characteristics
Max. torque (case):
Max. torque (terminal):
M8:
M12:
M6:
M8:
M10:
6 Nm
12 Nm
4 Nm
6 Nm
10 Nm
Construction and general data
Resin filling:
Safety device:
Mounting and grounding:
Cooling:
Degree of protection:
Pollution degree:
Reference standards:
UL approval file:
Non PCB, soft polyurethane
Overpressure disconnector, self-healing technology
Stud on bottom of aluminum can
Naturally air-cooled (or forced air cooling)
Indoor mounting
PD4
IEC 1071
E106388 (Pending for B32364 series)
FK PC PEC
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 5 of 12
