C1005B-Series
THERMAL CIRCUIT PROTECTORS
The C1005B-Series offers the functionality of a switch
and circuit breaker in a single compact package,
which fits an industry standard .500 x 1.125 mounting
hole. This combo device eliminates the need for both
a switch and thermal circuit protector on customer
panels. By using only this multipurpose product,
wiring and assembly costs are greatly reduced, while
at the same time, valuable panel real estate is saved.
The C1005B-Series is available lighted or unlighted, in
a variety of colors, with solder lug or .250 Tabs.
Current ratings range from 7-16 amps@125 and 250
VAC and up to 32 VDC.
Product Applications:
Household and Commercial Appliances
Transportation
Marine
Telecommunications
Power Strips
Audio-visual Equipment
Medical equipment
Power supplies
Generators
Safety Regulatory
Agency Approvals:
UL, CUL, TUV
Product Highlights:
Industry Standard .550 X 1.125 mounting hole
(14mm X 28.6mm)
Ratings from 7-16 Amps
Standard Reset/Off Legend
Aesthetically pleasing Curved Rocker & Angular
Bezel
.250 Tabs or Solder Lug Terminations
65°C Max Operating Temperature
1000 AIC Interrupting Capacity
1500 VAC Dielectric Strength
100 megohms at 500 VDC Insulation Resistance
Compact Space-saving Envelope
UL1077, UL1363, IEC 60934
60 Johnson Avenue • Plainville, CT 06062–1177 • Phone: (860) 793–9281 • Fax: (860) 793–9231
Email: sales
@
carlingtech.com • www.carlingtech.com
C1005B-Series - Ordering Scheme | 3
1
Series
C1005B — 3 B 15 1 B R 3
2
3
4
Illumination Termination Current
Rating
5
Contact
Material
6
Bezel
Legend
7
Rocker
Color
8
Lamp
Voltage
1 SERIES
C1005B
2 ILLUMINATION
2
Non-Lighted
3
Lighted
3 TERMINATION
A
Solder Lug
B
.250 Tab
4 CURRENTRATING (AMPERES)
07
7 amps
08
8 amps
09
9 amps
10
10 amps
11
11 amps
5 CONTACT MATERIAL
1
1
3
SilverCad Oxide (switch), Silver plated copper (breaker)
SilverCad Oxide (switch & breaker)
6 BEZEL LEGEND IMPRINT
B
W
C
Black Bezel with white legend
White Bezel with black legend
Gray Bezel with black legend
7 ROCKER COLOR
R
G
U
T
Red
Green
Blue
Clear
12
13
14
15
16
12 amps
13 amps
14 amps
15 amps
16 amps
Note: RESET OFF Legend is standard.
8 LAMP VOLTAGE
3
9
Notes:
1 Silver cad oxide switch and breaker contacts are available as a special order.
Specify 3 for selection 5
Neon Lamp 125/250 VAC
Non-lighted
Time Delay
OVERLOAD TRIP TIME
100%
NO TRIP
150%
TRIP IN 1 HR.
200%
5 - 35 SEC.
300%
1 - 10 SEC.
400%
.45 - 5.5 SEC.
600%
.1 - 20 SEC.
CORRECTION FACTOR
0C
10 C
o
o

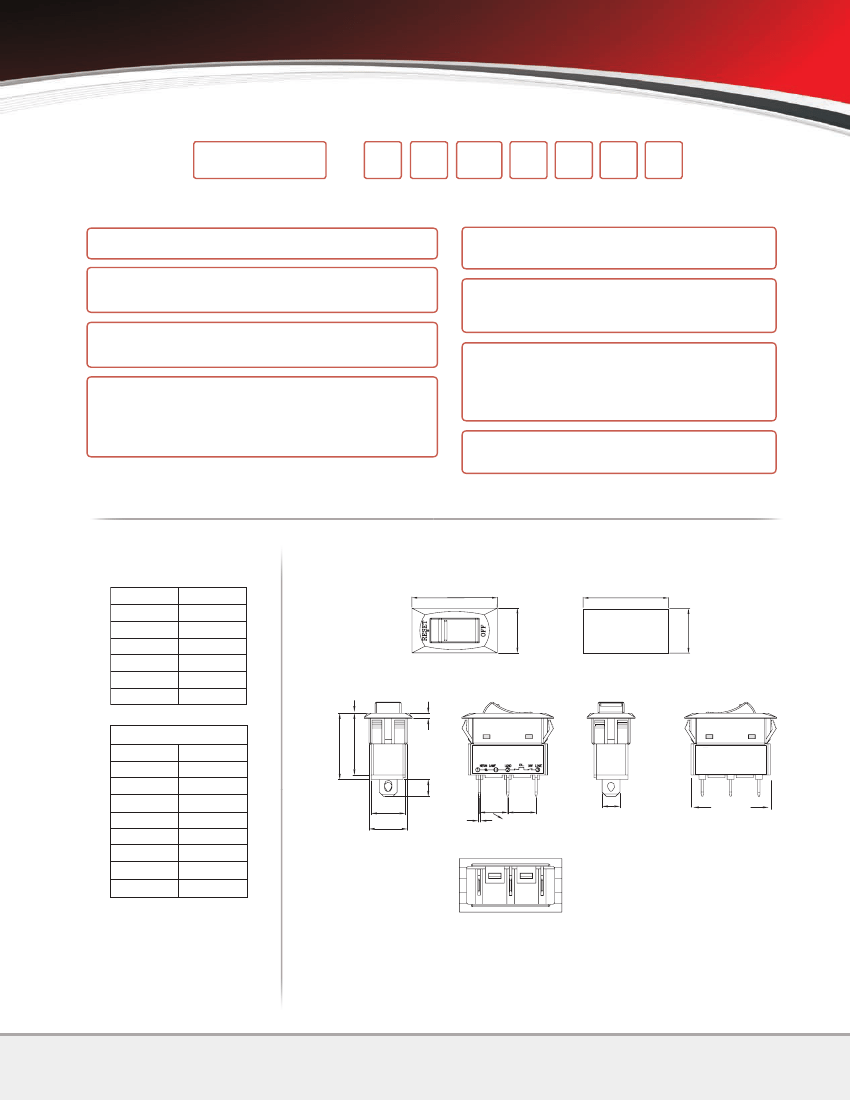

Dimensional Specifications: in. [mm]
1.280 [32.5]
1.125 [28.6]
.669 [17]
PANEL CUT OUT
.550 [14]
.858 [21.8]
.07 [1.79]
x .67
x .72
x .83
x .87
x 1.00
x 1.05
x 1.18
x 1.33
x 1.67
.921 [23.4]
15 C
18 C
o
o
.236 [6]
.394 [10]
.394 [10]
.248 [6.17]
1.102 [28]
25 C
32 C
o
o
.472 [12]
.532 [13.5]
.0315 [.8]
40 C
50 C
60 C
o
o
o
Notes:
1 To adjust the breaker ratings for ambient tem-
perature multiply the breaker rating by the factor.
(ex: 5 amp rating at 0°C: 5 x .67 = 3.3 amp.
Select 3 amp rating.)
2500 amps @ 32 VDC only. AIC rating is 1000
amps for AC applications.
*Manufacturer reserves the right to change product specification without prior notice.
60 Johnson Avenue • Plainville, CT 06062–1177 • Phone: (860) 793–9281 • Fax: (860) 793–9231
Email: sales
@
carlingtech.com • www.carlingtech.com
