Type 350
105 ºC, Low Inductance, Radial, Aluminum Electrolytic
High Frequency, Solid Aluminum Top

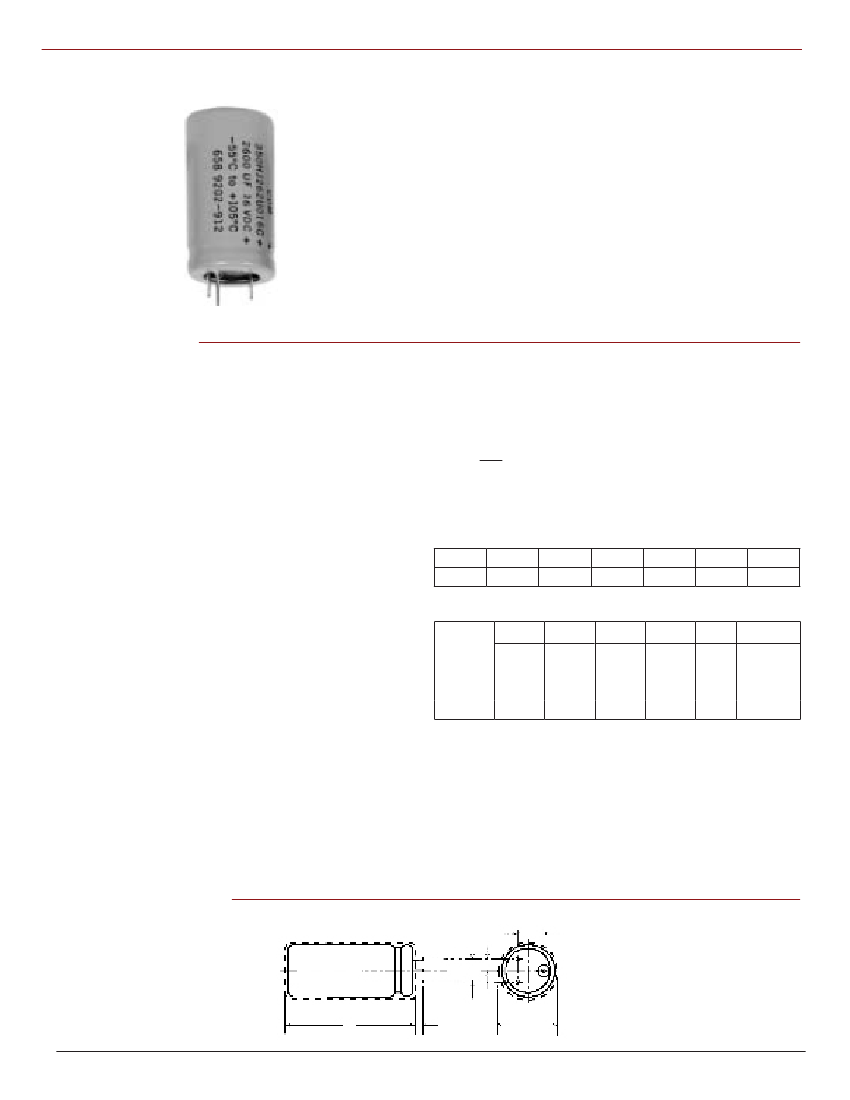

Type 350’s solid aluminum top assures extremely low
impedance. With a typical 4 to 6 nH ESL, the self reso-
nant frequency is well above 100 kHz. The very low
ESR assures the low impedance rating. The capacitors
are fitted with three rugged welded mounting leads to
provide maximum resistance.
Highlights
• Operates to beyond 200 kHz
• Less than 10 nH ESL
• Solid aluminum top
RoHS Compliant
Capacitance Range:
Voltage Range:
Capacitance Tolerance:
Operating Temperature Range:
Shelf Life:
Leakage Current:
Cold Impedance:
90 to 11,000 F
6.3 to 100 Vdc
–10 +75%
–55 ºC to +105
ºC
500 hours @ +105 ºC
≤0.5 √CV µA at +25 ºC
–55 º multiple of +25 ºC Z ≤
6 for 6.3 V, 3 for 10 to 50 V, 2 for 75 & 100 V
Ripple Current Multipliers:
Ambient Temperature
45 ºC
1.66
55 ºC
1.52
65 ºC
1.37
75 ºC
1.20
85 ºC
1.00
95 ºC
0.75
105 ºC
0.36
Specifications
Frequency
60 Hz
6.3 to 20 V
25 to 35 V
50 to 75 V
100 V
0.53
0.45
0.36
0.29
120 Hz
0.65
0.55
0.50
0.40
360 Hz
0.73
0.65
0.60
0.52
1 kHz
0.90
0.85
0.80
0.75
5 kHz 10 kHz & up
0.95
0.92
0.90
0.87
1.00
1.00
1.00
1.00
Load Life:
Shelf Life:
Vibration:
Outline Drawing
4,000 h @ +105 ºC at full load
∆ Capacitance ±10%
ESR 150% of limit
DCL 100% of limit
500 h @ 105 ºC, capacitance, ESR and DCL,
initial requirement
10 to 55 Hz, 0.06” and 10 g max, 2 h in each
plane
T
±.015
S1 S2
L
+0.015
-0.032
D
CDM Cornell Dubilier
•
140 Technology Place
•
Liberty, SC 29657
•
Phone: (864)843-2277
•
Fax: (864)843-3800
•
www.cde.com
Type 350
105 ºC, Low Inductance, Radial, Aluminum Electrolytic
Case Dimensions
Case
Code
GE
GJ
GL
GP
HE
HJ
HL
HP
JJ
Nominal
DxL
3/4 x 1 1/8
3/4 x 1 5/8
3/4 x 2 1/8
3/4 x 2 5/8
7/8 x 1 1/8
7/8 x 1 5/8
7/8 x 2 1/8
7/8 x 2 5/8
1 x 1 5/8
Insulated
DxL
0.775 x 1.157
0.775 x 1.657
0.775 x 2.157
0.775 x 2.657
0.900 x 1.157
0.900 x 1.657
0.900 x 2.157
0.900 x 2.657
1.025 x 1.657
Inches
S1
±0.015
0.2
0.2
0.2
0.2
0.3
0.3
0.3
0.3
0.3
S2
±0.015
0.10
0.10
0.10
0.10
0.15
0.15
0.15
0.15
0.15
0.3
0.3
0.3
0.3
0.4
0.4
0.4
0.4
0.4
T
Part Numbering System
350
Type
350
JP
Case Code
See table
1152
Capacitance
900 = 90 µF
161 = 160 µF
882 = 8800 µF
1152 = 11500 µF
U
Tolerance
U = –10 +75%
T = –10 +50%
6R3
Voltage
6R3 = 6.3 Vdc
063 = 63 Vdc
100 = 100 Vdc
C
Insulation
O = Bare can
B = Plastic insulation with epoxy
C = Plastic insulation, no epoxy

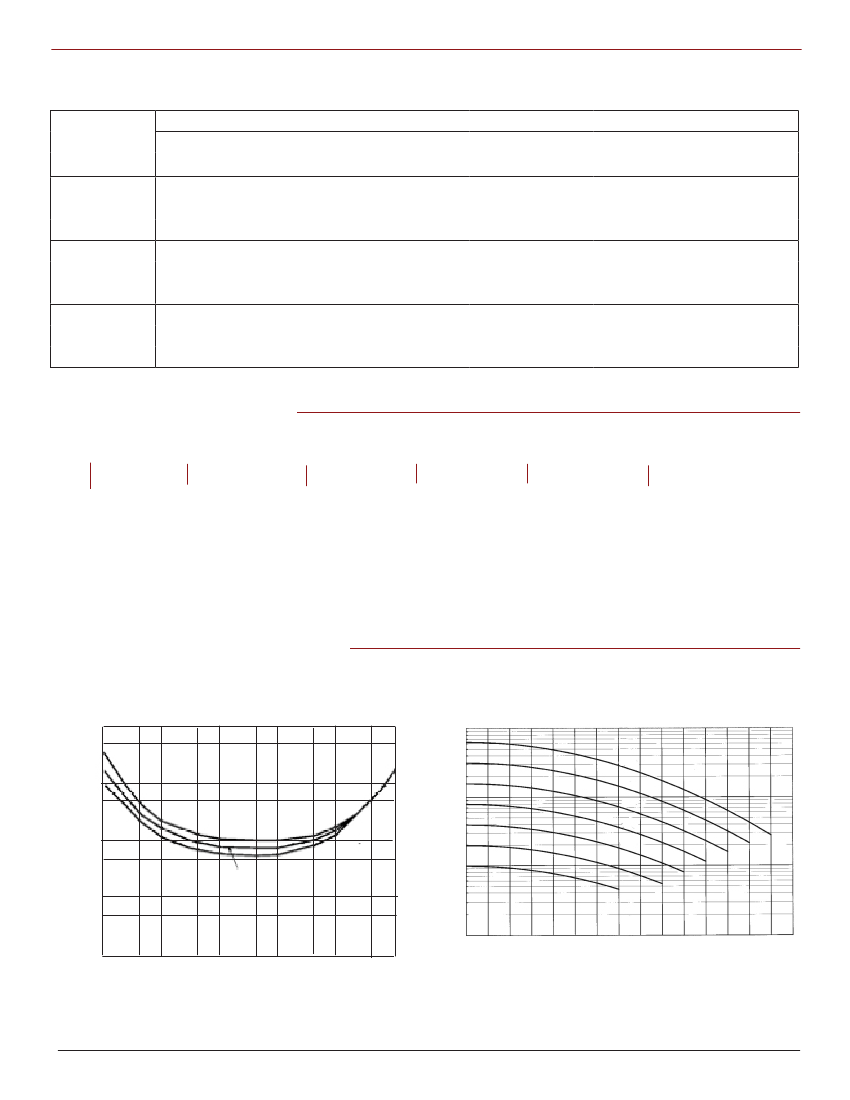

Typical Performance Curves
Type 350 Impedance vs. Frequency
1000
45 ºC
55 ºC
100
65 ºC
75 ºC
85 ºC
10
105 ºC
95 ºC
10
Type 350 Operating Life in Kilohours vs. Ripple Current
1.0
Impedance (Ω)
3,400 µF 6.3 Vdc
0.1
11,500 µF 6.3 Vdc
6,100 µF 6.3 Vdc
0.01
Expedted Operating Life, kh
1
0.001
100
0
0.1
0.2
0.3 0.4 0.5 0.6 0.7 0.8 0.9
1
1.1
1.2
1.3 1.4 1.5
1000
10k
100k
1M
10M
Rated Ripple-Current Multiple
Frequency (Hz)
CDM Cornell Dubilier
•
140 Technology Place
•
Liberty, SC 29657
•
Phone: (864)843-2277
•
Fax: (864)843-3800
•
www.cde.com
Typical Performance Curves
ESR - Ratio to 25 ºC Value
100
≥ 50 Vdc
10
≤ 40 Vdc
1
Type 350
105 ºC, Low Inductance, Radial, Aluminum Electrolytic
Capacitance - % of 25 ºC Value
110
ESR vs. Temperature Characteristics (10 kHz)
Capacitance vs. Temperature (120 Hz)
100
≥ 75 Vdc
6.3 Vdc
90
80
0.1
-55
-40
-20
0
25
40
60
85
105
70
-55
-40
-20
0
25
40
60
85
105
Temperature (ºC)
Temperature (ºC)
Ratings
ESR Max Ω
Cap
(µF)
1600
2400
3000
3400
4200
4400
5400
6100
6300
8300
8800
11000
1500
2300
2700
3200
3900
4200
5100
5800
6000
7900
8400
11000
1400
2100
2600
3000
3800
3900
4800
5400
Catalog
Part Number
350GE162U6R3C
350HE242U6R3C
350GJ302U6R3C
350JE342U6R3C
350GL422U6R3C
350HJ442U6R3C
350GP542U6R3C
350JJ612U6R3C
350HL632U6R3C
350HP832U6R3C
350JL882U6R3C
350JP113U6R3C
350GE152U7R5C
350HE232U7R5C
350GJ272U7R5C
350JE322U7R5C
350GL392U7R5C
350HJ422U7R5C
350GP512U7R5C
350JJ582U7R5C
350HL602U7R5C
350HP792U7R5C
350JL842U7R3C
350JP113U7R5C
350GE142U010C
350HE212U010C
350GJ262U010C
350JE302U010C
350GL382U010C
350HJ392U010C
350GP482U010C
350JJ542U010C
+25 ºC
120 Hz
0.087
0.065
0.050
0.058
0.035
0.037
0.029
0.033
0.027
0.022
0.024
0.020
0.091
0.068
0.052
0.059
0.037
0.039
0.030
0.034
0.028
0.023
0.025
0.020
0.098
0.072
0.055
0.062
0.039
0.041
0.031
0.036
20 kHz
0.043
0.035
0.025
0.031
0.018
0.020
0.015
0.018
0.015
0.013
0.014
0.012
0.044
0.035
0.026
0.031
0.018
0.021
0.015
0.018
0.015
0.013
0.014
0.012
0.045
0.035
0.026
0.032
0.019
0.021
0.015
0.019
6.3 Vdc (8.5 Vdc Surge)
0.040
0.034
0.025
0.031
0.019
0.022
0.017
0.020
0.018
0.016
0.016
0.015
0.040
0.034
0.025
0.030
0.019
0.022
0.016
0.019
0.018
0.016
0.016
0.014
0.040
0.034
0.025
0.030
0.019
0.022
0.016
0.020
3.2
3.7
4.6
4.0
6.6
5.6
8.0
6.2
7.5
8.8
8.1
9.6
3.2
3.7
4.6
3.9
6.6
5.6
7.9
6.1
7.4
8.8
8.0
9.5
3.1
3.6
4.5
3.6
6.5
5.5
7.8
5.7
3/4 x 1 1/8
7/8 x 1 1/8
3/4 x 1 5/8
1 x 1 1/8
3/4 x 2 1/8
7/8 x 1 5/8
3/4 x 2 5/8
1 x 1 5/8
7/8 x 2 1/8
7/8 x 2 5/8
1 x 2 1/8
1 x 2 5/8
3/4 x 1 1/8
7/8 x 1 1/8
3/4 x 1 5/8
1 x 1 1/8
3/4 x 2 1/8
7/8 x 1 5/8
3/4 x 2 5/8
1 x 1 5/8
7/8 x 2 1/8
7/8 x 2 5/8
1 x 2 1/8
1 x 2 5/8
3/4 x 1 1/8
7/8 x 1 1/8
3/4 x 1 5/8
1 x 1 1/8
3/4 x 2 1/8
7/8 x 1 5/8
3/4 x 2 5/8
1 x 1 5/8
800
1200
1500
1700
350GE801U020C
350HE122U020C
350GJ152U020C
350JE172U020C
950
1500
1700
2000
2500
2600
3200
3600
3800
4900
5200
6800
350GE951U016C
350HE152U016C
350GJ172U016C
350JE202U016C
350GL252U016C
350HJ262U016C
350GP322U016C
350JJ362U016C
350HL382U016C
350HP492U016C
350JL522U016C
350JP682U016C
1100
1700
2000
2400
2900
3000
3700
4200
4400
5800
6100
8000
350GE112U012C
350HE172U012C
350GJ202U012C
350JE242U012C
350GL292U012C
350HJ302U012C
350GP372U012C
350JJ422U012C
350HL442U012C
350HP582U012C
350JL612U012C
350JP802U012C
5600
7300
7800
10000
350HL562U010C
350HP732U010C
350JL782U010C
350JP103U010C
Imped.
Ω +25 ºC
100 kHz
Ripple
A +85 ºC
20 kHz
Nom
Size (in)
DxL
Cap
(µF)
Catalog
Part Number
ESR Max Ω
+25 ºC
120 Hz
0.030
0.024
0.026
0.021
0.108
0.079
0.061
0.067
0.044
0.045
0.035
0.038
0.032
0.026
0.028
0.023
0.116
0.085
0.066
0.071
0.047
0.048
0.037
0.041
0.034
0.028
0.029
0.024
0.125
0.089
0.070
0.075
20 kHz
0.015
0.013
0.014
0.012
0.046
0.036
0.027
0.032
0.019
0.021
0.016
0.029
0.016
0.013
0.014
0.012
0.047
0.037
0.027
0.033
0.020
0.022
0.016
0.019
0.016
0.013
0.014
0.012
0.048
0.038
0.028
0.033
10 Vdc (12 Vdc Surge)
0.018
0.016
0.016
0.015
0.042
0.034
0.025
0.031
0.020
0.022
0.017
0.020
0.018
0.016
0.016
0.015
0.042
0.035
0.025
0.031
0.020
0.022
0.017
0.020
0.018
0.016
0.016
0.015
0.042
0.035
0.026
0.031
7.3
8.7
7.5
9.0
3.1
3.6
4.4
3.8
6.4
5.4
7.7
6.0
7.2
8.6
7.8
9.3
3.0
3.5
4.3
3.7
6.3
5.3
7.6
5.9
7.1
8.4
7.7
9.2
3.0
3.5
4.2
3.7
7/8 x 2 1/8
7/8 x 2 5/8
1 x 2 1/8
1 x 2 5/8
3/4 x 1 1/8
7/8 x 1 1/8
3/4 x 1 5/8
1 x 1 1/8
3/4 x 2 1/8
7/8 x 1 5/8
3/4 x 2 5/8
1 x 1 5/8
7/8 x 2 1/8
7/8 x 2 5/8
1 x 2 1/8
1 x 2 5/8
3/4 x 1 1/8
7/8 x 1 1/8
3/4 x 1 5/8
1 x 1 1/8
3/4 x 2 1/8
7/8 x 1 5/8
3/4 x 2 5/8
1 x 1 5/8
7/8 x 2 1/8
7/8 x 2 5/8
1 x 2 1/8
1 x 2 5/8
3/4 x 1 1/8
7/8 x 1 1/8
3/4 x 1 5/8
1 x 1 1/8
Imped.
Ω +25 ºC
100 kHz
Ripple
A +85 ºC
20 kHz
Nom
Size (in)
DxL
12 Vdc (18 Vdc Surge)
7.5 Vdc (10 Vdc Surge)
16 Vdc (20 Vdc Surge)
10 Vdc (12 Vdc Surge)
20 Vdc (25 Vdc Surge)
CDM Cornell Dubilier
•
140 Technology Place
•
Liberty, SC 29657
•
Phone: (864)843-2277
•
Fax: (864)843-3800
•
www.cde.com
Type 350
105 ºC, Low Inductance, Radial, Aluminum Electrolytic
Notice and Disclaimer:
All product drawings, descriptions, specifications, statements, information and
data (collectively, the “Information”) in this datasheet or other publication are subject to change. The
customer is responsible for checking, confirming and verifying the extent to which the Information con-
tained in this datasheet or other publication is applicable to an order at the time the order is placed. All
Information given herein is believed to be accurate and reliable, but it is presented without any guaran-
tee, warranty, representation or responsibility of any kind, expressed or implied. Statements of suitability
for certain applications are based on the knowledge that the Cornell Dubilier company providing such
statements (“Cornell Dubilier”) has of operating conditions that such Cornell Dubilier company regards
as typical for such applications, but are not intended to constitute any guarantee, warranty or representa-
tion regarding any such matter – and Cornell Dubilier specifically and expressly disclaims any guarantee,
warranty or representation concerning the suitability for a specific customer application, use, storage,
transportation, or operating environment. The Information is intended for use only by customers who
have the requisite experience and capability to determine the correct products for their application. Any
technical advice inferred from this Information or otherwise provided by Cornell Dubilier with reference
to the use of any Cornell Dubilier products is given gratis (unless otherwise specified by Cornell Dubilier),
and Cornell Dubilier assumes no obligation or liability for the advice given or results obtained. Although
Cornell Dubilier strives to apply the most stringent quality and safety standards regarding the design
and manufacturing of its products, in light of the current state of the art, isolated component failures may
still occur. Accordingly, customer applications which require a high degree of reliability or safety should
employ suitable designs or other safeguards (such as installation of protective circuitry or redundancies
or other appropriate protective measures) in order to ensure that the failure of an electrical component
does not result in a risk of personal injury or property damage. Although all product-related warnings,
cautions and notes must be observed, the customer should not assume that all safety measures are indi-
cated in such warnings, cautions and notes, or that other safety measures may not be required.
CDM Cornell Dubilier
•
140 Technology Place
•
Liberty, SC 29657
•
Phone: (864)843-2277
•
Fax: (864)843-3800
•
www.cde.com
京公网安备 11010802033920号
EEWORLD
