Continental Device India Pvt. Limited
An IATF 16949, ISO9001 and ISO 14001 Certified Company

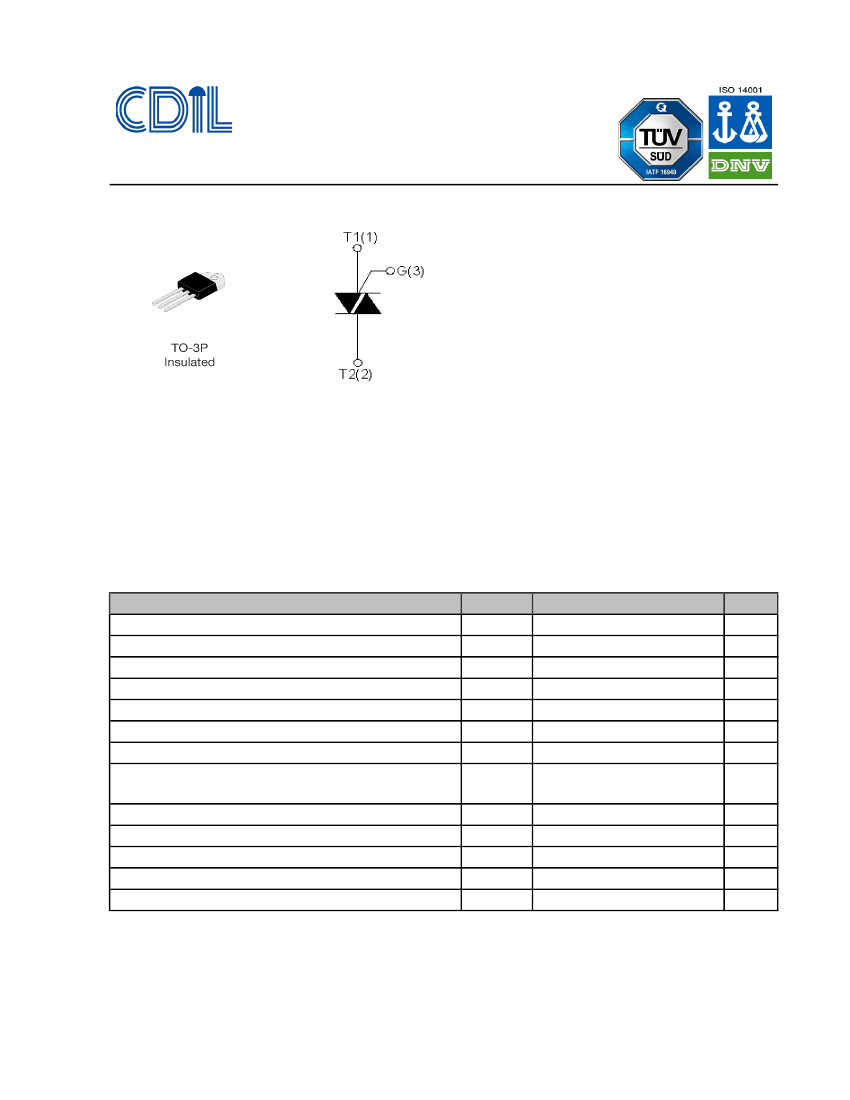

40A TRIACS
BTA41-600/
800/1200/1600
TO-3P
Leaded Plastic
Package
RoHS compliant
FEATURES:
1. High ability to withstand the shock loading of large current
2. Provide high dv/dt rate with strong resistance to electromagnetic interface
3. High commutation performances
APPLICATIONS:
3 quadrants products especially recommended for use on inductive load
ABSOLUTE MAXIMUM RATINGS (T
a
= 25
℃
)
PARAMETER
Storage junction temperature range
Operating junction temperature range
Repetitive peak off-state voltage (T
j
=25°C)
Repetitive peak reverse voltage (T
j
=25°C)
Non repetitive surge peak Off-state voltage
Non repetitive peak reverse voltage
RMS on-state current (T
C
=80°C)
Non repetitive surge peak on-state current (full cycle,
F=50Hz)
I2t value for fusing (t
p
=10ms)
Critical rate of rise of on-state current (I
G
=2×I
GT
)
Peak gate current
Average gate power dissipation
Peak gate power
SYMBOL
T
stg
T
j
V
DRM
V
RRM
V
DSM
V
RSM
I
T(RMS)
I
TSM
I
2
t
dI/dt
I
GM
P
G(AV)
P
GM
VALUE
-40 to 150
-40 to 125
600/800/1200/1600
600/800/1200/1600
V
DRM
+100
V
RRM
+100
40
400
880
50
4
1
10
UNIT
°C
°C
V
V
V
V
A
A
A
2
s
A/μs
A
W
W
BTA41
Rev1_24052020EBJ
Continental Device India Pvt. Limited
Data Sheet
Page 1 of 6
Continental Device India Pvt. Limited
An IATF 16949, ISO9001 and ISO 14001 Certified Company
ELECTRICAL CHARACTERISTICS at T
a
= 25
℃
(Unless otherwise specified)
PARAMETER
3 Quadrants
Gate Trigger Current
Gate Trigger Voltage
Off-State Gate Voltage
Latching Current
Holding Current
Critical Rate of Rise of Off-
State Voltage
4 Quadrants
Gate Trigger Current
Gate Trigger Voltage
Off-State Gate Voltage
Latching Current
Holding Current
Critical Rate of Rise of Off-
State Voltage
STATIC CHARACTERISTICS
On-State Voltage
Off-State Leakage Current
THERMAL RESISTANCES
Junction to case (AC)
V
TM
I
DRM
I
RRM
R
th(j-c)
I
TM
=60A, tp=380μs,
T
j
=25°C
V
D
=V
DRM
V
R
=V
RRM
T
j
=25°C
T
j
=125°C
1.55
10
5
0.9
V
μA
mA
°C/W
I
GT
V
GT
V
GD
I
L
I
H
dV/dt
(dV/dt)c
V
D
=V
DRM
, T
j
=125°C, R
L
=3.3KΩ
I
G
=1.2I
GT
I
T
=100mA
V
D
=2/3V
DRM
Gate Open T
j
=125°C
Without snubber
Tj=125°C
V
D
=12V R
L
=33Ω
I - II - III
IV
ALL
ALL
I - III - IV
II
MAX
MAX
MIN
MAX
MAX
MIN
MIN
50
70
1.5
0.2
90
100
80
500
30
mA
V
V
mA
mA
V/μs
V/μs
SYMBOL
I
GT
V
GT
V
GD
I
L
I
H
dV/dt
(dV/dt)c
TEST CONDITIONS
V
D
=12V R
L
=33Ω
V
D
=V
DRM
, T
j
=125°C, R
L
=3.3KΩ
I
G
=1.2I
GT
I
T
=100mA
V
D
=2/3V
DRM
Gate Open
Tj =125°C
Without snubber
Tj=125°C
QUADRANT
I - II - III
I - II - III
I - II - III
I - III
II
MAX
MAX
MIN
MAX
MAX
MIN
MIN
VALUE UNITS
50
1.3
0.2
80
100
60
1000
20
mA
V
V
mA
mA
V/μs
V/μs
BTA41
Rev1_24052020EBJ
Continental Device India Pvt. Limited
Data Sheet
Page 2 of 6
Continental Device India Pvt. Limited
An IATF 16949, ISO9001 and ISO 14001 Certified Company

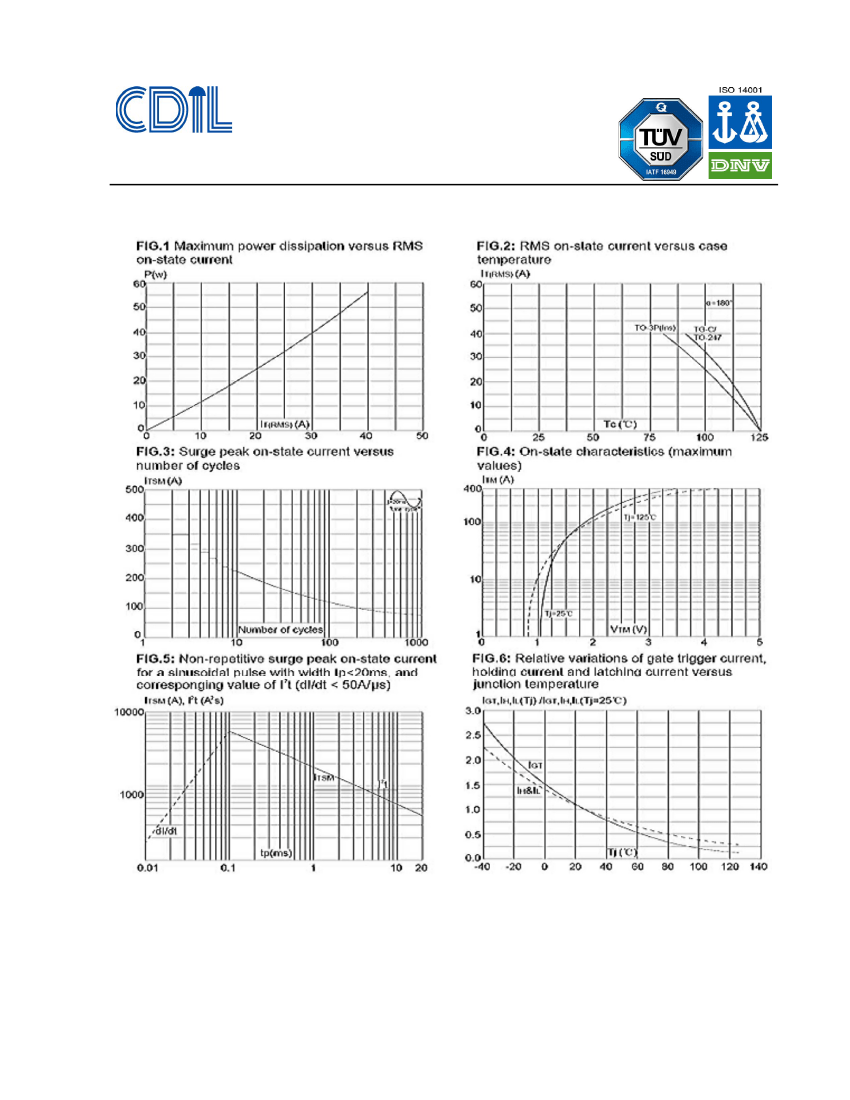

Typical Characteristic Curves
BTA41
Rev1_24052020EBJ
Continental Device India Pvt. Limited
Data Sheet
Page 3 of 6
Continental Device India Pvt. Limited
An IATF 16949, ISO9001 and ISO 14001 Certified Company

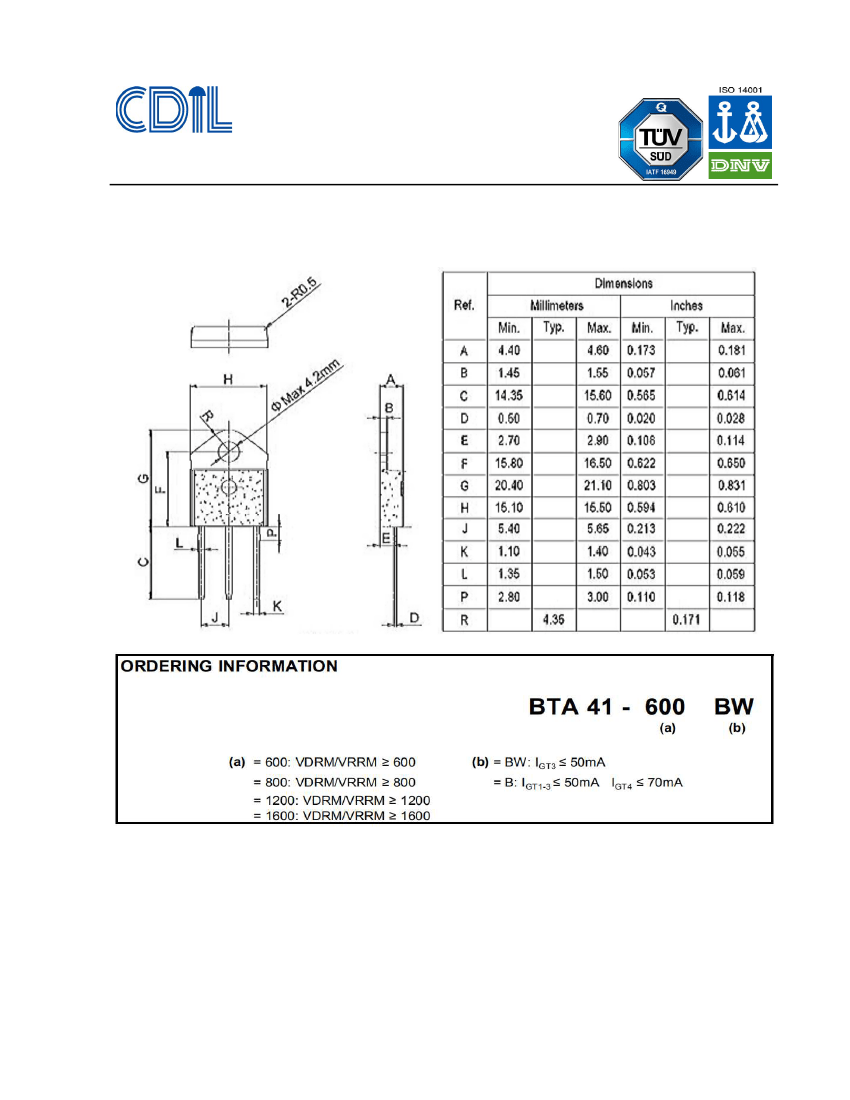

Package Details
TOP3
BTA41
Rev1_24052020EBJ
Continental Device India Pvt. Limited
Data Sheet
Page 4 of 6
Continental Device India Pvt. Limited
An IATF 16949, ISO9001 and ISO 14001 Certified Company
Recommended Product Storage Environment for Discrete
Semiconductor Devices
This storage environment assumes that the Diodes and transistors are packed properly inside the original
packing supplied by CDIL.
Temperature 5 °C to 30 °C
Humidity between 40 to 70 %RH
Air should be clean.
Avoid harmful gas or dust.
Avoid outdoor exposure or storage in areas subject to rain or water spraying .
Avoid storage in areas subject to corrosive gas or dust. Product shall not be stored in areas exposed to
direct sunlight.
Avoid rapid change of temperature.
Avoid condensation.
Mechanical stress such as vibration and impact shall be avoided.
The product shall not be placed directly on the floor.
The product shall be stored on a plane area. They should not be turned upside down. They should not
be placed against the wall.
Shelf Life of CDIL Products
The shelf life of products is the period from product manufacture to shipment to customers. The product can
be unconditionally shipped within this period. The period is defined as 2 years.
If products are stored longer than the shelf life of 2 years the products shall be subjected to quality check as
per CDIL quality procedure.
The products are further warranted for another one year after the date of shipment subject to the above
conditions in CDIL original packing.
Floor Life of CDIL Products and MSL Level
When the products are opened from the original packing, the floor life will start.
For this, the following JEDEC table may be referred:
JEDEC MSL Level
Time
Unlimited
1 Year
4 Weeks
168 Hours
72 Hours
48 Hours
24 Hours
Time on Label(TOL)
Level
1
2
2a
3
4
5
5a
6
Condition
≤30 °C / 85% RH
≤30 °C / 60% RH
≤30 °C / 60% RH
≤30 °C / 60% RH
≤30 °C / 60% RH
≤30 °C / 60% RH
≤30 °C / 60% RH
≤30 °C / 60% RH
BTA41
Rev1_24052020EBJ
Continental Device India Pvt. Limited
Data Sheet
Page 5 of 6
