APH-2-36-SDA-GD-HT datasheet, PDF

Datasheet> All Categories > The connector> The connector> APH-2-36-SDA-GD-HT

APH-2-36-SDA-GD-HT: DescriptionBoard Connector, 36 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size114KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

APH-2-36-SDA-GD-HT Overview

Board Connector, 36 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle

APH-2-36-SDA-GD-HT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1294389833
Reach Compliance Code	unknown
Country Of Origin	Mainland China, Taiwan, USA
ECCN code	EAR99
YTEOL	9.1
Other features	ROHS COMPLIANT
body width	0.197 inch
subject depth	0.1 inch
body length	1.8 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Durability	1000 Cycles
Insulation resistance	5000000000 Ω
insulator material	POLYAMIDE
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	36

Preview

Download Datasheet

View All

SPECIFICATIONS

Contact material:

Contact plating:

Insulator material:

Processing temperature:

Brass

Gold flash over nickel

Nylon 6T

260°C for 10 sec.

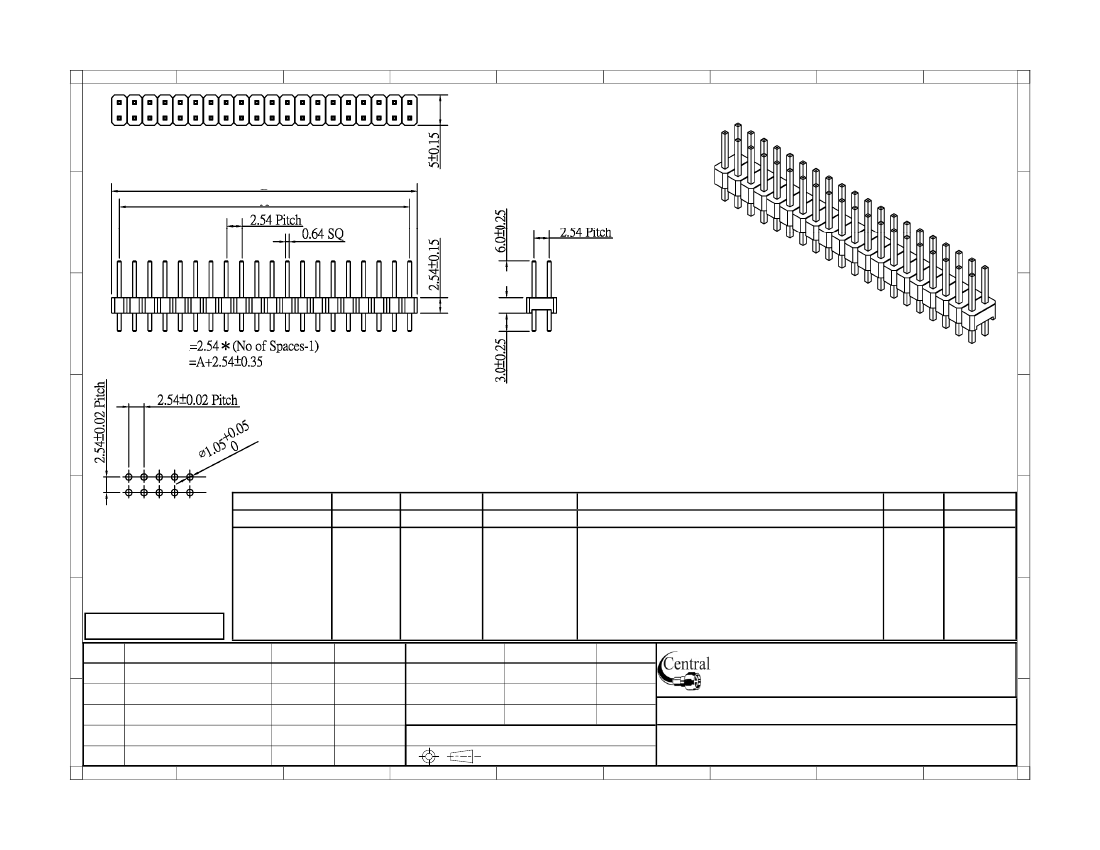

PC Board Layout

RoHS compliant

Rev.

Description

Series

Rows

APH-X

Pin header,

2=2 rows

2.54mm pitch

Blank=.100”

(2.54mm)

C=.059” (1.5mm)

D=.067” (1.7mm)

Date

Approved

Positions

Type

Contact Length

Plating

Options

SDA

2-80 positions RA=Right Angle SDA=Standard contact A (A length=.240”, B length=.120”) GD=Gold HT=High-

Blank=Straight SDB=Standard contact B (A length=.318”, B length=.120”) flash

temperature

CSL=Customer specified length

insulator

(A=mating length/C=tail offset length/E=overall length

[A+C+Insulator+B])

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

Date

09/26/07

09/26/07 Part No.:

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

APH-2-XX-SDA-GD-HT

0.00 ± 0.20 Angles ± 3’

UNIT: mm

Description: Pin header, dual row, straight, 2.54mm pitch, high-

temperature insulator
