C3PH-2-C-RA-80-SD-SG03: DescriptionBoard Connector, 80 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size184KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

C3PH-2-C-RA-80-SD-SG03 Overview

Board Connector, 80 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Receptacle

C3PH-2-C-RA-80-SD-SG03 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1166989827
Reach Compliance Code	unknown
Country Of Origin	Mainland China, Taiwan, USA
ECCN code	EAR99
YTEOL	9.15
Other features	ROHS COMPLIANT
body width	0.134 inch
body length	2 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	300VAC V
Insulation resistance	1000000000 Ω
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Plating thickness	3u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.091 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	80

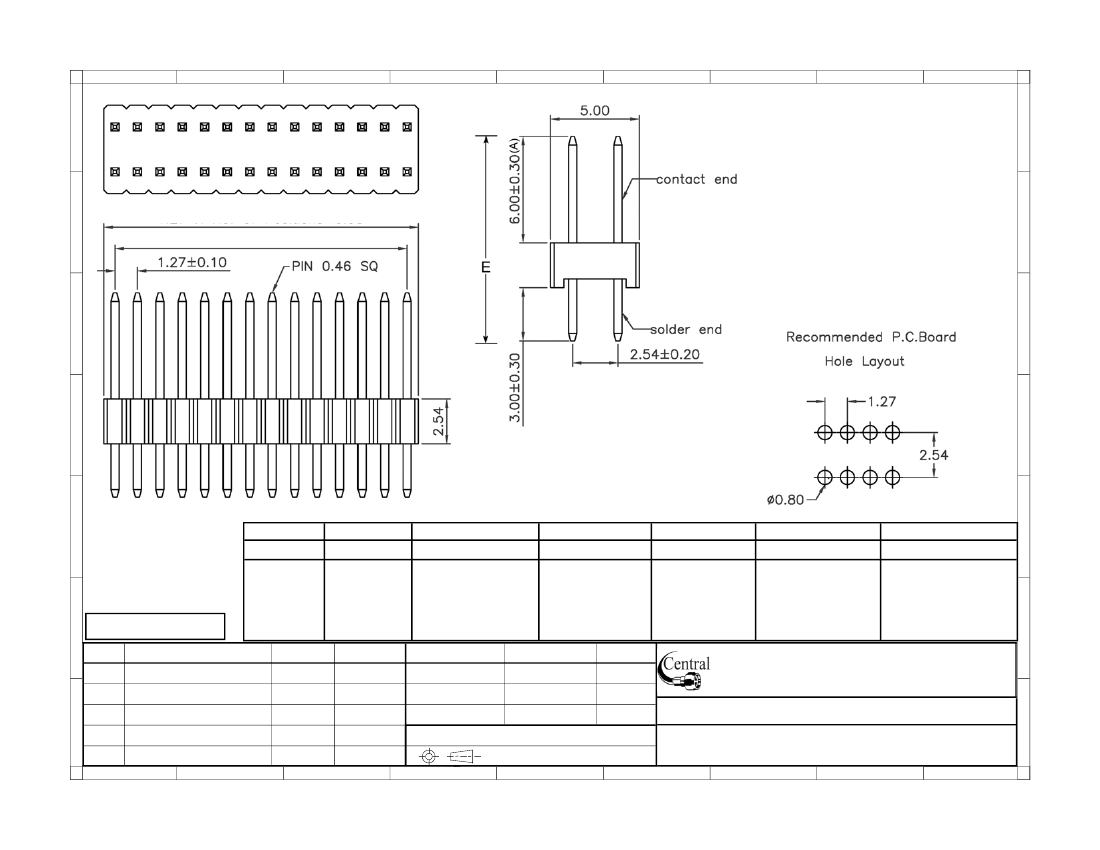

C3PH-2-C-RA-80-SD-SG03 Preview

1

2

3

4

5

6

7

8

9

A

B

1.27 X (No. of Positions/2)

1.27 X (No. of Positions/2 –1)

H

SPECIFICATIONS

Current Rating:

Contact Material:

Contact Resistance:

Insulation Material:

Insulation Resistance:

Withstanding:

Operating Temp:

1 Amp

Brass

20mΩ Max.

Polyester UL94V-0

1000MΩ Max.

300V AC

-40ºC to +105ºC

B

C

D

E

Series

C3PH

Pin Header

.05 x .100

Rows

X

2=Dual Row

1=Single Row

Height (H)

X

Blank=.100” (2.54mm)

C=.067” (1.70mm)

G=.055” (1.4mm)

Type

XX

ST=Straight

RA=Right Angle

SM=Surface Mount

Positions

XX

01-40 Single Row

02-80 Double

F

RoHS compliant

Rev.

Description

Date

Approved

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

1

2

3

4

Pin Length

Plating

XX

SD=.236/.454

TN=Tin

CS=Custom Specified SGXX=Selective Gold

Length (A/E)

GDXX=Gold

XX=Flash if blank,

3,5,10,15,30

E

F

Date

7/12/06

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

Part No.:

C3PH-2-ST-XX-SD-XX

G

7

8

9

G

0.00 ± 0.20 Angles ± 3’

UNIT: mm

5

6

Description: 1.27 Pin Header Dual Rows DIP Type

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
