EVERLIGHT ELECTRONICS CO.,LTD.
Technical Data Sheet
Full Color Chip LED
(Chip
LED with Right Angle Lens)
12-23C/S2GHBHC-A01/2C
Features
․Package
in 8mm tape on 7〞diameter reel.
․Compatible
with automatic placement equipment.
․Compatible
with infrared and vapor phase reflow
solder process.
․Multi-color
type.
․Pb-free.
․The
product itself will remain within RoHS compliant version.
Descriptions
․The
12-23C SMD Taping is much smaller
than lead frame type components, thus
enable smaller board size, higher packing
density, reduced storage space and finally
smaller equipment to be obtained.
․Besides,
lightweight makes them ideal for
miniature applications. etc.
Applications
․Automotive:
backlighting in dashboard and switch.
․Telecommunication:
indicator and backlighting in
telephone and fax.
․Flat
backlight for LCD, switch and symbol.
․General
use.
Device Selection Guide
Chip
Type
S2
GH
BH
Material
AlGaInP
InGaN
InGaN
Emitted Color
Brilliant Orange
Brilliant Green
Blue
Water Clear
Lens Color
Everlight Electronics Co., Ltd.
Device No. : DSE-123-008
http://www.everlight.com
Prepared date: 07-26-2005
Rev. 2
Page: 1 of 12
Prepared by : Jeff Tsai
EVERLIGHT ELECTRONICS CO.,LTD.
12-23C/S2GHBHC-A01/2C

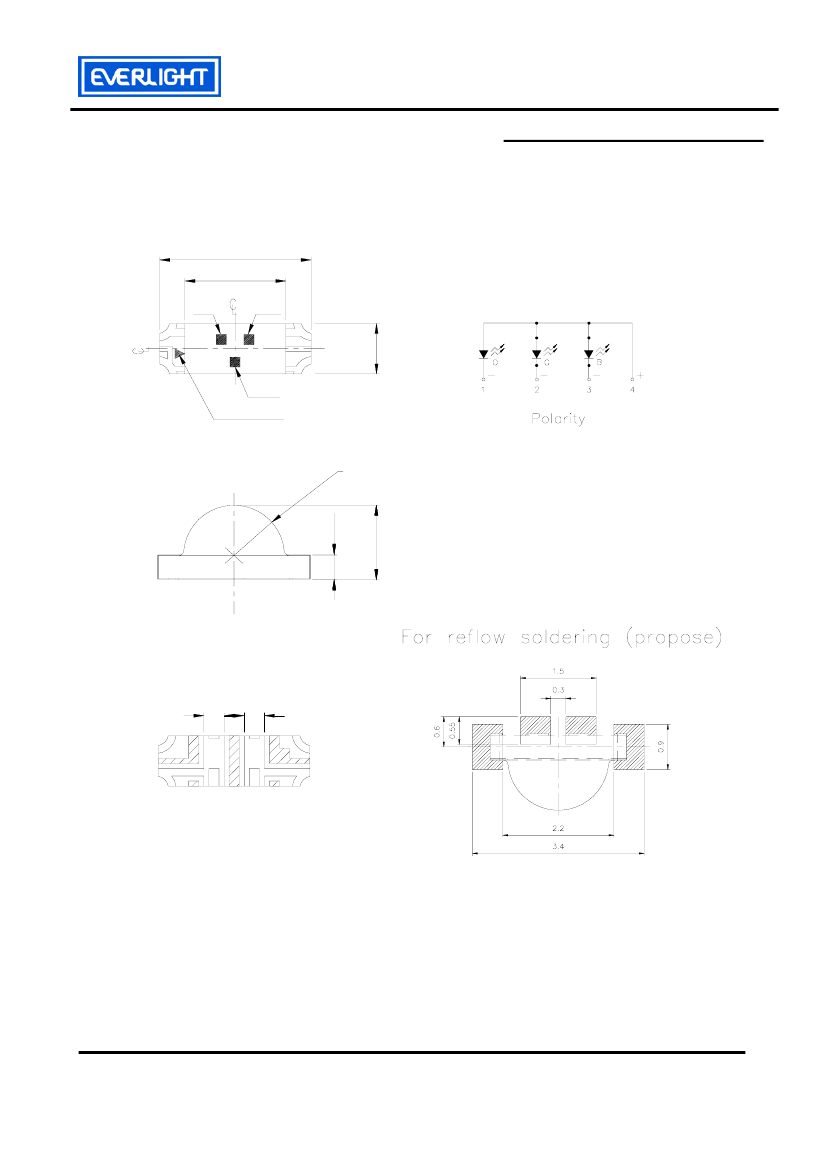

Package Outline Dimensions
3.0
2.0
3
Blue
Green
2
1.0
4
Orange
1
Anode mark
R1.0
0.50
0.40
4
0.40
1
1.50
1
2
3
4
3
2
Note:
The tolerances unless mentioned is
±0.1mm
,Unit = mm
Everlight Electronics Co., Ltd.
Device No. : DSE-123-008
http://www.everlight.com
Prepared date: 07-26-2005
Rev. 2
Page: 2 of 12
Prepared by : Jeff Tsai
EVERLIGHT ELECTRONICS CO.,LTD.
12-23C/S2GHBHC-A01/2C
Absolute Maximum Ratings (Ta=25℃)
Parameter
Reverse Voltage
Symbol
V
R
Rating
5
S2:25
Forward Current
I
F
GH:25
BH:25
Operating Temperature
Storage Temperature
Soldering Temperature
Topr
Tstg
Tsol
-40 ~ +85
-40 ~ +90
260 (for 5
seconds)
S2:60
Power Dissipation
Pd
GH:110
BH:110
Peak Forward Current
(Duty 1/10 @1KHz)
S2:60
I
FP
GH:100
BH:100
mA
mW
℃
℃
℃
mA
Unit
V
Everlight Electronics Co., Ltd.
Device No. : DSE-123-008
http://www.everlight.com
Prepared date: 07-26-2005
Rev. 2
Page: 3 of 12
Prepared by : Jeff Tsai
EVERLIGHT ELECTRONICS CO.,LTD.
12-23C/S2GHBHC-A01/2C
Electro-Optical Characteristics (Ta=25℃)
Parameter
Symbol
S2
Min.
72
140
36
-----
Typ.
140
210
65
100
611
Max.
Unit
Condition
Luminous Intensity
Iv
GH
BH
-----
mcd
I
F
=20mA
Viewing Angle
2θ1/2
S2
-----
deg
I
F
=20mA
Peak Wavelength
λp
GH
BH
S2
-----
518
468
605
-----
nm
I
F
=20mA
Dominant Wavelength
λd
GH
BH
S2
-----
525
470
17
-----
nm
I
F
=20mA
Spectrum Radiation
Bandwidth
△λ
GH
BH
S2
-----
25
25
2.0
-----
nm
I
F
=20mA
2.4
3.9
3.9
10
V
I
F
=20mA
Forward Voltage
V
F
GH
BH
S2
-----
3.3
3.3
Reverse Current
I
R
GH
BH
-----
-----
50
50
μA
V
R
=5V
Notes:
1.Tolerance of Luminous Intensity
±10%
2.Tolerance of Dominant Wavelength
±1nm
3.Tolerance of Forward Voltage
±0.1V
Everlight Electronics Co., Ltd.
Device No. : DSE-123-008
http://www.everlight.com
Prepared date: 07-26-2005
Rev. 2
Page: 4 of 12
Prepared by : Jeff Tsai
EVERLIGHT ELECTRONICS CO.,LTD.
12-23C/S2GHBHC-A01/2C

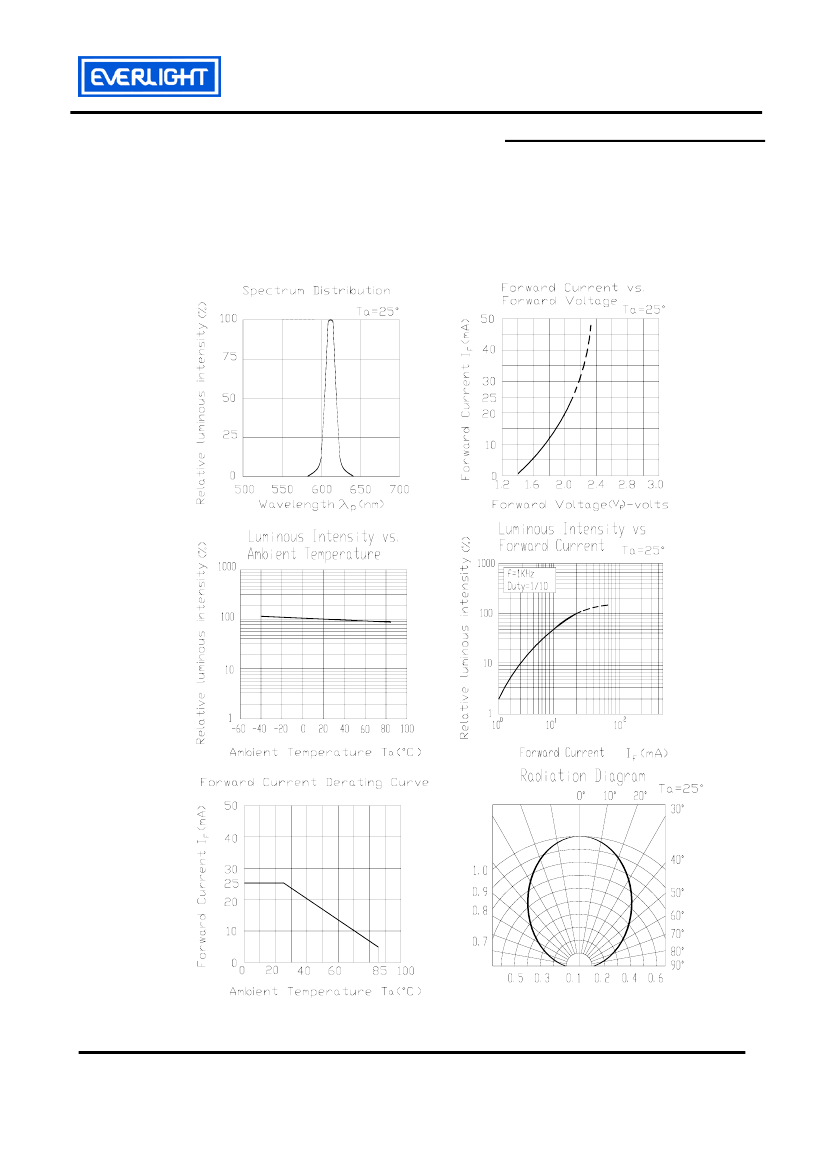

Typical Electro-Optical Characteristics Curves
S2
Everlight Electronics Co., Ltd.
Device No. : DSE-123-008
http://www.everlight.com
Prepared date: 07-26-2005
Rev. 2
Page: 5 of 12
Prepared by : Jeff Tsai
