8808A/SU-120V Overview

digital multimeters 5.5 digit multimeter SW usb cable kit

8808A/SU-120V Parametric

Parameter Name	Attribute value
Manufacture	Fluke
Product Category	Digital Multimeters
RoHS	Yes
Produc	Multimeters
Type	Bench
Accuracy	0.01 %
Voltage Range	200 mVDC to 1000 VDC, 200 mVAC to 750 VAC
Resistance Range	200 Ohms to 100 MOhms
Frequency	20 Hz to 1 MHz
Ranging	Au
True RMS	True RMS
Data Hold	No Data Hold
Number of Digits	5 1/2 Digi
Factory Pack Quantity	1
Unit Weigh	2.1 kg

Preview

Download Datasheet

View All

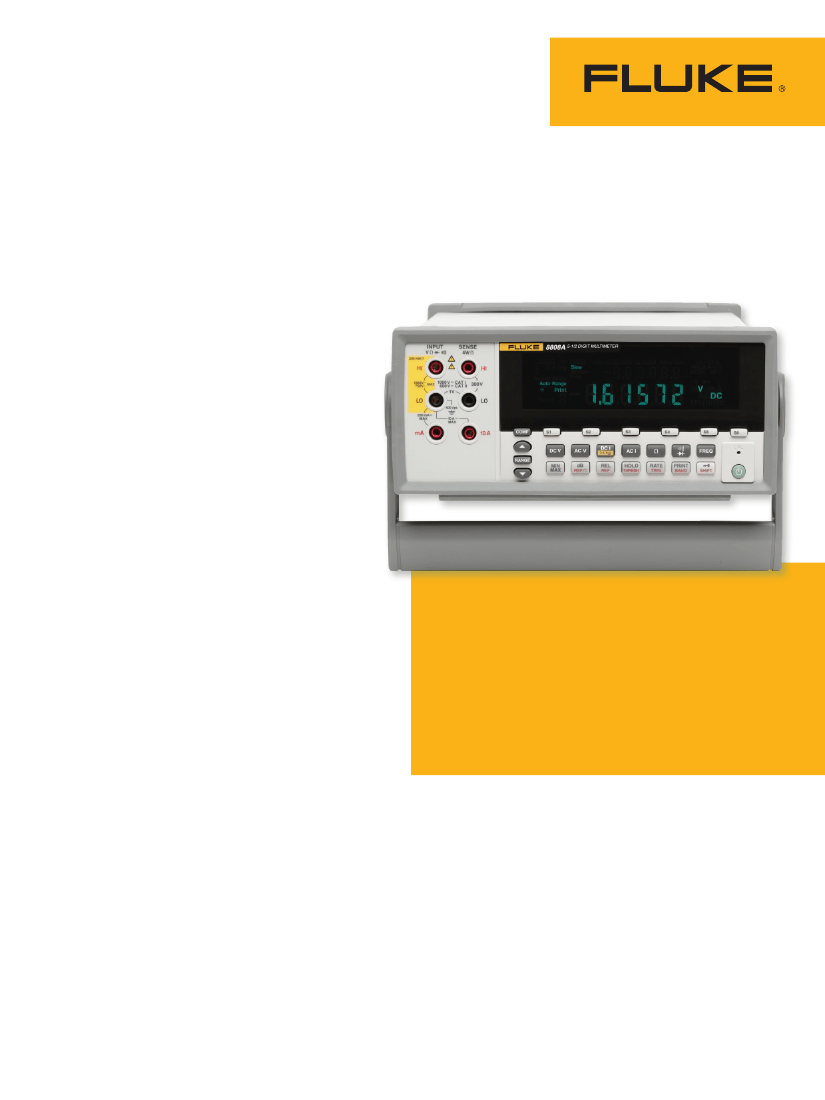

Fluke 8808A

Digital Multimeter

Extended Specifications

Making measurements is

as simple as pushing a

button

The Fluke 8808A 5.5 digit

multimeter has a broad range

of functions, measuring volts,

ohms and amps with a basic

V dc accuracy of 0.01 %. It is

remarkably easy to use, even by

unskilled operators, because it

makes the measurements you

perform most often extremely

easy and fast to do.

Six setup buttons on the

8808A front panel operate like

a car radio’s station presets.

Simply set up the meter for a

common measurement, then

Features at a glance

press shift followed by a setup

button (S1 to S6) to save the

•

5.5 digit resolution

setup. Now each time you

•

Basic V dc accuracy of 0.01 %

perform that measurement, you

•

Dual display

simply press the appropriate

•

Dedicated dc leakage current measurement

setup key. It’s that easy!

The setup buttons eliminate

•

2x4 ohms 4-wire measurement technique

the need to follow complex work

•

Six dedicated buttons for fast access to instrument setups

instruction sheets. Operators no

•

Hi.Lo limit compare for Pass/Fail testing

longer need to press multiple

buttons to set up a measurement

•

Fluke 45 remote command emulation

function and range, test limits, or

enter other parameters to make

a measurement.

Whether you are performing

The 8808A display has

built-in enunciators that clearly

functional tests or making

Eliminate production

show the operator whether a

critical measurements on test

mistakes

test passes or fails. The pass/fail

points, using the limit compare

indicators take the guesswork

The Fluke 8808A 5.5 digit

mode with pass/fail indicators

out of testing: the result is either

multimeter dependably performs eliminates production mistakes,

within limits or it’s out.

the most common measurements especially those where results

required by today’s applications. are “on the edge.”

General Specifications

Voltage

100V Setting ..............................................................90 V to 110 V

120V Setting .............................................................108 V to 132 V

220V Setting .............................................................198 V to 242 V

240V Setting .............................................................216 V to 264 V

Frequency ...................................................................47 Hz to 440 Hz

Power Consumption ..................................................15 VA peak (10 W average)

Dimensions

Height..........................................................................88 mm (3.46 in)

Width...........................................................................217 mm (8.56 in)

Depth ..........................................................................297 mm (11.7 in)

Weight.........................................................................2.1 kg (4.6 Ib)

Display

Vacuum Fluorescent Display, segment

Environment

Temperature

Operating................................................................0 C to 50 C

Storage....................................................................-40 C to 70 C

Warm Up.................................................................½ hour to full uncertainty specifications

Relative Humidity (non-condensing)

Operating................................................................Uncontrolled (< 10 C)

<90 % (10 C to 28 C)

<75 % (28 C to 40 C)

<45 % (40 C to 50 C)

Storage ...................................................................-40 C to 70 C <95 %

Altitude

Operating ...............................................................2,000 Meters

Storage ........................................................................12,000 Meters

Vibration .....................................................................Complies with MIL-PRF-28800F Class 3

Safety

Complies with IEC 61010-1:2001, ANSI/ISA 61010-1 (S82.02.01):2004, UL 61010-1:2004, CAN/CSA C22.2 No.

61010.1:2004, CAT I 1000V/CAT II 600 V

EMC

Designed to comply with IEC 61326-1:1997+A1:1998+A2:2000

Triggering

Trigger Delay ............................................................400 ms

External Trigger Delay .............................................<2 ms

External Trigger Jitter ..............................................<1 ms

Trigger Input .............................................................TTL Levels

Trigger Output............................................................5 V max

Math Functions

Min/max, relative, hold, compare and dB functions

Electrical

Input Protection ........................................................1000 V all ranges

Overrange ...................................................................10 % on the largest ranges of all functions except continuity and diode

test

Remote Interfaces

RS-232C

Warranty

One year

Fluke Corporation

Fluke 8808A Digital Multimeter Extended Specifications

2 Fluke Corporation
