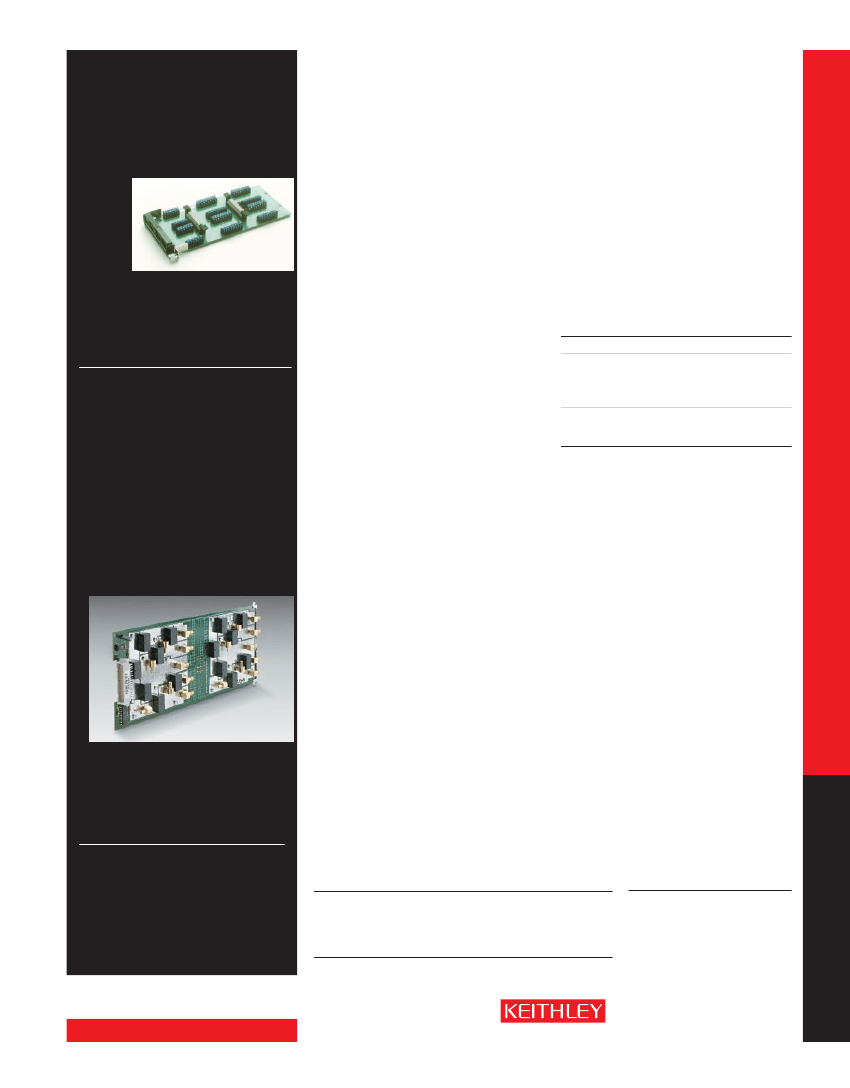

7015-C
7015-S
40-channel Solid State Multiplexer Cards
Quad 1×10 Configuration
The Model 7015 40-channel solid state multi-
plexer is designed for multipoint measurement
applications that require high reliability and
increased scanning speeds. With an MTBF of
more than 30,000 hours, the 7015 can handle
applications that require continuous use over
longer periods of time. The solid state switch
technology also provides fast switching times for
scanning rates of over 300 channels/measure-
ments per second when used with the 7002/2001
or 7001/2001 combination.
MULTIPLEX CONFIGURATION:
4 independent 1×10 2-pole
multiplex banks or 2 independent 1×10 4-pole multiplex
banks. Adjacent banks can be connected together. Jumpers
can be removed to isolate any bank from the backplane.
CONTACT CONFIGURATION:
2-pole Form A (Hi, Lo).
CONNECTOR TYPE:
7015-C:
96-pin male DIN connector.
7015-S:
Screw terminal, #16AWG maximum wire size, with
0.092 inch O.D. 28 conductors per card maximum. #22AWG
typical wire size with 0.062 inch O.D. 88 conductors per card
maximum.
MAXIMUM SIGNAL LEVEL:
175V peak between any two pins,
34mA resistive load, 0.3VA max., 1×10
6
V·Hz max.
COMMON MODE VOLTAGE:
175V peak, any pin to chassis.
CONTACT TYPE:
Solid state switch.
CHANNEL RESISTANCE (per conductor):
<210Ω.
CONTACT POTENTIAL: 7015-C:
<5µV per channel contact pair.
7015-S:
<4µV per channel contact pair.
OFFSET CURRENT:
<1nA.
ACTUATION TIME:
<500µs.
ISOLATION: Bank:
>10
9
Ω,
<25 pF.
Channel to Channel:
>10
9
Ω,
<50 pF.
Differential:
Configured as 1×10: >10
9
Ω,
<100pF.
Configured as 1×40: >10
9
Ω,
<200pF.
Common Mode:
Configured as 1×10: >10
9
Ω,
<375pF.
Configured as 1×40: >10
9
Ω,
<1100pF.
INSERTION LOSS (50Ω Source, 1MΩ Load):
<0.1dB below
250kHz, <3dB below 500kHz.
Use with 7001 and 7002 switch mainframes
•
Quad 1×10 (40-channel)
solid-state multiplexer
•
30,000 hours MTBF
•
Scan/measure over 300 ch/s
ACCESSORIES AVAILABLE
FOR 7015-C
7011-KIT-R 96-pin Female Connector Kit
7011-MTC-1 96-pin Mass Terminated Cable, Female to Female, 1m
7011-MTC-2 96-pin Mass Terminated Cable, Female to Female, 2m
FOR 7015-S
7015-ST
Extra screw terminal connection board
Ordering Information
7015-C
40-channel, 2-pole
Independent Switch with
96-pin Mass Terminated
Connector Board
40-channel, 2-pole
Independent Switch
with Screw Terminal
Connector Board
SERVICES AVAILABLE
7015-C-3Y-EW
7015-S-3Y-EW
1-year factory warranty extended to 3 years
from date of shipment
1-year factory warranty extended to 3 years
from date of shipment
7015-S
7016A
2GHz RF Switch Card
Dual 1×4 Configuration, 50Ω
The Model 7016A has two independent bi-
directional 1×4 multiplexers for the Models 7001
and 7002 Switch Mainframes. The characteristic
impedance of the card is 50Ω. Signal connections
are made to the card with SMA connectors. Off
channels can be resistively terminated. SMB jack
connectors, provided on the card, are designed
to be used with user-supplied terminators to
minimize signal reflection.
MULTIPLEXERS PER CARD:
Two 1×4s (with isolated ground).
CHARACTERISTIC IMPEDANCE:
50Ω nominal.
CHANNELS PER MULTIPLEXER:
4.
CONTACT CONFIGURATION:
1 pole Form A common shield.
RELAY DRIVE CURRENT:
120mA.
CONNECTOR TYPE:
SMA.
RECOMMENDED CABLE:
RG-223/U.
AC PERFORMANCE:
For Z
L
= Z
S
= 50Ω
Insertion Loss (dB):
Crosstalk (dB):
1
Channel-channel
Switch-Switch
VSWR
1
•
DC to 2GHz, 50Ω, signal
switching
•
Off channels can be resistively
terminated
Ordering Information
7016A
Dual 1×4, 2GHz, 50Ω
Multiplexer with
Optional Termination
≤10
MHz
<0.3
<–90
<–90
<1.06
≤100
MHz
<0.6
<–80
<–80
<1.1
≤500
MHz
<1.0
<–65
<–70
<1.2
≤1
GHz
<1.3
<–55
<–65
<1.6
≤2
GHz
<3.0
<–45
<–45
≤1.9
SERVICES AVAILABLE
7016A-3Y-EW
1-year factory warranty
extended to 3 years from
date of shipment
Specification assumes 50Ω termination.
1.888.KEITHLEY
(U.S. only)
w w w.keithley.com
A
G R E A T E R
M E A S U R E
O F
C O N F I D E N C E
SWITCHING AND CONTROL
TERMINATION:
User supplied 50Ω SMB termination (on
unselected inputs).
ACTUATION TIME:
8ms.
MAXIMUM VOLTAGE:
Any terminal (center or shield) to any
other center or chassis: 30V.
MAXIMUM CARRY CURRENT:
0.5A.
MAXIMUM CARRY POWER:
10VA up to 900MHz, 3VA @ 2GHz.
ISOLATION: Multiplexer to Multiplexer:
>1GΩ.
Center to
Shield:
>1GΩ, <50pF.
Channel to Channel:
>100MΩ.
RISE TIME:
<200ps.
SIGNAL DELAY:
<3ns; channels matched to 50ps.
CONTACT POTENTIAL:
<6µV.
CONTACT RESISTANCE:
0.5Ω.
CONTACT LIFE:
3×10
5
@ 30V @ 10mA. 3×10
5
@ 900MHz,
1W. 1×10
6
@ cold switching.
ENVIRONMENT: Operating:
0° to 50°C; up to 35°C at 80% RH.
Storage:
–25°C to 65°C.
EMC:
Conforms with European Union Directive 89/336/EEC.
SAFETY:
Conforms with European Union Directive 73/23/EEC
(meets EN61010-1/IEC 1010).
Use with 7001 and 7002 switch mainframes
