42R03-3224-150 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 42R03-3224-150

Preview

42R03-3224-150: DescriptionMains Power Connector, 15A, 250VAC, Male, Solder Terminal; CategoryThe connector The connector; File Size37KB，1 Pages; ManufacturerPower Dynamics, Inc.; Websitehttp://www.powerdynamics.com/; Environmental Compliance

Download Datasheet Parametric View All

42R03-3224-150 Overview

Mains Power Connector, 15A, 250VAC, Male, Solder Terminal

42R03-3224-150 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Power Dynamics, Inc.
Reach Compliance Code	compliant
Other features	STANDARD: IEC 60320
Connector type	MAINS POWER CONNECTOR
Contact to complete cooperation	NICKEL
Contact completed and terminated	Nickel (Ni)
Contact point gender	MALE
Contact material	BRASS
Coupling type	SNAP
DIN compliance	NO
IEC compliance	YES
MIL compliance	NO
Power Connector Ratings	15A, 250VAC
Installation type	PANEL
Options	GENERAL PURPOSE
Shell material	POLYCARBONATE
Termination type	SOLDER
Total number of contacts	2
Base Number Matches	1

Preview

Download Datasheet

View All

6

5

4

3

2

1

MATERIAL AND FINISH:

Insulator: Polycarbonate, UL-94V-0 rated

Contacts: Brass, Nickel plated

L

50.0+0.5

40.0±0.2

27.0

N

42R03

D

2X Ø3.3±0.2

ORDERING CODE:

42R03-8 __ 2 __

1

2

C

1) COLOR

1 = BLACK

2 = GRAY

2) ELECTRICAL CIRCUIT

CONFIGURATION

1 = 15A 250V 120°C

2+GROUND

2 = 15A 250V 70°C

2+GROUND

2.00

3.00

9.3±0.5

C

B

4 = 15A 250V 70°C

2 POLE

4.0±0.1

CHNG CHCK APPR

14.0±0.2

24.0+0.5

29.5

TERM. DIM.

PB

REVISIONS

CHANGE

A

1/8/10

DATE

REV

A

6

5

4

E

ELECTRICAL SPECIFICATIONS:

V

Current rating: 10 A

D E

Voltage rating: 250 VAC

Current rating: 15 A

Voltage rating: 250 VAC

D

22.5+0.3

19.4

27.5+0.5

45°-3

3X 2.8±0.1

3X 3.0x1.7

2X Ø3.6

20.0+0.5

R4.0 TYP.

3X 0.80

40.0±0.1

19

27.5+0.5

45° +2

2X Ø3.6

2.00±0.05

16.0+0.5

20.0+0.5

4X R1.5±0.2

2X 4.0±0.2

40.0±0.1

RECOMMENDED

PANEL CUTOUT

13.0+0.5

B

4.00

TOLERANCE

UNLESS OTHERWISE SPECIFIED

X ± 1

X.X ± 0.4

X.XX ± 0.20

Phone: 973 560-0019

Whippany, New Jersey

Fax: 973 560-0076

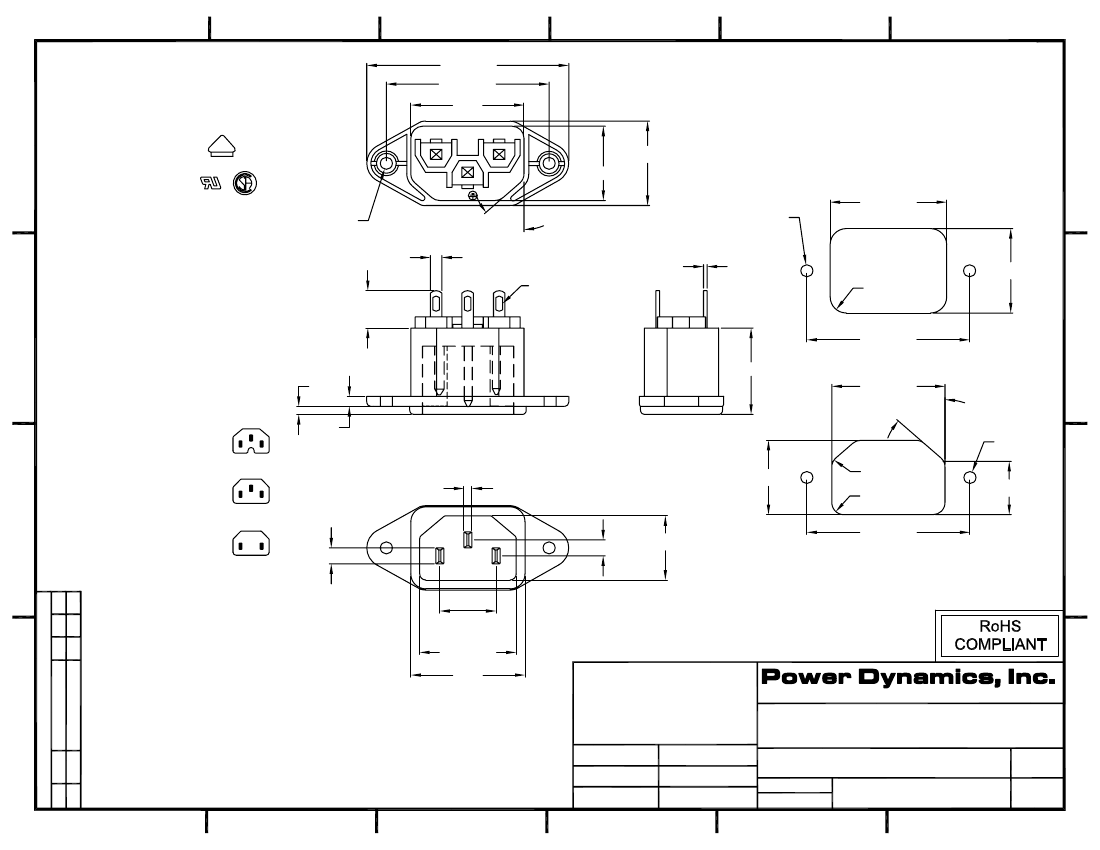

PART: IEC 60320 C14 APPL. INLET; SOLDER

TERMINALS; SIDE FLANGE

PART #:

A

DRAWN

BY

CHECK

BY

APPR

BY

GQ

TD

PB

DATE:

08/17/01

08/20/01

08/21/01

SIZE:

SCALE:

42R03-8X2X

A

NTS

ALL DIMENSIONS FOR REFERENCE ONLY

DIMENSIONS ARE IN MILLIMETERS

SHEET

1 of 1

REV:

A

3

2

1
