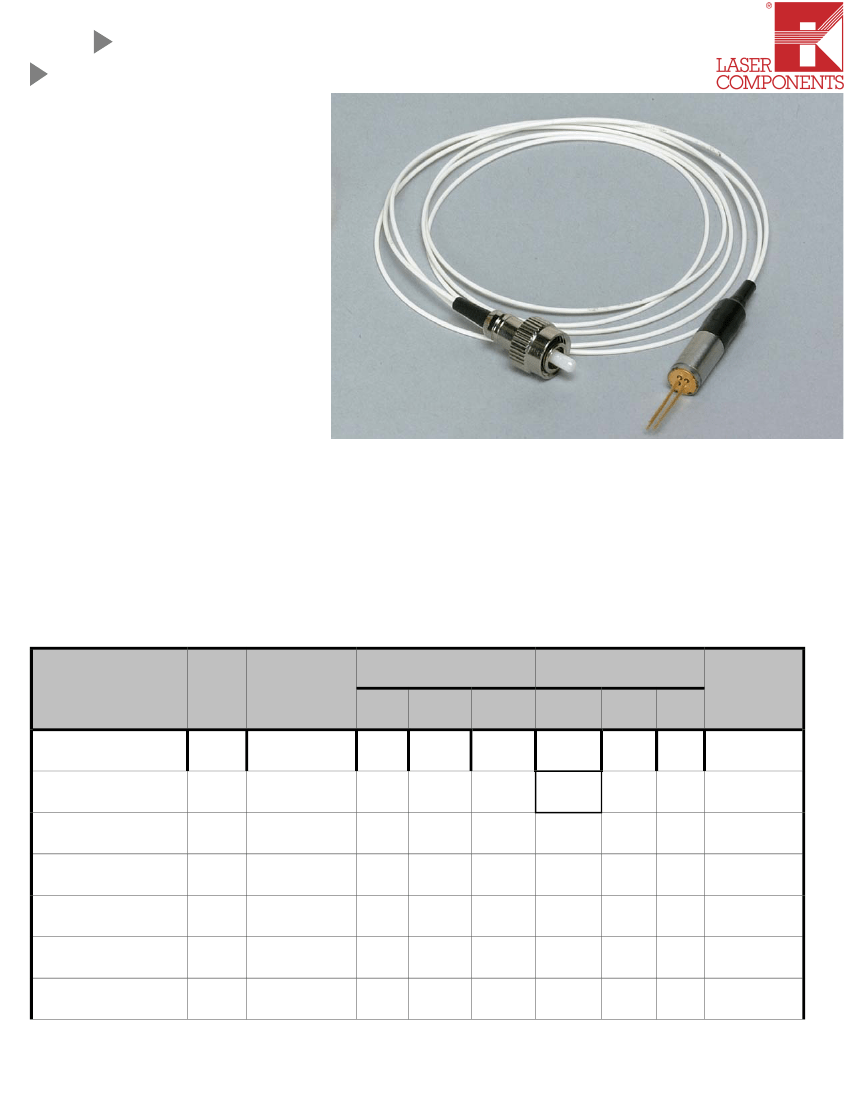

PL13/15 Pulsed Series Laser Diode Modules
PD-LD Inc. now offers a choice of
packaging options for its’ Pulsed Series
of laser diodes. The se units are
available in re ady-to-use, f iber-coupled
packages, including FC, ST, an d SC
receptacles, as well as fiber- pig tailed
units.
These Pulsed InGaAsP
laser
diodes offered by PD-LD are of proven
design and m anufacture; the stan dard
wavelengths ar e ce ntered at 1310 an d
1550nm. Fibe r-coupled Pulsed (d uty
cycle= 1%, p ulse width= 10us) output
powers ra nge f rom 60 to 120 mW,
depending on wavelength an d de sired
performance le vel. Th ese
semiconductor lase rs have
low
threshold an d operating cu rrents that
help to ensure high reli ability and long
operating life.
Optional board- or panel -mount
flanges are a vailable f or p igtailed
devices; contact PD-L D Sale s. Fib er
Pigtailed devices are made u sing a n
active m icro-positioning s ystem an d
YAG La ser welding s ystem e nsuring
high reliabilit y and coup ling ef ficiency.
High power pulsed lasers have a 4
pin configuration and do not have a rear
facet monitor detector.
Features
•
High Power (Pulse 60 to 120mW)
•
Compact, reliable receptacle & coax fiber-coupled package
•
Stable single transverse mode oscillation
•
MQW (Multiple Quantum Well)
Applications
•
Fiberoptic Test Equipment
•
Optical Time Domain Reflectometers
Performance Specifications
Test Condition
Parameter
Symbol
PL13H1201OOA-0-P-01
Min
Typ
1310
7
20
30
3
120
1
Max
1335
10
50
120
4.5
-
2
PL15D1001OOA-0-P-01
MIn
1520
-
-
-
-
60
-
Typ
1550
7
30
50
3
100
1
Max
1580
10
50
180
4.5
-
2
Units
Central Wavelength
Lambda
Delta
Lambda
I
th
I
op
V
op
P
Tr , Tf
I
f
=I
op
Pulse
If=700mA
I
f
=I
op
Pulse
If=700mA
-
CW, Po=5mW
I
f
=I
op
Pulse
If=700mA
I
f
= I
op
Pulse
If=700mA
I
f
= I
th
10~90%
1285
-
-
-
-
100
-
nm
nm
mA
mA
V
mW
ns
Spectral Width
Threshold Current
Operating Current
Operating Voltage
Pulse Light Output
Rise & Fall Time
Above specifications at 25°C .
Specifications subject to change.
09-09 Pulsed.Rev2
Germany and other countries: LASER COMPONENTS GmbH, Phone: +49 8142 2864 0, Fax: +49 8142 2864 11, info@lasercomponents.com
Great Britain: LASER COMPONENTS (UK) Ltd., Phone: +44 1245 491 499, Fax: +44 1245 491 801, info@lasercomponents.co.uk
France: LASER COMPONENTS S.A.S., Phone: +33 1 3959 5225, Fax: +33 1 3959 5350, info@lasercomponents.fr
PD
LD
PL13/15 Pulsed Series Laser Diode Modules
Inc
Physical Dimensions (mm) & Pin Connection
Pigtailed Lasers Ordering Information
PLWWHPPPFCCB-0-V-LL
L
Laser
WWW
Wavelength
13 = 1310nm
15 = 1550nm
Code H for 1310, Code D for 1550
Pin Out
4pin Laser without Monitor Photodiode
PPP
Fiber-Coupled Power
060=
60mW
080=
80mW
100=
100mW
120=
120mW
O= Lead Orientation
0=N/A
Specified by customer
F=
1=
2=
3=
4=
9=
Fiber Type
9/125 SMF
50/125 MMF
62.5/125 MMF
100/140 MMF
Customer Supplied
C=Connector Type
OO=
No Connector
FC=FC/PC
FA=FC/APC
SC=SC/PC
SA=SC/APC
ST=ST/PC
B=Bracket Type
A=No
Bracket
B=Panel
Mount
C=Board
Mount
V= Version
All pulsed lasers are referred by “P” version
LL = Length in meters for pigtailed devices(01,02,0.5
ect.)
Above specifications at 25°C .
Specifications subject to change.
09-09 Pulsed.Rev2
Germany and other countries: LASER COMPONENTS GmbH, Phone: +49 8142 2864 0, Fax: +49 8142 2864 11, info@lasercomponents.com
Great Britain: LASER COMPONENTS (UK) Ltd., Phone: +44 1245 491 499, Fax: +44 1245 491 801, info@lasercomponents.co.uk
France: LASER COMPONENTS S.A.S., Phone: +33 1 3959 5225, Fax: +33 1 3959 5350, info@lasercomponents.fr
PD
LD
PL13/15 Pulsed Series Laser Diode Modules
Inc

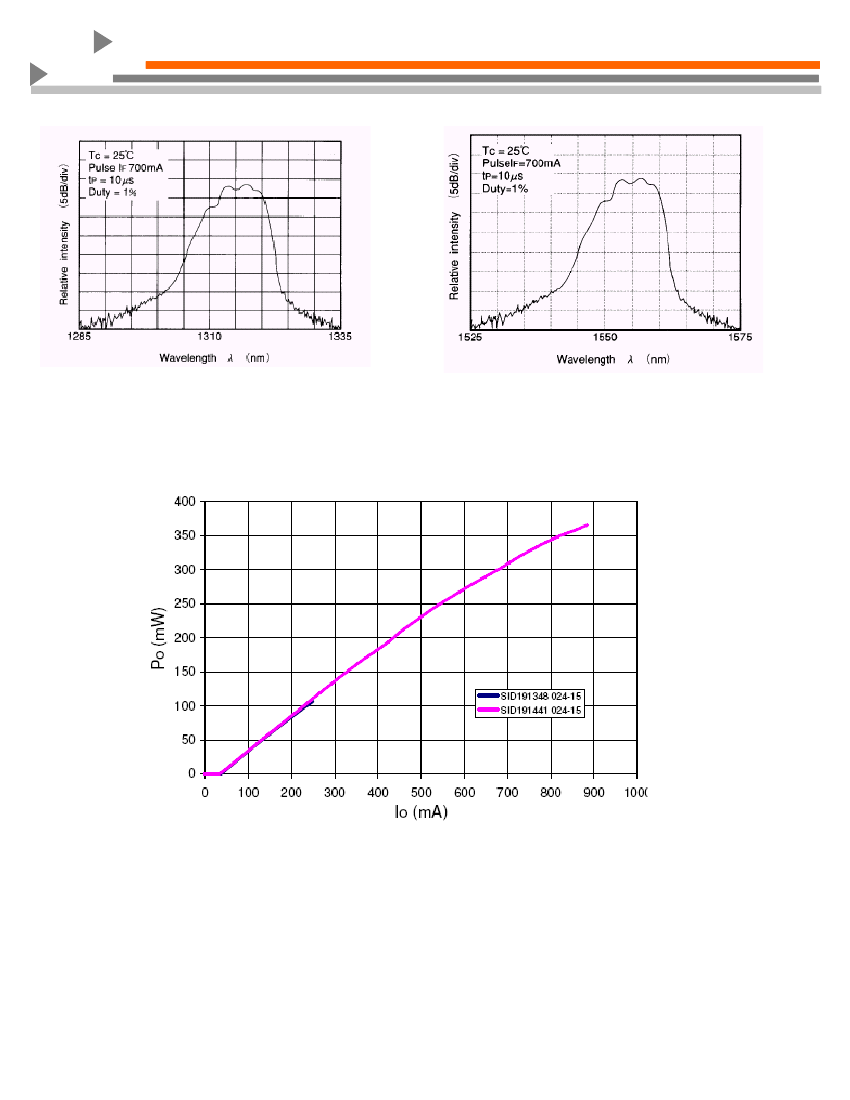

Pulsed Laser Diode Spectral Charachteristics
Light vs Current Plots for Pulsed Lasers at Semiconductor Level
(*Note that typical coupling efficiency into 9/125um fiber is 30~50%)
1310nm
Above specifications at 25°C .
Specifications subject to change.
09-09 Pulsed.Rev2
30-B
Great Britain: LASER COMPONENTS (UK) Ltd., Phone: +44 1245 491 499, Fax: +44 1245 491 801, info@lasercomponents.co.uk
info@pd-ld.
Pennington-Hopewell Rd., Pennington NJ 08534FON: 609-564-7900 FAX: 609-564-7901 EMAIL:
France: LASER COMPONENTS S.A.S., Phone: +33 1 3959 5225, Fax: +33 1 3959 5350, info@lasercomponents.fr
Germany and other countries: LASER COMPONENTS GmbH, Phone: +49 8142 2864 0, Fax: +49 8142 2864 11, info@lasercomponents.com
PD
LD
PL13/15 Pulsed Series Laser Diode Modules
Inc
Light vs Current Plots for Pulsed Lasers at Semiconductor Level
(*Note that typical coupling efficiency into 9/125um fiber is 30~50%)
1550nm
Above specifications at 25°C .
www.lasercomponents.com
Specifications subject to change.
09-09 Pulsed.Rev2
09/09 / V4 / HW /
pd_ld/ 1315puls.pdf
Germany and other countries: LASER COMPONENTS GmbH, Phone: +49 8142 2864 0, Fax: +49 8142 2864 11, info@lasercomponents.com
Great Britain: LASER COMPONENTS (UK) Ltd., Phone: +44 1245 491 499, Fax: +44 1245 491 801, info@lasercomponents.co.uk
France: LASER COMPONENTS S.A.S., Phone: +33 1 3959 5225, Fax: +33 1 3959 5350, info@lasercomponents.fr
