830220-1 Overview

lan/telecom/cable testing cable phase meter

830220-1 Parametric

Parameter NameAttribute value
ManufactureMegge
Product CategoryLAN/Telecom/Cable Testing
RoHSYes
Display TypeCable Phasing Mete
Frequency60 Hz
Measured ComponentsVoltages
Unit Weigh2 kg
Model 830220-1

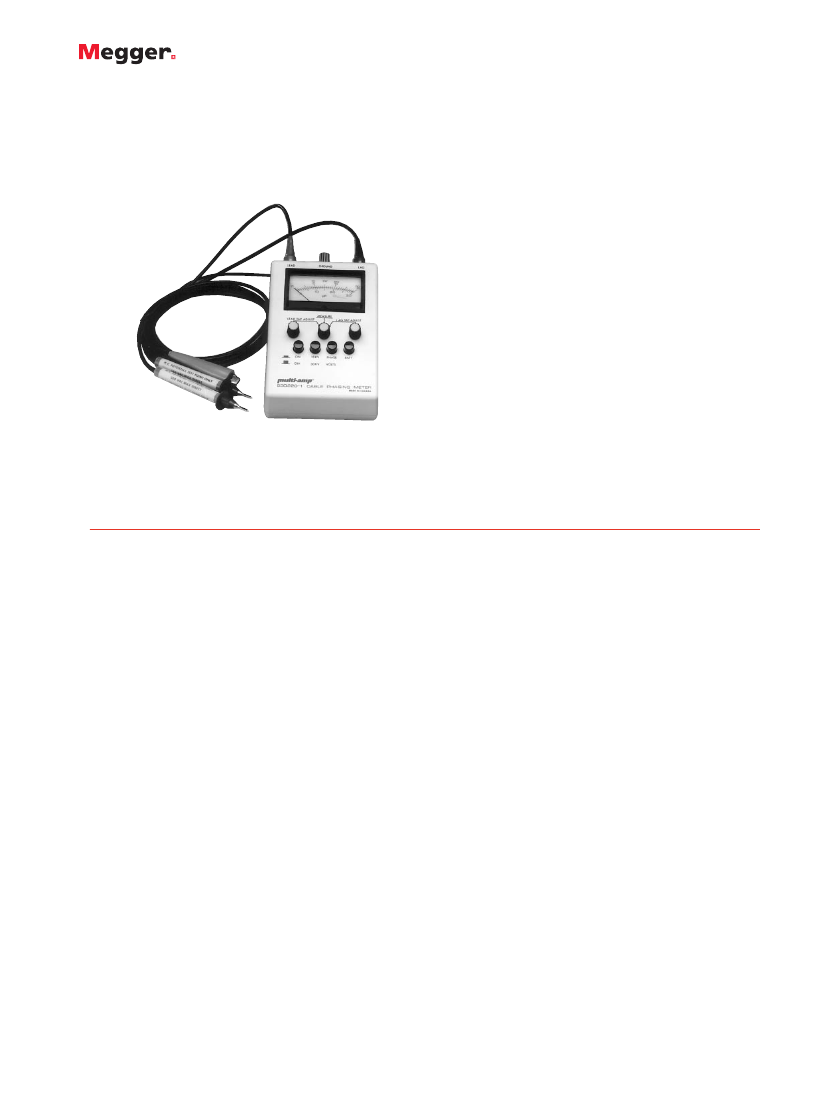

Cable Phasing Meter
Model 830220-1
Cable Phasing Meter
s
s
s
s
Operates at low voltage
Battery operated
Measures voltage up to 30 kV
Checks phase rotation
DESCRIPTION
The Model 830220-1 Cable Phasing Meter offers a safe and
quick method of measuring voltage and determining phase
rotation of underground distribution systems using the
capacitance test point of elbow connectors. Most
manufacturers of high-voltage cable terminators
incorporate capacitance test points into their elbow
connectors. These test points are designed for measuring
purposes.
APPLICATIONS
The Cable Phasing Meter is an instrument designed to
measure voltage, determine phase potation and phase out
cables when connected to the capacitive test points. This
instrument is battery operated and is supplied with a
ground and two measuring leads.
FEATURES AND BENEFITS
s
Safe - operates at low voltage
s
s
SPECIFICATIONS
Input
Four AA batteries (300 hours of continuous operation)
Measurements
Voltage Ranges
0 to 15 kV
0 to 30 kV
Accuracy
±8% (exclusive of tap capacitance variations)
Tap Capacitance Setting
0.4 to 3.0 pF continuous per channel
Frequency
50 or 60 Hz
Dimensions
Instrument
5.5 H x 2.5 W x 7.5 D in.
(140 H x 60 W x 190 D mm)
Case
6 H x 6 W x 9 D in.
(150 H x 150 H x 230 D mm)
Weight
Instrument:
4 lb (2 kg)
Shipping:
6 lb (3 kg)
Measures system voltage
Measures capacitance of test point if system
voltage is known
Checks phase rotation of cables
Phases out cables
Rugged; comes with portable case
Battery operated
Operates from potential test point of elbow connectors
s
s
s
s
s
