514500-3

Description
lan/telecom/cable testing 34.5-69.0 kV analog detex phasing detect
CategoryTopical application    Test and measurement
File Size124KB,4 Pages
ManufacturerMegger
Websitehttp://www.megger.com
Environmental Compliance
Download Datasheet Parametric View All

514500-3 Overview

lan/telecom/cable testing 34.5-69.0 kV analog detex phasing detect

514500-3 Parametric

Parameter NameAttribute value
ManufactureMegge
Product CategoryLAN/Telecom/Cable Testing
RoHSYes
Display TypeVoltage Detectors and Phasing Testers
Frequency50 Hz to 60 Hz
Measured ComponentsTransmission line voltages up to 550 KV
Unit Weigh2 kg

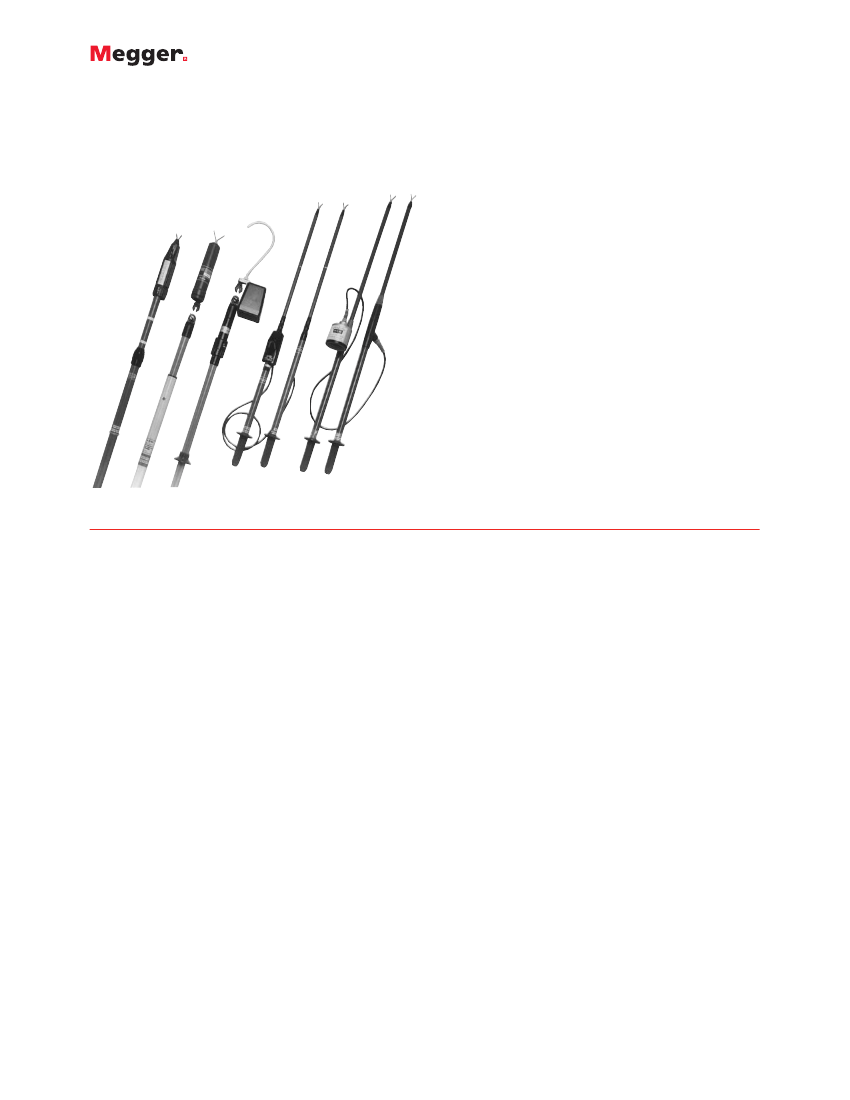

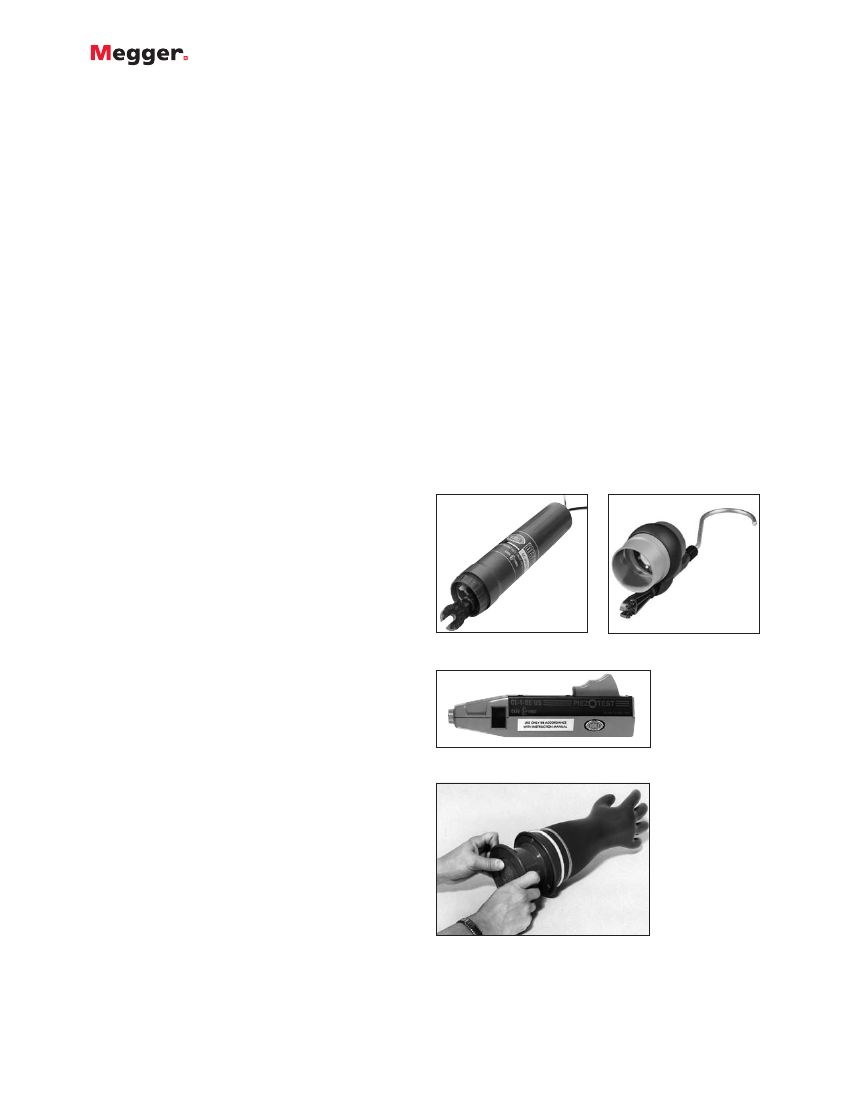

Detex
®
Voltage Detectors and Phasing Testers
Voltage Detectors and Phasing Testers
Detex
®
Voltage Detectors and Phasing Testers
Voltage Detectors and Phasing Testers
Voltage detectors
I
I
I
Seven models
Continuous monitoring
IEC conformance
Phasing Testers
I
I
Grounded or ungrounded ac system check
Five models
VOLTAGE DETECTORS
DESCRIPTION
For use on any grounded electrical system, DETEX Voltage
Detectors are available in seven models that cover a range
from distribution class to transmission line voltages up to
550 kV. Megger offers six electronic “beeper” models and
one model with white LED indication for greater visibility
when testing indoors.
The beeper-style electronic detectors provide audible and
visual indication of the presence of phase-to-ground ac
voltages, in accordance with ANSI C84.1-1982 standards.
The 6.9-kV model is equipped with a telescopic pole. All
other models are fitted for universal spline mounting on a
hot line pole rated for the voltage of the system being
tested.
Electronic voltage detectors for use on distribution line
voltages (Cat. No. 514360 series) provide a single red LED.
Detectors rated for transmission line voltages (Cat. No.
514242 series) provide four LEDs for improved visibility at
greater distances.
The white LED-indicating voltage detector is designed for
indoor testing of grounded ac systems. A row of bright
LED indicators provide easy visibility in poor lighting
conditions. During testing, the presence of voltages within
the detector’s operating range will illuminate the bright
LED bulbs.
A built-in piezoelectric voltage source provides a test
feature to ensure that the detector is operative before use.
A pushbutton activates the self-test.
The detector is equipped with a 48-in. (1219-mm)
telescopic pole calibrated and marked for voltages within
the ratings of the detector. These demarcations assist the
user in adjusting the pole to the length required for safe
operation. The pole retracts to 34 in. (864 mm) for
convenient storage in a vinyl carrying case when not in
use.
APPLICATIONS
All DETEX models provide continuous monitoring with no
on/off switch. They respond to minimum phase-to-ground
voltages as outlined by ANSI C84.1 standards, with
conformance to IEC guidelines for capacitive high-voltage
test instruments.
Prior to testing, a self-test may be activated on the
electronic detectors at the push of a button. The test
simulates application of external voltage to the probe
electrode, which verifies the operation of the buzzer and
lights a red LED.
When the TEST button is released, a green LED indicates
the detector is operative and ready for use. If voltages
within the detector’s operating range are present during
testing, the green LED extinguishes, the red LED flashes
and the audio tone sounds until the detector is removed
from the voltage source.
