DD50PE2JSHT: DescriptionD Type Connector, 50 Contact(s), Male, 0.109 inch Pitch, Wire Wrap Terminal, #4-40, Plug; CategoryThe connector The connector; File Size482KB，3 Pages; ManufacturerAdam Tech

Download Datasheet Parametric View All

DD50PE2JSHT Overview

D Type Connector, 50 Contact(s), Male, 0.109 inch Pitch, Wire Wrap Terminal, #4-40, Plug

DD50PE2JSHT Parametric

Parameter Name	Attribute value
Objectid	315252680
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.494 inch
subject depth	0.464 inch
body length	2.637 inch
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	POLYAMIDE
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	JACKSCREW
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell material	STEEL
Terminal length	0.512 inch
Terminal pitch	2.7686 mm
Termination type	WIRE WRAP
Total number of contacts	50

Preview

Download Datasheet

View All

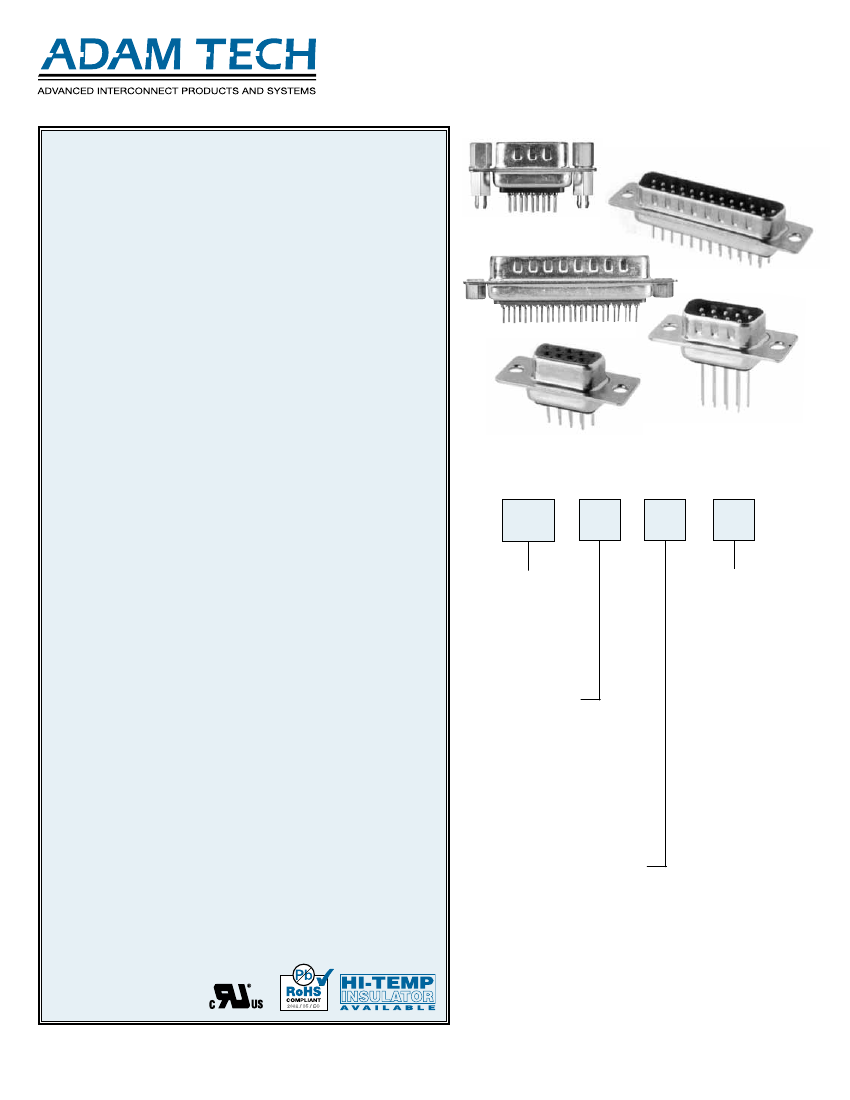

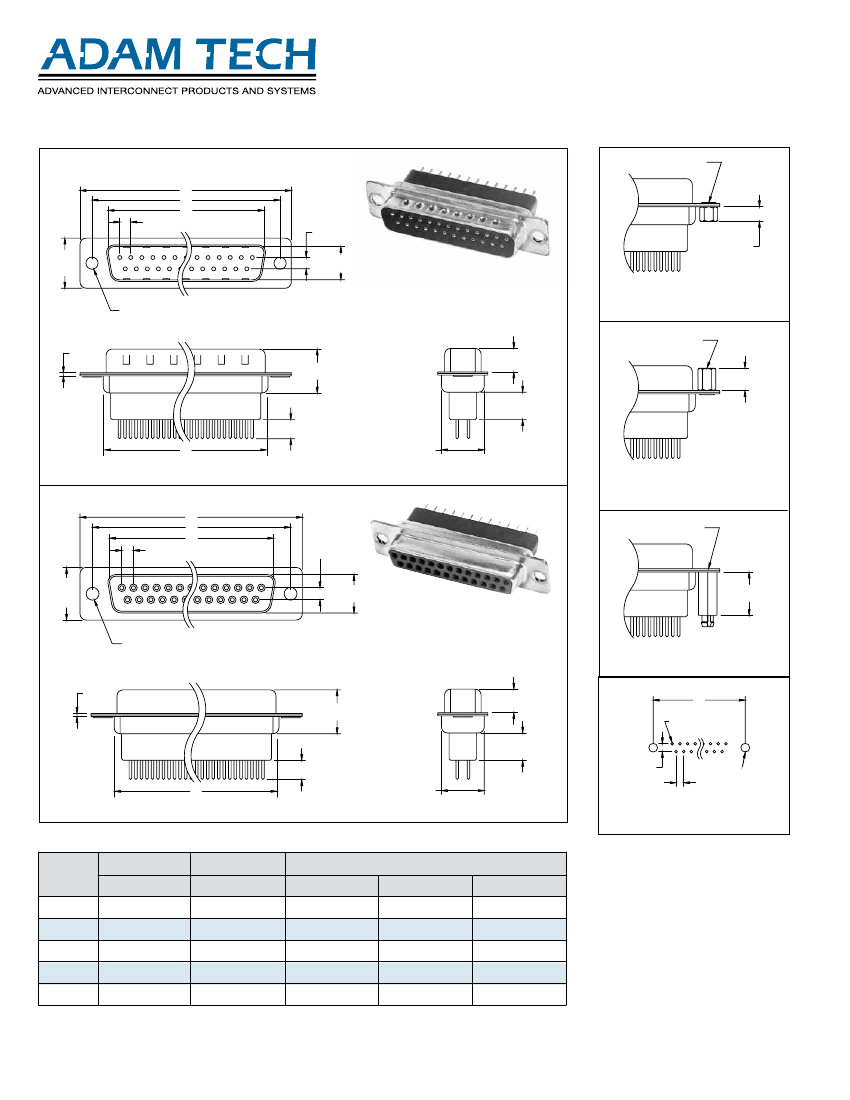

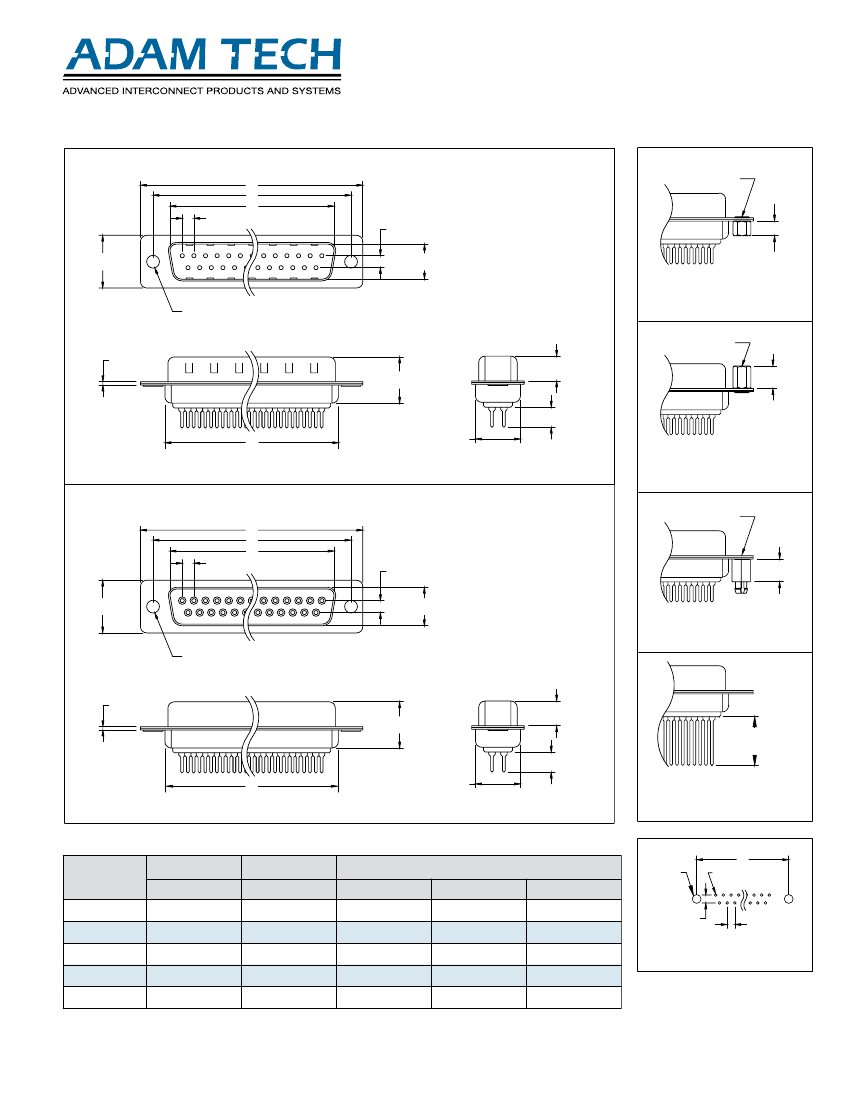

StRAIGHt PCB & WIRe WRAP PCB tAIl

DPt, DSt, DPe & DSe SeRIeS

iNTROduCTiON:

Adam tech Straight PCB tail D-Sub connectors are a popular

interface for many I/O applications. Offered in 9, 15, 25, 37 and

50 positions they are an excellent choice for a low cost, sturdy, full

metal body industry standard connection. these connectors

are manufactured with precision stamped or machined turned

contacts offering a choice of contact plating and a wide selection of

mating and mounting options.

FEaTuRES:

Industry standard compatibility

Durable metal shell design

Precision formed contacts

Variety of Mating and mounting options

MaTiNg CONNECTORS:

Adam tech D-Subminiatures and all industry standard

D-Subminiature connectors.

SpECiFiCaTiONS:

Material:

Standard insulator: PBt, 30% glass reinforced, rated Ul94V-0

Optional Hi-temp insulator: Nylon 6t

Insulator Colors: Black (White optional)

Contacts: Phosphor Bronze

Shell: Steel, tin or Zinc plated

Hardware: Brass, Nickel plated

Contact plating:

Gold over Nickel underplate on contact area.

Electrical:

Operating voltage: 250V AC / DC max.

Current rating: 5 Amps max.

Contact resistance: 20 mΩ max. initial

Insulation resistance: 5000 MΩ min.

Dielectric withstanding voltage: 1000V AC for 1 minute

Mechanical:

Insertion force: 0.75 lbs max

extraction force: 0.44 lbs min

Temperature Rating:

Operating temperature: -55°C to +105°C

Soldering process temperature:

Standard insulator: 235°C

Hi-temp insulator: 260°C

paCkagiNg:

Anti-eSD plastic trays

appROValS aNd CERTiFiCaTiONS:

Ul Recognized & CSA Certified, File no. e224053

SHEll SiZE/

pOSiTiONS

dE09

= 9 Position

da15

= 15 Position

dB25

= 25 Position

dC37

= 37 Position

dd50

= 50 Position

CONTaCT TypE

= Plug, Straight PCB

tail, Standard Profile

= Socket, Straight

PCB tail, Standard

Profile

= Plug, Straight PCB

tail, High Profile

= Socket, Straight

PCB tail, High

Profile

MOuNTiNg OpTiONS

BlaNk

= .120"Mounting

Holes

= Bottom side

riveted #4-40

Clinch Nuts

= top side

riveted #4-40

Jackscrews

= Riveted #4-40

Internal threaded

Standoffs with

Boardlocks

= Riveted Round

Jack Screws

JSl

= Bottom side

riveted #4-40

Clinch Nuts with

Jack Screws

installed

d-SuBMiNiaTuRE

ORdERiNg iNFORMaTiON

dB25

Tail lENgTH

= Standard tail length for .062"-.125" PCB’s

= .189")

= Wire wrap tail

= .512")

OpTiONS:

Add designator(s) to end of part number

EMi

= Ferrite filtered version for eMI / RFI

suppression (Page 114)

= Hi-temp insulator for hi-temp soldering

processes up to 260°C
