The PM1206 is a AC Solid State Switch using optical cou-
pling with dual power SCR outputs to produce an alter-
native to optocoupler and Triac circuits. The PM1206
switches are robust enough to provide a blocking voltage
of up to 600V. In addition, tightly controlled zero cross cir-
cuitry ensures switching of AC loads without the genera-
tion of transients. The input and output circuits are
optically coupled to provide 3750V of isolation and noise
immunity between control and load circuits. As a result
the PM1206 is well suited for industrial environments
where electromagnetic interference could disrupt the
operation of electromechanical relays.
Approvals
•
UL recognized file #: E69938
•
CSA certified file #: LR 43639-8
Ordering Information
Applications
•
Programmable Control
•
Process Control
•
Power Control Panels
•
Remote Switching
•
Gas Pump Electronics
•
Contractors
•
Large Relays
•
Solenoids
•
Motors
•
Heaters
Part #
PM1206
PM1206S
PM1206STR
Description
6 Pin Dip (50/Tube)
6 Pin Surface Mount (50/Tube)
6 Pin Surface Mount (1000/Reel)
Pin Configuration
PM1206 Pinout
+ LED
Ð LED
1
2
3
ZC
6
5
4
AC Load
AC Load
DS-PM1206-R5
www.clare.com
1
PM1206
Absolute Maximum Ratings (@ 25˚ C)
Parameter
Input Power Dissipation
Input Control Current
Peak (10ms)
Reverse Input Voltage
Total Package Dissipation
PM
Isolation Voltage
Input to Output
Operational Temperature
Storage Temperature
Soldering Temperature
DIP Package
Surface Mount Package
(10 Seconds Max.)
1
2
Min
-
-
-
-
-
3750
-40
-40
-
-
Typ Max Units
- 1501 mW
-
50
mA
-
1
A
-
5
V
-
-
-
-
-
-
8002 mW
-
V
RMS
+85
°C
+125 °C
+260
+220
°C
°C
Absolute Maximum Ratings are stress ratings. Stresses in
excess of these ratings can cause permanent damage to
the device. Functional operation of the device at these or
any other conditions beyond those indicated in the opera-
tional sections of this data sheet is not implied. Exposure
of the device to the absolute maximum ratings for an
extended period may degrade the device and effect its
reliability.
Derate Linearly 1.33 mW/˚C
Derate Linearly 6.67 mW/˚C
Electrical Characteristics
Parameters
Output Characteristics @ 25°C
Operating Voltage
Peak Blocking Voltage
Load Current (Continuous)
Off State Leakage Current
On-State Voltage Drop
Critical Rate of Rise
Switching Speeds
Turn-on
Turn-off
Zero-Cross Turn-On Voltage
Sub. half cycle
Operating Frequency
1
Load Power Factor for
Guaranteed Turn-On
2
Input Characteristics @ 25°C
Input Control Current
For Normal Environment
For High Noise Environment
Input Voltage Drop
Input Drop-out Voltage
Reverse Input Current
Common Characteristics @ 25°C
Input to Output Capacitance
Input to Output Isolation
1
2
Conditions
V
T
-
V
L
=120-240VAC
V
DRM
-
-
I
F
=5 mA
I
F
=5 mA
1st half cycle
-
-
Symbol
-
V
DRM
I
L
ILEAK
dv/dt
T
ON
T
OFF
-
Min
20
-
0.005
-
-
1000
-
-
-
-
20
0.25
Typ
-
-
-
-
-
1200
-
-
2
1
-
-
Max
240
600
0.5
1
1.4
-
0.5
0.5
5
V
500
-
Units
V
RMS
V
A
mA
V
RMS
V/µS
cycles
cycles
V
Hz
-
PF
-
-
I
F
=5mA
-
V
R
=5V
-
-
I
F
I
F
V
F
I
R
C
I/O
V
I/O
5
10
0.9
0.8
-
-
3750
-
-
1.2
-
-
3
-
50
100
1.4
-
10
-
-
mA
mA
V
V
mA
pF
V
RMS
Zero Cross 1st half cycle @ <100Hz
Snubber circuits may be required at low power factors.
2
www.clare.com
R5
PM1206
PERFORMANCE DATA*
PM1206
Load Current, Free Air
1.2
1.0
PM1206
Max. Surge Current (Non-Repetitive)
Peak Surge Current (A)
Forward Voltage (V)
PM1206
Typical Forward Voltage vs. Temperature
2.0
Load Current (A)
#
#
$
#
NOTE: Values apply to
T
J
= 50°C before Surge
1.5
0.8
R
ΘJA
= 60°C/W
0.6
0.4
0.2
1.0
0.5
-40
0
55
85
0
10
25
50
75
100
125
150
Ambient Temperature (°C)
Pulse Duration (ms)
Ambient Temperature (°C)
PM1206
Typical dv/dt vs. Temperature
Critical Rate of Rise (V/µs)
PM1206
dv/dt Method
&
$
"
#
#
&#
Vo
63%
10%
Ambient Temperature (°C)
Vo = 300V
dv 0.63 x 300V
dt
RC
189
RC
In accordance with
EIA/NARM Standards
RS-443 for Solid State Relays
RC
The Performance data shown in the graphs above is typical of device performance. For guaranteed parameters not indicated in the written specifications, please contact
our application department.
R5
www.clare.com
3
PM1206

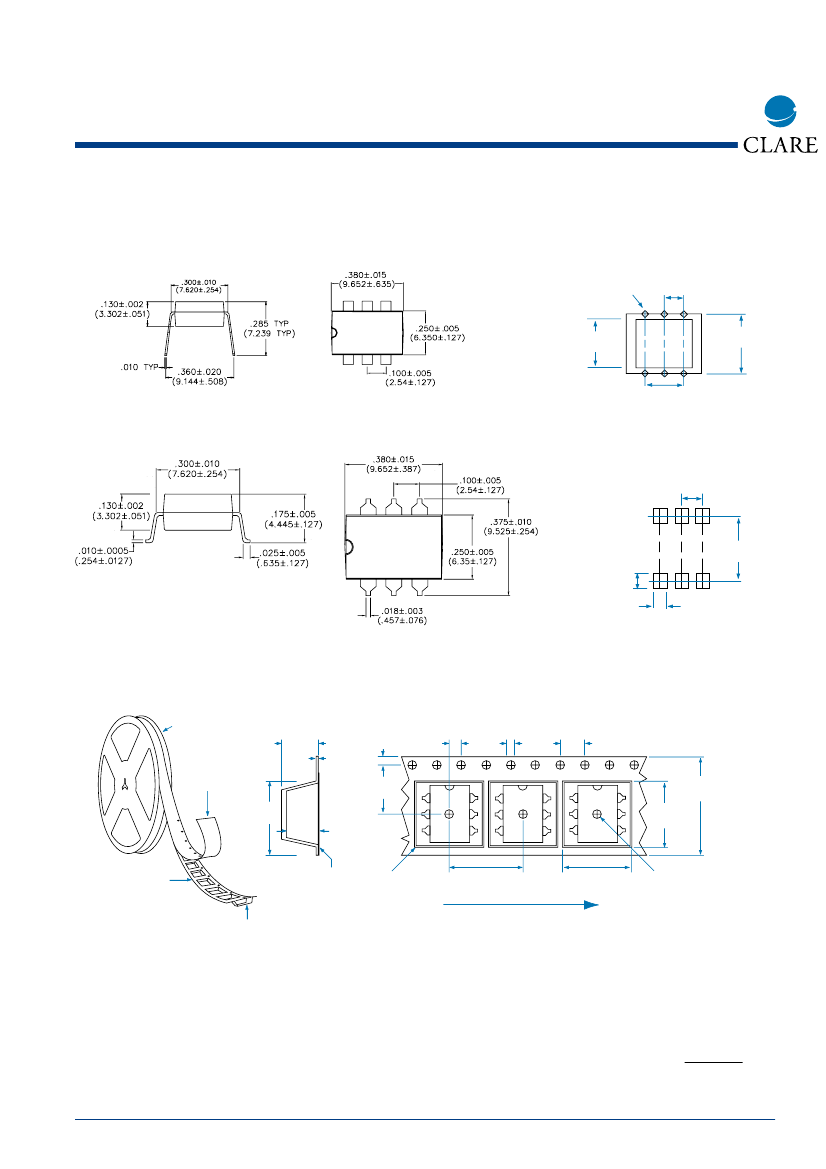

Mechanical Dimensions
6 Pin Power DIP Through Hole (Standard)
PC Board Pattern
(Top View)
6-.800 DIA.
(6-.031 DIA.)
6.350
±
.127
(.250
±
.005)
2.540
±
.127
(.100
±
.005)
7.620
±
.127
(.300
±
.005)
5.080
±
.127
(.200
±
.005)
6 Pin Power DIP Surface Mount (“S” Suffix)
PC Board Pattern
(Top View)
2.540
±
.127
(.100
±
.005)
8.305
±
.127
(.327
±
.005)
1.905
±
.127
(.075
±
.005)
1.499
±
.127
(.059
±
.005)
Tape and Reel Packaging for 6 Pin Power DIP Surface Mount Package
330.2 DIA.
(13.00)
Top Cover
Tape Thickness
.102 MAX.
(.004)
2.007 – .102 1.498 – .102 3.987 – .102
(.079 – .004) (.059 – .004) (.157 – .004)
6.731 MAX.
1.753 – .102
(.265)
(.069 – .004)
.406 MAX.
(.016)
7.493 – .102
(.295 – .004)
12.090
(.476)
4.877
(.192)
1
6
16.002 – .305
(.630 – .012)
10.300
(.405)
Embossed Carrier
Top Cover
Tape
.050R TYP.
11.989 – .102
(.472 – .004)
10.300 – .102
(.405 – .004)
1.549 – .102
(.061 – .004)
Embossment
User Direction of Feed
Dimensions
mm
(inches)
4
www.clare.com
R5
Worldwide Sales Offices
CLARE LOCATIONS
Clare Headquarters
78 Cherry Hill Drive
Beverly, MA 01915
Tel: 1-978-524-6700
Fax: 1-978-524-4900
Toll Free: 1-800-27-CLARE
Clare Micronix Division
145 Columbia
Aliso Viejo, CA 92656-1490
Tel: 1-949-831-4622
Fax: 1-949-831-4628
EUROPE
European Headquarters
CP Clare nv
Bampslaan 17
B-3500 Hasselt (Belgium)
Tel: 32-11-300868
Fax: 32-11-300890
France
Clare France Sales
Lead Rep
99 route de Versailles
91160 Champlan
France
Tel: 33 1 69 79 93 50
Fax: 33 1 69 79 93 59
Germany
Clare Germany Sales
ActiveComp Electronic GmbH
Mitterstrasse 12
85077 Manching
Germany
Tel: 49 8459 3214 10
Fax: 49 8459 3214 29
Italy
C.L.A.R.E.s.a.s.
Via C. Colombo 10/A
I-20066 Melzo (Milano)
Tel: 39-02-95737160
Fax: 39-02-95738829
Sweden
Clare Sales
Comptronic AB
Box 167
S-16329 Spånga
Tel: 46-862-10370
Fax: 46-862-10371
United Kingdom
Clare UK Sales
Marco Polo House
Cook Way
Bindon Road
Taunton
UK-Somerset TA2 6BG
Tel: 44-1-823 352541
Fax: 44-1-823 352797
ASIA PACIFIC
Asian Headquarters
Clare
Room N1016, Chia-Hsin, Bldg II,
10F, No. 96, Sec. 2
Chung Shan North Road
Taipei, Taiwan R.O.C.
Tel: 886-2-2523-6368
Fax: 886-2-2523-6369
SALES OFFICES
AMERICAS
Americas Headquarters
Clare
78 Cherry Hill Drive
Beverly, MA 01915
Tel: 1-978-524-6700
Fax: 1-978-524-4900
Toll Free: 1-800-27-CLARE
Eastern Region
Clare
P.O. Box 856
Mahwah, NJ 07430
Tel: 1-201-236-0101
Fax: 1-201-236-8685
Toll Free: 1-800-27-CLARE
Central Region
Clare Canada Ltd.
3425 Harvester Road, Suite 202
Burlington, Ontario L7N 3N1
Tel: 1-905-333-9066
Fax: 1-905-333-1824
Western Region
Clare
1852 West 11th Street, #348
Tracy, CA 95376
Tel: 1-209-832-4367
Fax: 1-209-832-4732
Toll Free: 1-800-27-CLARE
Canada
Clare Canada Ltd.
3425 Harvester Road, Suite 202
Burlington, Ontario L7N 3N1
Tel: 1-905-333-9066
Fax: 1-905-333-1824
http://www.clare.com
Clare cannot assume responsibility for use of any circuitry other
than circuitry entirely embodied in this Clare product. No circuit
patent licenses nor indemnity are expressed or implied. Clare
reserves the right to change the specification and circuitry, with-
out notice at any time. The products described in this document
are not intended for use in medical implantation or other direct life
support applications where malfunction may result in direct phys-
