1. Characteristics
Support SATA spread-spectrum transmitter
Support SATA II Asynchronous Signal Recovery (Hot Plug) feature
Compliance with USB 2.0 (Hi-Speed USB) electrical specification
Compliance with USB Mass Storage Class Bulk-Only Transport Specification
Support 480Mbps High Speed (HS) and 12Mbps Full Speed USB operation
Support ATA/ATAPI-7
Support ATA/ATAPI Ultra DMA Mode
Support ATA/ATAPI PACKET command feature set
Support ATA/ATAPI LBA48 addressing mode
Support dual LUN (Logic Unit Number) for USB to ATA/ATAPI
Support Windows 7, Vista, Windows XP, Windows 2000, Windows ME, 98SE
Need driver installation under Windows 98SE

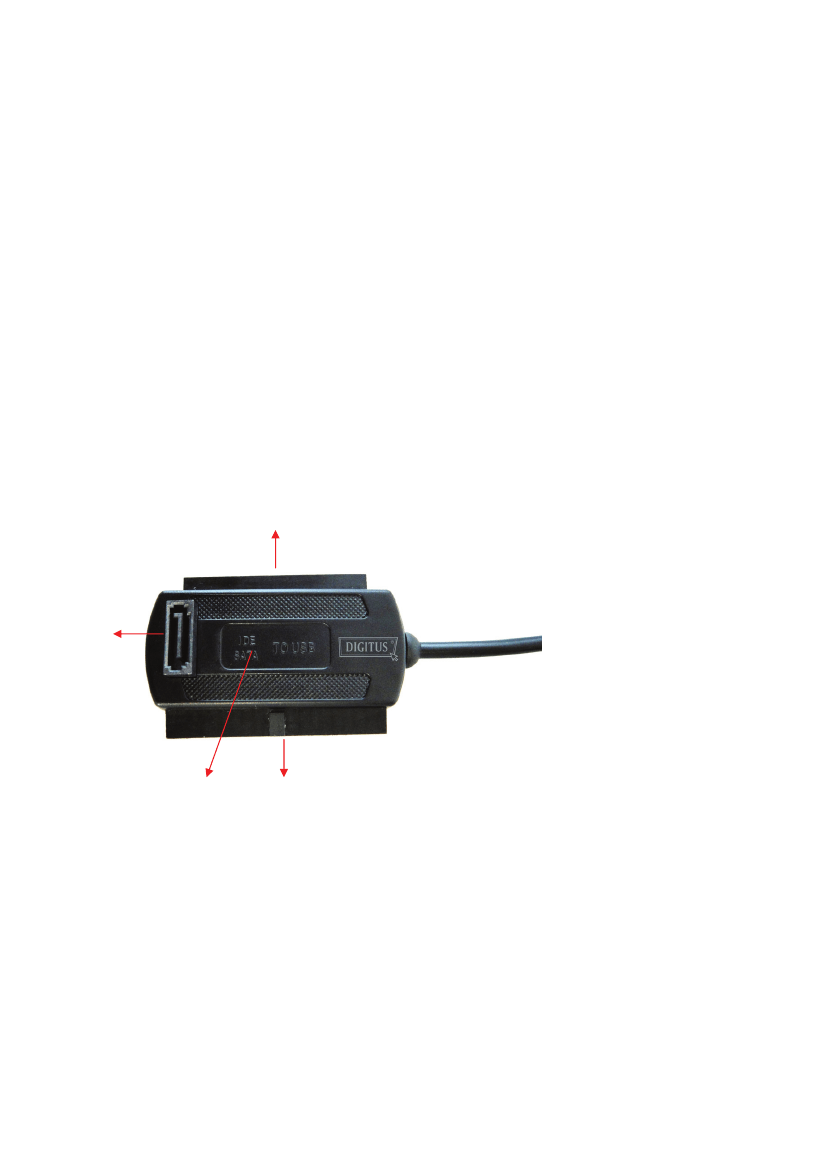

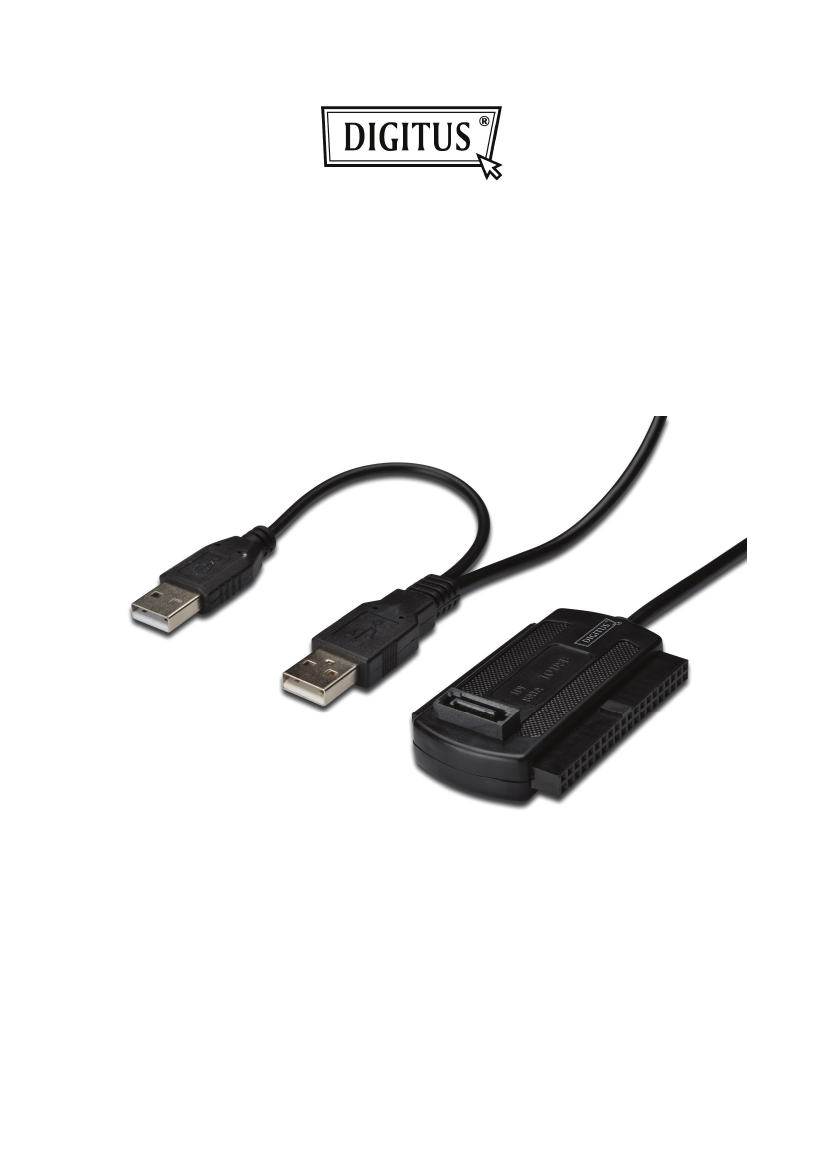

2. Product introduction
2
1
4
3
1. SATA Port for 2.5’’/3.5’’ SATA Hard Drive
2. IDE Port for 2.5’’ IDE Hard Drive
3. IDE Port for 3.5’’ IDE Hard Drive
4. Hidden Power / Active Light: It will keep flashing when it is detecting
the 2.5’’/3.5’’ SATA Hard Drive or during the Data transferring.
3. Tips for HDD INSTALLATION

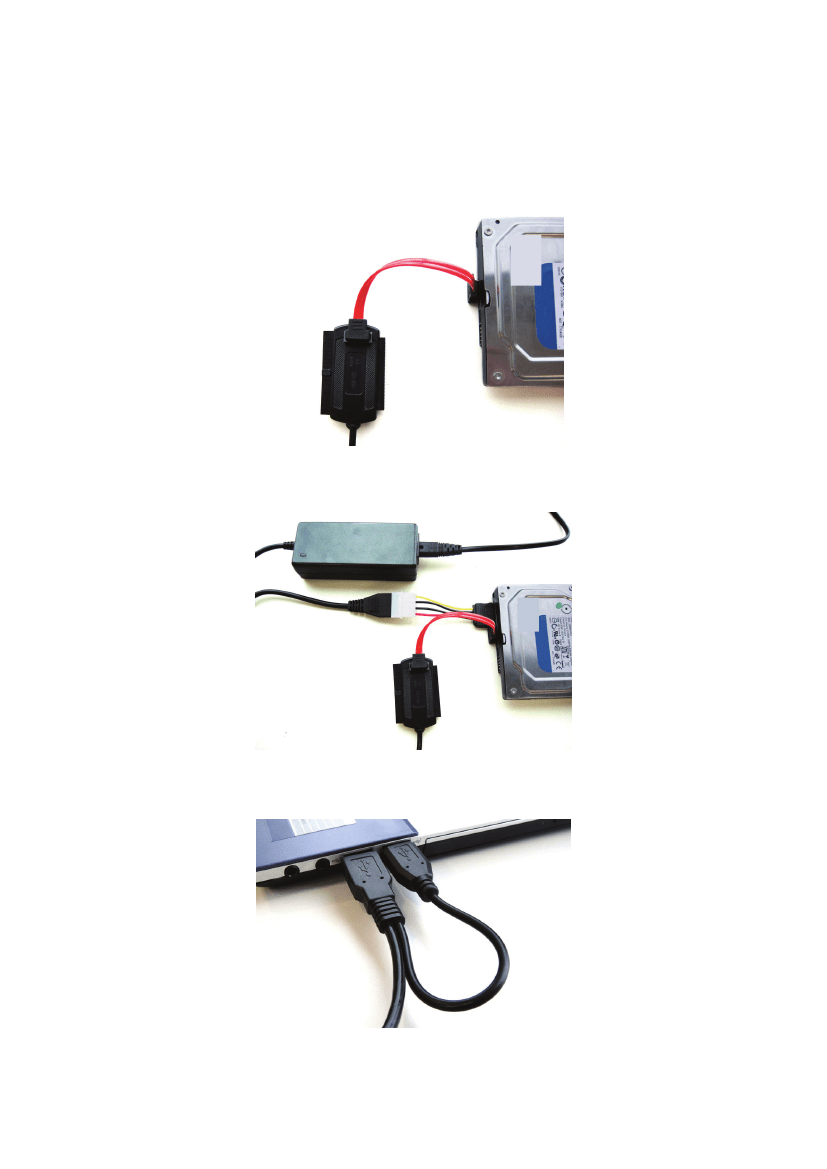

For 2.5’’/3.5’’ SATA HDD
(1) Have SATA Hard Drive to connect with ER CABLE.
(2) Have the external Power Adapter connect with USB 2.0 TO IDE/SATA ADAPTER CABLE.
(3) Have USB 2.0 TO IDE/SATA ADAPTER CABLE connect with and your computer, then power on,
your computer system will detect the SATA HDD.

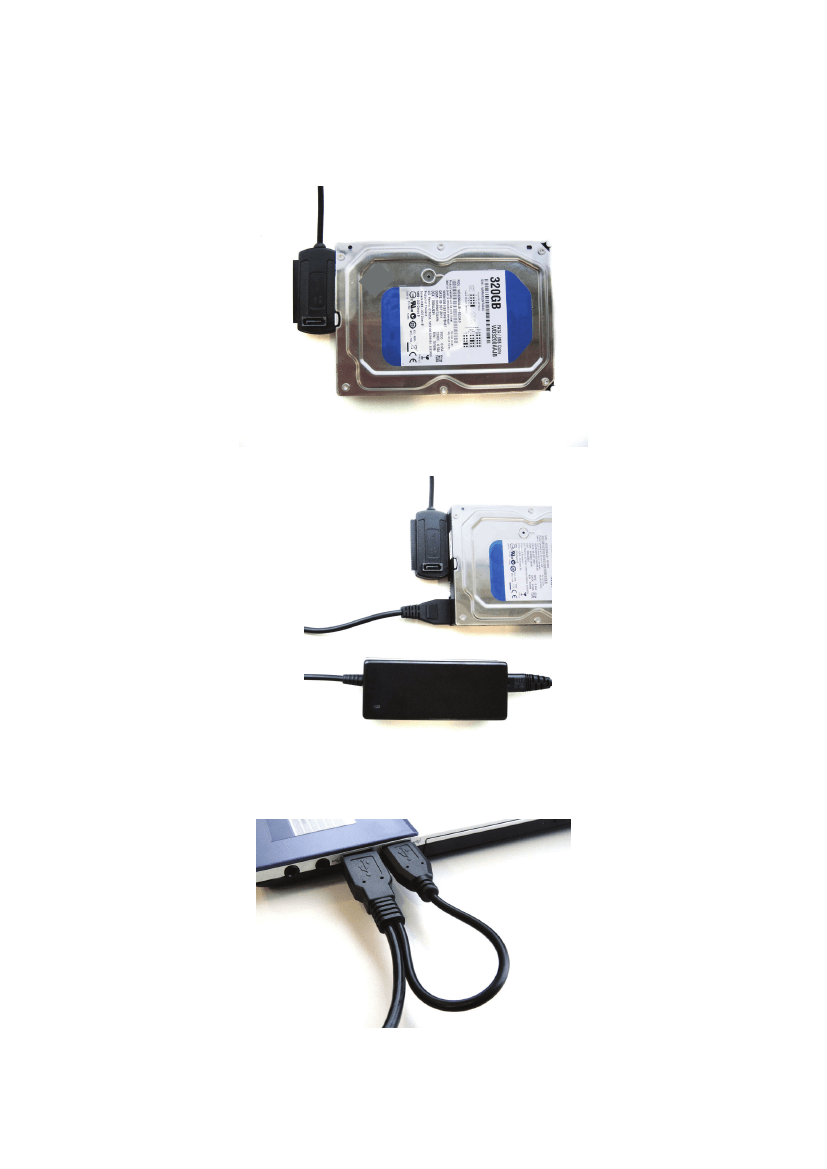

For 3.5’’ IDE HDD
(1) Have the 3.5’’ IDE HDD connect with USB 2.0 TO IDE/SATA ADAPTER CABLE.
(2) Have the external Power Adapter connect with USB 2.0 TO IDE/SATA ADAPTER CABLE.
(3) Have USB 2.0 TO IDE/SATA ADAPTER CABLE connect with your computer, then power on, your
computer system will detect the IDE HDD.

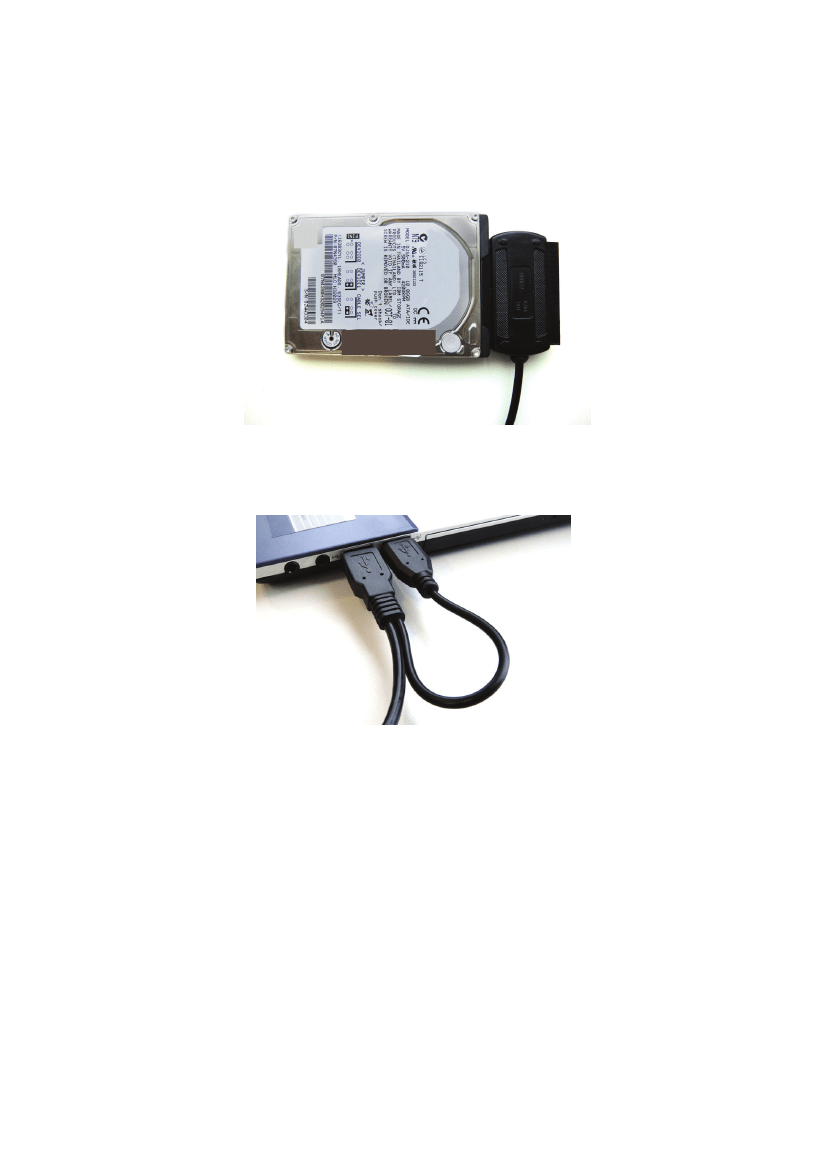

For 2.5’’ IDE HDD
(1) Have 2.5’’ IDE HDD connect with USB 2.0 TO IDE/SATA ADAPTER CABLE.
(2) Have USB 2.0 TO IDE/SATA ADAPTER CABLE connect with your computer, then power on, your
computer system will detect the IDE HDD.
