low phase noise clock synthesizer with 4x or 8x mul-
tiplier. Using PhaseLink’s proprietary analog and
digital Phase Locked Loop techniques, this IC can
produce up to a 160MHz out put. Ideal for
155.52MHz applications.
MULTIPLIER SELECT TABLE
S2
0
0
0
0
1
1
1
1
S1
0
0
1
1
0
0
1
1
S0
0
1
0
1
0
1
0
1
CLK
Test
Reserved
4x Input (Low Frequency VCO*)
8x Input (Low Frequency VCO*)
Reserved
XO Frequency Pass through
4x Input (High Frequency VCO*)
8x Input (High Frequency VCO*)
*: Low Frequency VCO is advised for best performance at 155.52MHz
BLOCK DIAGRAM
S2
S1
S0
ROM Based
Multipliers
VCO
Divider
Reference
Divider
Phase
Comparator
Charge
Pump
Loop
Filter
VCO
CLK
OE
XIN
XOUT
XTAL
OSC
REFEN
REFOUT
47745 Fremont Blvd., Fremont, California 94538 Tel (510) 492-0990 Fax (510) 492-0991
www.phaselink.com
Rev 09/03/04 Page 1
PLL601-02
Low Phase Noise PLL Clock Multiplier
PIN DESCRIPTIONS
Name
CLK
REFEN
VDD
XOUT
S1
XIN
GND
S3
S0
OE
REFOUT
Number
1
2
3,4,5
6
7
8
9,14,15,16
10
11
12
13
Type
O
I
P
O
I
I
P
I
I
I
O
Description
Clock output from VCO. Equals the input frequency times multiplier.
Reference clock enable. When Low, it disables REFOUT. When High, it
enables REFOUT.
Power Supply.
Crystal Connection.
Multiplier Select Pin 1. Determines CLK output. Has internal pull-up.
Crystal input to be connected to 10-27MHz fundamental parallel mode crys-
tal (C
L
=15pF). On chip load capacitors: No external capacitor required.
Ground.
Multiplier Select Pin 3. Determines CLK output. Has internal pull-up.
Multiplier Select Pin 0. Determines CLK output. Has internal pull-up.
Output Enable. Tri-state CLK and REFOUT when low. Has internal pull-up.
Buffered crystal oscillator clock output. Controlled by REFEN.
ELECTRICAL SPECIFICATIONS
1. Absolute Maximum Ratings
PARAMETERS
Supply Voltage
Input Voltage, dc
Output Voltage, dc
Storage Temperature
Ambient Operating Temperature*
Junction Temperature
Lead Temperature (soldering, 10s)
ESD Protection, Human Body Model
SYMBOL
V
DD
V
I
V
O
T
S
T
A
T
J
MIN.
-0.5
-0.5
-65
-40
MAX.
4.6
V
DD
+0.5
V
DD
+0.5
150
85
125
260
2
UNITS
V
V
V
°C
°C
°C
°C
kV
Exposure of the device under conditions beyond the limits specified by Maximum Ratings for extended periods may cause permanent damage to the
device and affect product reliability. These conditions represent a stress rating only, and functional operations of the device at these or any other con-
ditions above the operational limits noted in this specification is not implied.
*
Note:
Operating Temperature is guaranteed by design for all parts (COMMERCIAL and INDUSTRIAL), but tested for COMMERCIAL grade only.
2. AC Specifications
PARAMETERS
Input Frequency
Output Frequency
Output Rise Time
Output Fall Time
Duty Cycle
CONDITIONS
At 3.3V
0.8V to 2.0V with no load
2.0V to 0.8V with no load
@ 50% V
DD
MIN.
10
TYP.
MAX.
27
160
1.5
1.5
55
UNITS
MHz
MHz
ns
ns
%
45
50
47745 Fremont Blvd., Fremont, California 94538 Tel (510) 492-0990 Fax (510) 492-0991
www.phaselink.com
Rev 09/03/04 Page 2
PLL601-02
Low Phase Noise PLL Clock Multiplier
3. DC Specifications
PARAMETERS
Operating Voltage
Input High Voltage
Input Low Voltage
Input High Voltage
Input Low Voltage
Output High Voltage
Output Low Voltage
Output High Voltage At
CMOS Level
Operating Supply Current
Short-circuit Current
Input Capacitance
SYMBOL
V
DD
V
IH
V
IL
V
IH
V
IL
V
OH
V
OL
V
OH
I
DD
I
S
C
IN
CONDITIONS
MIN.
2.97
2
TYP.
MAX.
3.63
0.8
UNITS
V
V
V
V
V
V
V
V
For XIN pin
For XIN pin
I
OH
= -25mA
I
OL
= 25mA
I
OH
= -8mA
No Load
OE, Select Pins
(V
DD
/2)
+
1
2.4
V
DD
/2
V
DD
/2
(V
DD
/2)
−
1
0.4
V
DD
-0.4
35
±50
5
mA
mA
pF
4. Crystal Specifications
PARAMETERS
Crystal Resonator Frequency
Crystal Loading Capacitance
Rating
SYMBOL
F
XIN
C
L (xtal)
CONDITIONS
Parallel Fundamental Mode
MIN.
10
TYP.
15
MAX.
27
UNITS
MHz
pF
5. Jitter Specifications
PARAMETERS
Period jitter RMS
Accumulated jitter RMS
Phase
Phase
Phase
Phase
Noise,
Noise,
Noise,
Noise,
relative
relative
relative
relative
to
to
to
to
carrier,
carrier,
carrier,
carrier,
155Mhz(x8)
155Mhz(x8)
155Mhz(x8)
155Mhz(x8)
CONDITIONS
With capacitive decoupling
between VDD and GND
With capacitive decoupling
between VDD and GND
100Hz offset, 3.3V
1kHz offset, 3.3V
10kHz offset, 3.3V
100kHz offset, 3.3V
MIN.
TYP.
6.4
9.4
-103
-126
-133
-128
MAX.
UNITS
ps
ps
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
47745 Fremont Blvd., Fremont, California 94538 Tel (510) 492-0990 Fax (510) 492-0991
www.phaselink.com
Rev 09/03/04 Page 3
PLL601-02
Low Phase Noise PLL Clock Multiplier

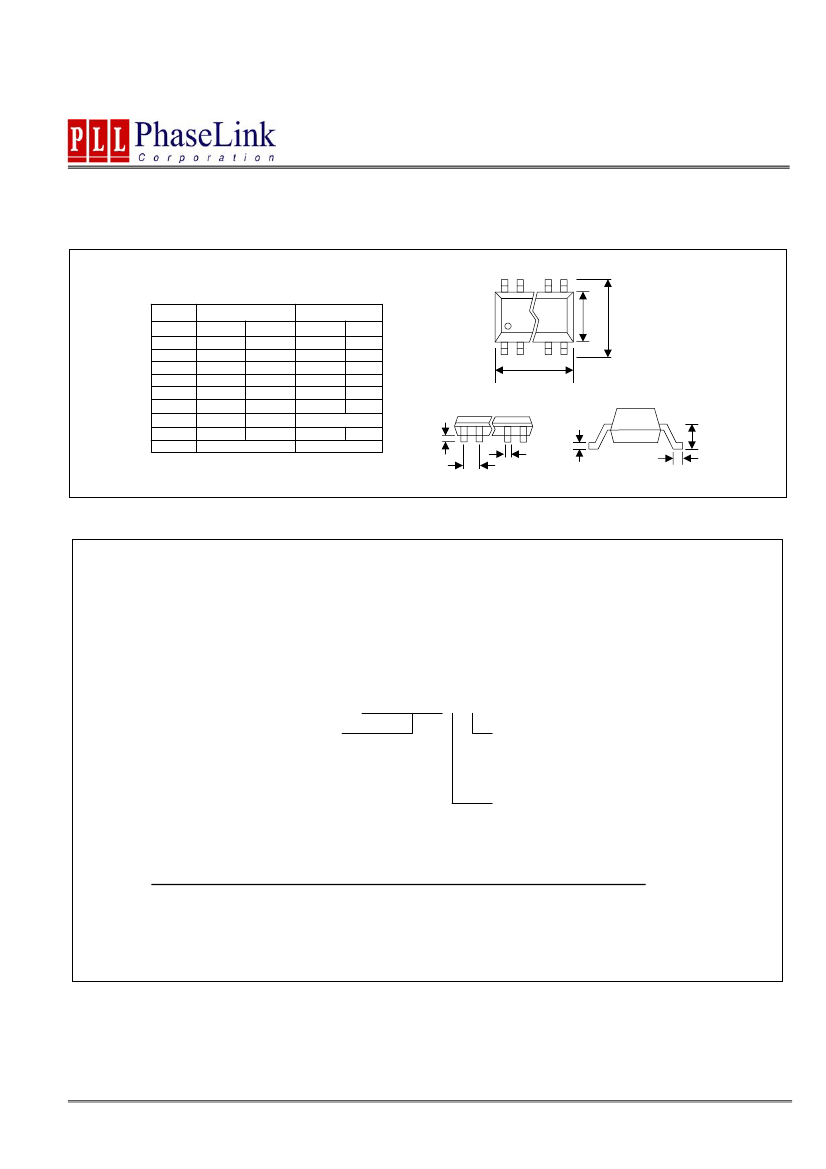

PACKAGE INFORMATION
16 PIN Narrow SOIC, TSSOP ( mm )
SOIC
Symbol
A
A1
B
C
D
E
H
L
e
Min.
1.35
0.10
0.33
0.19
9.80
3.80
5.80
0.40
1.27 BSC
Max.
1.75
0.25
0.51
0.25
10.00
4.00
6.20
1.27
0.45
Min.
-
0.05
0.19
0.09
4.90
4.30
TSSOP
Max.
1.20
0.15
0.30
0.20
5.10
4.50
6.40 BSC
0.75
0.65 BSC
A1
B
A
C
L
e
D
E
H
ORDERING INFORMATION
For part ordering, please contact our Sales Department:
47745 Fremont Blvd., Fremont, CA 94538, USA
Tel: (510) 492-0990 Fax: (510) 492-0991
PART NUMBER
The order number for this device is a combination of the following:
Device number, Package type and Operating temperature range
PLL601-02 S C
PART NUMBER
TEMPERATURE
C=COMMERCIAL
I=INDUSTRAL
PACKAGE TYPE
S=SOIC,
O=TSSOP
Order Number
PLL601-02OC
PLL601-02OC-R
PLL601-02SC
PLL601-02SC-R
Marking
P601-02OC
P601-02OC
P601-02SC
P601-02SC
Package Option
16-Pin
16-Pin
16-Pin
16-Pin
TSSOP (Tube)
TSSOP (Tape & Reel)
SOIC (Tube)
SOIC (Tape & Reel)
PhaseLink Corporation, reserves the right to make changes in its products or specifications, or both at any time without notice. The information fur-
nished by Phaselink is believed to be accurate and reliable. However, PhaseLink makes no guarantee or warranty concerning the accuracy of said
information and shall not be responsible for any loss or damage of whatever nature resulting from the use of, or reliance upon this product.
LIFE SUPPORT POLICY:
PhaseLink’s products are not authorized for use as critical components in life support devices or systems without the ex-
press written approval of the President of PhaseLink Corporation.
