VCXO
SMD TYPE
SVD
-
-
-
-
-
-
Voltage Controlled Crystal Oscillator
CMOS Output
3.3V, 5.0V Supply Voltage
Wide Frequency and Pull Range
Surface Mount Package
Available on Tape and Reel
■ ELECTRICAL SPECIFICATIONS
ITEM
Output Logic Type
Frequency Range
Supply Voltage(V
DD
)
Operating Temperature Range
Storage Temperature Range
Frequency Stability
Input Current
Output Voltage Logic High(V
OH
)
Output Voltage Logic Low(V
OL
)
Rise / Fall Time
Duty Cycle
Start-up Time
Output Load Condition(CMOS)
Frequency Deviation
Control Voltage(Vc)
Linearity
Output Enable Function
(V
IH
and V
IL
)
RMS Phase Jitter
Frequency Aging
CMOS
1.000 to 60.000 MHz
3.3 V
DC ,
5.0 V
DC
±5 %
-20 to +70 ℃, -40 to +85 ℃
-55 to +125 ℃
±20 ppm, ±25 ppm, ±30 ppm,
±50 ppm, ±100 ppm Max.
20 mA(5V), 15 mA(3.3V) Max.
30 mA(5V), 25 mA(3.3V) Max.
40 mA(5V), 35 mA(3.3V) Max.
90 % of V
DD
Min.
10 % of V
DD
Max.
10 ns Max.(1.000 to 20.000 MHz)
8 ns Max.(20.001 to 40.000 MHz)
5 ns Max.(40.001 to 60.000 MHz)
45 to 55 %, 40 to 60 %
10 ms Max.
15 pF Max.
±50 ppm, ±80 ppm, ±100 ppm Min.
2.5 V ±2.0 V, 1.65 V ±1.35 V
10 % Max.
70 % of V
DD
Min. to Enable Output
30 % of V
DD
Max. to Disable Output
1 ps Max.
±5 ppm Max.
High Impedance
BW : 12 kHz to 20 MHz
25℃, First year
Over Vc range
Please specify
Measured over
10 % to 90 % of waveform
Measured at 50 % of waveform
Over operating temperature
range
1.000 to 20.000 MHz
20.001 to 40.000 MHz
40.001 to 60.000 MHz
Value
Remarks
CMOS VCXO
Fundamental

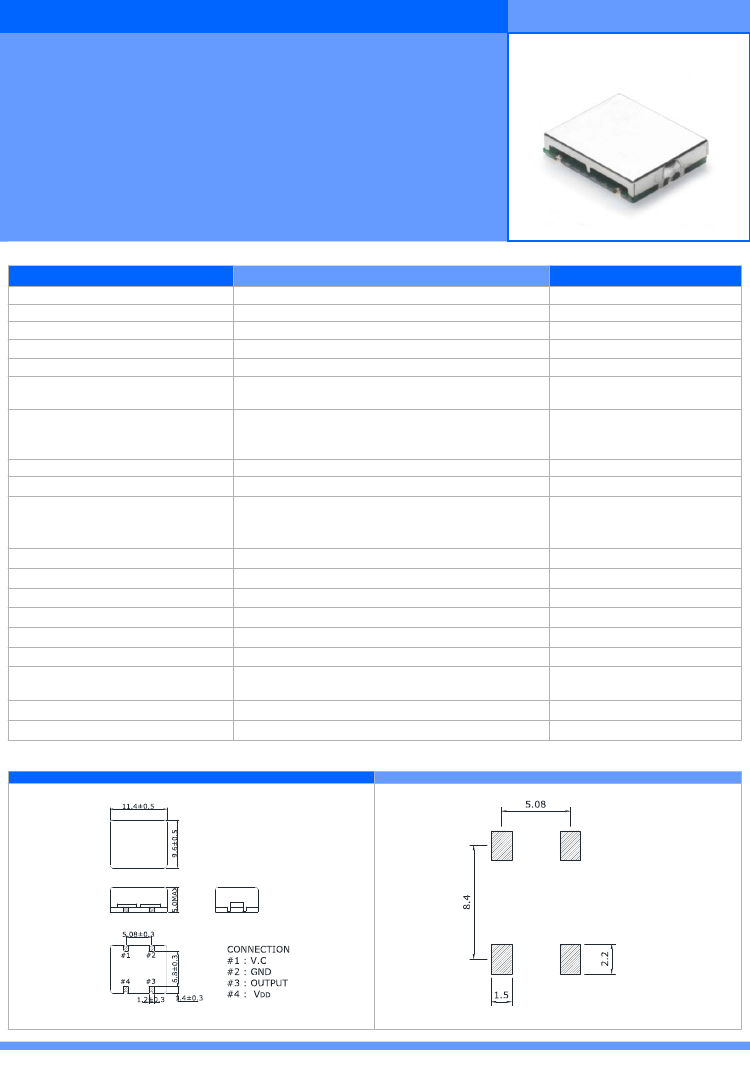

■ MECHANICAL DIMENSIONS
(mm)
■ LAND PATTERN
(mm)
http://www.sunny.co.kr
SUNNY ELECTRONICS CORP
VCXO

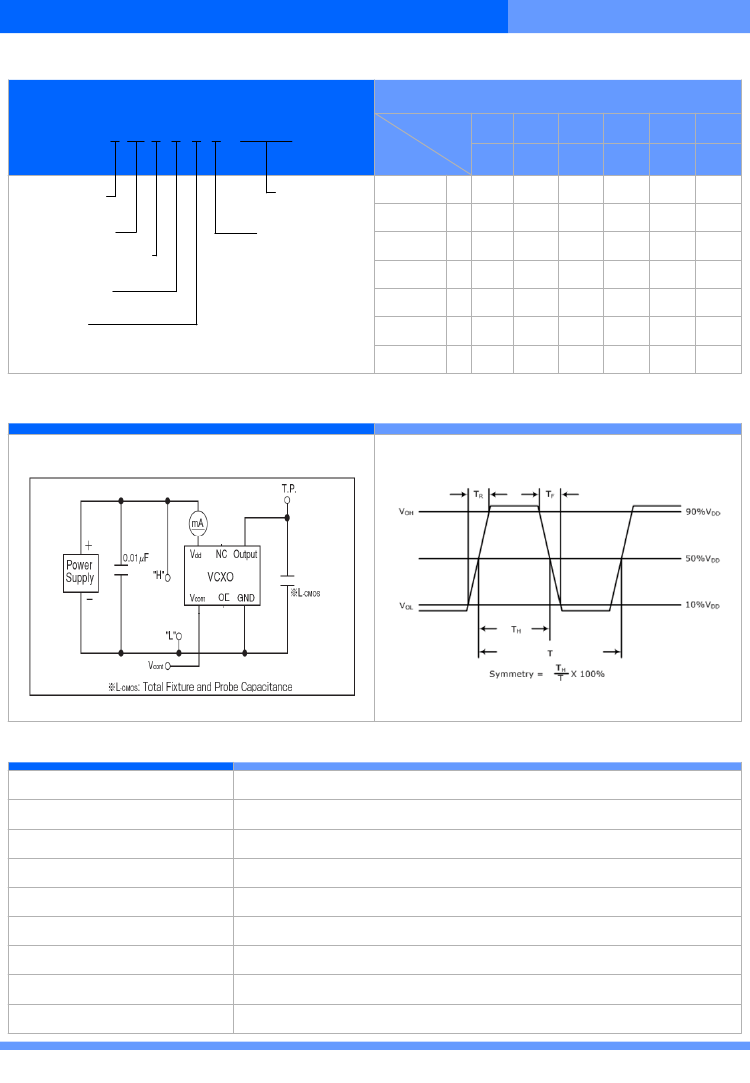

■ PART NUMBERING GUIDE
■ TABLE 1
FREQUENCY STABILITY VS. TEMPERATURE RANGE
SVD 33 30 F D D R
–
27.000M
Temp
SUPPLY VOLTAGE(V
DD
)
50 : 5.0 V, 33 : 3.3 V
FREQUENCY STABILITY
TABLE 1
OPERATING TEMPERATURE RANGE
TABLE 1
DUTY CYCLE
D : 45/55
E : 40/60
DEVIATION
A : ±30 ppm min. B : ±50 ppm min.
C : ±80 ppm min. D : ±100 ppm min.
E : ±130 ppm min. F : ±150 ppm min.
FREQUENCY
M : MHz
PACKAGE OPTION
R : TAPE AND REEL
BLANK : BULK
Stability
±15
15
±20
20
*
*
*
*
*
*
±25
25
*
*
*
*
*
*
*
±30
30
*
*
*
*
*
*
*
±50
50
*
*
*
*
*
*
*
±100
100
*
*
*
*
*
*
*
0~50 ℃
0~60 ℃
-10~60 ℃
0~70 ℃
-10~70 ℃
-20~70 ℃
-40~85 ℃
A
B
C
D
E
F
G
*
■
TEST CIRCUIT (CMOS)
■
WAVEFORM (CMOS)
■
ENVIRONMENTAL & MECHANICAL SPECIFICATIONS
Temperature Cycling
Fine Leak Test
Gross Leak Test
Mechanical Shock
Vibration
Moisture Resistance
Moisture Sensitivity

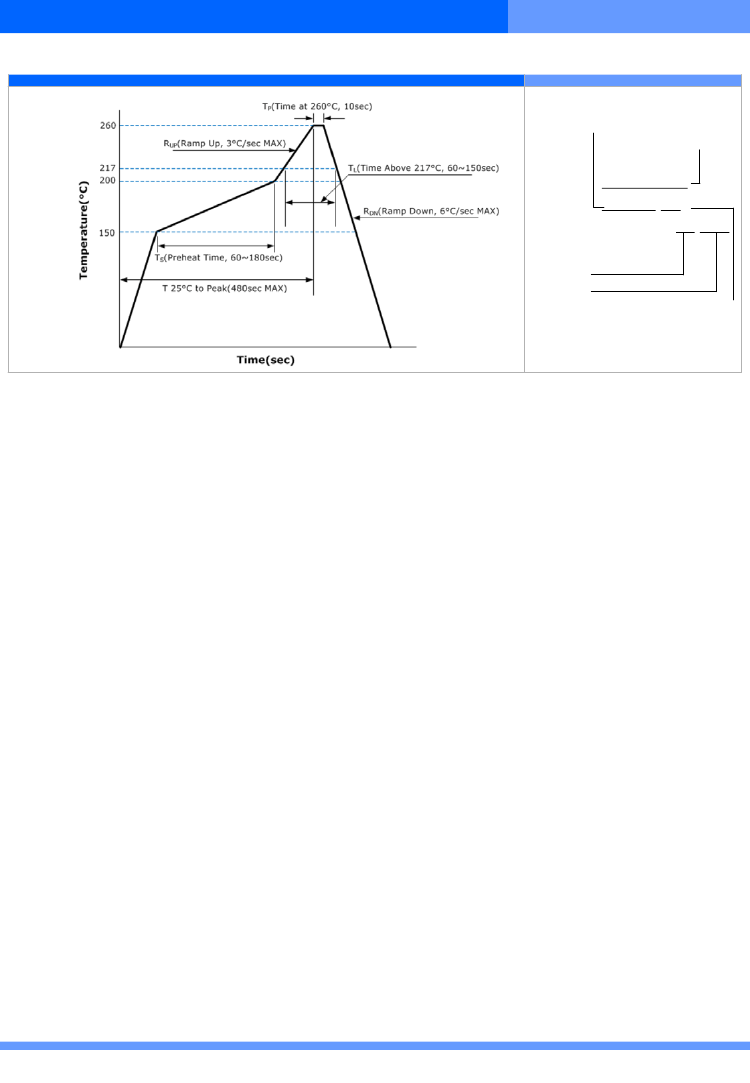

Resistance to Soldering Heat
Solderability
http://www.sunny.co.kr
MIL-STD-883, Method 1010, Condition B
MIL-STD-883, Method 1014, Condition A
MIL-STD-883, Method 1014, Condition C
MIL-STD-202, Method 213, Condition C
MIL-STD-883, Method 2007, Condition A
MIL-STD-883, Method 1004
J-STD-020, MSL 1
MIL-STD-202, Method 210, Condition K
MIL-STD-883, Method 2003
SUNNY ELECTRONICS CORP
