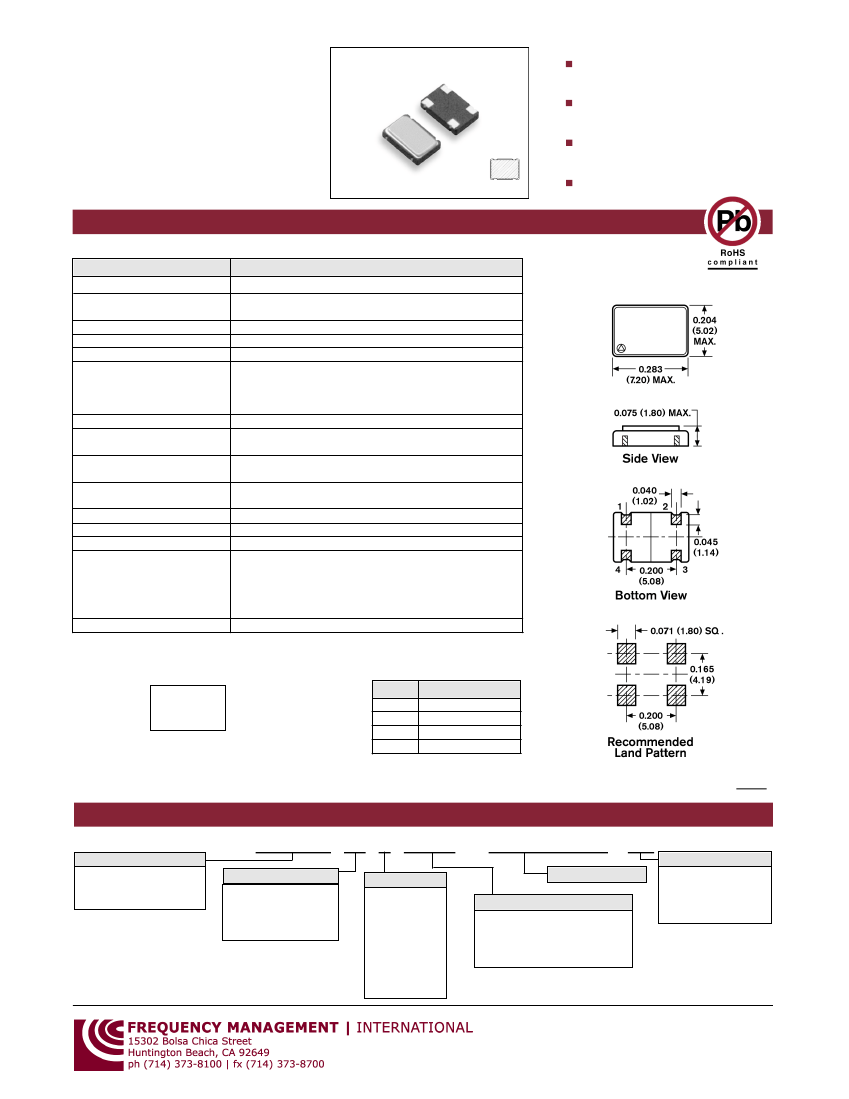

FMOC1S
SERIES
1.8 Vdc Clock Oscillators
Miniature, Low Profile
1.8 Vdc Supply Voltage
HCMOS/TTL Compatible
Actual Size
CERAMIC SMD 5x7
SPECIFICATIONS
09 - Issue 3 - 111609
Low Current Consumption
Parameter
Frequency Range
Overall Frequency Tolerance
(
Operating Temperature Range
Storage Temperature
Supply Voltage (Vdd)
Supply Current (Icc)
Specification
1.544 to 125 MHz
±25 ppm to ±100 ppm
(Inclusive of Operating Temp., Supply Voltage, & Load)
0 to +70°C Std., -40 to +85°C Avail. (See Spec. Option E)
-55 to +125°C
+1.8 Vdc (±0.3 Vdc)
4 mA max. @ 1.544 to 35.9 MHz
7 mA max. @ 36.0 to 49.9 MHz
10 mA max. @ 50.0 to 79.9 MHz
20 mA max. @ 80.0 to 125.0 MHz
40/60% Std., 45/55% Avail. (See Spec. Option S)
0.4 Vdc max. (TTL)
0.4 Vdc max. (HCMOS)
.4 Vdc min. (TTL)
2.7 Vdc min. (HCMOS)
4 ns max. (1.544 to 35.9 MHz)
2.5 ns max. (36 to 125 MHz)
1.5 pSec RMS max.
10 ms max. < 5 ms typical
2 TTL / 15 pF HCMOS
No Connect (Std.)
Tri-State (option T)
VIH: 2.2 V or Open Enables Output
VIL: 0.8 V Disables Output
Output Disable/Enable Time: 100 nS max.
±5ppm max first year
CERAMIC SMD
Symmetry (Duty Cycle)
Output “0” Level (VOL)
Output “1” Level (VOH)
Rise and Fall Time
Jitter
Start Time
Output Load
Pin 1 Options
(See Spec. Option T below)
Aging @ 25°C
All specifications subject to change without notice.
STANDARD MARKING
XXX.XXXM
XXXXXXX
• FMI YYWW
XXX.XXXM FREQUENCY in MHz
XXXXXXX Part Number
Pin 1 Symbol, FMI, Date Code
PIN FUNCTION TABLE
Pin
1
2
3
4
Function
NC or Tri-State
Case Ground
Output
Supply Voltage (Vdd)
Standard Specifications for product indicated in
color
Dimensions: Inches
(mm)
PART DESCRIPTION SYSTEM
Product Family
HCMOS/TTL Compatible
1.8 Vdc Clock Osc.
Ceramic SMD
MARKING: See Page 52, Format A
Options
TR - Tape and Reel
PD - Parameter Data
CM - Custom Mark
BLANK - None Req’d.
FMOC1S 00 A S_/_T - XX.XXXXXXM - CM
Overall Frequency Tol.
25
±25 ppm
50
±50 ppm
00
±100 ppm
nn
±Custom Value
Temp. Range
A 0 to 70 °C
B -20 to 70 °C
C -40 to 85 °C
D -10 to 50 °C
E -10 to 60 °C
F -30 to 60 °C
J
0 to 50 °C
X Custom
Frequency (MHz)
Specification Options
S - Tight Symmetry
(45/55%) Duty Cycle
T - Tri-State
BLANK - None Required (Std.)
1-800-800-XTAL
[9825]
www.fmi-inc.com
42
