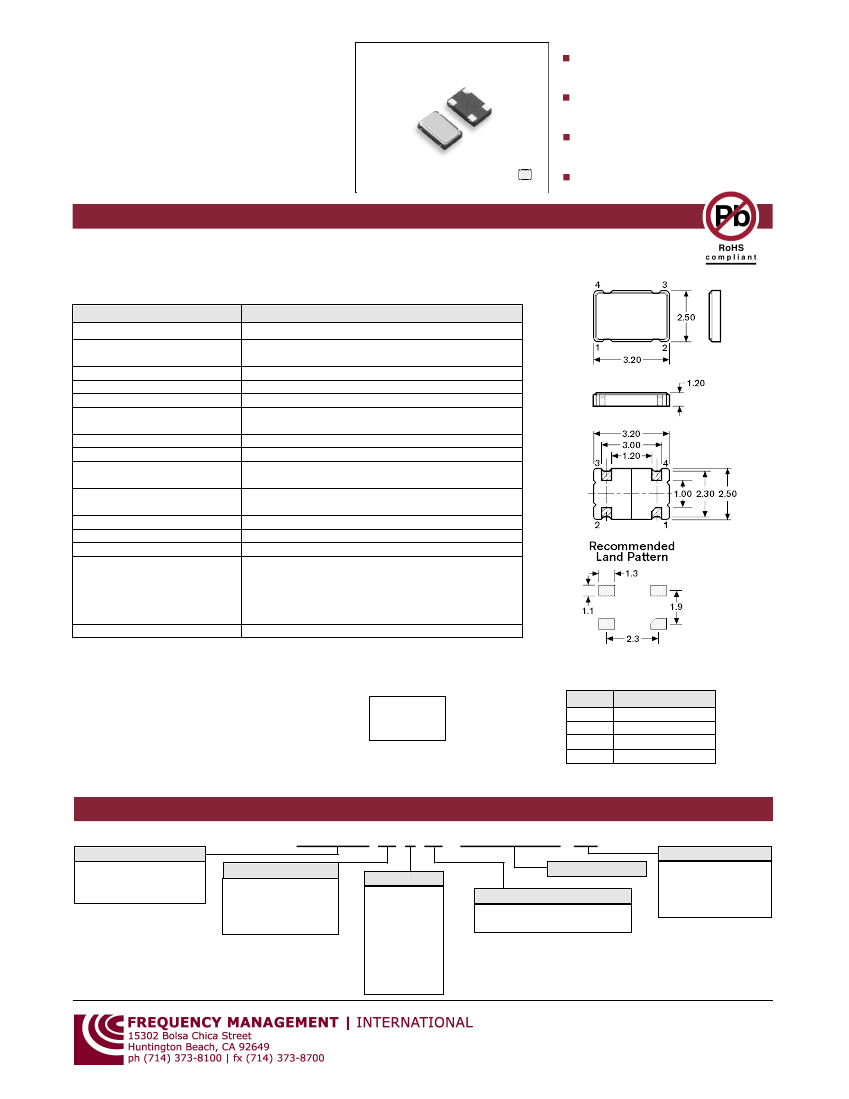

FMOC2S2
SERIES
2.5 Vdc Clock Oscillators
Prelim
Ultra Mini, Low Profile
2.5 Vdc Supply Voltage
HCMOS/TTL Compatible
Actual Size
CERAMIC SMD 2.5x3.2
SPECIFICATIONS
08 - Issue 2 - 091508
Low Current Consumption
CERAMIC SMD
Parameter
Frequency Range
Overall Frequency Tolerance
Operating Temperature Range
Storage Temperature
Supply Voltage (Vdd)
Supply Current (Icc)
Phase Jitter
Symmetry (Duty Cycle)
Output “0” Level (V
OL
)
Output “1” Level (V
OH
)
Rise and Fall Time
Start Time
Output Load
Pin 1 Options
(See Spec. Option
T
below)
Specification
1 to 48 MHz
±25 ppm to ±100 ppm
(Inclusive of Operating Temp., Supply Voltage, & Load)
0 to +70°C Std., -40 to +85°C Avail. (See Spec. Option E)
-55 to +125°C
+2.5 Vdc (±0.3 Vdc)
16 mA max. @ 1 to 33.333 MHz
25 mA max. @ 33.334 to 48.000 MHz
12 kHz to 20 MHz < 1.0 ps RMS
40/60% Std.
0.4 Vdc max. (TTL)
0.4 Vdc max. (HCMOS)
2.4 Vdc min. (TTL)
2.7 Vdc min. (HCMOS)
10 ns max. < 5 ns typical
10 ms max. < 5 ms typical
2 TTL / 15 to 50 pF HCMOS
No Connect (Std.)
Tri-State (option
T)
VIH: 2.2 V or Open Enables Output
VIL: 0.8 V Disables Output
Output Disable/Enable Time: 100 nS max.
Aging @ 25°C
±5ppm max first year
All specifications subject to change without notice.
STANDARD MARKING
XXX.XXXM
XXX.XXXM FREQUENCY in MHz
PIN FUNCTION TABLE
Pin
1
2
3
4
Function
NC or Tri-State
Case Ground
Output
Supply Voltage (Vdd)
Dimensions: millimeters
Standard Specifications for product indicated in
color
PART DESCRIPTION SYSTEM
Product Family
HCMOS/TTL Compatible
2.5 Vdc Clock Osc.
Ceramic SMD
MARKING: See Page 52, Format A
Options
TR - Tape and Reel
PD - Parameter Data
CM - Custom Mark
BLANK - None Req’d.
FMOC2S2 00 A T
-
XX.XXXXXXM
-
CM
Overall Frequency Tol.
25
± 25 ppm
50
± 50 ppm
00
± 100 ppm
nn
± Custom Value
Frequency (MHz)
Temp. Range
A 0 to 70 °C
B -20 to 70 °C
C -40 to 85 °C
D -10 to 50 °C
E -10 to 60 °C
F -30 to 60 °C
J
0 to 50 °C
X Custom
Specification Options
T - Tri-State
BLANK - None Required (Std.)
1-800-800-XTAL
[9825]
www.fmi-inc.com
42
