FMOCLVDSC2S325FT-270.000000M-PD

Description
LVDS Output Clock Oscillator
CategoryPassive components    oscillator
File Size178KB,1 Pages
ManufacturerFrequency Management International
Environmental Compliance
Download Datasheet Parametric View All

FMOCLVDSC2S325FT-270.000000M-PD Overview

LVDS Output Clock Oscillator

FMOCLVDSC2S325FT-270.000000M-PD Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid1292900134
Reach Compliance Codecompliant
Oscillator typeLVDS

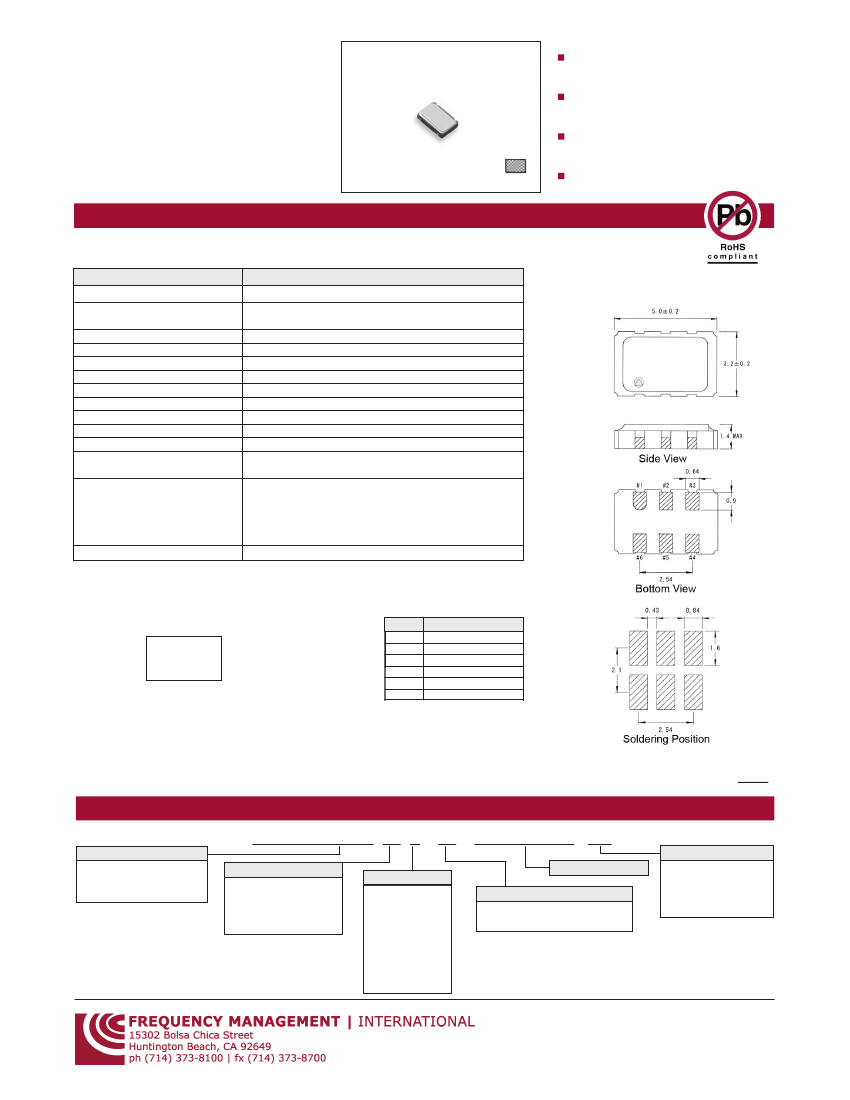

FMOCLVDSC2S3
2.5 Vdc LVDS Clock Oscillators
SERIES
Drives Fast LVDS Logic
2.5 Vdc Supply Voltage
Complementary Output, Low EMI
Reflow Soldering Temp. +260°C
Actual Size
CERAMIC SMD 5x3.2
SPECIFICATIONS
issue 1 - 01252011
Parameter
Frequency Range
Overall Frequency Tolerance
Operating Temperature Range
Storage Temperature
Supply Voltage (Vdd)
Supply Current (Icc)
Phase Jitter
Symmetry (Duty Cycle)
Rise and Fall Time
Output
Output Load
Output Signal
Pin 1 Output Enable/Disable
(note: do not connect to pin 1 if
do not want this feature)
Specification
80.00 to 270.000 MHz
±50 ppm standard, see options below
(Inclusive of Operating Temp., Supply Voltage, & Load)
0°C to +70°C, -40°C to +85°C Available
-55°C to +125°C
+2.5 Vdc ± 5%
66 mA max
0.3 pS RMS max | Condition: 12 kHz to 20 MHz Band
40/60%
0.7 nsec max
LVDS
100 ohms max (Offset 1.25V typical)
VOH: 1.43V typical
VOL: 1.10V typical
VIH: 0.7 Vcc min (Output Enabled)
VIL: 0.3 Vcc max (Output: High Impedance)
Enable Phase Delay Time 2ms max.
Disable Phase Delay Time 200ns max.
CERAMIC SMD
Phase Jitter
0.3ps max (RMS, 12 kHz to 20 MHz)
Note: 0.01 µF external by-pass filter recommended.
All specifications subject to change without notice.
PIN FUNCTION TABLE
STANDARD MARKING
XXX.XXXM
• FMI YYWW
XXX.XXXM FREQUENCY in MHz
Pin 1 Symbol, FMI, Date Code
Pin
1*
2
3
4
5
6
Function
Enable/Disable (Tri-State)
NC
Ground
Output
Diff. Output
Supply Voltage (Vcc)
*Do not connect to Pin 1 if (tri-state)
enable/disable is not required.
Standard Specifications for product indicated in
color
Dimensions:
Inches
(mm)
PART DESCRIPTION SYSTEM
FMOCLVDSC2S3 00 A
Product Family
LVDS
2.5 Vdc Clock Osc.
Ceramic SMD
Overall Frequency Tol.
25
± 25 ppm
50
± 50 ppm
00
± 100 ppm
nn
± Custom Value
Temp. Range
A 0 to 70 °C
B -20 to 70 °C
C -40 to 85 °C
D -10 to 50 °C
E -10 to 60 °C
F -30 to 60 °C
J
0 to 50 °C
X Custom
MARKING: See Page 52, Format A
T
-
XX.XXXXXXM
-
CM
Frequency (MHz)
Specification Options
T - Tri-State
(If not desired, do not connect)
Options
TR - Tape and Reel
PD - Parameter Data
CM - Custom Mark
BLANK - None Req’d.
1-800-800-XTAL
[9825]
www.fmi-inc.com
38
