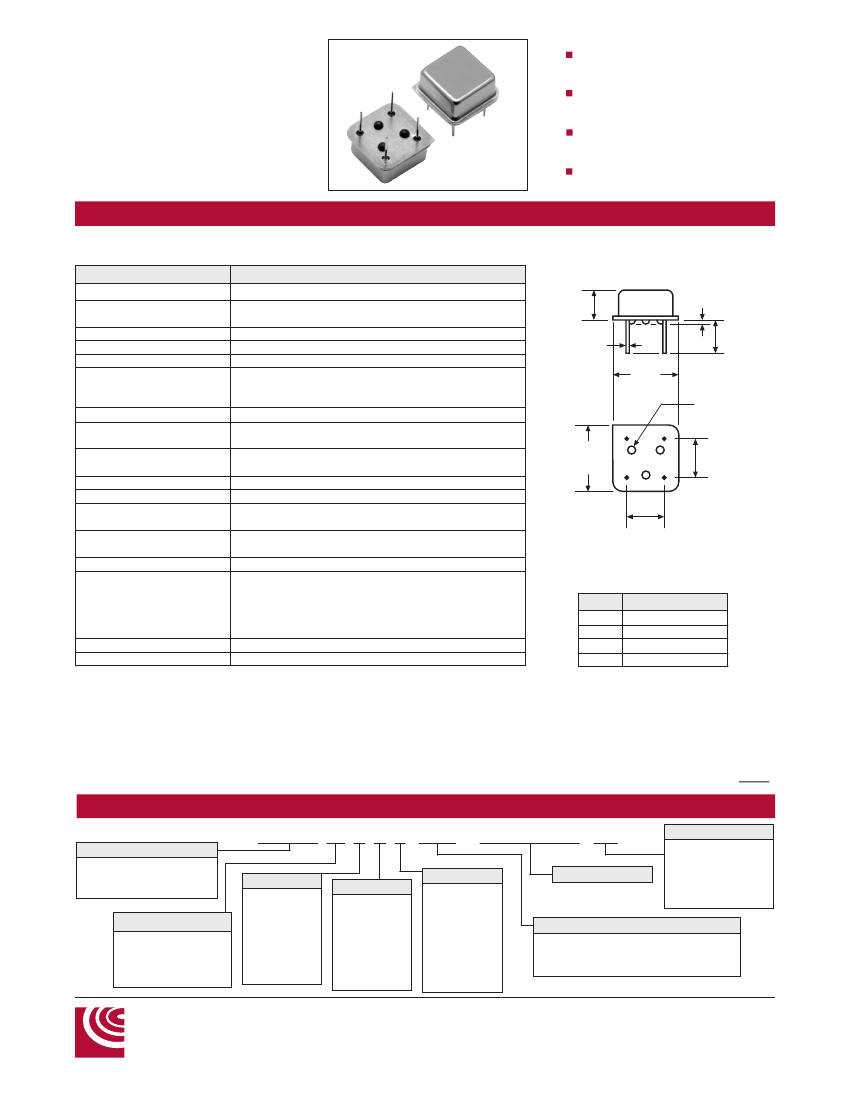

FMVC48
SERIES
5.0 Vdc VCXO
5.0 Vdc Supply Voltage
HCMOS / TTL Compatible
Small Footprint
Excellent Stability
8 PIN DIP
SPECIFICATIONS
05|issue1|121304
Parameter
Frequency Range
Overall Frequency Tolerance
Specification
0.220
(5.6)
MAX
HALF SIZE 8 PIN DIP
0.022
(0.56)
0.250
(6.35)
MAX.
0.510
(12.95)
MAX.
1
0.510
(12.95)
MAX.
8
5
4
20.0 kHz - 160 MHz
±20 ppm to ±100 ppm (±50 ppm STD)
(Inclusive of Operating Temp., Supply Voltage, & Load.)
Operating Temperature Range 0 to +70°C Std.
Storage Temperature
-55 to +125°C
Supply Voltage (Vdd)
+5.0 Vdc (±0.5 Vdc)
Supply Current (Icc)
30 mA max. @ 20.0 kHz to 23.9 MHz
50 mA max. @ 24.0 to 60.0 MHz
75 mA max. @ 61.0 to 160.0 MHz
Symmetry (Duty Cycle)
40/60% Std., 45/55% Available (See Spec. Option S).
Output “0” Level (VOL)
0.4 Vdc max. (TTL)
0.5 Vdc max. (HCMOS)
Output “1” Level (VOH)
2.4 Vdc min. (TTL)
4.5 Vdc min. (HCMOS)
Rise and Fall Time
10 ns max. < 5 ns typical
Linearity
±20% max. Std. , ±10% Available (See Spec. Option L)
Output Load
10 TTL / 15 pF HCMOS < 40.0 MHz
15 pF HCMOS
Pullability
±100 to ±150 ppm typical @ 5.0 Vdd
(Select a min. and max. pullability from part number.)
Jitter (typical)
< 10 pico seconds, one sigma
Phase Noise (typical)
10 Hz
-75dBc/Hz
100 Hz
-110dBc/Hz
1kHz
-125dBc/Hz
10kHz
-130dBc/Hz
100kHz
-140dBc/Hz
Control Voltage (Vc)
Nominal 2.5 Vdc, Range 0.5-4.5 Vdc, Positive Transfer @5.0 Vdd
Aging @ 25°C
±3 ppm max first year
All specifications subject to change without notice.
0.018
(0.46)
Insulated
Stand-Offs
0.300
(7.62)
0.300
(7.62)
PIN FUNCTION TABLE
Pin
1
4
5
8
Function
Control Voltage (Vc)
Case Ground
Output
Supply Voltage (Vdd)
NOTE: Waveforms & Test Circuits on pages 48, 49
Standard Specifications for product indicated in
color
Dimensions:
Inches
(mm)
PART NUMBERING SYSTEM
Product Family
HCMOS/TTL Compatible
5.0 Vdc VCXO
Half-Size 8 Pin DIP
Overall Frequency Tol.
25 - ± 25 ppm
50 - ± 50 ppm
00 - ± 100 ppm
nn - ± Custom Value
MARKING: See Page 57, Format H
Options
GW- Gull Wing
JL - J-Lead
PD - Parameter Data
CM - Custom Mark
BLANK - None Req’d.
FMVC48 50 C G A S / L - XX.XXXXXXM - CM
Min. Pullability
A - +1-50 ppm
B - ± 75 ppm
C - ± 100 ppm
D - ± 125 ppm
E - ± 150 ppm
X - Custom
Z - No Spec.
Max. Pullability
C - ± 100 ppm
D - ± 125 ppm
E - ± 150 ppm
F - ± 175 ppm
G - ± 200 ppm
X - Custom
Z - No Spec.
Temp. Range
A 0 to 70 °C
B -20 to 70 °C
C -40 to 85 °C
D -10 to 50 °C
E -10 to 60 °C
F -30 to 60 °C
J 0 to 50 °C
X - Custom
Frequency (MHz)
Spec. Options
S - Tight Symmetry (45/55%) Duty Cycle
L - Linearity ±10% Max.
BLANK- None Required (Std.)
FREQUENCY MANAGEMENT |
INTERNATIONAL
15302 Bolsa Chica Street
Huntington Beach, CA 92649
ph (714) 373-8100 | fx (714) 373-8700
1-800-800-XTAL
[9825]
www.fmi-inc.com
49
