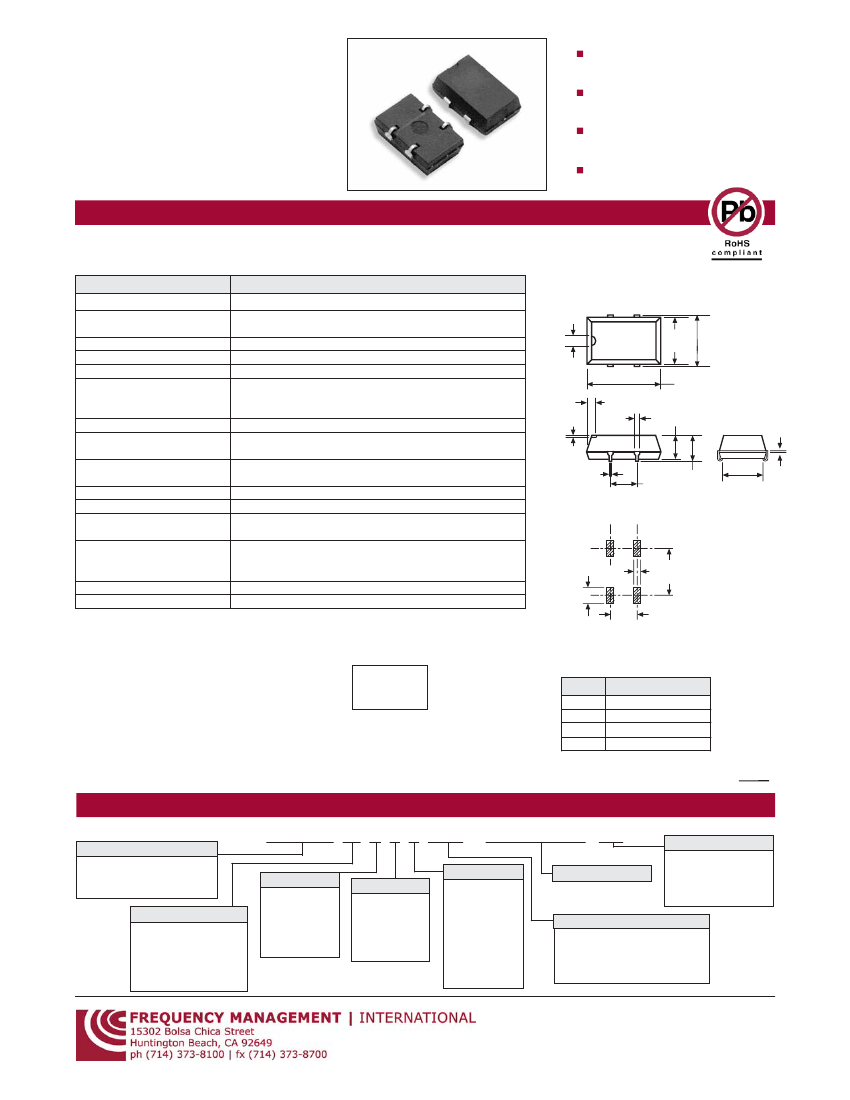

FMVCJS3
SERIES
3.3 Vdc VCXO
Low Profile
3.3 Vdc Supply Voltage
HCMOS/TTL Compatible
Tape & Reel
J - LEAD PLASTIC SMD
SPECIFICATIONS
09 - Issue 2 - 021209
Parameter
Frequency Range
Overall Frequency Tolerance
Operating Temperature Range
Storage Temperature
Supply Voltage (Vdd)
Supply Current (Icc)
Specification
1.8 - 200 MHz
±25 ppm to ±100 ppm
(Inclusive of Operating Temp., Supply Voltage, & Load.)
0 to +70°C Std.
-40 to +125°C
+3.3 Vdc (±0.5 Vdc)
30 mA max. @ 2.0 to 23.9 MHz
50 mA max. @ 24.0 to 55.0 MHz
75 mA max. @ 56.0 to 200.0 MHz
40/60% Std., 45/55% Available (See Spec. Option S).
0.4 Vdc max. (TTL)
0.5 Vdc max. (HCMOS)
2.4 Vdc min. (TTL)
4.5 Vdc min. (HCMOS)
10 ns max. < 5 ns typical
±20% max. Std. , ±10% Available (See Spec. Option L)
10 TTL / 15 pF HCMOS < 40.0 MHz
15 pF HCMOS
±100 to ±150 ppm typical.
(Select a min. and max. pullability from part number.)
Voltage Control Pin 1 Nom. 2.5 Vdc, Range 0.5 to 4.5 Vdc
Nominal 2.5 Vdc, Range 0.5-4.5 Vdc, Positive Transfer
±3 ppm max first year
0.079
(2.00)
J-LEAD PLASTIC SMD
4
3
0.352
(8.94)
1
2
0.552 (14.02) MAX.
0.060 (1.52)
0.040
(1.02)
0.006
(0.15)
0.020
(0.51)
0.160
(4.06)
0.386
(9.80)
MAX.
Symmetry (Duty Cycle)
Output “0” Level (V
OL
)
Output “1” Level (V
OH
)
Rise and Fall Time
Linearity
Output Load
Pullability
0.200
(5.08)
0.185
(4.70)
MAX.
0.300
(7.62)
0.010
(0.25)
Recommended
Land Pattern
Control Voltage (Vc)
Aging @ 25°C
0.050
(1.27)
0.350
(8.89)
All specifications subject to change without notice.
0.120
(3.05)
0.200
(5.08)
STANDARD MARKING
XX.XXM
XXXXXXX
• FMI YYWW
XX.XXM FREQUENCY in MHz
XXXXXXX Part Number
ESD/Pin 1 Symbol, FMI, Date Code
PIN FUNCTION TABLE
Pin
1
7
8
14
Function
Control Voltage (Vc)
Case Ground
Output
Supply Voltage (Vdd)
Dimensions:
Inches
(mm)
Standard Specifications for product indicated in
color
PART DESCRIPTION SYSTEM
Product Family
HCMOS/TTL Compatible
3.3 Vdc VCXO
J-Lead Plastic SMD
Overall Frequency Tol.
20
±20 ppm
25
±25 ppm
50
±50 ppm
00
±100 ppm
nn
±Custom Value
MARKING: See Page 52, Format A
FMVCJS3 50 C E A S / L
-
XX.XXXXXXM
-
CM
Options
Max. Pullability
C ±100 ppm
D ±125 ppm
E ±150 ppm
X Custom
Z No Spec.
Temp. Range
A 0 to 70 °C
B -20 to 70 °C
C -40 to 85 °C
D -10 to 50 °C
E -10 to 60 °C
F -30 to 60 °C
J
0 to 50 °C
X Custom
Frequency (MHz)
TR - Tape and Reel
PD - Parameter Data
CM - Custom Mark
BLANK - None Req’d.
Min. Pullability
B ±75 ppm
C ±100 ppm
D ±125 ppm
X Custom
Z No Spec.
Spec. Options
S - Tight Symmetry
(45 / 55%) < 35 MHz only
L - Linearity 10% Max.
BLANK - None Required (Std.)
1-800-800-XTAL
[9825]
www.fmi-inc.com
