TM
SURFACE MOUNT
CERAMIC ENCASED TYPE
HSVALS Series
Alloy Electrical
Resistance Ribbon
Fire Proof
Ceramic Housing
HSVAS/ HSVALS
SERIES
Surface Mount
Wire Wound/Current Sense Resistors
Terminals Suitable For
Reflow Soldering
Quartz Silica Powder
HSVAS Series
Alloy Wire Wound Element
On Heat Conducting Ceramic/
Fiber Glass Substrate
Terminals Suitable For
Reflow Soldering
Quartz Silica Powder
Fire Proof Ceramic
Housing

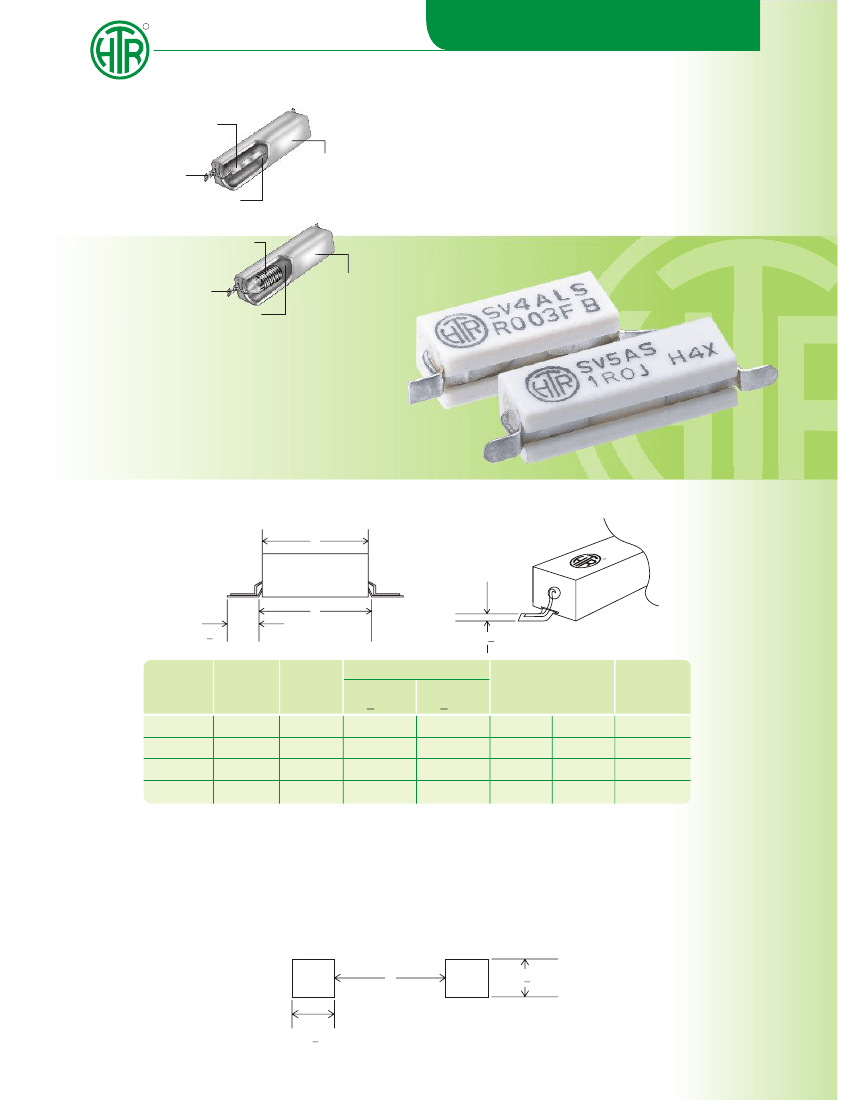

PHYSICAL CONFIGURATION
L
TM
C
4.0+1.0
3.0+0.2
HTR
SERIES
HSVAS
HSVAS
HSVALS
HSVALS
HTR
TYPE
SV4AS
SV5AS
SV4ALS
SV5ALS
POWER
RATING
AT 70°C
4W
5W
4W
5W
DIMENSIONS (mm)
L
C
(+1.5)
(+1.5)
20.0
25.0
20.0
25.0
20.5
25.5
20.5
25.5
RESISTANCE
RANGE
max
min
R10
11K
R10
R003
R004
16K
R051
R068
TYPICAL
WT. PC.
(gms)
2.5
3.0
2.5
3.0
SV4ALS & SV5ALS :-
Resistance value must be checked using 4½ digit micro-ohm meter with four wire system
and insulated clips and the designer of the pad layout might prefer to split the pad for four wire checking.
MOUNTING / ASSEMBLY DATA
For the guidance of the Design Engineer, our applications laboratory has given the recommended pad size and
geometry which is shown below :-
C
4.0+0.5
6.0+0.5
TM
SURFACE MOUNT
SILICONE COATED TYPE
HSVAS/HSVALS
ELECTRICAL AND ENVIRONMENTAL CHARACTERISTICS / DATA
Performance Requirements
+ 10% [K]; + 5% [J]; +3% [H]; +2% [G];
+1% [F]
at 70°C full power dissipation
derated linearly to zero at 275°C
> 1000 Mega Ohms
5 times rated wattage for 5 sec.
500 Volts r.m.s.
-40°C to + 155°C
< + 250ppm/°C (Average). For very low
resistance values, TCR will increase.
Test
Resistance tolerance
Rated ambient temperature
Insulation resistance
Short time overload
Di-electric withstanding voltage
Ambient operating
temperature range
Temperature co-efficient of
resistance
TYPICAL APPLICATIONS
These devices have been introduced to answer the increased demand for power resistors which can be surface mounted.
The HSVAS Series caters to those who require a normal wire wound with surface mounting and the HSVALS series
caters to those who require a shunt / current sense device which is surface mounted.
Note :
Due to recent technological advances, the ceramic cases used may be steatite ceramic or corderite ceramic or high alumina
ceramic depending on the nature of the application. Hence the ceramic cases may be off-white or variations of brown and
variations of grey; colours which are inherent to these ceramic materials.
ORDERING INFORMATION
HSVAS/HSVALS
SV4AS/SV5ALS
3K0/R03
J
TOLERANCE
RESISTANCE VALUE
HTR TYPE
SERIES
