The PLA191 is a 1-Form-A solid state relay that uses opti-
cally coupled relay technology to provide an enhanced
5000V isolation barrier between the input and the output
of the relay. The efficient MOSFET switches use Clares
patented OptoMOS architecture. The optically coupled
input is controlled by a highly efficient GaAIAs infrared LED.
Features
•
5000V
RMS
Input/Output Isolation
•
Small 6 Pin DIP Package
•
Low Drive Power Requirements (TTL/CMOS
Compatible)
•
No Moving Parts
•
High Reliability
•
Arc-Free With No Snubbing Circuits
•
FCC Compatible
•
VDE Compatible
•
No EMI/RFI Generation
•
Machine Insertable, Wave Solderable
•
Surface Mount and Tape & Reel Versions Available
Applications
•
Telecommunications
•
Telecom Switching
•
Tip/Ring Circuits
•
Modem Switching (Laptop, Notebook, Pocket Size)
•
Hookswitch
•
Dial Pulsing
•
Ground Start
•
Ringer Injection
•
Instrumentation
•
Multiplexers
•
Data Acquisition
•
Electronic Switching
•
I/O Subsystems
•
Meters (Watt-Hour, Water, Gas)
•
Medical Equipment-Patient/Equipment Isolation
•
Security
•
Aerospace
•
Industrial Controls
Approvals
•
UL Approved to UL1577
•
CSA Certified
•
Complies with EN60950
Ordering Information
Part #
PLA191
PLA191S
PLA191STR
Description
6 Pin Dip (50/Tube)
6 Pin Surface Mount (50/Tube)
6 Pin Surface Mount (1000/Reel)
Pin Configuration
PLA191 Pinout
AC/DC Configuration
+ Control
Ð Control
NC
1
2
3
6
5
4
Load
Do Not Use
Load
PLA191 Pinout
DC Only Configuration
+ Control
Ð Control
NC
1
2
3
6
5
4
+ Load
Ð Load
Switching Characteristics of
Normally Open (Form A) Devices
10ms
CONTROL
+
90%
LOAD
10%
+
T
ON
10%+
T
OFF
DS-PLA191-R1
www.clare.com
1
PLA191
Absolute Maximum Ratings (@ 25˚ C)
Parameter
Input Power Dissipation
Input Control Current
Peak (10ms)
Reverse Input Voltage
Total Power Dissipation
Isolation Voltage
Input to Output
Operational Temperature
Storage Temperature
Soldering Temperature
DIP Package
Surface Mount Package
(10 Seconds Max.)
1
2
Min
-
-
-
-
-
5000
-40
-40
-
-
Typ Max Units
- 150
1
mW
-
50
mA
-
1
A
-
5
V
2
mW
- 800
-
-
-
-
-
-
V
RMS
+85
°C
+125 °C
+260
+220
°C
°C
Absolute Maximum Ratings are stress ratings. Stresses in
excess of these ratings can cause permanent damage to
the device. Functional operation of the device at these or
any other conditions beyond those indicated in the opera-
tional sections of this data sheet is not implied. Exposure
of the device to the absolute maximum ratings for an
extended period may degrade the device and effect its
reliability.
Derate Linearly 1.33 mw/˚C
Derate Linearly 6.67 mw/˚C
Electrical Characteristics
Parameter
Output Characteristics @ 25°C
Load Voltage (Peak)
Load Current (Continuous)
AC/DC Configuration
DC Configuration
Peak Load Current
On-Resistance
AC/DC Configuration
DC Configuration
Off-State Leakage Current
Switching Speeds
Turn-On
Turn-Off
Output Capacita nce
Input Characteristics @ 25°C
Input Control Current
Input Dropout Current
Input Voltage Drop
Reverse Input Voltage
Reverse Input Current
Common Characteristics @ 25°C
Input to Output Capacitance
Input to Output Isolation
Conditions
-
-
-
10ms
I
L
=150mA
I
L
=250mA
V
L
=400V
I
F
=5mA, V
L
=10V
I
F
=5mA, V
L
=10V
50V; f=1MHz
I
L
=150mA
-
I
F
=5mA
-
V
R
=5V
-
(60 seconds)
Symbol
V
L
I
L
I
L
I
L
R
ON
R
ON
I
LEAK
T
ON
T
OFF
C
OUT
I
F
I
F
V
F
V
R
I
R
C
I/O
V
I/O
Min
-
-
-
-
-
-
-
-
-
-
5
0.4
0.9
-
-
-
5000
Typ
-
-
-
-
-
-
-
-
-
65
-
0.7
1.2
-
-
3
-
Max
400
250
350
500
8
3
1
3.0
1.0
-
50
-
1.4
5
10
-
-
Units
V
mA
mA
mA
Ω
Ω
µA
ms
ms
pF
mA
mA
V
V
µA
pF
V
RMS
2
www.clare.com
R1
PLA191

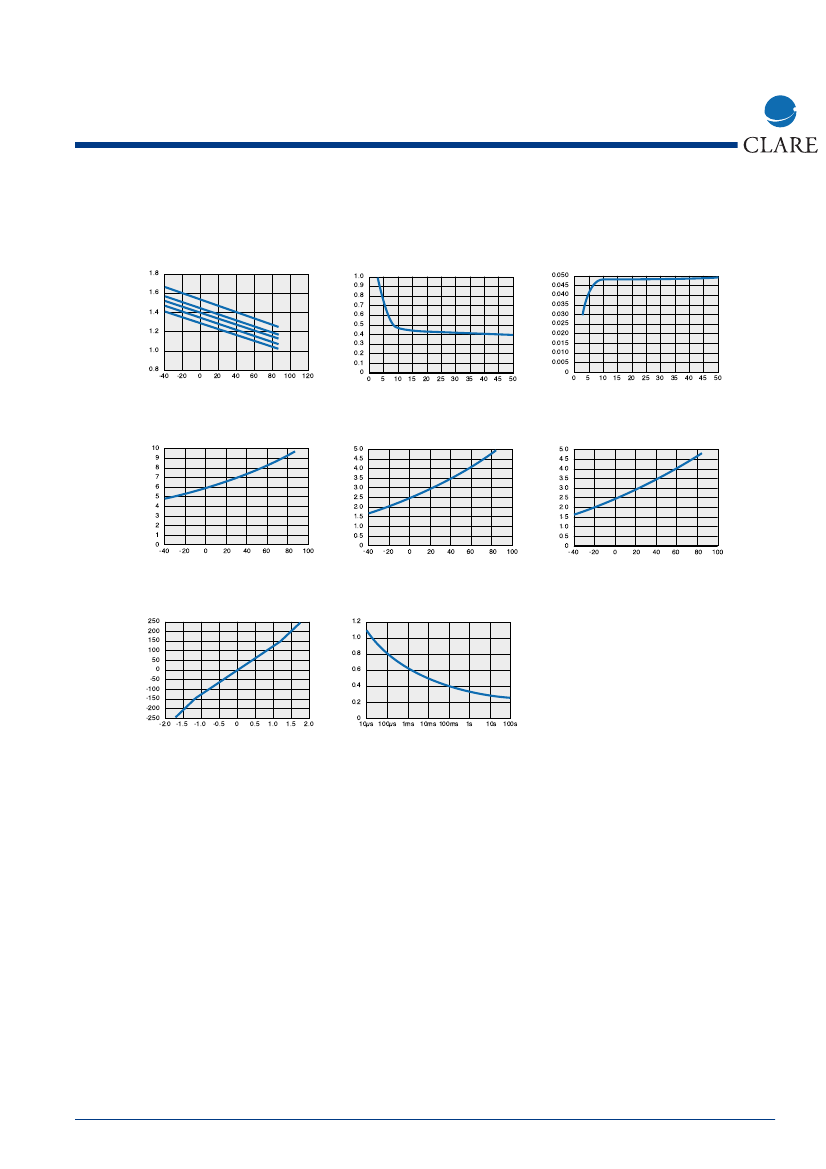

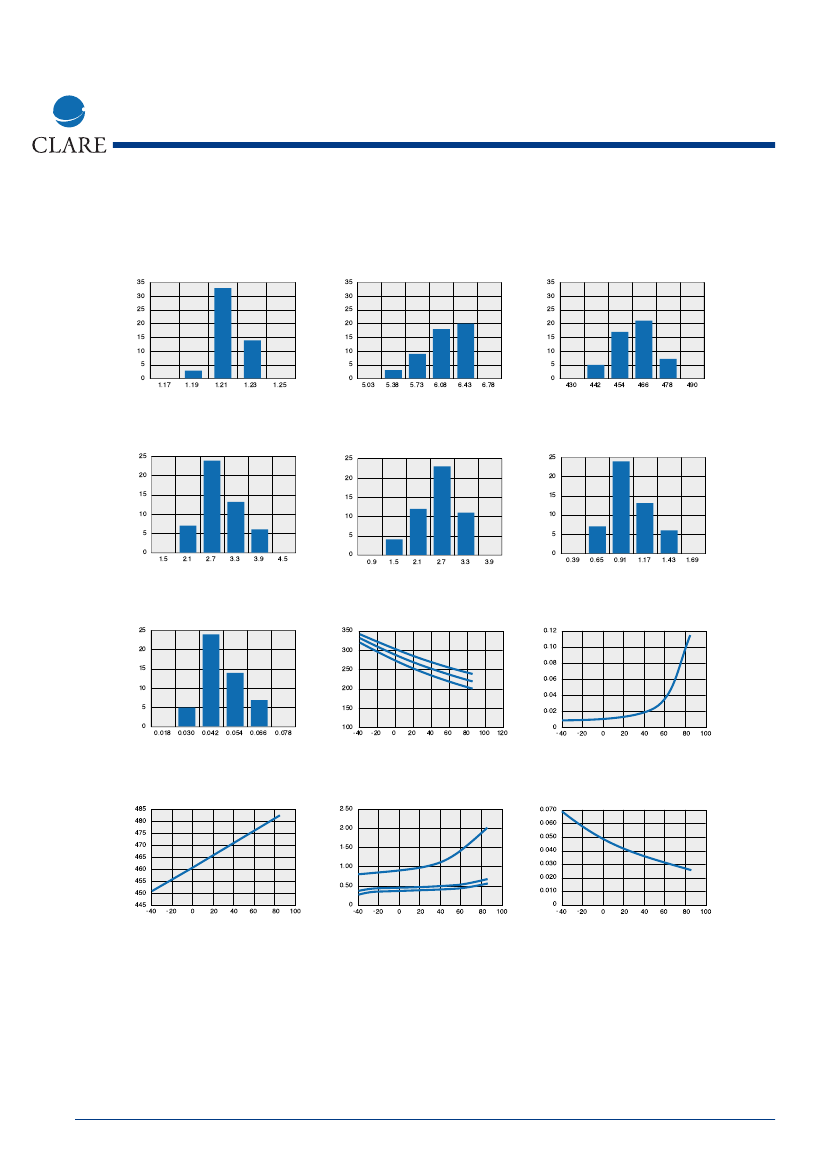

PERFORMANCE DATA*
PLA191
Typical LED Forward Voltage Drop
(N=50 Ambient Temperature = 25°C;
I
F
= 5mADC)
35
30
PLA191
Typical On-Resistance Distribution
(N=50 Ambient Temperature = 25°C)
(Load Current = 250mADC; I
F
= 5mADC)
35
30
!#
!
Device Count (N)
PLA191
Typical Blocking Voltage Distribution
(N=50 Ambient Temperature = 25°C)
Device Count (N)
Device Count (N)
25
20
15
10
5
0
1.17
1.19
1.21
1.23
1.25
25
20
15
10
5
0
5.03
5.38
5.73
6.08
6.43
6.78
#
#
#
"!
""
"#"
"$$
"%&
"'
LED Forward Voltage Drop (V)
On-Resistance (Ω)
Blocking Voltage (V)
PLA191
Typical I
F
for Switch Operation
(N=50 Ambient Temperature = 25°C)
(Load Current = 250mADC)
25
25
PLA191
Typical I
F
for Switch Dropout
(N=50 Ambient Temperature = 25°C)
(Load Current = 250mADC)
PLA191
Typical Turn-On Time
(N=50 Ambient Temperature = 25°C)
(Load Current = 250mADC; I
F
= 5mADC)
25
20
Device Count (N)
15
Device Count (N)
Device Count (N)
20
20
15
15
10
10
10
5
5
5
0
1.5
2.1
2.7
3.3
3.9
4.5
0
0.9
1.5
2.1
2.7
3.3
3.9
0
0.39
0.65
0.91
1.17
1.43
1.69
Current (mA)
Current (mA)
Turn-On (ms)
PLA191
Typical Turn-Off Time
(N=50 Ambient Temperature = 25°C)
(Load Current = 250mADC; I
F
= 5mADC)
25
20
350
Load Current (mA)
PLA191
Typical Load Current vs. Temperature
0.12
0.10
PLA191
Typical Leakage vs. Temperature
(Measured across Pins 4 & 6)
Device Count (N)
300
Leakage (µA)
15
250
200
150
100
-40 -20
0
20
40
60
0.08
0.06
0.04
0.02
0
-40
-20
0
20
40
60
80
100
10
20mA
10mA
5mA
5
0
0.018
0.030
0.042
0.054
0.066
0.078
80 100 120
Turn-Off (ms)
Temperature (°C)
Temperature (°C)
PLA191
Typical Blocking Voltage vs. Temperature
485
PLA191
Typical Turn-On vs. Temperature
(Load Current = 250mADC)
2.50
0.070
PLA191
Typical Turn-Off vs. Temperature
(Load Current = 250mADC)
0.060
Blocking Voltage (V
RMS
)
480
475
470
465
460
455
450
445
-40
-20
0
20
40
60
80
100
5mA
2.00
Turn-On (ms)
1.50
Turn-Off (ms)
0.050
0.040
0.030
0.020
0.010
0
1.00
10mA
0.50
5mA
20mA
-40
-20
0
20
40
60
80
100
0
-40
-20
0
20
40
60
80
100
Temperature (°C)
Temperature (°C)
Temperature (°C)
The Performance data shown in the graphs above is typical of device performance. For guaranteed parameters not indicated in the written specifications, please contact
our application department.
R1
www.clare.com
3
PLA191
PERFORMANCE DATA*
PLA191
Typical LED Forward Voltage Drop
vs. Temperature
LED Forward Voltage Drop (V)
1.8
1.6
PLA191
Typical Turn-On vs. LED Forward Current
(Load Current = 250mADC)
1.0
0.9
0.8
PLA191
Typical Turn-Off vs. LED Forward Current
(Load Current = 250mADC)
0.050
0.045
0.040
Turn-Off (ms)
Turn-On (ms)
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.035
0.030
0.025
0.020
0.015
0.010
0.005
0
1.4
1.2
1.0
50mA
30mA
20mA
10mA
5mA
0.8
-40
-20
0
20
40
60
80
100
120
0
0
5
10
15
20
25
30
35
40
45
50
0
5
10
15
20
25
30
35
40
45
50
Temperature (°C)
LED Forward Current (mA)
LED Forward Current (mA)
PLA191
Typical On-Resistance vs. Temperature
(Load Current = 250mADC; I
F
= 5mADC)
10
9
8
7
6
5
4
3
2
1
0
-40
-20
0
20
40
60
80
100
5.0
4.5
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0
PLA191
Typical I
F
for Switch Operation
vs. Temperature
(Load Current = 250mADC)
-40
-20
0
20
40
60
80
100
5.0
4.5
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0
PLA191
Typical I
F
for Switch Dropout
vs. Temperature
(Load Current = 250mADC)
On-Resistance (Ω)
LED Current (mA)
LED Current (mA)
-40
-20
0
20
40
60
80
100
Temperature (°C)
Temperature (°C)
Temperature (°C)
PLA191
Typical Load Current vs. Load Voltage
(Ambient Temperature = 25°C; I
F
= 5mADC)
250
200
1.2
PLA191
Energy Rating Curve
1.0
Load Current (mA)
100
50
0
-50
-100
-150
-200
-250
-2.0
Load Current (A)
-1.5
-1.0
-0.5
0
0.5
1.0
1.5
2.0
150
0.8
0.6
0.4
0.2
0
10µs
100µs
1ms
10ms 100ms
1s
10s
100s
Load Voltage (V)
Time
*The Performance data shown in the graphs above is typical of device performance. For guaranteed parameters not indicated in the written specifications, please contact
our application department.
4
www.clare.com
R1
PLA191

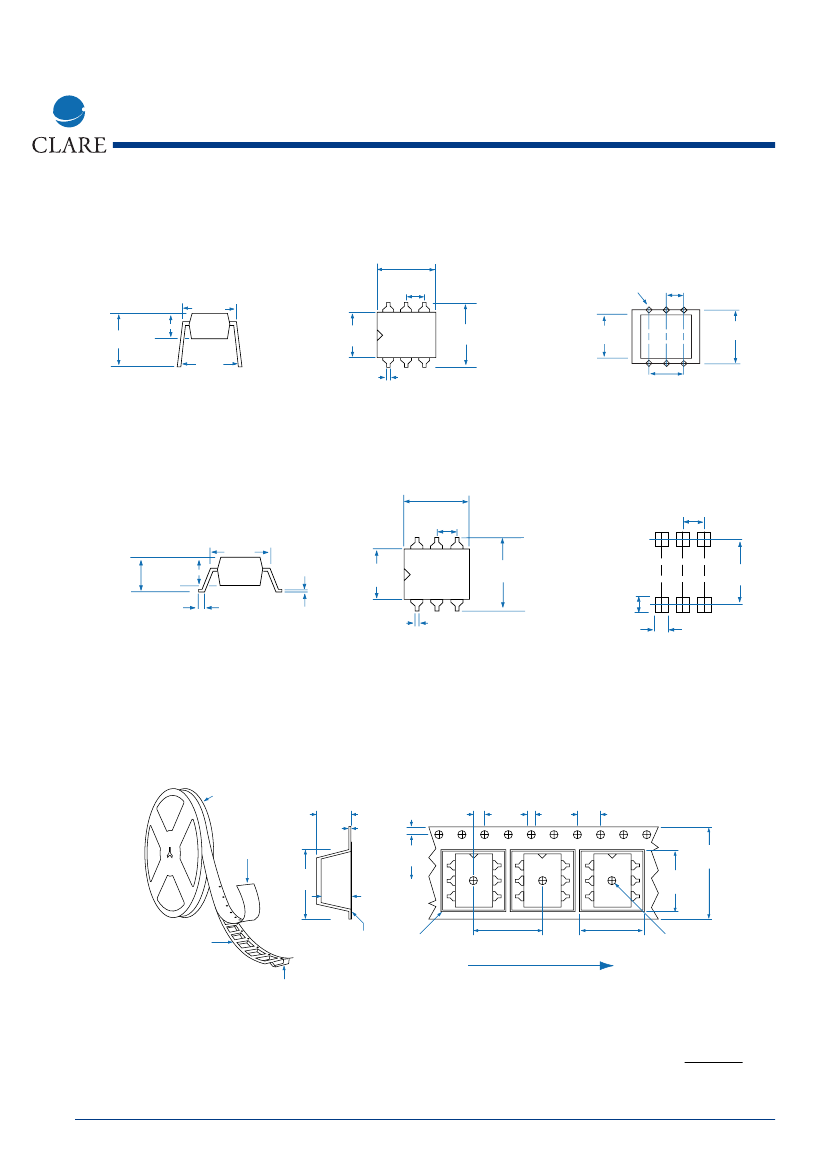

Mechanical Dimensions
6 Pin DIP Through Hole (Standard)
7.620
±
.254
(.300
±
.010)
3.302
(.130)
6.350
±
.127
(.250
±
.005)
9.144
±
.508
(.360
±
.020)
8.382
±
.635
(.330
±
.025)
2.540
±
.127
(.100
±
.005)
PC Board Pattern
(Top View)
6-.800 DIA.
(6-.031 DIA.)
9.144
(.360)
6.350
±
.127
(.250
±
.005)
2.540
±
.127
(.100
±
.005)
7.620
±
.127
(.300
±
.005)
7.239 TYP.
(.285)
.457
±
.076
(.018
±
.003)
5.080
±
.127
(.200
±
.005)
6 Pin DIP Surface Mount (“S” Suffix)
7.620
±
.254
(.300
±
.010)
4.445
±
.127
(.175
±
.005)
3.302
(.130)
.635 TYP.
(.025)
.254 TYP.
(.010)
6.350
±
.127
(.250
±
.005)
8.382
±
.635
(.330
±
.025)
2.540
±
.127
(.100
±
.005)
PC Board Pattern
(Top View)
2.540
±
.127
(.100
±
.005)
9.525
±
.254
(.375
±
.010)
1.905
±
.127
(.075
±
.005)
8.305
±
.127
(.327
±
.005)
.457
±
.076
(.018
±
.003)
1.499
±
.127
(.059
±
.005)
Tape and Reel Packaging for 6 Pin Surface Mount Package
Let me give you an example. GPIO. stm32f10x_gpio.c and stm32f10x_gpio.hThis garbage library, not only does not cover the parameter options, but it is also incomplete. It only provides 3 of the 4 optio...
I developed a nandflash for data storage. However, nandflash can only be erased and written in pages. Some data needs to be erased and written repeatedly. What should the logic of this part of the ope...
There was a line in the middle on the first day and it was the same the next day. Is it a problem with the line or the LCD itself? I feel like the screen itself has a problem....
[align=center] [b]Collected electronic DIY [/b][/align] [align=right] [b]BY:ZH110 2008.1.25[/b][/align] [b] Play games by upgrading the firmware of mp3 players.[/b] [b] [url=http://www.rockbox.org/]ht...
[align=left] [font=微软雅黑] [/font][font=微软雅黑] Thanks for your attention and support to the TI Easy Power Trial Activity. We also thank the 16 trial users for their trial and sharing of the TI Easy Power...
[i=s]This post was last edited by liwei198905 on 2016-9-23 00:47[/i] In the last review, the basic functions of 279FC were described in detail, mainly including the measurement of resistance, voltage ...
introduction
Since the beginning of the 21st century, the world of information has changed rapidly. Maybe a high-tech product will be released today and a better similar product will be releas...[Details]
Sailing is gaining more and more attention. How to use modern technology to assist training and improve competition results is particularly important. Considering the real-time data collection in t...[Details]
In public places such as schools, government agencies, factories and mines, as well as public corridors in residential areas, the phenomenon of long-burning lights is very common, which causes a h...[Details]
General LED lighting has a current limiting resistor in the driving circuit, and the power consumed by the resistor has nothing to do with the LED light emission. In order to improve efficiency, a...[Details]
With the rapid development of intelligent control technology, computers and information technology, the trend of information appliances IA (Information Application), computers and communications integ...[Details]
Investment in
the
medical device
industry has been on the rise in recent years. In the past two years, venture capital for medical devices has almost doubled, reaching $4 billion in 2007. Fr...[Details]
Recently, news came from the certification department that the photovoltaic grid-connected inverter of Samil New Energy Co., Ltd. (hereinafter referred to as "Samil New Energy") has once again obta...[Details]
Since the late 1990s, with the demand for higher system efficiency and lower power consumption, the technological update of telecommunications and data communication equipment has promoted the deve...[Details]
0 Introduction
High-precision current source can provide high-precision current supply for precision instruments, and is suitable for automatic measurement tasks of various resistors in semico...[Details]
Introduction
As the country increases its efforts to control the atmospheric environment, motorcycle emission regulations will become stricter year by year, and motorcycles that do not meet the...[Details]
introduction
LEDs continue to gain popularity in automotive applications, thanks to their long lifespan and the flexibility they offer for body styling and interior design. Some may be surpris...[Details]
Every time I go home and walk up the stairs, I am always scared. The corridor lights are often broken, and no one changes the bulbs, or they are not smart enough and need to be operated manually. E...[Details]
Rated capacity refers to the maximum output power of the UPS (the product of voltage V and current A).
Usually, the UPS power supplies sold on the market are marked with "W" (watt) for smaller...[Details]
The capacity of a battery depends on the amount of charge and discharge, in addition to some factors of the battery itself. Obviously, if the charge and discharge of the battery can be recorded all...[Details]
Direct digital frequency synthesis (DDS) has fast frequency switching and modulation capabilities and is widely used. However, when low power consumption and low cost are the main considerations, D...[Details]
stm32/stm8
京公网安备 11010802033920号
EEWORLD
