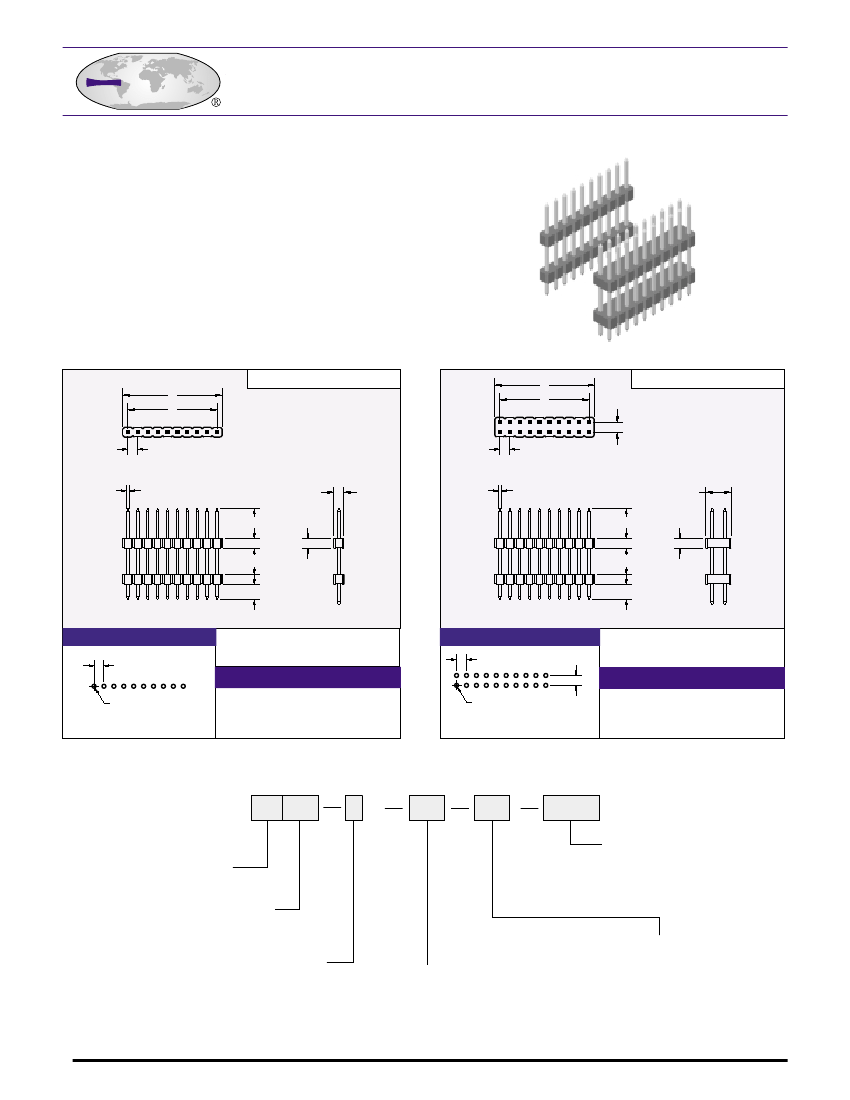

Specifications
.079 [2.00] Stacking Headers
9400 Series Headers
Insulator Material: Glass filled polyester, Type PBT,
94V-O, UL Recognized.
Contact Material: Copper Alloy
Contact Plating: Gold and/or Tin over .000050” Ni
(See contact plating options)
Insulation Resistance:
5000 M ohms min.
Dielectric Withstand Voltage: 500 VAC
Current Rating:
1 AMP
Contact Resistance:
20 m ohms max
Operating Temperature:
-40°C To +105°C
UL File Numbers:
E146967 & E176234
SINGLE ROW
A
B
A
B
DOUBLE ROW
.079 [2.0]
.0787 [2.0] TYP
.
.0787 [2.0] TYP
.
.020 [0.50] SQ.
.079 [2.0]
CONTACT
.020 [0.50] SQ.
CONTACT
.157 [4.0]
.079 [2.0]
STACK HEIGHT
TAIL
STACK HEIGHT
TAIL
.079 [2.0]
PCB LAYOUT
.0787 [2.0] TYP
.
A
= .0787 x No. of Pos.±.020
B
= .0787 x (No. of Cont. -1)
SUGGESTED MATING CONNECTORS
94XXS-AX-XX-XX (PAGE F-28)
94XXS-BX-XX-XX (PAGE F-29)
PCB LAYOUT
.0787 [2.0] TYP
.
.0787 [2.0]
Ø.032 [.80]
A
= .0787 x No. of Pos.±.020
B
= .0787 x (No. of Cont./2 -1)
SUGGESTED MATING CONNECTORS
94XXS-CX-XX-XX
94XXS-DX-XX-XX
94XXS-EX-XX-XX
94XXS-FX-XX-XX
94XXS-FL-XX-XX
94XXS-GX-XX-XX
(PAGE F-30)
(PAGE F-31)
(PAGE F-32)
(PAGE F-33)
(PAGE F-34)
(PAGE F-35)
Ø.032 [.80]
DIMENSIONS ARE IN INCHES & [MM]
PART NUMBERING
94 XX
SERIES CODE
.079 HEADERS
X1
XX
XX
XXXX
STACK HEIGHT
Ex.
.600 =
0600
1.200 =
1200
NO. OF CONTACTS
SINGLE ROW =
02 - 40
DOUBLE ROW =
04 - 80
NO. OF ROWS
C
= SINGLE ROW
D
= DOUBLE ROW
CONTACT PLATING
CONTACT
01
= .157 [4.00]
CONTACT LENGTH OPTIONS
TAIL
.110 [2.80]
CONSULT FACTORY FOR OTHER CONTACT LENGTH OPTIONS
.000050” Nickel underplate
CONTACT
TAIL
00
= 100µ”Sn
100µ”Sn
01
= Au Flash
100µ”Sn
03
= Au Flash
Au Flash
10
= 10µ”Au
100µ”Sn
30
= 30µ”Au
100µ”Sn
CONSULT FACTORY FOR CUSTOM CONNECTORS BUILT TO YOUR SPECIFICATION
WWW.ECSCONN.COM
