ECS-320-8-47AKU-TR datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> ECS-320-8-47AKU-TR

ECS-320-8-47AKU-TR: DescriptionParallel - Fundamental Quartz Crystal, 32MHz Nom, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size183KB，1 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/; Environmental Compliance

Download Datasheet Parametric View All

ECS-320-8-47AKU-TR Overview

Parallel - Fundamental Quartz Crystal, 32MHz Nom, SMD, 4 PIN

ECS-320-8-47AKU-TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1268629186
package instruction	SMD, 4 PIN
Reach Compliance Code	compliant
YTEOL	2
Other features	TR
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.001%
frequency tolerance	25 ppm
JESD-609 code	e4
load capacitance	8 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	32 MHz
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
physical size	L1.6XB1.2XH0.3 (mm)/L0.063XB0.047XH0.012 (inch)
Series resistance	100 Ω
surface mount	YES
Terminal surface	Gold (Au)

Preview

Download Datasheet

View All

Low profile

1.6 x 1.2 mm Footprint

Extended Temp Range Option

RoHS Compliant

MSL: 1

Lead Finish: Au

ECX-1247

SMD CRYSTAL

The sub miniature ECX-1247 is a very compact SMD Crystal.

The 1.6 x 1.2 x 0.3 mm ceramic package is ideal for today's

SMD manufacturing environment.

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Frequency Range

Frequency Tolerance

Frequency Stability

Shunt Capacitance

Load Capacitance

Drive Level

Operating Temperature

Storage Temperature

Aging (Per Year)

CONDITIONS

ECX-1247

MIN

24.000

TYP

MAX

80.000

± 20 *

± 30 *

UNITS

MHz

ppm

µW

°C

ppm

at +25°C

-20 to +70°C

Specify in P/N

-20

-40

@ +25°C ±3°C

100

+70

+85

±5

EQUIVALENT SERIES RESISTANCE/MODE OF OSCILLATION

FREQUENCY RANGE

(MHz)

MODE OF OSC MAX ESR

Ω

FREQUENCY RANGE

(MHz)

MODE OF OSC MAX ESR

Ω

24.00 ~ 31.999

Fundamental

150

38.000 ~ 80.000

Fundamental

32.000 ~ 37.999

Fundamental

100

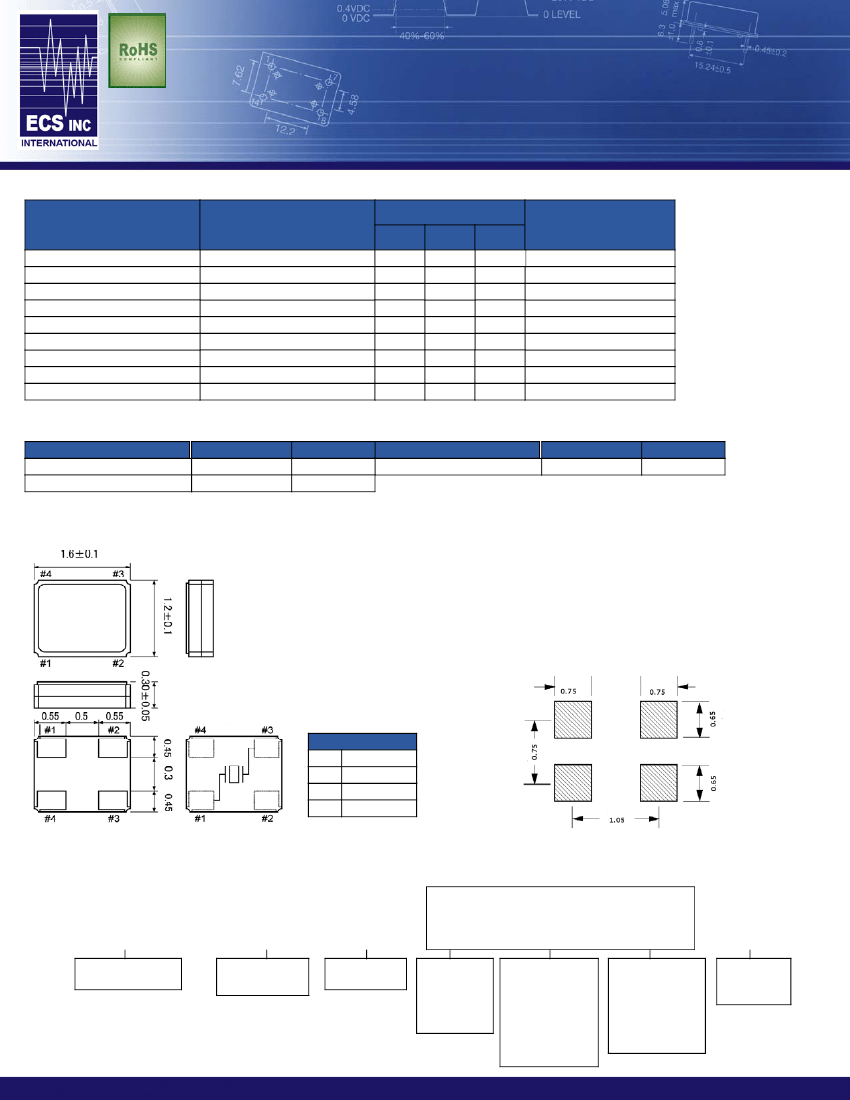

DIMENSIONS (mm)

Pad Connections

In/Out

Gnd

Out/In

Gnd

Figure 1) Top, Side, Bottom, End views and

Crystal Connection (Top View)

Figure 2) Suggested Land Pattern

Custom Options

PART NUMBERING GUIDE: Example ECS-260-8-47-TR

ECS - Frequency Abbreviation - Load Capacitance - Package

260 = 26.000 MHz

See P/N Guide

8 =8 pF

S=Series

47 =

ECX-1247

Tolerance

Blank = Std

A = ± 25 ppm

J = ± 20 ppm

R = ± 15 ppm

C = ± 10 ppm

* Stability

Blank = Std

D = ± 100 ppm

E = ± 50 ppm

G = ± 30 ppm

H = ± 25 ppm

T = ± 20 ppm

W = ± 15 ppm

K = ± 10 ppm

Temp Range

Blank = Std

L = -10 ~ +70°C

M = -20 ~ +70°C

N = -40 ~ +85°C

P = -40 ~ +105°C

S = -40 ~ +125°C

U = -55 ~ +125°C

- Packaging

TR= Tape

& Reel

1K/Reel

*Consult Factory for available stability

options over extended temp range.

Rev. 11/11

www.ecsxtal.com

1105 South Ridgeview Road

Olathe, KS 66062

Phone: 913.782.7787

Fax: 913.782.6991
