SPR3CT26A2700J datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> SPR3CT26A2700J

SPR3CT26A2700J: DescriptionFixed Resistor, Metal Film, 3W, 270ohm, 500V, 5% +/-Tol, 350ppm/Cel, Through Hole Mount, AXIAL LEADED, ROHS COMPLIANT; CategoryPassive components The resistor; File Size388KB，2 Pages; ManufacturerKOA; Environmental Compliance

Download Datasheet Parametric View All

SPR3CT26A2700J Overview

Fixed Resistor, Metal Film, 3W, 270ohm, 500V, 5% +/-Tol, 350ppm/Cel, Through Hole Mount, AXIAL LEADED, ROHS COMPLIANT

SPR3CT26A2700J Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1244885177
package instruction	AXIAL LEADED, ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	6.8
Other features	FLAME PROOF
JESD-609 code	e2
Manufacturer's serial number	SPR
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	200 °C
Minimum operating temperature	-55 °C
Package shape	TUBULAR PACKAGE
method of packing	AMMO PACK; TR
Rated power dissipation(P)	3 W
Rated temperature	70 °C
resistance	270 Ω
Resistor type	FIXED RESISTOR
surface mount	NO
technology	METAL FILM
Temperature Coefficient	350 ppm/°C
Terminal surface	Tin/Copper (Sn/Cu)
Terminal shape	WIRE
Tolerance	5%
Operating Voltage	500 V

Preview

Download Datasheet

View All

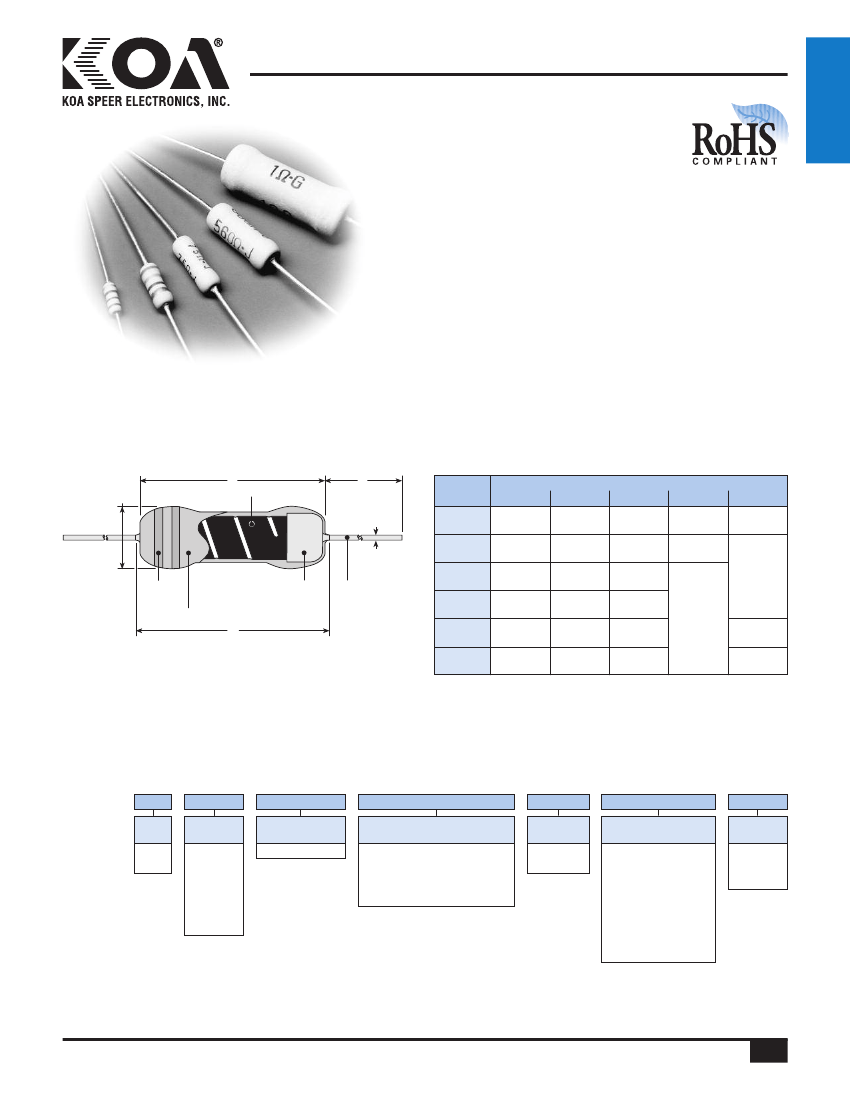

power carbon film leaded resistor

features

Fixed metal film resistor available (specify “SPRX”)

Flameproof silicone coating equivalent to (UL94V0)

High reliability performance

Suitable for automatic machine insertion

Marking: Light green body color

Color-coded bands on 1/2W - 1W

Alpha-numeric black marking on 2W - 5W

•

Products with lead-free terminations meet EU RoHS

and China RoHS requirements

•

dimensions and construction

Ceramic Body

Type

SPR1/4

SPRX1/4

SPR1/2

SPRX1/2

Marking

Flame Retardant Coating

End

Cap

Lead

Wire

SPR1

SPRX1

SPR2

SPRX2

SPR3

SPRX3

SPR5

SPRX5

.13±.012

(3.3±0.3)

.244±.02

(6.2±0.5)

.354±.039

(9.0±1.0)

.472±.039

(12.0±1.0)

.610±.039

(15.5±1.0)

.965±.039

(24.5±1.0)

Dimensions

inches

(mm)

C (max.)

d nominal

.138

(3.5)

.280

(7.1)

.437

(11.1)

.591

(15.0)

.709

(18.0)

1.10

(28.0)

.067±.012

(1.7±0.3)

.098±.02

(2.5±0.5)

.138±.02

(3.5±0.5)

.165±.031

(4.2±0.8)

.236±.039

(6.0±1.0)

.354±.039

(9.0±1.0)

.031

(0.8)

.018

(0.45)

.024

(0.6)

.945 Min.

(24.0 Min.)

.787 Min.

(20.0 Min.)

1.18±.118

(30.0±3.0)

1.50±.118

(38.0±3.0)

* Lead length changes depending on taping and forming type.

ordering information

New Part #

SPR

Type

SPR

SPRX

1/2

Power

Rating

1/4: 0.25W

1/2: 0.5W

1: 1W

2: 2W

3: 3W

5: 5W

Termination

Material

C: SnCu

T52

Taping and Forming

Axial: T26, T52, T521, T631

Stand-off Axial: L52, L521, L631

Radial: VT, VTP, VTE, GT

L, U, M Forming

Packaging

A: Ammo

R: Reel

103

Nominal

Resistance

±2%, ±5%:

2 significant figures

+ 1 multiplier

“R” indicates decimal

on value <10Ω

±1%: 3 significant

figures + 1 multiplier

“R” indicates decimal

on value <100Ω

Tolerance

F: ±1%

G: ±2%

J: ±5%

For further information

on packaging, please

refer to Appendix C.
