WBA110SD9KY5-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> WBA110SD9KY5-1

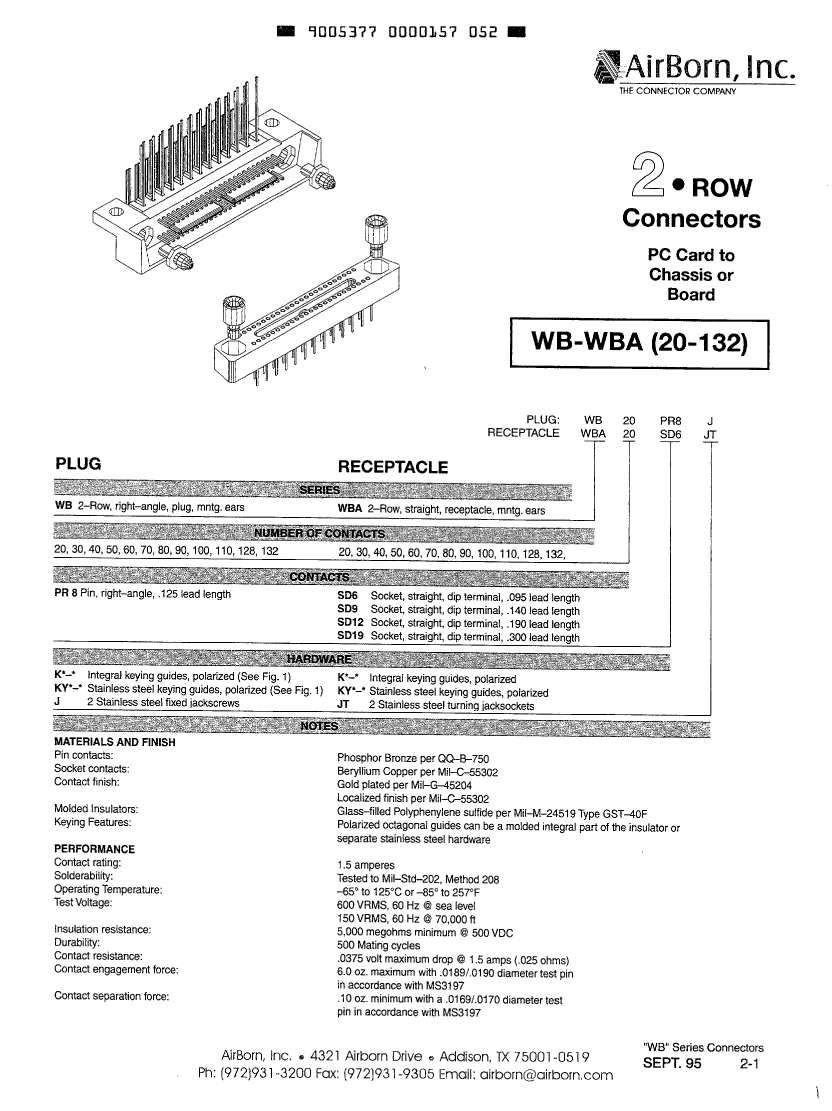

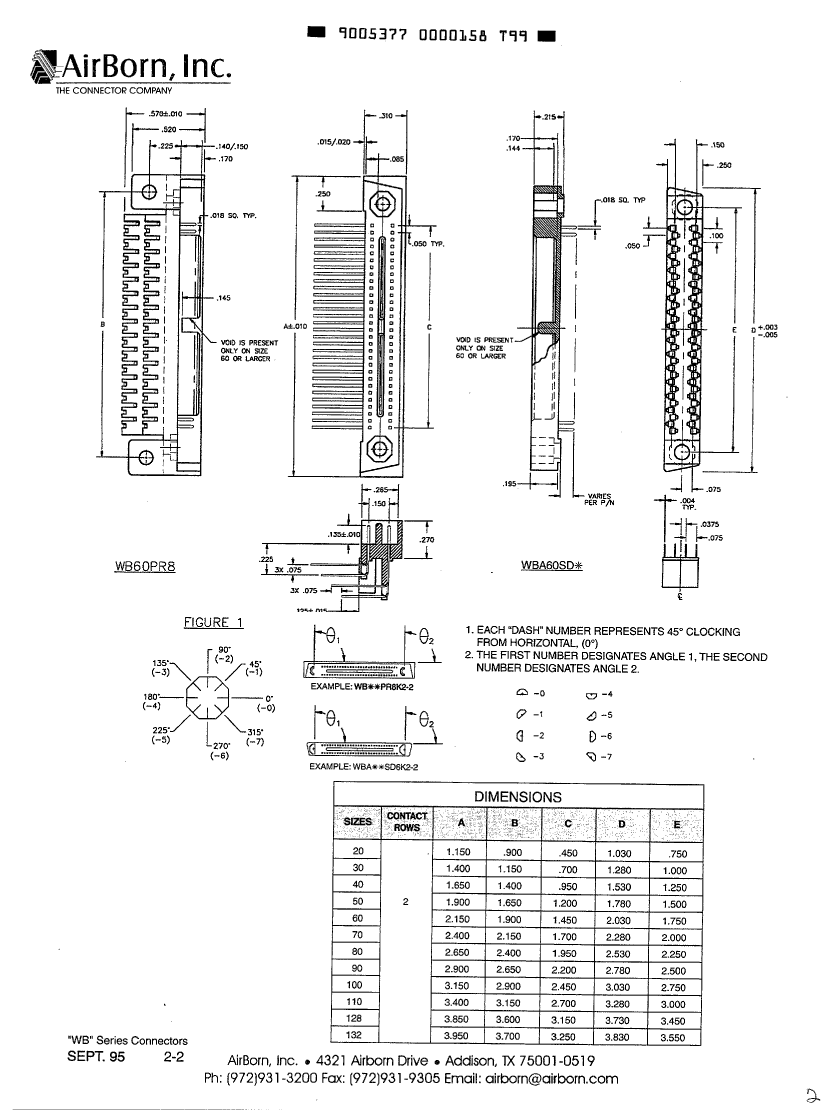

WBA110SD9KY5-1: DescriptionBoard Connector, 110 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Hole .138-.163, Plug; CategoryThe connector The connector; File Size242KB，2 Pages; ManufacturerAirBorn

Download Datasheet Parametric View All

WBA110SD9KY5-1 Overview

Board Connector, 110 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Hole .138-.163, Plug

WBA110SD9KY5-1 Parametric

Parameter Name	Attribute value
Objectid	1148591741
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	WITH MOUNTING EARS
body width	0.25 inch
subject depth	0.215 inch
body length	3.28 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	STAGGERED
Contact resistance	25 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	150VAC V
Durability	500 Cycles
maximum insertion force	1.668 N
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
MIL compliance	YES
Manufacturer's serial number	WBA
Plug contact pitch	0.05 inch
Match contact row spacing	0.15 inch
Installation option 1	HOLE .138-.163
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.905 mm
polarization key	DUAL POLARIZED
Rated current (signal)	1.5 A
reliability	MIL-C-55302
Terminal length	0.14 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	110
Evacuation force-minimum value	.0278 N
