MWDM4L-51P-0J5-18H

Description
D Microminiature Connector
CategoryThe connector    The connector
File Size230KB,2 Pages
ManufacturerGlenair
Websitehttp://www.glenair.com/
Download Datasheet Parametric View All

MWDM4L-51P-0J5-18H Overview

D Microminiature Connector

MWDM4L-51P-0J5-18H Parametric

Parameter NameAttribute value
Objectid7002624115
Reach Compliance Codecompliant
Country Of OriginUSA
ECCN codeEAR99
YTEOL8.71
Other featuresSTANDARD: MIL-DTL-83513
Connector typeD MICROMINIATURE CONNECTOR
Contact point genderMALE
contact modeSTAGGERED
Contact styleRND PIN-SKT
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
insulator materialGLASS FILLED LIQUID CRYSTAL POLYMER/POLYPHENYLENE SULFIDE
MIL complianceYES
Plug contact pitch0.05 inch
Match contact row spacing0.043 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation option 1HOLE .096
Installation option 2THREADED
Installation typeCABLE
Number of connectorsONE
Number of rows loaded3
OptionsWITH CABLE ASSEMBLY
Rated current (signal)3 A
Shell surfaceANODIZED BLACK
Shell materialALUMINUM ALLOY
Housing sizeG
Termination typeCRIMP
Total number of contacts51
Maximum wire diameter30 AWG
Minimum wire diameter30 AWG
A
B
C
D
E
F
G
H
J
K
L
M
N
P
Q
INDEX
© 2013 Glenair, Inc.
Thru-Hole
Jackpost
Micro-D Harness
Sample Part Number
Series
MWDM
Glenair Micro-D
Aluminum Shell
1
- Cadmium
2
- Nickel
4
- Black Anodize
5
- Gold
6
- Chem Film
Shell Material and Finish
Insulator Material
Contact Layout
Contact Type
Wire Gage (AWG)
Wire Type
P
- Pin
S
- Socket
4
- #24
6
- #26
8
- #28
K
– M22759/11
600 VRMS Teflon® (TFE)
Wire Color
Wire Length Inches
Hardware
B
P
M
M1
S

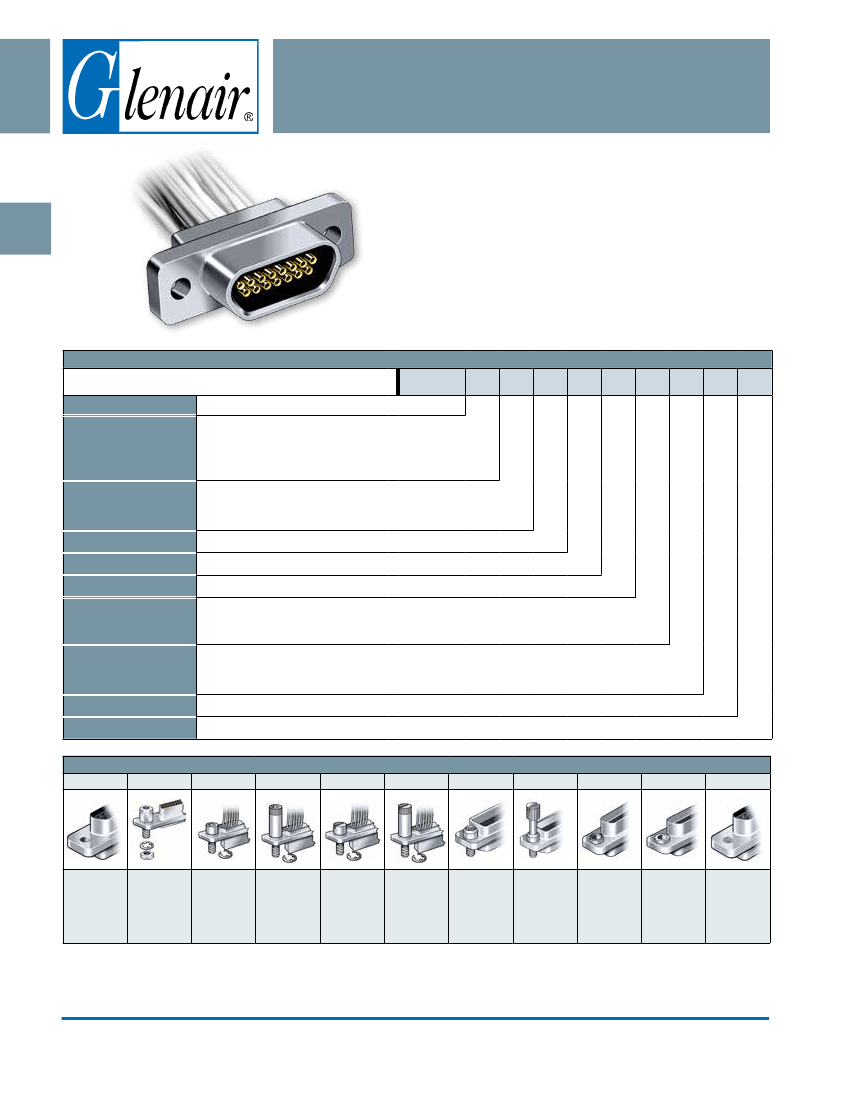

Micro-D MWDM
Insulated Wire Metal Shell Connectors
Micro-D Insulated Wire Pigtails–These
connectors feature
gold-plated TwistPin contacts and mil spec crimp termination.
Specify nickel-plated shells or cadmium plated shells for best
availability. 100% tested and backpotted, ready for use.
Choose the Wire Type and Size To Fit Your Application–If
on-hand availability is most important, choose #26 AWG Type
K mil spec Teflon® wire. Select M22759/33 Type J for space
applications.
How To Order Insulated Wire Connector
MWDM
2
L-
25
S-
4
K
7-
18
B
Stainless Steel Shell
3
- Passivated
L
- LCP or PPS
LCP - 30% Glass-Filled Liquid Crystal Polymer
PPS - 40% Glass filled polyphenylene sulfide
9, 15, 21, 25, 31, 37, 51, 51-2, 67, 69, 75, 100, 130
(See Table II)
0
- #30 (J wire type only)
J
– M22759/33
600 VRMS Modified Cross-
Linked Tefzel® (ETFE)
E
– NEMA HP3-EB
600 VRMS Type E M16878/4 (TFE)
1
– White
2
– Yellow
5
– Color-Coded Stripes Per MIL-STD-681 (up to 51 colors)
7
– Ten Color Repeating
18
- Wire Length In Inches. “18” Specifies 18 Inches.
B, P, M, M1, S, S1, L, K, F, R, H
(See Table I)
Table I: Mounting Hardware
S1
L
K
F
R
H
Hex Head
Jackscrew
Hex Head
Jackscrew,
Extended
Slot Head
Jackscrew
Slot Head
Jackscrew,
Extended
Hex Head Slot Head
Float Mount Float Mount
Jackscrew Jackscrew
For Front
For Rear
Non-
Non-
Panel
Panel
Removable Removable
Mounting
Mounting
Extended
Threaded
Insert
High Performance Micro-D Connectors and Cables
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
1211 AIR WAY
GLENDALE, CA 91201-2497
818-247-6000
FAX 818-500-9912
www.glenair.com
B-10
E-Mail: sales@glenair.com
