ISM98-7269AH-1.000 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> ISM98-7269AH-1.000

ISM98-7269AH-1.000: DescriptionLVPECL Output Clock Oscillator, 1MHz Nom, SMD, 6 PIN; CategoryPassive components oscillator; File Size49KB，2 Pages; ManufacturerILSI; Websitehttp://www.ilsiamerica.com; Environmental Compliance

Download Datasheet Parametric View All

ISM98-7269AH-1.000 Overview

LVPECL Output Clock Oscillator, 1MHz Nom, SMD, 6 PIN

ISM98-7269AH-1.000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1313047137
Reach Compliance Code	compliant
Other features	ENABLE/DISABLE FUNCTION; TR, 7/10 INCH
maximum descent time	0.6 ns
Frequency Adjustment - Mechanical	NO
frequency stability	25%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Nominal operating frequency	1 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	LVPECL
Output load	50 OHM
physical size	7.0mm x 5.0mm x 1.8mm
longest rise time	0.6 ns
Maximum supply voltage	3.15 V
Minimum supply voltage	2.85 V
Nominal supply voltage	3 V
surface mount	YES
maximum symmetry	40/60 %
Terminal surface	Gold (Au) - with Nickel (Ni) barrier

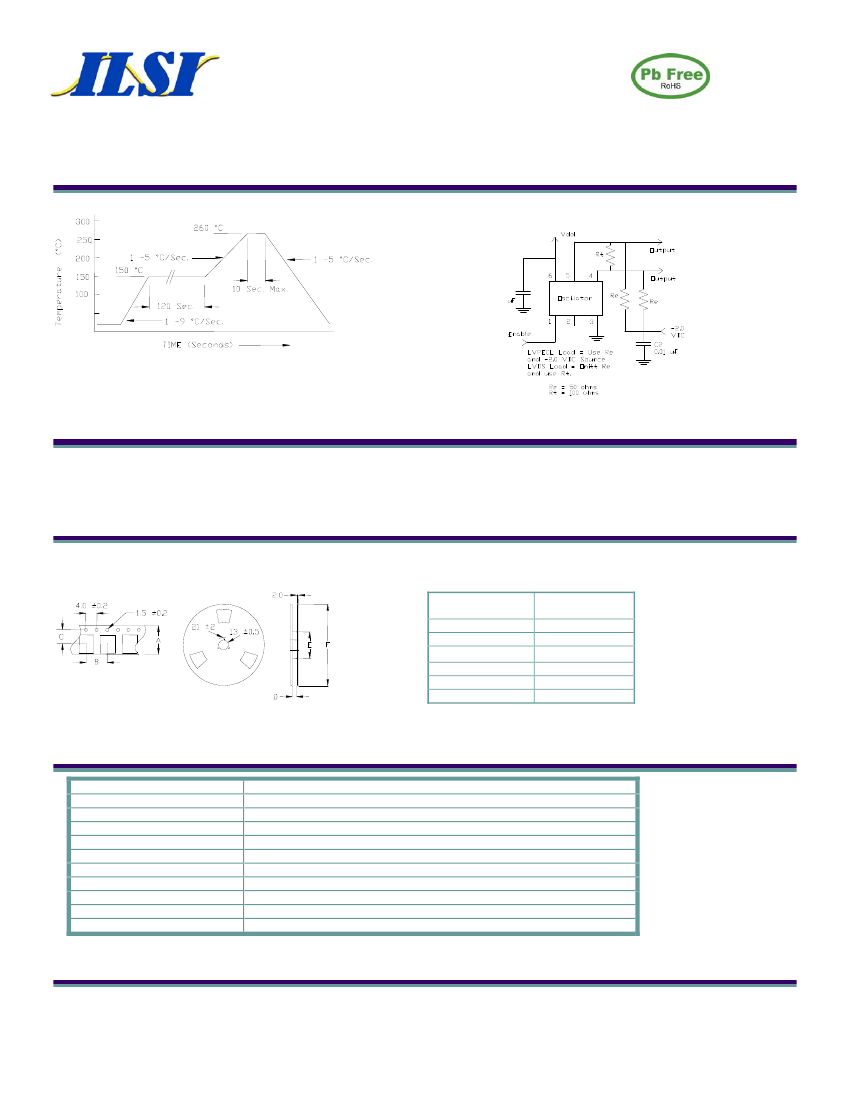

Preview

Download Datasheet

View All

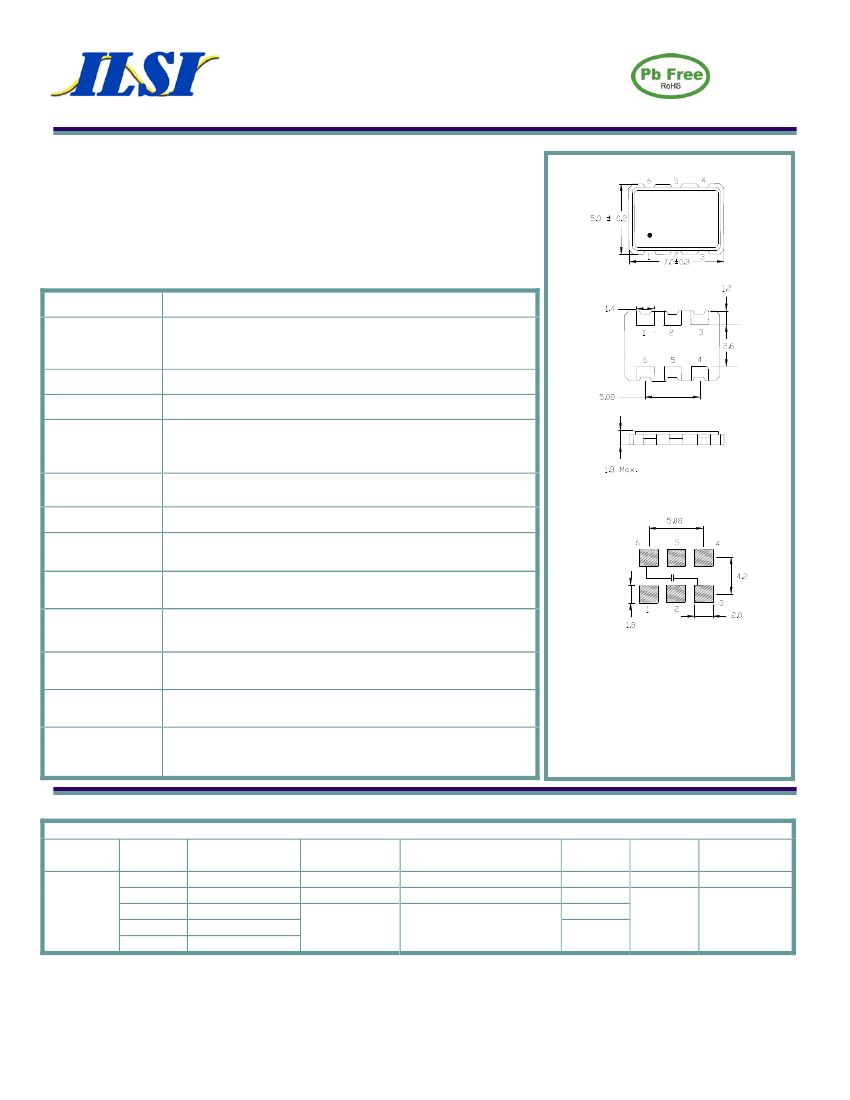

5 mm x 7 mm Ceramic Package SMD Oscillator, LVPECL / LVDS

ISM98 Series

Product Features:

Low Noise

Surface Mount Package

Reflow Compatible

Compatible with Leadfree Processing

Applications:

Test Equipment

Server & Storage

Sonet /SDH

Frequency

Output Level

LVDS

LVPECL

Duty Cycle

Rise / Fall Time

Output Load

LVDS

LVPECL

Frequency Stability

Start-up Time

Enable / Disable

Time

Supply Voltage

Current

1 MHz to 180.000 MHz

Vod = 393 mV Typ., 475 mV Max.

‘0’ = Vcc - 1.63 V Max.

‘1’ = Vcc - 1.02 V Min.

Specify 50% ±10% or ±5% See Table in Part Number Guide

0.6 nS Max.

100

Differential

to Vcc - 2.0 VDC

See Frequency Stability Table in Part Number Guide (Includes room

temperature tolerance and stability over operating temperature)

10 mS Max.

100 nS Max.

Recommended Pad Layout

See Input Voltage Table, tolerance ±5 %

LVDS = 90 mA Max. ***

LVPECL = 130 mA Max. ***

Pin Connection

Enable

N.C.

GND

Output

Comp. Output

Dimension Units: mm

Jitter

Operating

Storage

<1.0 pS RMS*

See Operating Temperature Table in Part Number Guide

-55

C to +125

Part Number Guide

Package

Input

Voltage

3 = 3.3 V

7 = 3.0 V

Sample Part Number:

Operating

Temperature

1 = 0° C to +70° C

6 = -10° C to +70° C

3 = -20° C to +70° C

4 = -30° C to +75° C

2 = -40° C to +85° C

SM98 - 3159BH - 125.000

Output

8 = LVDS

9 = LVPECL

Symmetry

(Duty Cycle)

5 = 45 / 55 Max.

6 = 40 / 60 Max.

Stability

(in ppm)

**A =

±25

B =

±50

C =

±100

Enable /

Disable

H = Enable

Frequency

- 125.000 MHz

SM98 -

2 = 2.7 V

6 = 2.5 V

NOTE: A 0.01 µF bypass capacitor is recommended between Vcc (pin 6) and GND (pin 3) to minimize power supply noise.

*Frequency related, for additional information contract your sales representative. ** Not available for all temperature ranges. *** Frequency, supply,

and load related parameters.

ILSI

America

Phone: 775-851-8880 • Fax: 775-851-8882• e-mail: e-mail@ilsiamerica.com • www.ilsiamerica.com

10/10

Specifications subject to change without notice

Page 1
