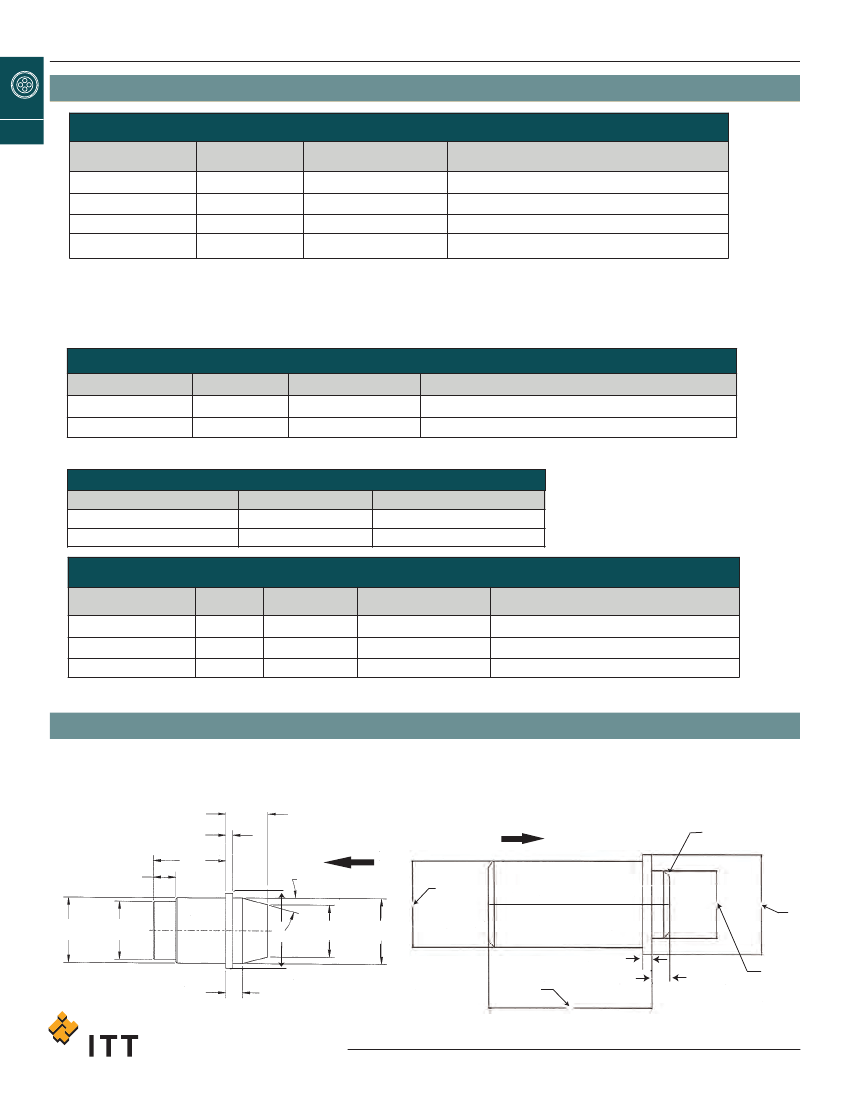

Size 8 Quadrax – ARINC 600, ARINC 404, MIL-C-81659, MIL-DTL-38999
Termination Type
Gender
Pin
Socket
Pin
Pin
Part Number
224-0007-004
244-0011-000
224-0007-000
224-0007-012
Type
Rear Release/Rear Removable (RR-RR)
Rear Release/Rear Removable (RR-RR)
Front Release/Front Removable* (FR-FR)
Front Release/Front Removable** (FR-FR)
Quadrax
Crimp***
Crimp***
Solder (PCB)
Solder (PCB)
* .250 solder extension
** .150 solder post extension
*** These contacts are designed to terminate 100 Ohm star Quad 24 AWG 100 Base-T Ethernet Cable with a max OD of .182. For other cable
configurations consult factory.
Other PCB Solder configurations have been developed. Please contact Customer Service for further details.
Size 5 Quadrax – ARINC 404, MIL-C-81659 (33Q4M & 8Q8)
Termination Type
Crimp (Cable)
Crimp (Cable)
Gender
Pin
Socket
Part Number
224-0007-005
244-0011-001
Type
Rear Release/Rear Removable
Rear Release/Rear Removable
Crimping Tools
Tool Handle
Center Contact
Outer Body
M22520/2-01
M22520/5-01
Die Set/Positioner
M22520/2-37 (Position 5)
M22520/5-45 (Position A)
Insertion / Removal Tools
Termination Type
Crimp (Cable)
Crimp (Cable)
Solder (PCB)
Type
RR-RR
RR-RR
FR-FR
Contact Size
8
5
8
Insertion
None
None
CIET 70369-8
Removal
Cannon Plastic Tool 323-7004-001
Cannon Plastic Tool 323-7011-000
CIET 70369-8
Filler Plug (for pin or socket crimp contacts)
Size 8, Aluminum Alloy with Nickel plating
For FR-FR Contacts
Part Number 225-1065-001
.179
.173
Direction of Insertion into the Connector
For RR-RR Contacts
Part Number 225-1066-000
.025 50°
.015
X
40°
Chamfer or
.025
R .015 2 PL’s
.032
.027
.100
.090
.307
.301
17°
13°
∅
.273
.218
.276
∅
.268
.274
∅
.244
.239
∅
.309
.315
∅
.213
∅
.270
.033
.029
.065
.055
.275
∅
.316
.313
.075
.065
.555
.545
∅
.213
.218
Dimensions shown in inches (mm)
Specifications and dimensions subject to change
G-14
www.ittcannon.com
