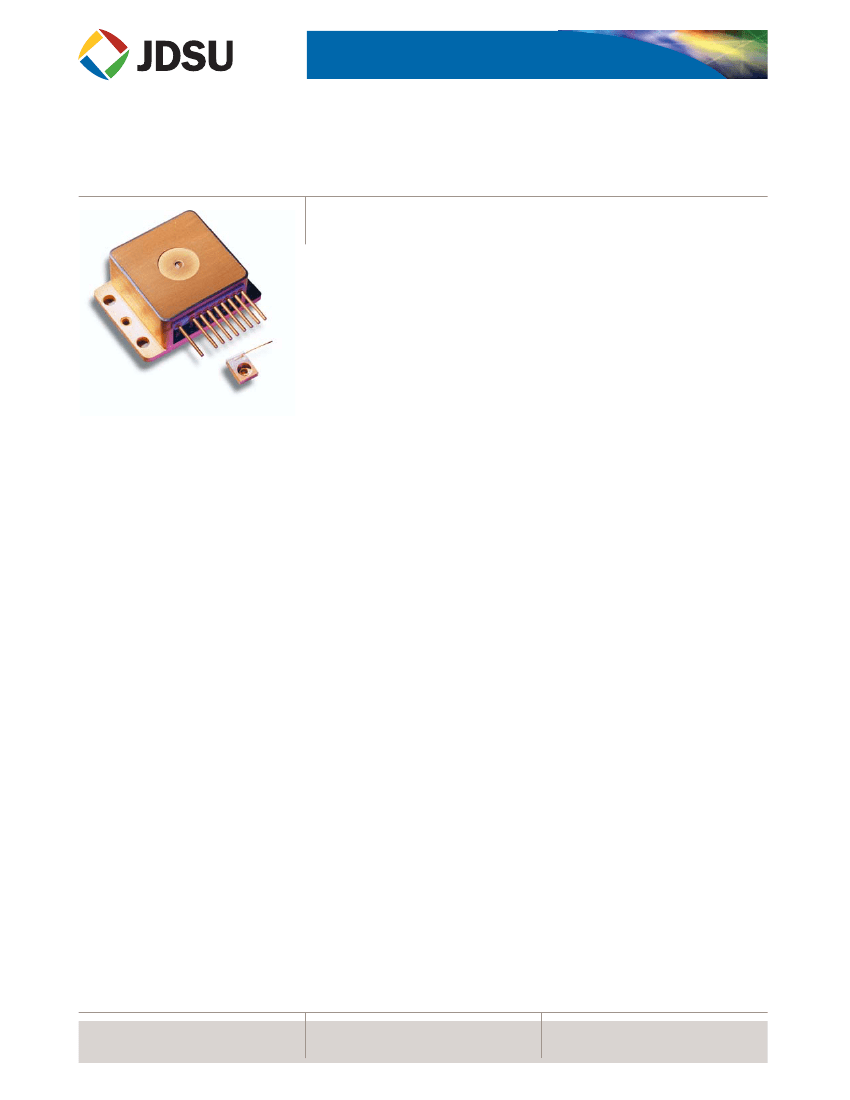

2.0 & 3.0 W, 798 to 800/808 to 812 nm High-brightness
Diode Lasers
2400 Series
Key Features
• 2 and 3 W CW power
• 100 and 200 µm apertures
• High-efficiency MOCVD quantum well design
• TEC option for wavelength control
• Open heatsink and window packages
• High reliability
Applications
• Solid-state laser pumping
• Medical/ophthalmic
• Free-space communication
• Beacons/illumination
The 2400 series diode lasers represent a breakthrough in high continuous wave
(CW) optical power and ultra-high brightness with unsurpassed reliability. The
small emitting aperture, combined with low beam divergence, makes the 2400 series
the highest-brightness family of CW diode lasers available in the industry today.
The 2400 series consists of partially coherent broad area emitters with relatively
uniform emission over the emitting aperture. Operation is multi-longitudinal
mode with a spectral envelope width of approximately 2 nm FWHM. The far field
beam divergence in the plane perpendicular to the P/N junction is nearly
Gaussian, while the lateral beam profile exhibits a multiple-transverse mode
pattern typical of broad area emitters. 2400 variants range from 2 W output from
a 100 µm aperture to 3 W from a 200 µm aperture with superlative reliability.
The high efficiency of the quantum well structure, combined with low thermal
resistance epi-down chip mounting, provides minimum junction temperature at
high optical power. Low junction temperature and low thermal resistance
packages extend lifetime and increase reliability.
Convenient package options such as open heatsink and window packages allow
easy integration into user systems.
NORTH AMERICA
:
800 498-JDSU (5378)
WORLDWIDE
:
+800 5378-JDSU
WEBSITE
:
www.jdsu.com
2400 SERIES DIODE LASERS
2

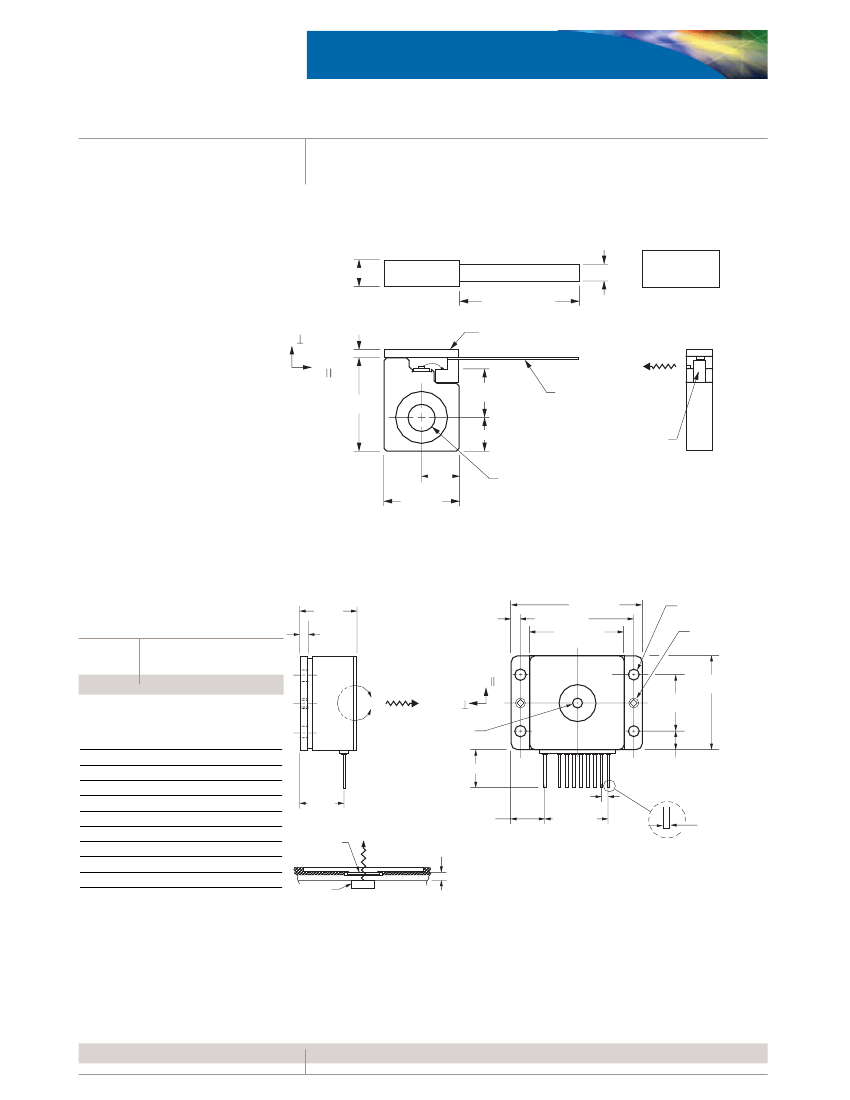

Dimensions Diagram
(Specifications in inches [mm] unless otherwise noted.)
Standard Tolerances
inches: x.xx = ±0.02
mm: x.x = ±0.5
x.xxx = ±0.010
x.xx = ±0.25
Package Style: Open Heatsink (A)
0.086 (2.18)
0.06 (1.5)
Case is
anode ( + )
0.40 Nom. (10.0)
θ
θ
0.025
(0.64)
Protective Tab
Laser
Output
0.31
(8.0)
0.157
(3.98)
Cathode
Lead ( - )
0.110 (2.80)
Insulator
Stand-off
0.125
(3.18)
0.25 (6.4)
Hole, 0.09 (2.3) Dia.
Counterbore, 0.18 (4.4) Dia.
0.05 (1.2) Deep
Package Style: High Heat Load
Window Package (P1)
Pinout
0.73
(18.5)
0.10
(2.5)
1.75 (44.5)
0.12 (3.0)
1.520 (38.61)
1.25 (31.8)
0.16 (4.1) Dia.
(4 PLCS)
M3 THD (2 PLCS)
Laser
Output
θ
θ
0.12 (3.0) Dia.
Window
1
0.50 (12.7) Min.
0.10 (2.5)
(7 PLCS)
0.42 (10.8)
0.90 (22.9)
10
0.25
(6.4)
0.750
(19.05)
1.25
(31.8)
Pin
1
2
3
4
5
6
7
8
9
10
Description
TEC (–)
–
Case
Laser anode (+)
Thermistor (2)
Thermistor (1)
Laser cathode (–)
Monitor photodiode anode
Monitor photodiode cathode
TEC (+)
A
0.59
(15.0)
Window
Laser Output Facet
Depth 0.025 (0.64)
0.040 (1.02) Dia.
(9 PLCS)
Laser
Detail ‘A’
2400 SERIES DIODE LASERS
3
Available Configurations
2460 Series
2460-A
2462-P1
2470 Series
2470-A
2472-P1
Electro-optical Specifications
Parameter
Laser Characteristics
CW output power
Center wavelength
Spectral width
Slope efficiency
Conversion efficiency
Emitting dimensions
FWHM beam divergence
Parallel to junction
Perpendicular to junction
Threshold current
Operating current
Operating voltage
Series resistance
Thermal resistance
Recommended case temperature
Absolute Maximum Ratings
Reverse voltage
Case operating temperature
Storage temperature range
Lead soldering temperature
Monitor Photodiode
1
Sensitivity
Capacitance
Breakdown voltage
Operating voltage
Thermoelectric Cooler
1
Drive current
Drive voltage
Thermistor resistance
1.
Not available on A package.
2. All values at 25 °C and 0.6 NA collection optics.
Symbol
2460 Series
Min.
Typ.
Max.
–
798 (±3)
808 (±3)
–
0.75
–
–
–
–
–
–
–
–
–
-20
–
-20
-40
–
0.1
–
–
–
–
–
–
–
–
–
2
0.95
35
100 x 1
12
32
0.4
2.5
(note
5
)
0.25
12
–
–
–
–
–
–
6
25
10
3.5
8
10
2
800 (±3)
812 (±3)
–
–
–
–
–
–
0.6
3.0
–
0.50
–
30
3
50
80
250
10.0
–
–
–
–
–
–
2470 Series
Min.
Typ.
Max.
–
798 (±3)
808 (±3)
–
0.75
–
–
–
–
–
–
–
–
–
-20
–
-20
-40
–
0.1
–
–
–
–
–
–
–
–
–
2
0.95
35
200 x 1
12
32
0.9
4.0
(note
5
)
0.12
10
–
–
–
–
–
–
6
25
10
3.5
8
10
3
800 (±3)
812 (±3)
–
–
–
–
–
–
1.2
4.8
–
0.25
–
30
3
50
80
250
10.0
–
–
–
–
–
–
Unit
Po
λ
c
∆λ
η
D = Po/(Iop–Ith)
η
= Po/(IopVop)
WxH
θ
//
θ⊥
Ith
Iop
Vop
Rs
Rth
Tc
Vrl
Top
Tstg
Tis
–
–
Vbd
Vop
ITE
VTE
Rtherm
W
nm
nm
nm
W/A
%
µm
degrees
degrees
A
A
Ω
°C/W
°C
V
°C
°C
°C (5 sec.)
µA/mW
pF
V
V
A
V
kΩ
3. Features common to these products include:
a. Duty factor of 100%.
b. Temperature coefficient of wavelength is approximately 0.27 to 0.3 nm/°C.
c. Temperature coefficient of threshold current can be modeled as:
I
TH2
= I
TH1
exp [(T
2
– T
1
)/T
0
]
where T
0
is a device constant of ~160 °K.
d. Temperature coefficient of operating current is approximately 1% per °C.
4. Modulation bandwidth of CW diode lasers is approximately 1 GHz for A package diodes.
Package diodes roll off at slightly lower frequencies due to inductance of pins and internal leads.
5. Forward voltage is typically: V
f
= 1.5 V + I
op
x R
s
.
2400 SERIES DIODE LASERS
4

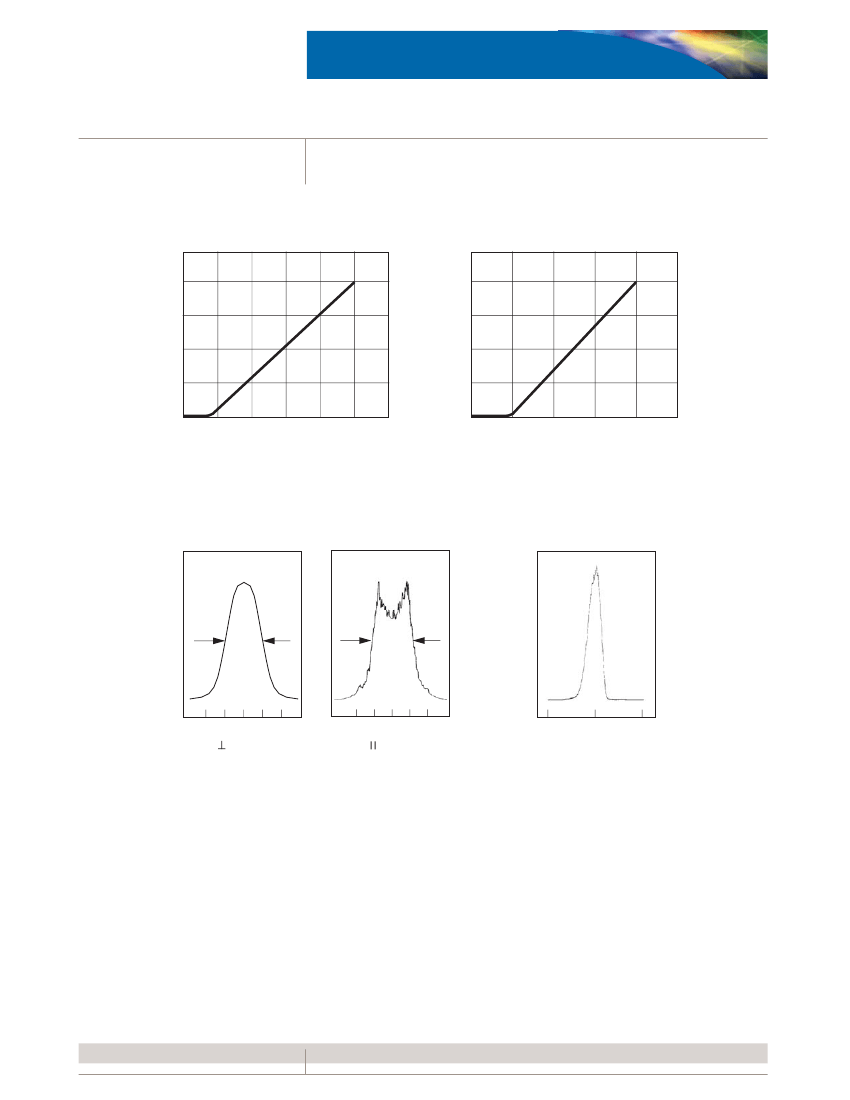

Typical Optical Characteristics
SDL-2460
Light vs. Current
SDL-2470
Light vs. Current
2.0
3.0
CW Output Power (W)
1.5
1.0
0.5
0
0
0.5
1.0
1.5
2.0
Current (A)
2.5
3.0
CW Output Power (W)
2.25
1.5
0.75
0
0
1.0
2.0
3.0
Current (A)
4.0
5.0
Far Field Energy
Distribution (A, P1)
Far Field Energy
Distribution (A, P1)
Typical Emission
Spectrum
FWHM
o
= 32
FWHM
o
= 12
30 15
θ
0
15 30
10 5
(degrees)
θ
0
5
10
805
810
815
(degrees)
Wavelength (nm)
2400 SERIES DIODE LASERS
5
Ordering Information
For more information on this or other products and their availability, please contact your local JDSU account manager or
JDSU directly at 1-800-498-JDSU (5378) in North America and +800-5378-JDSU worldwide or via e-mail at
customer.service@jdsu.com.
Sample: 24-00030
Laser Chip: 100 µm Stripe
Package Style: Open Heat Sink with No MPD
Part Number
24-00030
24-00031
24-00032
24-00033
24-00034
24-00035
24-00036
24-00037
Wavelength
798 ± 3
nm
799 ± 3
nm
800 ± 3
nm
808 ± 3
nm
809 ± 3
nm
810 ± 3
nm
811 ± 3
nm
812 ± 3
nm
Power
2W
2W
2W
2W
2W
2W
2W
2W
Laser Chip: 200 µm Stripe
Package Style: Open Heat Sink with No MPD
Part Number
24-00005
24-00006
24-00007
TBD
24-00009
24-00010
24-00011
24-00012
Wavelength
798 ± 3
nm
799 ± 3
nm
800 ± 3
nm
808 ± 3
nm
809 ± 3
nm
810 ± 3
nm
811 ± 3
nm
812 ± 3
nm
Power
3W
3W
3W
3W
3W
3W
3W
3W
Laser Chip: 100 µm Stripe
Package Style: High Heat Load with TEC and MPD
Part Number
24-00038
24-00039
24-00040
24-00041
24-00042
24-00043
24-00044
24-00045
Wavelength
798 ± 3
nm
799 ± 3
nm
800 ± 3
nm
808 ± 3
nm
809 ± 3
nm
810 ± 3
nm
811 ± 3
nm
812 ± 3
nm
Power
2W
2W
2W
2W
2W
2W
2W
2W
Laser Chip: 200 µm Stripe
Package Style: High Heat Load with TEC and MPD
Part Number
24-00013
24-00014
24-00015
24-00016
24-00017
24-00018
24-00019
24-00020
Wavelength
798 ± 3
nm
799 ± 3
nm
800 ± 3
nm
808 ± 3
nm
809 ± 3
nm
810 ± 3
nm
811 ± 3
nm
812 ± 3
nm
Power
3W
3W
3W
3W
3W
3W
3W
3W
