C0603C102K1HACAUTO3191 datasheet, PDF

Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)

High Temperature 150°C, Ultra-Stable X8R Dielectric,

25 – 100 VDC (Commercial & Automotive Grade)

Overview

KEMET’s Ultra-Stable X8R dielectric features a 150°C maxi-

mum operating temperature, offering the latest in high tempera-

ture dielectric technology and reliability for extreme tempera-

ture applications. It offers the same temperature capability

as conventional X8R, but without the capacitance loss due

to applied DC voltage. Ultra-Stable X8R exhibits no change

in capacitance with respect to voltage and boasts a minimal

change in capacitance with reference to ambient temperature.

It is a suitable replacement for higher capacitance and larger

footprint devices that fail to offer capacitance stability. Capaci-

tance change with respect to temperature is limited to ±15%

from -55°C to +150°C.

Driven by the demand for a more robust and reliable compo-

nent, Ultra-Stable X8R dielectric capacitors were developed for

critical applications where reliability and capacitance stability at

higher operating temperatures are a concern. These capacitors

are widely used in automotive circuits as well as general high

temperature applications.

In addition to commercial grade, automotive grade devices

are available and meet the demanding Automotive Electronics

Council’s AEC–Q200 qualification requirements.

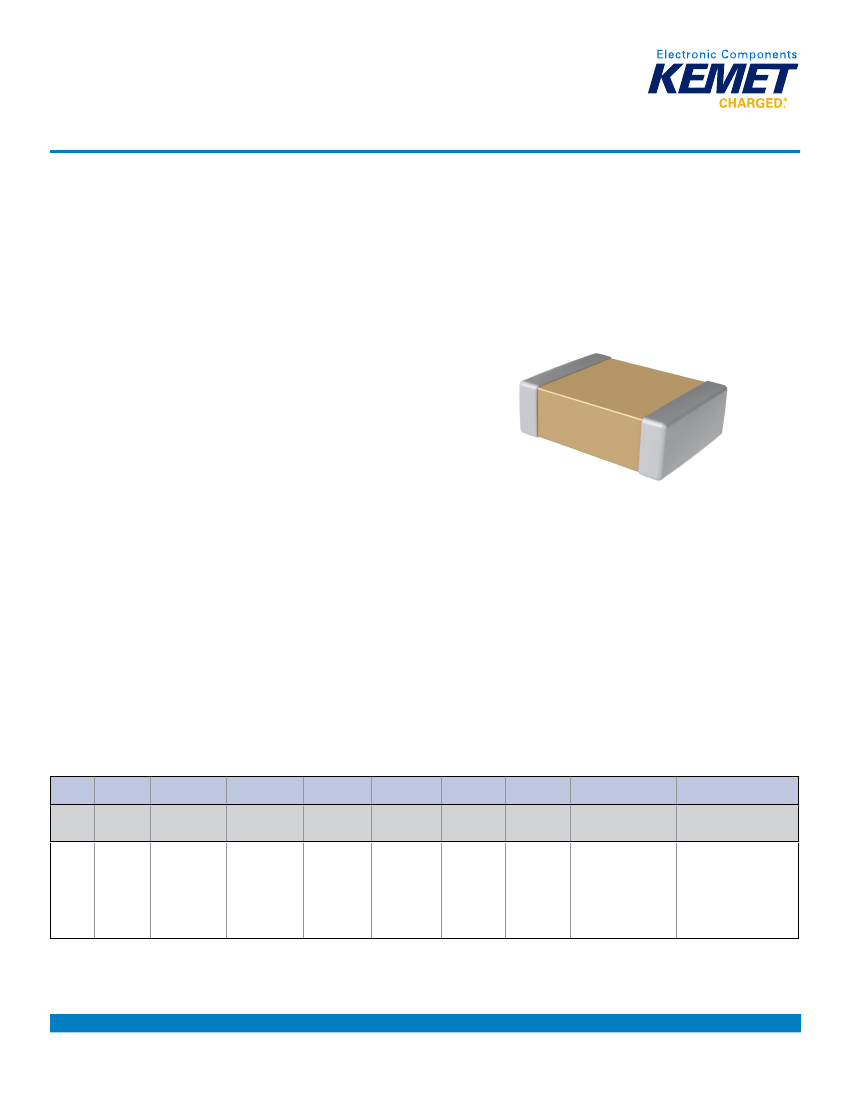

Click image above for interactive 3D content

Open PDF in Adobe Reader for full functionality

Ordering Information

C

Ceramic

1210

C

184

Capacitance

Code (pF)

K

3

H

Dielectric

H = Ultra

Stable X8R

A

C

AUTO

Packaging/Grade

(C-Spec)

See “Packaging C-Spec

Ordering Options Table”

below

Case Size

Specification/

(L" x W")

Series

1

0402

0603

0805

1206

1210

1812

C = Standard

Capacitance Rated Voltage

Tolerance

(VDC)

3 = 25

5 = 50

1 = 100

Failure Rate/

Termination Finish

2

Design

A = N/A

C = 100% Matte Sn

L = SnPb (5% Pb

minimum)

2 significant

F = ±1%

digits + number G = ±2%

of zeros

J = ±5%

K = ±10%

M = ±20%

Flexible termination option is available. Please see FT-CAP product bulletin C1013_X8R_FT-CAP_SMD

Additional termination finish options may be available. Contact KEMET for details.

2

SnPb termination finish option is not available on automotive grade product.

1

2

One world. One KEMET

1

Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)

High Temperature 150°C Ultra-Stable X8R Dielectric, 25 – 100 VDC (Commercial & Automotive Grade)

Packaging C-Spec Ordering Options Table

Packaging Type

Commercial Grade

1

Bulk Bag

7" Reel/Unmarked

7" Reel/Unmarked/2 mm pitch

2

13" Reel/Unmarked/2 mm pitch

2

Not Required (Blank)

TU

7081

7082

Packaging/Grade

Ordering Code (C-Spec)

Automotive Grade

3

7" Reel

13" Reel/Punched Paper/Unmarked

13" Reel/Embossed Plastic/Unmarked

7" Reel/Unmarked/2 mm pitch

2

13" Reel/Unmarked/2 mm pitch

2

1

AUTO

AUTO7411

AUTO7210

AUTO3190

AUTO3191

Default packaging is "Bulk Bag". An ordering code C-Spec is not required for "Bulk Bag" packaging.

1

The terms "Marked" and "Unmarked" pertain to laser marking option of capacitors. All packaging options labeled as "Unmarked" will contain capacitors that have

not been laser marked. The option to laser mark is not available on these devices. For more information see "Capacitor Marking".

2

The 2 mm pitch option allows for double the packaging quantity of capacitors on a given reel size. This option is limited to EIA 0603 (1608 metric) case size

devices. For more information regarding 2 mm pitch option see "Tape & Reel Packaging Information".

3

Reeling tape options (Paper or Plastic) are dependent on capacitor case size (L" x W") and thickness dimension. See "Chip Thickness/Tape & Reel Packaging

Quantities" and "Tape & Reel Packaging Information".

3

For additional Information regarding "AUTO" C-Spec options, see "Automotive C-Spec Information".

3

All Automotive packaging C-Specs listed exclude the option to laser mark components. The option to laser mark is not available on these devices. For more

information see "Capacitor Marking".

Benefits

-55°C to +150°C operating temperature range

Lead (Pb)-Free, RoHS and REACH compliant

EIA 0402, 0603, 0805, 1206, 1210, and 1812 case sizes

DC voltage ratings of 25 V, 50 V, and 100 V

Capacitance offerings ranging from 10 pF to 0.22 μF

Available capacitance tolerances of ±1%, ±2%, ±5%,

±10%, and ±20%

• Extremely low ESR and ESL

• High thermal stability

•

High ripple current capability

No capacitance change with respect to applied rated DC voltage

Non-polar device, minimizing installation concerns

Offered in both commercial and automotive grades

100% pure matte tin-plated termination finish that allowing for

excellent solderability.

• SnPb plated termination finish option available upon request (5%

Pb minimum)

Applications

Typical applications include decoupling, bypass and filtering in extreme environments such as down-hole oil exploration, under-hood

automotive, military and aerospace.

2

Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)

High Temperature 150°C Ultra-Stable X8R Dielectric, 25 – 100 VDC (Commercial & Automotive Grade)

Automotive C-Spec Information

KEMET Automotive Grade products meet or exceed the requirements outlined by the Automotive Electronics Council. Details regarding

test methods and conditions are referenced in document AEC–Q200, Stress Test Qualification for Passive Components. These

products are supported by a Product Change Notification (PCN) and Production Part Approval Process warrant (PPAP).

Automotive products offered through our distribution channel have been assigned an inclusive ordering code C-Spec, "AUTO". This

C-Spec was developed in order to better serve small and medium sized companies that prefer an automotive grade component without

the requirement to submit a customer Source Controlled Drawing (SCD) or specification for review by a KEMET engineering specialist.

This C-Spec is therefore not intended for use by KEMET’s OEM Automotive customers and are not granted the same “privileges” as

other automotive C-Specs. Customer PCN approval and PPAP request levels are limited (see details below).

Product Change Notification (PCN)

The KEMET Product Change Notification system is used to communicate primarily the following types of changes:

• Product/process changes that affect product form, fit , function, and /or reliability

• Changes in manufacturing site

• Product obsolescence

KEMET Automotive

C-Spec

KEMET assigned

1

AUTO

1

Customer Notification due to:

Process/Product change

Yes (with approval and

sign off)

Yes (without approval)

Obsolescence*

Yes

Days prior to

implementation

180 days Minimum

90 days Minimum

KEMET assigned C-Specs require the submittal of a customer SCD or customer specification for review. For additional information contact KEMET.

Production Part Approval Process (PPAP)

The purpose of the Production Part Approval Process is:

• To ensure that supplier can meet the manufacturability and quality requirements for the purchased parts.

• To provide the evidence that all customer engineering design record and specification requirements are properly understood and

fulfilled by the manufacturing organization.

• To demonstrate that the established manufacturing process has the potential to produce the part

KEMET

Automotive

C-Spec

KEMET

assigned

1

AUTO

1

PPAP (Product Part Approval Process) Level

1

●

○

2

●

3

●

○

4

●

5

●

KEMET assigned C-Specs require the submittal of a customer SCD or customer specification for review. For additional information contact KEMET.

● Part Number specific PPAP available

○ Product family PPAP only

3

Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)

High Temperature 150°C Ultra-Stable X8R Dielectric, 25 – 100 VDC (Commercial & Automotive Grade)

Dimensions – Millimeters (Inches)

W

L

T

B

S

EIA

Size

Code

0402

0603

0805

1206

1210

1812

Metric

Size

Code

1005

1608

2012

3216

3225

4532

L

Length

W

Width

T

Thickness

B

Bandwidth

0.30 (0.012) ±0.10 (0.004)

0.35 (0.014) ±0.15 (0.006)

S

Separation

Minimum

0.30 (0.012)

0.70 (0.028)

0.75 (0.030)

Mounting

Technique

Solder Reflow Only

Solder Wave or

Solder Reflow

1.00 (0.040) ±0.05 (0.002) 0.50 (0.020) ±0.05 (0.002)

1.60 (0.063) ±0.15 (0.006) 0.80 (0.032) ±0.15 (0.006)

2.00 (0.079) ±0.20 (0.008) 1.25 (0.049) ±0.20 (0.008) See Table 2 for 0.50 (0.02) ±0.25 (0.010)

3.20 (0.126) ±0.20 (0.008) 1.60 (0.063) ±0.20 (0.008) Thickness

0.50 (0.02) ±0.25 (0.010)

3.20 (0.126) ±0.20 (0.008) 2.50 (0.098) ±0.20 (0.008)

4.50 (0.177) ±0.30 (0.012) 3.20 (0.126) ±0.30 (0.012)

0.50 (0.02) ±0.25 (0.010)

0.60 (0.024) ±0.35 (0.014)

N/A

Solder Reflow Only

Qualification/Certification

Commercial Grade products are subject to internal qualification. Details regarding test methods and conditions are referenced in

Table 4, Performance & Reliability.

Automotive Grade products meet or exceed the requirements outlined by the Automotive Electronics Council. Details regarding test

methods and conditions are referenced in document AEC–Q200, Stress Test Qualification for Passive Components. For additional

information regarding the Automotive Electronics Council and AEC–Q200, please visit their website at www.aecouncil.com.

Environmental Compliance

Lead (Pb)-Free, RoHS, and REACH compliant without exemptions (excluding SnPb termination finish option).

4

Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)

High Temperature 150°C Ultra-Stable X8R Dielectric, 25 – 100 VDC (Commercial & Automotive Grade)

Electrical Parameters/Characteristics

Item

Operating Temperature Range

Capacitance Change with Reference to +25°C and 0 VDC Applied (TCC)

Aging Rate (Maximum % Capacitance Loss/Decade Hour)

Dielectric Withstanding Voltage (DWV)

Dissipation Factor (DF) Maximum Limit @ 25ºC

Insulation Resistance (IR) Limit @ 25°C

-55°C to +150°C

±15%

0%

250% of rated voltage

(5 ±1 seconds and charge/discharge not exceeding 50 mA)

2.5%

1,000 megohm microfarads or 100 GΩ

(Rated voltage applied for 120 ±5 seconds @ 25°C)

Parameters/Characteristics

To obtain IR limit, divide MΩ-µF value by the capacitance and compare to GΩ limit. Select the lower of the two limits.

Capacitance and dissipation factor (DF) measured under the following conditions:

1 MHz ±100 kHz and 1.0 ±0.2 Vrms if capacitance ≤ 1,000 pF.

1 kHz ±50 Hz and 1.0 ±0.2 Vrms if capacitance > 1,000 pF

Note: When measuring capacitance it is important to ensure the set voltage level is held constant. The HP4284 and Agilent E4980 have a feature known as

Automatic Level Control (ALC). The ALC feature should be switched to "ON."

Post Environmental Limits

High Temperature Life, Biased Humidity, Moisture Resistance

Dielectric

Ultra-Stable X8R

Rated DC

Voltage

All

Capacitance

Value

All

Dissipation Factor

(Maximum %)

3.0

Capacitance

Shift

Insulation

Resistance

0.3% or ±0.25 pf 10% of Initial Limit

5

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7102403010
package instruction	, 0603
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	7
capacitance	0.001 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.8 mm
JESD-609 code	e3
length	1.6 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package form	SMT
method of packing	TR, PUNCHED PAPER, 13 INCH
positive tolerance	10%
Rated (DC) voltage (URdc)	100 V
Guideline	AEC-Q200
size code	0603
surface mount	YES
Temperature characteristic code	X8R
Temperature Coefficient	15% ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
width	0.8 mm
