TWR-5/1500-15/250-D48 datasheet, PDF

Datasheet> All Categories > Power/power management> The power supply circuit> TWR-5/1500-15/250-D48

TWR-5/1500-15/250-D48: DescriptionDC-DC Regulated Power Supply Module, 3 Output, Hybrid, 2 X 2 INCH, 0.450 INCH HEIGHT, METAL, PACKAGE-7; CategoryPower/power management The power supply circuit; File Size215KB，4 Pages; ManufacturerDATEL Inc.

Download Datasheet Parametric Compare View All

TWR-5/1500-15/250-D48 Overview

DC-DC Regulated Power Supply Module, 3 Output, Hybrid, 2 X 2 INCH, 0.450 INCH HEIGHT, METAL, PACKAGE-7

TWR-5/1500-15/250-D48 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	DATEL Inc.
Parts packaging code	MODULE
package instruction	, MODULE,6LEAD,1.8
Contacts	7
Reach Compliance Code	unknow
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Certification	UL; CSA
Efficiency (main output)	79%
Maximum input voltage	72 V
Minimum input voltage	18 V
Nominal input voltage	48 V
JESD-30 code	S-MDMA-P7
Maximum grid adjustment rate	1%
Maximum load regulation	2%
Number of functions	1
Output times	3
Number of terminals	7
Maximum operating temperature	50 °C
Minimum operating temperature	-25 °C
Maximum output current	1.5 A
Maximum output voltage	5.05 V
Minimum output voltage	4.95 V
Nominal output voltage	5 V
Package body material	METAL
Encapsulate equivalent code	MODULE,6LEAD,1.8
Package shape	SQUARE
Package form	MICROELECTRONIC ASSEMBLY
Protect	CURRENT; POLARITY; OUTPUT OVER VOLTAGE
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal form	PIN/PEG
Terminal location	DUAL
Fine-tuning/adjustable output	NO
Base Number Matches	1

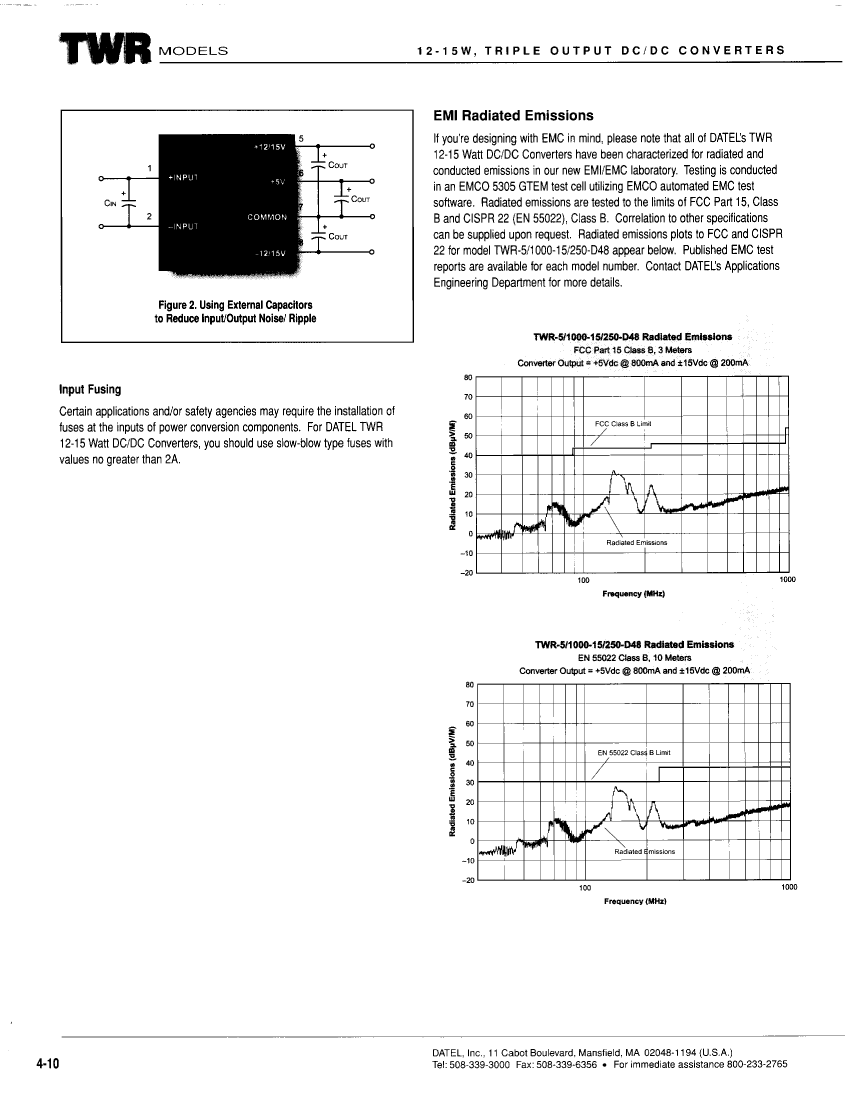

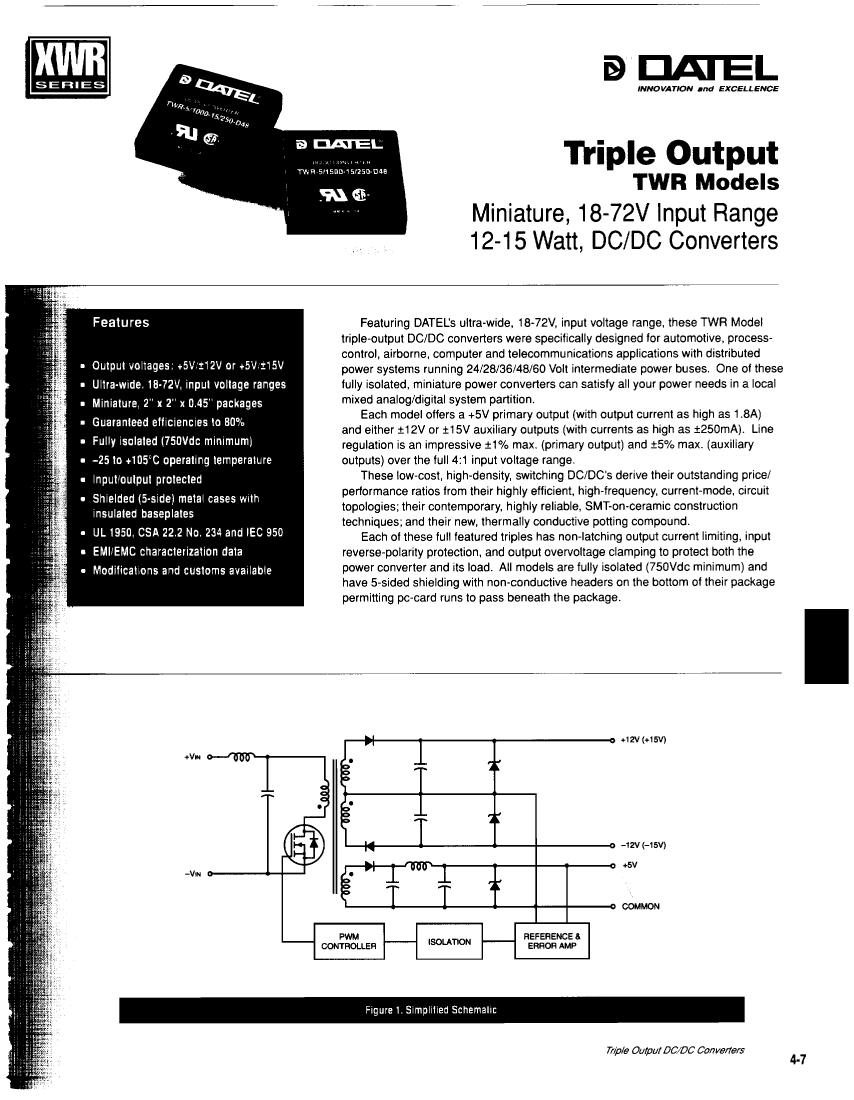

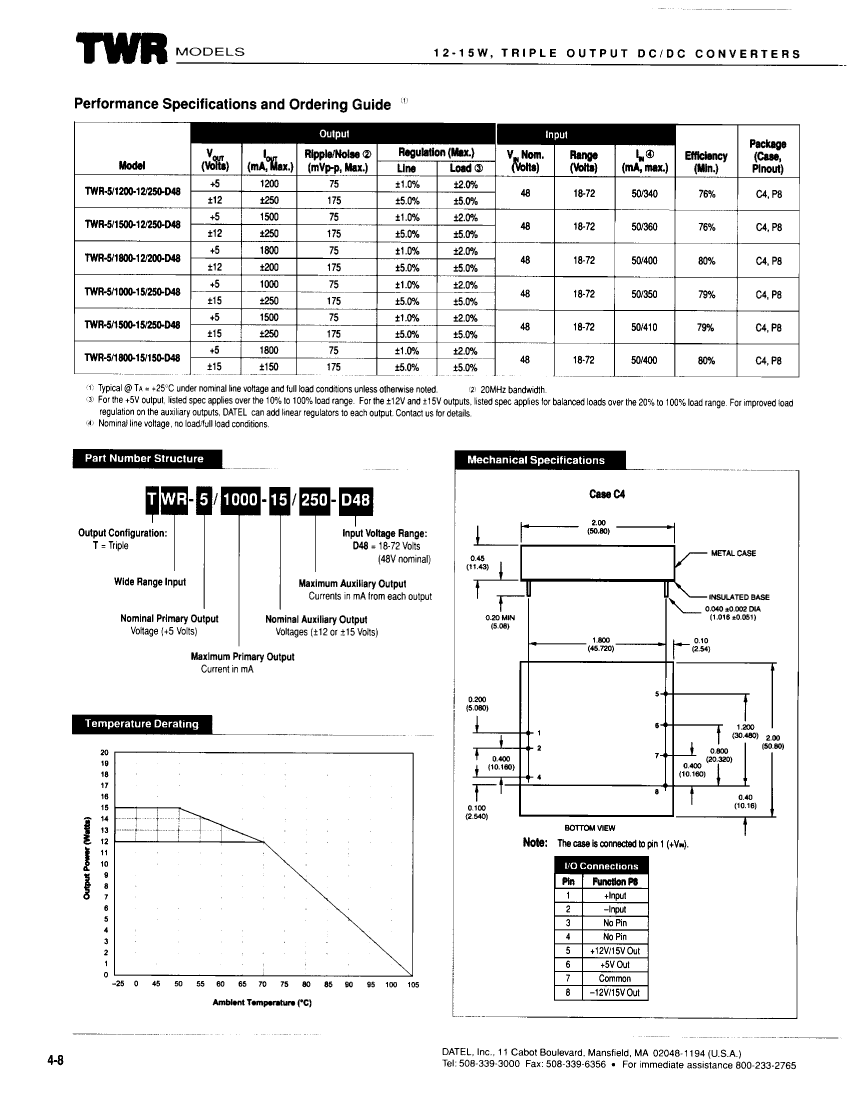

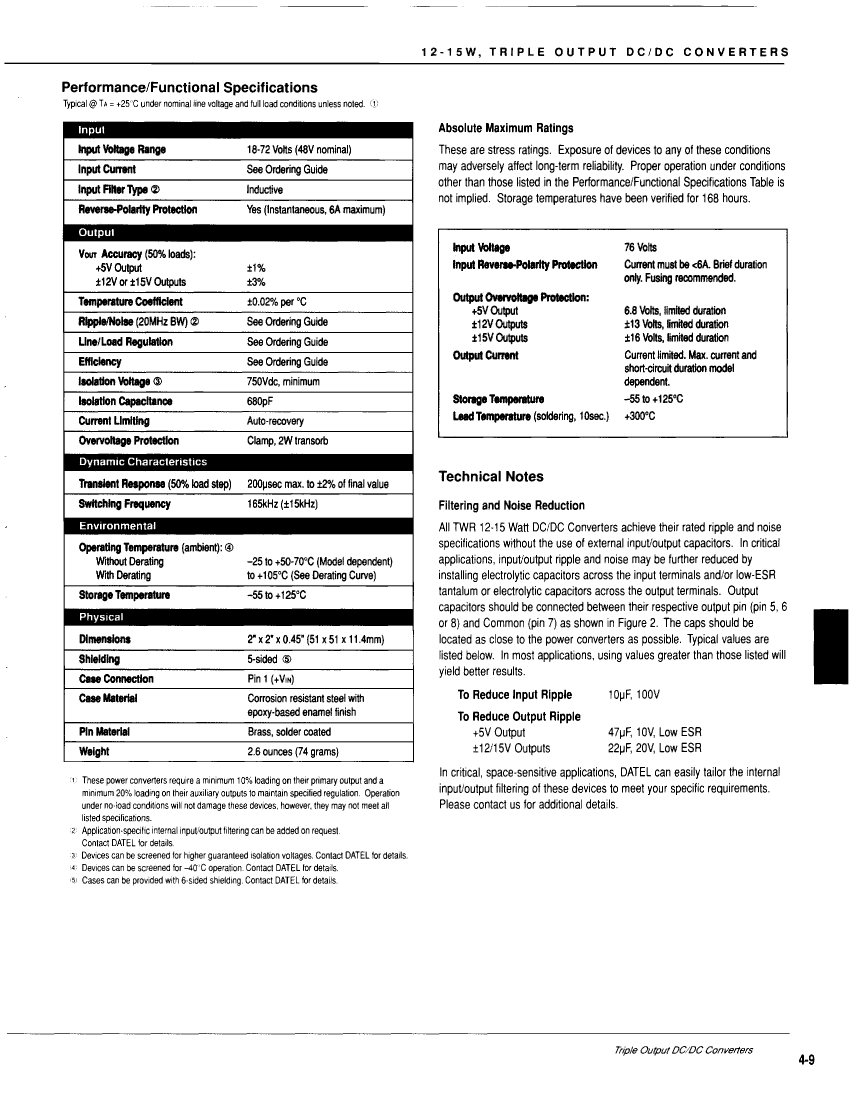

Preview

Download Datasheet

View All

TWR-5/1500-15/250-D48 Related Products

	TWR-5/1500-15/250-D48	TWR-5/1500-12/250-D48	TWR-5/1800-12/200-D48	TWR-5/1800-15/150-D48	TWR-5/1000-15/250-D48	TWR-5/1200-12/250-D48
Description	DC-DC Regulated Power Supply Module, 3 Output, Hybrid, 2 X 2 INCH, 0.450 INCH HEIGHT, METAL, PACKAGE-7	DC-DC Regulated Power Supply Module, 3 Output, Hybrid, 2 X 2 INCH, 0.450 INCH HEIGHT, METAL, PACKAGE-7	DC-DC Regulated Power Supply Module, 3 Output, Hybrid, 2 X 2 INCH, 0.450 INCH HEIGHT, METAL, PACKAGE-7	DC-DC Regulated Power Supply Module, 3 Output, Hybrid, 2 X 2 INCH, 0.450 INCH HEIGHT, METAL, PACKAGE-7	DC-DC Regulated Power Supply Module, 3 Output, Hybrid, 2 X 2 INCH, 0.450 INCH HEIGHT, METAL, PACKAGE-7	DC-DC Regulated Power Supply Module, 3 Output, Hybrid, 2 X 2 INCH, 0.450 INCH HEIGHT, METAL, PACKAGE-7
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE
package instruction	, MODULE,6LEAD,1.8	, MODULE,6LEAD,1.8	, MODULE,6LEAD,1.8	, MODULE,6LEAD,1.8	, MODULE,6LEAD,1.8	, MODULE,6LEAD,1.8
Contacts	7	7	7	7	7	7
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Certification	UL; CSA	UL; CSA	UL; CSA	UL; CSA	UL; CSA	UL; CSA
Efficiency (main output)	79%	76%	80%	80%	79%	76%
Maximum input voltage	72 V	72 V	72 V	72 V	72 V	72 V
Minimum input voltage	18 V	18 V	18 V	18 V	18 V	18 V
Nominal input voltage	48 V	48 V	48 V	48 V	48 V	48 V
JESD-30 code	S-MDMA-P7	S-MDMA-P7	S-MDMA-P7	S-MDMA-P7	S-MDMA-P7	S-MDMA-P7
Maximum grid adjustment rate	1%	1%	1%	1%	1%	1%
Maximum load regulation	2%	2%	2%	2%	2%	2%
Number of functions	1	1	1	1	1	1
Output times	3	3	3	3	3	3
Number of terminals	7	7	7	7	7	7
Maximum operating temperature	50 °C	50 °C	50 °C	50 °C	50 °C	50 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Maximum output current	1.5 A	1.5 A	1.8 A	1.8 A	1 A	1.2 A
Maximum output voltage	5.05 V	5.05 V	5.05 V	5.05 V	5.05 V	5.05 V
Minimum output voltage	4.95 V	4.95 V	4.95 V	4.95 V	4.95 V	4.95 V
Nominal output voltage	5 V	5 V	5 V	5 V	5 V	5 V
Package body material	METAL	METAL	METAL	METAL	METAL	METAL
Encapsulate equivalent code	MODULE,6LEAD,1.8	MODULE,6LEAD,1.8	MODULE,6LEAD,1.8	MODULE,6LEAD,1.8	MODULE,6LEAD,1.8	MODULE,6LEAD,1.8
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Protect	CURRENT; POLARITY; OUTPUT OVER VOLTAGE	CURRENT; POLARITY; OUTPUT OVER VOLTAGE	CURRENT; POLARITY; OUTPUT OVER VOLTAGE	CURRENT; POLARITY; OUTPUT OVER VOLTAGE	CURRENT; POLARITY; OUTPUT OVER VOLTAGE	CURRENT; POLARITY; OUTPUT OVER VOLTAGE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Fine-tuning/adjustable output	NO	NO	NO	NO	NO	NO
Maker	DATEL Inc.	-	DATEL Inc.	DATEL Inc.	DATEL Inc.	DATEL Inc.
