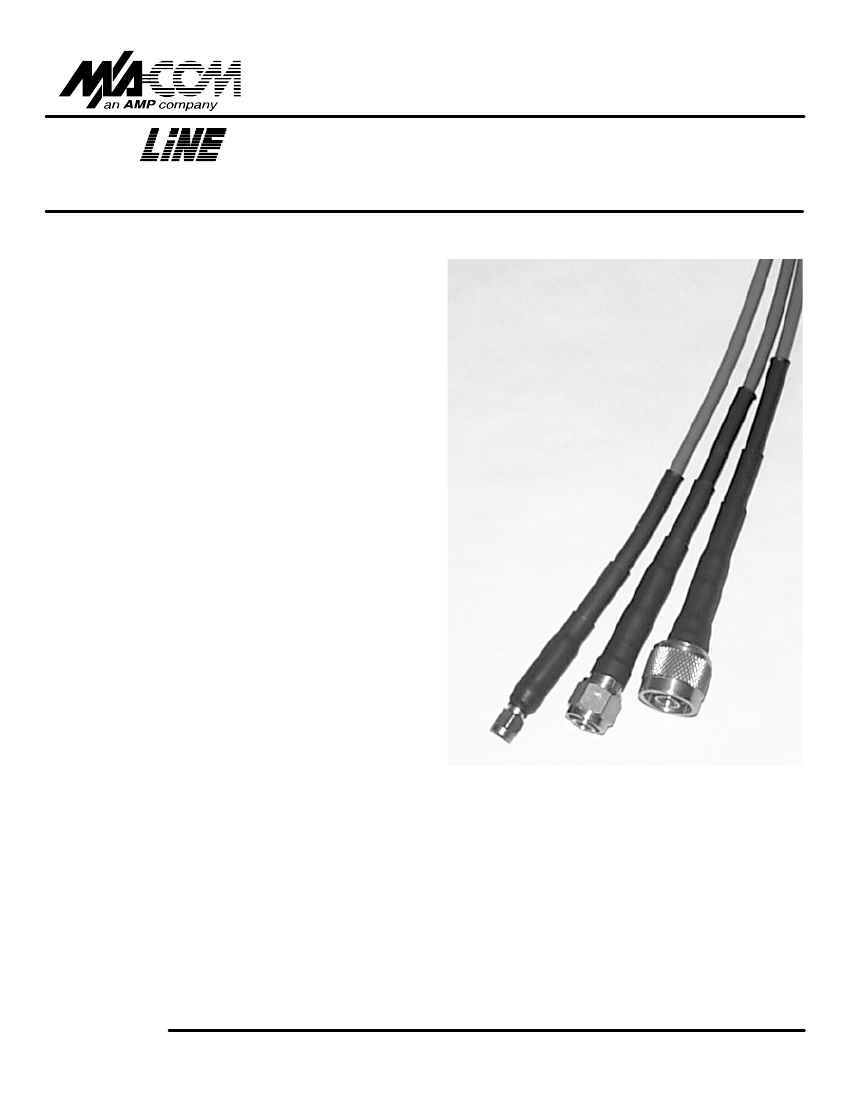

7HVW
Features
™
Coaxial Test Cables
•
Operation to
18 GHz
•
Cost Effective
•
Rugged Captive Contact SMA,
Type N or ETNC Connectors
•
Electrically Stable With Flexure
•
Triple Shielded, Low Loss Cable
•
Superior Durability
1993 Series
V2.0
Description
7HVW/,1(
cables are designed to provide cost
effective capability without compromising
electrical performance characteristics or the
rugged reliability necessary for day to day
dependability in production line, test lab, and
permanent system interconnection applications.
7HVW/,1(
cable features, including triple
shielded cable construction, captive contact
connectors, unique
M/A-COM
dual-attachment
connector designs, and heavy duty strain relief,
are usually only found in much more costly
assemblies.
M/A-COM’s
high volume, low cost
manufacturing processes allow
7HVW/,1(
cables to offer an unparalleled value in off-the-
shelf performance and reliability.
Applications
•
•
•
•
•
•
High Volume Test Lab and Manufacturing Line Test Operations
Field and Job Site Installation, Verification and Test Activities
Periodic and Quality Program Tests
Upgrade and Replacement of Worn or Damaged Existing RF Test Cables
Test Applications Requiring Cost Effective Ruggedness, Long Life and High Performance
Permanent System RF and Microwave Interconnections
M/A-COM Inc.
North America:
Tel. (800) 366-2266
Fax (800) 618-8883
Asia / Pacific:
Tel. +85 2 2111 8088
Fax +85 2 2111 8087
Europe:
Tel. +44 (1344) 869-595
Fax +44 (1344) 300-020
7HVW
™
Coaxial Test Cables
Specifications
Operating Frequency, Max.
VSWR, Maximum
Phase Stability
Min. Bend Radius
Specifications Subject to Change Without Notice
18GHz
1.35:1
±1.0°/GHz
1.0 inch
(25 mm)
Shielding Effectiveness
Propagation Velocity
Operating Temperature Range
Flex Life
>100dB
76% C
-55 to 125 °C
100,000 min
Typical Performance Data
Maximum Cable and Connector Insertion Loss
1.6
db / meter
1.4
Insertion Loss dB
1.2
1
0.8
0.6
0.4
0.2
0
0
2
4
6
8
10
Frequency GHz
12
14
16
18
dB / ft
dB Connectors (2)
Connector Dimensions
SMA Male
4.00 (101.6)
.45 (11.4) MAX
.87 (22.1)
MAX
.19 (4.7)
.312 (7.9) HEX
.750 (19.1) HEX
5.00 (127.0)
.65 (16.5) MAX
.19 (4.7)
.562 (14.3) HEX
.19 (4.7)
5.00 (127.0)
Type N Male
ETNC Male
How To Order
Length
1/2 Meter Increments
Whole Meter Increments
End 1
End 1
Connector Options
45 ETNC
46 Type N Male
47 SMA Male
(lowest Number First)
Example:
1993-MXXX-XXXX
1993-M025-4547
(2.5 Meter assembly with ETNC and SMA connectors)
Consult Distributor For Part Numbers Currently In Stock
M/A-COM Inc.
North America:
Tel. (800) 366-2266
Fax (800) 618-8883
Asia / Pacific:
Tel. +85 2 2111 8088
Fax +85 2 2111 8087
Europe:
Tel. +44 (1344) 869-595
Fax +44 (1344) 300-020
