LY6225616
Rev. 1.1
256K X 16 BIT LOW POWER CMOS SRAM
REVISION HISTORY
Revision
Rev. 1.0
Rev. 1.1
Description
Initial Issue
Added -45 ns Spec.
Added –SLE/SLI Spec.
Issue Date
Sep.6.2007
Nov.9.2007
Lyontek Inc.
reserves the rights to change the specifications and products without notice.
40 Hsuch-Fu Rd., Hsinchu, Taiwan.
TEL: 886-3-5165511
FAX: 886-3-5165522
0
®
LY6225616
Rev. 1.1
256K X 16 BIT LOW POWER CMOS SRAM
GENERAL DESCRIPTION
The LY6225616 is a 4,194,304-bit low power CMOS
static random access memory organized as 262,144
words by 16 bits. It is fabricated using very high
performance, high reliability CMOS technology. Its
standby current is stable within the range of
operating temperature.
The LY6225616 is well designed for low power
application, and particularly well suited for battery
back-up nonvolatile memory application.
The LY6225616 operates from a single power
supply of 4.5V ~ 5.5V and all inputs and outputs are
fully TTL compatible
FEATURES
Fast access time : 35/45/55/70ns
Low power consumption:
Operating current : 50/45/40/30mA (TYP.)
Standby current : 5μA (TYP.)
Single 4.5V ~ 5.5V power supply
All inputs and outputs TTL compatible
Fully static operation
Tri-state output
Data byte control : LB# (DQ0 ~ DQ7)
UB# (DQ8 ~ DQ15)
Data retention voltage : 2.0V (MIN.)
Lead free and green package available
Package : 44-pin 400 mil TSOP-II
48-ball 6mm x 8mm TFBGA
PRODUCT FAMILY
Product
Family
LY6225616(LL)
LY6225616(LLE)
LY6225616(LLI)
LY6225616(SL)
LY6225616(SLE)
LY6225616(SLI)
Operating
Temperature
0 ~ 70℃
-20 ~ 80℃
-40 ~ 85℃
0 ~ 70℃
-20 ~ 80℃
-40 ~ 85℃
Vcc Range
4.5 ~ 5.5V
4.5 ~ 5.5V
4.5 ~ 5.5V
4.5 ~ 5.5V
4.5 ~ 5.5V
4.5 ~ 5.5V
Speed
35/45/55/70ns
35/45/55/70ns
35/45/55/70ns
35/45/55/70ns
35/45/55/70ns
35/45/55/70ns
Power Dissipation
Standby(I
SB1,
TYP.) Operating(Icc,TYP.)
5µA
50/45/40/30mA
5µA
50/45/40/30mA
5µA
50/45/40/30mA
5µA
50/45/40/30mA
5µA
50/45/40/30mA
5µA
50/45/40/30mA
Lyontek Inc.
reserves the rights to change the specifications and products without notice.
40 Hsuch-Fu Rd., Hsinchu, Taiwan.
TEL: 886-3-5165511
FAX: 886-3-5165522
1
®
LY6225616
Rev. 1.1
256K X 16 BIT LOW POWER CMOS SRAM
PIN DESCRIPTION
SYMBOL
DESCRIPTION
Address Inputs
Chip Enable Input
Write Enable Input
Output Enable Input
Lower Byte Control
Upper Byte Control
Power Supply
Ground
FUNCTIONAL BLOCK DIAGRAM
Vcc
Vss
A0 - A17
CE#
DQ0 – DQ15 Data Inputs/Outputs
DECODER
256Kx16
MEMORY ARRAY
A0-A17
WE#
OE#
LB#
UB#
V
CC
V
SS
DQ0-DQ7
Lower Byte
DQ8-DQ15
Upper Byte
I/O DATA
CIRCUIT
COLUMN I/O
CE#
WE#
OE#
LB#
UB#
CONTROL
CIRCUIT
Lyontek Inc.
reserves the rights to change the specifications and products without notice.
40 Hsuch-Fu Rd., Hsinchu, Taiwan.
TEL: 886-3-5165511
FAX: 886-3-5165522
2
®
LY6225616
Rev. 1.1
256K X 16 BIT LOW POWER CMOS SRAM

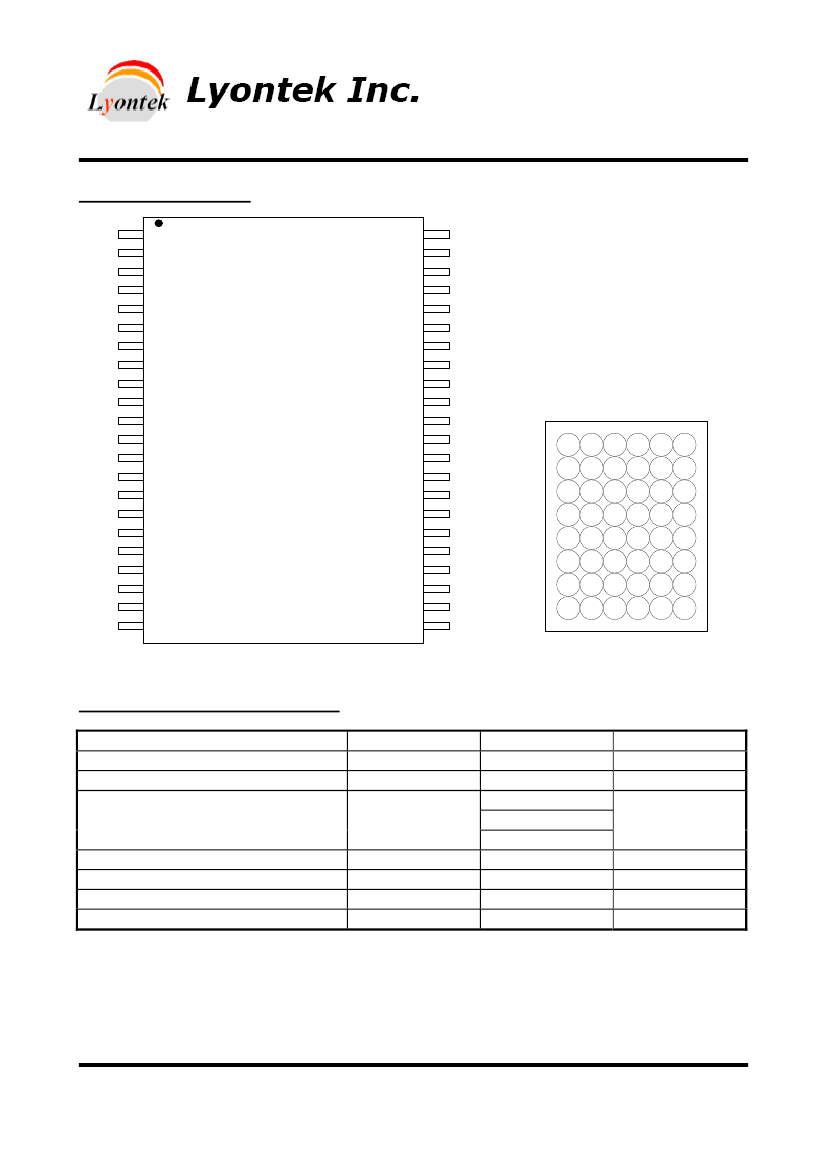

PIN CONFIGURATION
A4
A3
A2
A1
A0
CE#
DQ0
DQ1
DQ2
DQ3
Vcc
Vss
DQ4
DQ5
DQ6
DQ7
WE#
A17
A16
A15
A14
A13
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
TSOP II
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
A5
A6
A7
OE#
UB#
LB#
DQ15
DQ14
DQ13
DQ12
Vss
Vcc
DQ11
DQ10
DQ9
DQ8
NC
A8
A9
A10
A11
A12
ABSOLUTE MAXIMUN RATINGS*
PARAMETER
Voltage on V
CC
relative to V
SS
Voltage on any other pin relative to V
SS
Operating Temperature
Storage Temperature
Power Dissipation
DC Output Current
Soldering Temperature (under 10 sec)
SYMBOL
V
T1
V
T2
T
A
T
STG
P
D
I
OUT
T
SOLDER
RATING
-0.5 to 6.5
-0.5 to V
CC
+0.5
0 to 70(C grade)
-20 to 80(E grade)
-40 to 85(I grade)
-65 to 150
1
50
260
UNIT
V
V
W
mA
*Stresses greater than those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress
rating only and functional operation of the device or any other conditions above those indicated in the operational sections of this
specification is not implied. Exposure to the absolute maximum rating conditions for extended period may affect device reliability.
Lyontek Inc.
reserves the rights to change the specifications and products without notice.
40 Hsuch-Fu Rd., Hsinchu, Taiwan.
TEL: 886-3-5165511
FAX: 886-3-5165522
LY6225616
A
B
C
D
E
F
G
H
LB# OE#
DQ8 UB#
A0
A3
A1
A4
A6
A7
A2
NC
CE# DQ0
DQ1 DQ2
DQ3 Vcc
DQ9 DQ10 A5
Vss DQ11 A17
Vcc DQ12 NC
DQ14 DQ13 A14
DQ15 NC
NC
A8
A12
A9
A16 DQ4 Vss
A15 DQ5 DQ6
A13 WE# DQ7
A10
A11
NC
1
2
3
4
TFBGA
5
6
3
®
LY6225616
Rev. 1.1
256K X 16 BIT LOW POWER CMOS SRAM
TRUTH TABLE
MODE
Standby
Output Disable
Read
CE#
H
X
L
L
L
L
L
L
L
L
OE#
X
X
H
H
L
L
L
X
X
X
WE# LB#
X
X
H
H
H
H
H
L
L
L
X
H
L
X
L
H
L
L
H
L
UB#
X
H
X
L
H
L
L
H
L
L
I/O OPERATION
DQ0-DQ7
DQ8-DQ15
High – Z
High – Z
High – Z
High – Z
High – Z
High – Z
High – Z
High – Z
D
OUT
High – Z
High – Z
D
OUT
D
OUT
D
OUT
D
IN
High – Z
High – Z
D
IN
D
IN
D
IN
SUPPLY CURRENT
I
SB1
I
CC
,I
CC1
I
CC
,I
CC1
Write
Note:
I
CC
,I
CC1
H = V
IH
, L = V
IL
, X = Don't care.
DC ELECTRICAL CHARACTERISTICS
TEST CONDITION
SYMBOL
PARAMETER
Supply Voltage
V
CC
*1
Input High Voltage
V
IH
*2
Input Low Voltage
V
IL
Input Leakage Current
I
LI
V
CC
V
IN
V
SS
Output Leakage
V
CC
V
OUT
V
SS
,
I
LO
Current
Output Disabled
Output High Voltage
V
OH
I
OH
= -1mA
Output Low Voltage
V
OL
I
OL
= 2mA
I
CC
Average Operating
Power supply Current
I
CC1
Standby Power
Supply Current
Cycle time = Min.
CE# = V
IL
, I
I/O
= 0mA
Other pins at V
IL
or V
IH
- 35
- 45
- 55
- 70
MIN.
4.5
2.4
- 0.2
-1
-1
2.4
-
-
-
-
-
-
-
-
-
TYP.
5.0
-
-
-
-
-
-
50
45
40
30
4
5
5
5
*4
MAX.
5.5
V
CC
+0.3
0.6
1
1
-
0.4
80
70
60
50
10
25
35
50
UNIT
V
V
V
µA
µA
V
V
mA
mA
mA
mA
mA
µA
µA
µA
I
SB1
Cycle time = 1µs
CE# = 0.2V , I
I/O
= 0mA
Other pins at 0.2V or V
CC
- 0.2V
-SL
CE#
V
CC
- 0.2V
-SLE/-SLI
Others at 0.2V or V
CC
- 0.2V
-LL
Notes:
1. V
IH
(max) = V
CC
+ 3.0V for pulse width less than 10ns.
2. V
IL
(min) = V
SS
- 3.0V for pulse width less than 10ns.
3. Over/Undershoot specifications are characterized, not 100% tested.
4. Typical values are included for reference only and are not guaranteed or tested.
Typical valued are measured at V
CC
= V
CC
(TYP.) and T
A
= 25℃
CAPACITANCE
(T
A
= 25
, f = 1.0MHz)
PARAMETER
Input Capacitance
Input/Output Capacitance
SYMBOL
C
IN
C
I/O
MIN.
-
-
MAX
6
8
UNIT
pF
pF
Note : These parameters are guaranteed by device characterization, but not production tested.
Lyontek Inc.
reserves the rights to change the specifications and products without notice.
40 Hsuch-Fu Rd., Hsinchu, Taiwan.
TEL: 886-3-5165511
FAX: 886-3-5165522
4
