MT9VDDF6472Y-265 datasheet, PDF

Datasheet> All Categories > storage> storage> MT9VDDF6472Y-265

MT9VDDF6472Y-265: DescriptionDDR DRAM Module, 64MX72, 0.75ns, CMOS, PDMA184,; Categorystorage storage; File Size736KB，34 Pages; ManufacturerMicron Technology; Websitehttp://www.mdtic.com.tw/; Environmental Compliance

Download Datasheet Parametric View All

MT9VDDF6472Y-265 Overview

DDR DRAM Module, 64MX72, 0.75ns, CMOS, PDMA184,

MT9VDDF6472Y-265 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	104024040
package instruction	DIMM, DIMM184
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	4.75
Maximum access time	0.75 ns
Maximum clock frequency (fCLK)	133 MHz
I/O type	COMMON
JESD-30 code	R-PDMA-N184
memory density	4831838208 bit
Memory IC Type	DDR DRAM MODULE
memory width	72
Number of terminals	184
word count	67108864 words
character code	64000000
Maximum operating temperature	70 °C
Minimum operating temperature
organize	64MX72
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	DIMM
Encapsulate equivalent code	DIMM184
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
power supply	2.5 V
Certification status	Not Qualified
refresh cycle	8192
Maximum standby current	0.045 A
Maximum slew rate	3.15 mA
Nominal supply voltage (Vsup)	2.5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	DUAL

Preview

Download Datasheet

View All

256MB, 512MB (x72, ECC, SR)

184-PIN DDR SDRAM RDIMM

DDR SDRAM

REGISTERED DIMM

Features

• 184-pin, dual, in-line memory module (DIMM)

• Fast data transfer rates: PC1600, PC2100, or PC2700

• Utilizes 200 MT/s, 266 MT/s, and 333 MT/s DDR

SDRAM components

• Registered Inputs with one-clock delay

• Phase-lock loop (PLL) clock driver to reduce loading

• Supports ECC error detection and correction

• 256MB (32 Meg x 72); and 512MB (64 Meg x 72)

• V

= V

DDQ

= +2.5V

• V

DDSPD

= +2.3V to +3.6V

• 2.5V I/O (SSTL_2 compatible)

• Commands entered on each positive CK edge

• DQS edge-aligned with data for READs; center-

aligned with data for WRITEs

• Internal, pipelined double data rate (DDR)

architecture; two data accesses per clock cycle

• Bidirectional data strobe (DQS) transmitted/received

with data—i.e., source-synchronous data capture

• Differential clock inputs CK and CK#

• Four internal device banks for concurrent operation

• Programmable burst lengths: 2, 4, or 8

• Auto precharge option

• Auto Refresh and Self Refresh Modes

• 7.8125µs maximum average periodic refresh

interval

• Serial Presence-Detect (SPD) with EEPROM

• Programmable READ CAS latency

• Gold edge contacts

OPTIONS

MARKING

MT9VDDF3272 – 256MB

MT9VDDF6472 – 512MB

For the latest data sheet, please refer to the Micron



Web

site:

www.micron.com/products/modules

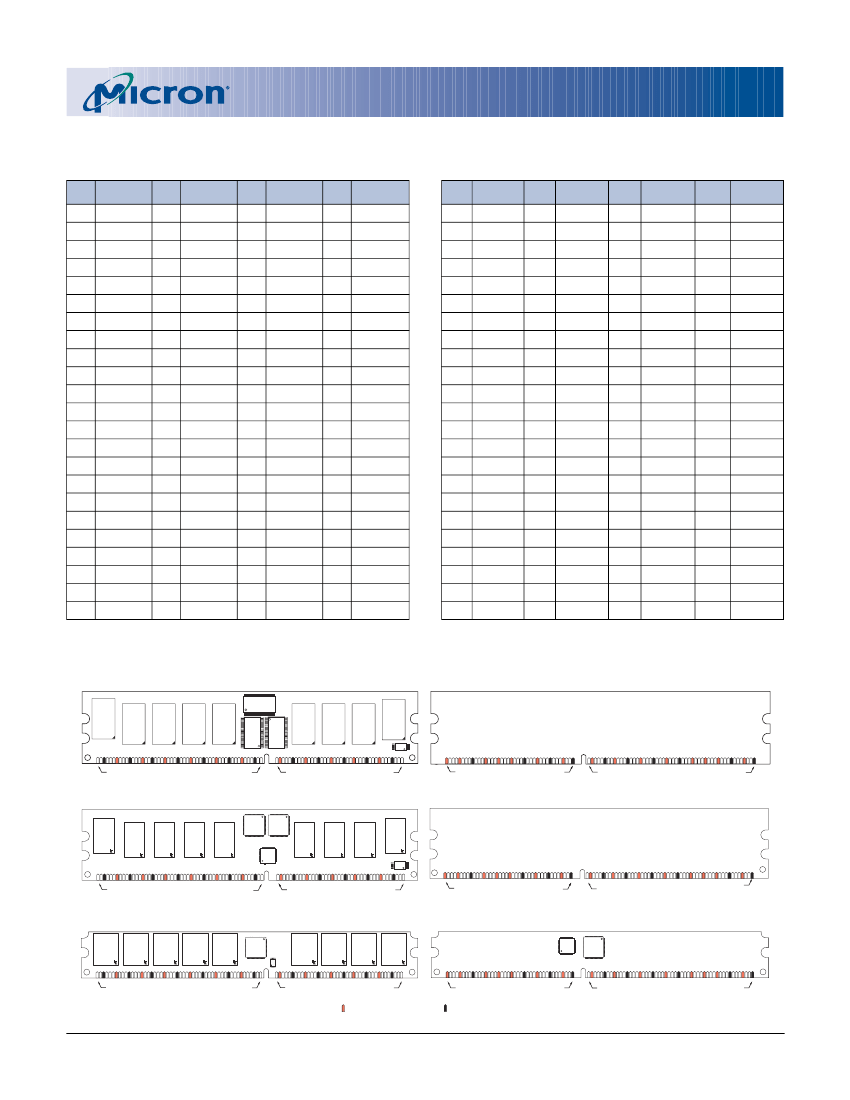

Figure 1: 184-Pin DIMM (MO-206)

Low-Profile 1.125in. (28.58mm) 256MB

Low-Profile 1.125in. (28.58mm) 512MB

Very Low-Profile 0.72in. (18.29mm)

OPTIONS

MARKING

• Operating Temperature Range

Commercial (0°C

≤

+70°C)

Industrial (-40°C

≤

+85°C)

• Package

184-pin DIMM (standard)

184-pin DIMM (lead-free)

• Memory Clock, Speed, CAS Latency

6ns (167 MHz), 333 MT/s, CL = 2.5

7.5ns (133 MHz), 266 MT/s, CL = 2

7.5ns (133 MHz), 266 MT/s, CL = 2.5

10ns (100 MHz), 200 MT/s, CL = 2

• PCB

Low-Profile 1.125in. (28.58mm)

Very Low-Profile 0.72in. (18.29mm)

NOTE:

-335

-262

-26A

-265

-202

none

1. Contact Micron for product availability.

2. CL = CAS (READ) Latency; Registered mode will

add one clock cycle to CL.

Table 1:

Address Table

256MB

512MB

8K (A0–A12)

4 (BA0, BA1)

512Mb (64 Meg x 8)

2K (A0–A9, A11)

1 (S0#)

8K (A0–A12)

4 (BA0, BA1)

256Mb (32 Meg x 8)

1K (A0–A9)

1 (S0#)

Refresh Count

Row Addressing

Device Bank Addressing

Device Configuration

Column Addressing

Module Rank Addressing

pdf: 09005aef80e119b2, source: 09005aef807d56a1

DDF9C32_64x72G.fm - Rev. B 9/04 EN

PRODUCTS AND SPECIFICATIONS DISCUSSED HEREIN ARE SUBJECT TO CHANGE BY MICRON WITHOUT NOTICE.
