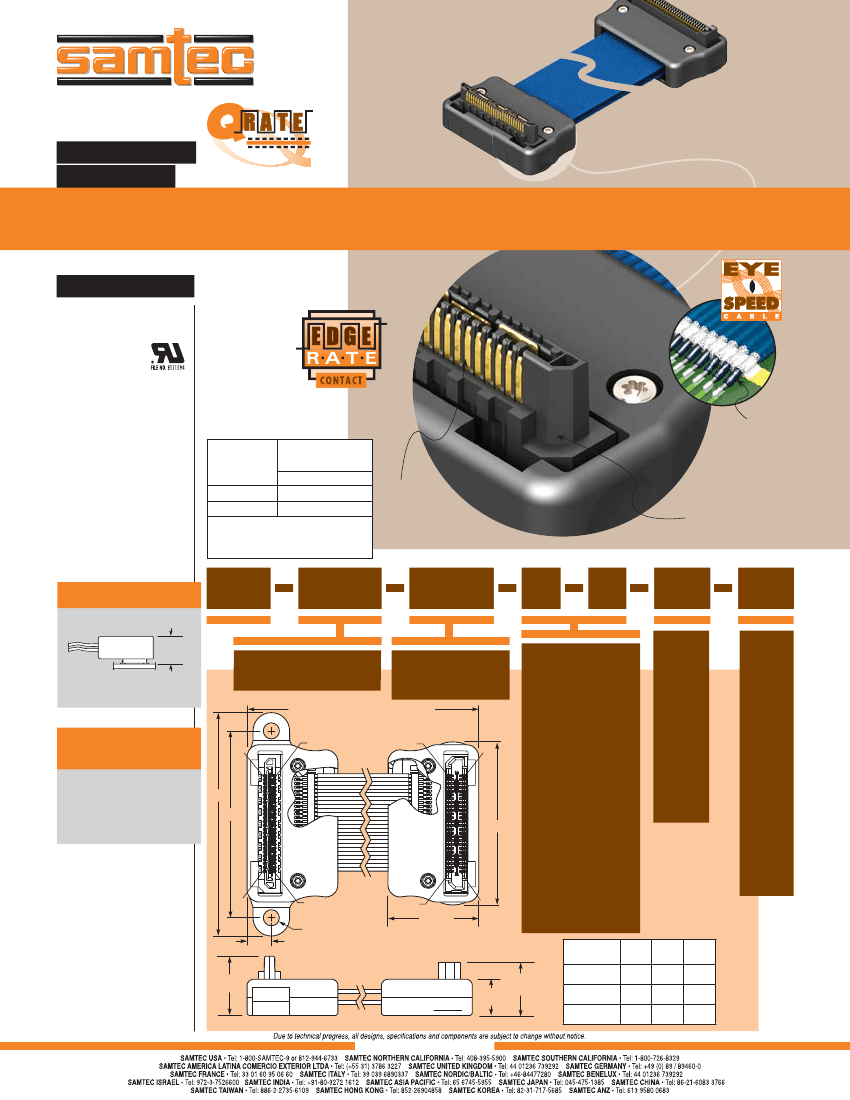

F-213-1
®
EQRD–026–04.00–TTL–STL–3
(0,80 mm) .0315"
EQRD SERIES
Q RATE COAX CABLE ASSEMBLY
®
®
SPECIFICATIONS
i
For complete specifications and
recommended PCB layouts see
www.samtec.com?EQRD
Cable:
34 AWG micro
ribbon coax cable
Signal Routing:
50Ω Single-Ended
Overall Length:
(95,3 mm) 03.75" to
(1 m) 40" standard
Cable Flexing Life:
>10,000 cycles
Cable Bending Radius:
<2,5 mm
Plating:
Au over 50µ" (1,27 µm) Ni
Current Rating:
.5 Amps (500 mA)
per contact
Cable Propagation Delay:
4.4 nsec/meter
Operating Temp Range:
-25°C to +105°C
RoHS Compliant:
Yes
Mates with:
QRF8, QRM8
™
Cable
Length
6" (152,4 mm)
Rated @ 7dB
Insertion Loss
EQRD
4.32 GHz / 8.64 Gbps
34 AWG
micro ribbon
coax cable
Edge Rate
™
contacts
Slim
body design
39.37" (1 m)
2.04 GHz / 4.08 Gbps
Performance data for other cable lengths
and complete test data available at
www.samtec.com?EQRD or contact
sig@samtec.com
APPLICATIONS
EQRD
NO. OF
POSITIONS
WIRE
LENGTH
END
NO. 1
END
NO. 2
WIRING
OPTION
SCREW
OPTION
11.5 mm
or
14.45 mm
–026, –052, –078
(Per Row)
–“XX.XX”
= Wire Length in Inches
(43,7 mm) 01.72" minimum
–TTR
= Terminal, Top Right
–1
= Pin 1 to
Pin 1
Processing conditions will
affect mated height.
Leave
blank for
no Screw
Option
–TTL
= Terminal, Top Left
–2
= Pin 1 to
Pin 2
OAL = Wire Length + (20,82) .820
–F
= Screw
option
(First end
only)
–TBR
APPLICATION
SPECIFIC
• Other sizes and lengths
• Other terminations
• Other wire AWG
Contact Samtec
D
C
A
N-1
N
01
02
= Terminal, Bottom Right
–3
= Pin 1 to
Pin N-1
–TBL
= Terminal, Bottom Left
–S
= Screw
option
(Second
end only)
–STR
= Socket, Top Right
–4
= Pin 1 to
Pin N
–STL
= Socket, Top Left
–B
= Screw
option
(Both
ends)
Note:
Cable lengths longer than
40.00" (1 meter) are not
supported with S.I. test data.
Note:
Verify part number and correct
wiring scheme with Samtec’s
Interactive Cable Builder at
www.samtec.com/cable_
builder/pitch.aspx
Note:
Some lengths, styles and
options are non-standard,
non-returnable.
–SBR
= Socket, Bottom Right
01
02
N-1
N
(3,28) .129 DIA
(5,08) .200
(18,93)
.745
–SBL
= Socket, Bottom Left
NO. OF
POSITIONS
A
C
D
(12,44)
.490
(11,12)
(7,62) .438
.300
–026
–052
–078
END NO.1 (–F SHOWN)
END NO.2
(33,02) (39,12) (46,74)
1.300 1.540 1.840
(57,81) (63,91) (71,53)
2.276 2.516 2.816
(82,63) (88,70) (96,32)
3.253 3.492 3.792
WWW.SAMTEC.COM
