TSF-128-02-T-D datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> TSF-128-02-T-D

Preview

TSF-128-02-T-D: DescriptionBoard Connector, 56 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, ROHS COMPLIANT; CategoryThe connector The connector; File Size405KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

TSF-128-02-T-D Overview

Board Connector, 56 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, ROHS COMPLIANT

TSF-128-02-T-D Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1648263273
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
YTEOL	9.1
body width	0.198 inch
subject depth	0.11 inch
body length	2.8 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	MATTE TIN OVER NICKEL
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	600VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	56
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

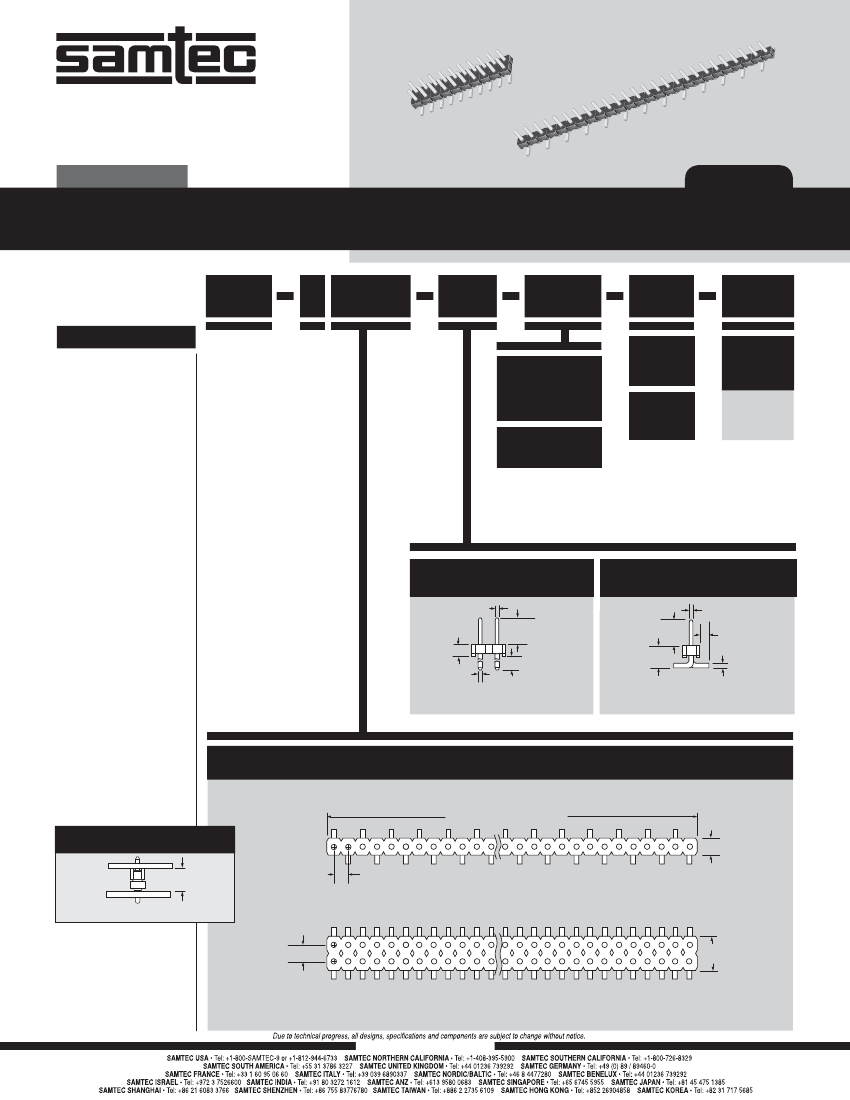

F-214 SUPPLEMENT

TSF–110–02–T–D

TSF–126–02–T–S

(2,54 mm) .100"

TSF SERIES

SMT TERMINAL STRIPS

Mates with:

SS, SD, HSS, SL, SDL,

ESS, ESD

TSF

1

NO. PINS

PER ROW

LEAD

STYLE

PLATING

OPTION

ROW

OPTION

OTHER

OPTION

SPECIFICATIONS

For complete speciﬁcations and

recommended PCB layouts see

www.samtec.com?TSF

Insulator Material:

Black Liquid Crystal Polymer

Flammability Rating:

UL 94V-O

Insulation Resistance:

5000 MΩ

Operating Temp Range:

-55°C to +105°C with Tin;

-55°C to +125°C with Gold

Dielectric

Withstanding Voltage:

600 VAC

Terminal Material:

Phosphor Bronze

Plating:

Au or Sn over

50µ" (1,27 mm) Ni

RoHS Compliant:

Yes

–S

= 30µ" (0,76 µm)

Au on post,

Matte Tin on tail

= Single

Row

–S

–“XX”

=Polarized

Position

–D

= Double

Row

Specify

position for

omitted pin.

–T

= Matte Tin

Processing:

= Through-Hole

(0,46)

.018 DIA

(1,52)

.060

– 01

= Surface Mount

(0,46)

.018 DIA

(1,27)

.050

– 02

Lead–Free Solderable:

Wave, or reﬂow with Matte Sn

Lead Coplanarity:

.006" (0,15 mm) max (2-22)

.008" (0,20 mm) max (23-29)

.010" (0,25 mm) max (30-36)

(3,56)

.140

(3,56)

.140

(2,79)

.110

(0,64)

.025 SQ

(6,50)

.256

(0,64)

.025 SQ

Double Row shown

Single Row shown

02 thru 36

(2,54) .100 x No. of Positions

APPLICATIONS

36

(3,63)

.143

(2,54)

.100 TYP

01

(2,48)

.098

TSF/SL

(2,54)

.100

02

72

(5,03)

.198

01

71

Note:

Some sizes, styles and

options are non-standard,

non-returnable.

WWW.SAMTEC.COM
