B32656S0275J577 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> B32656S0275J577

B32656S0275J577: DescriptionFilm Capacitor, Polypropylene, 1000V, 5% +Tol, 5% -Tol, 2.7uF,; CategoryPassive components capacitor; File Size1MB，66 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com; Environmental Compliance

Download Datasheet Parametric View All

B32656S0275J577 Overview

Film Capacitor, Polypropylene, 1000V, 5% +Tol, 5% -Tol, 2.7uF,

B32656S0275J577 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1249826678
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	Metallized Polypropylene Capacitors (MKP/MFP), 2.7uF, 1000V DC, 33mm(W) x 48mm(H) x 43mm(L)
Samacsys Manufacturer	TDK
Samacsys Modified On	2022-03-15 15:29:32
YTEOL	6.98
capacitance	2.7 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYPROPYLENE
high	48 mm
length	43 mm
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	110 °C
Minimum operating temperature	-55 °C
Package form	Panel Mount
method of packing	Bulk
positive tolerance	5%
Rated (AC) voltage (URac)	480 V
Rated (DC) voltage (URdc)	1000 V
width	33 mm

B32656S0275J577 Preview

Film Capacitors

Metallized Polypropylene Film Capacitors (MKP)

Series/Type:

Date:

B32656S, B32658S

June 2018

information contained therein without EPCOS' prior express consent is prohibited.

EPCOS AG is a TDK Group Company.

Metallized polypropylene film capacitors (MKP)

Snubber (wound)

B32656S, B32658S

Typical applications

IGBT

Snubbering

Climatic

Max. operating temperature: 110

°C

Climatic category (IEC 60068-1:2013): 55/100/56

Construction

Dielectric: polypropylene (PP)

Wound capacitor technology with internal

series connection

Plastic case (UL 94 V-0)

Epoxy resin sealing (UL 94 V-0)

Features

High pulse strength and high contact reliability

Very low inductance

RoHS-compatible

AEC-Q200D compliant

Terminals

Strap terminals, tinned copper or brass (max. torque 10 Nm)

Marking

Manufacturer's logo, ordering code, style (MKP)

rated capacitance (coded), cap. tolerance (code letter),

rated DC voltage, date of manufacture (coded)

Delivery mode

Bulk (untaped)

Please read

Cautions and warnings

and

Important notes

at the end of this document.

Page 2 of 66

B32656S, B32658S

Snubber (wound)

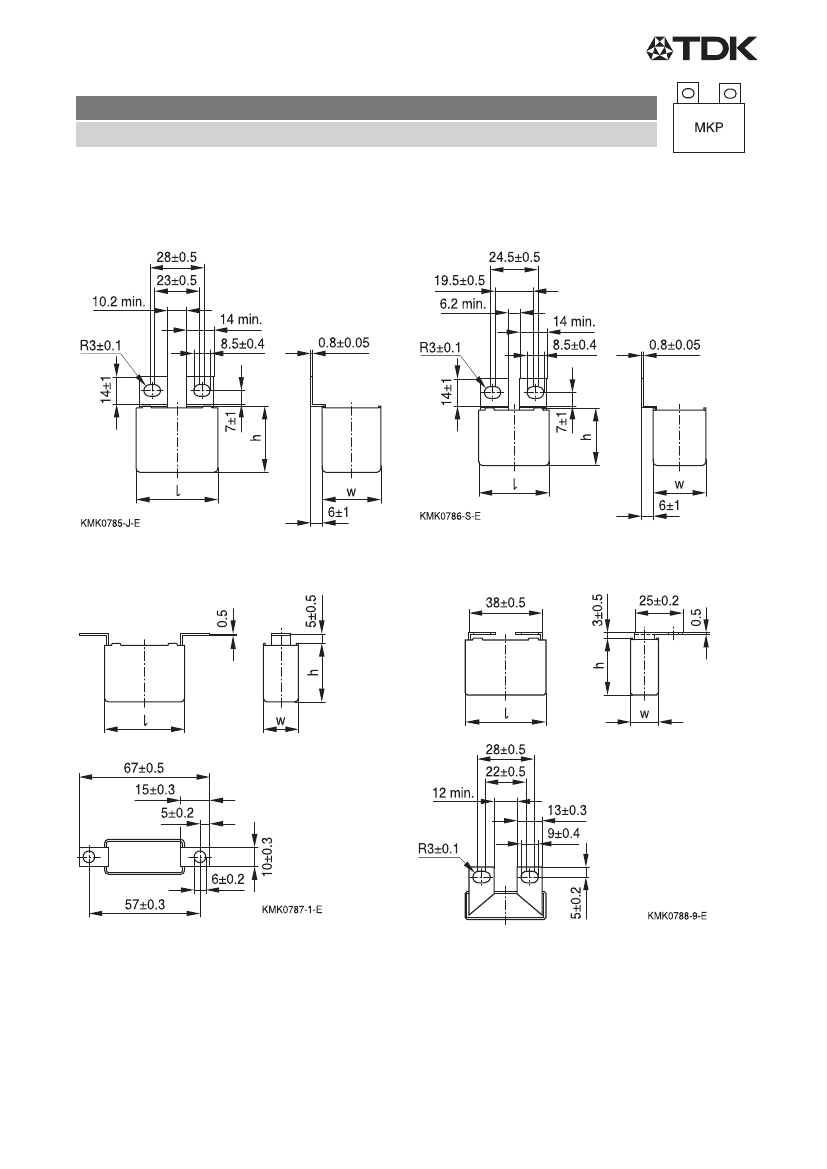

Dimensional drawings

T1 (code no. 561)

T2 (code no. 562)

T3 (code no. 563)

T4 (code no. 564)

Please read

Cautions and warnings

and

Important notes

at the end of this document.

Page 3 of 66

B32656S, B32658S

Snubber (wound)

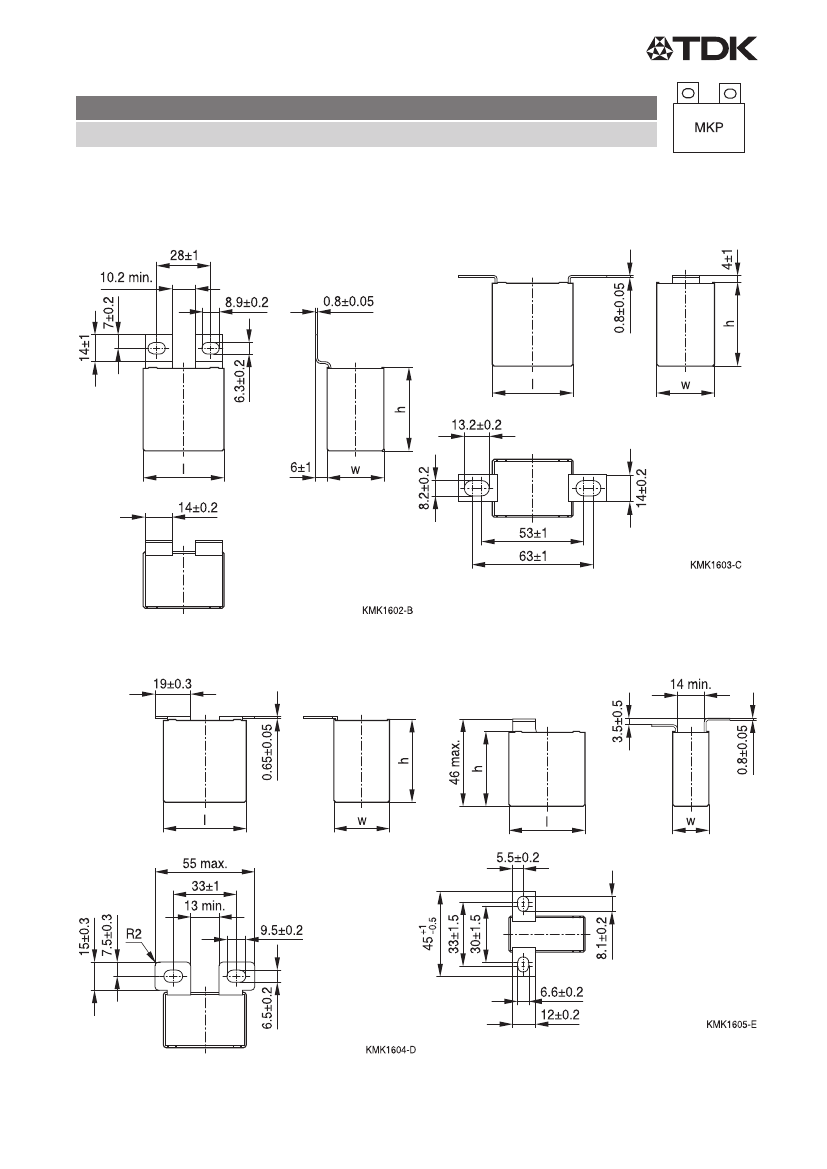

Dimensional drawings

T5 (code no. 565)

T6 (code no. 566)

T7 (code no. 577)

T8 (code no. 408)

Please read

Cautions and warnings

and

Important notes

at the end of this document.

Page 4 of 66

B32656S, B32658S

Snubber (wound)

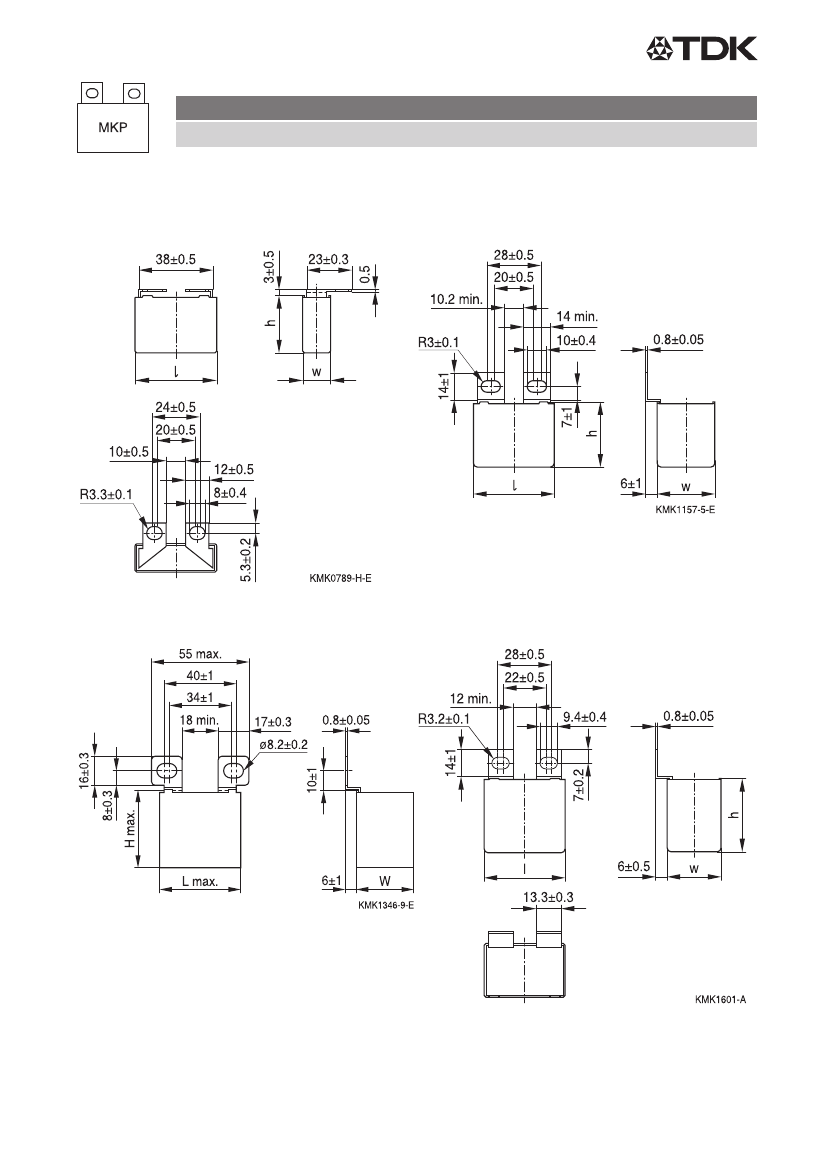

Dimensional drawings

T9 (code no. 409)

T10 (code no. 410)

T11 (code no. 411)

T12 (code no. 412)

Please read

Cautions and warnings

and

Important notes

at the end of this document.

Page 5 of 66
