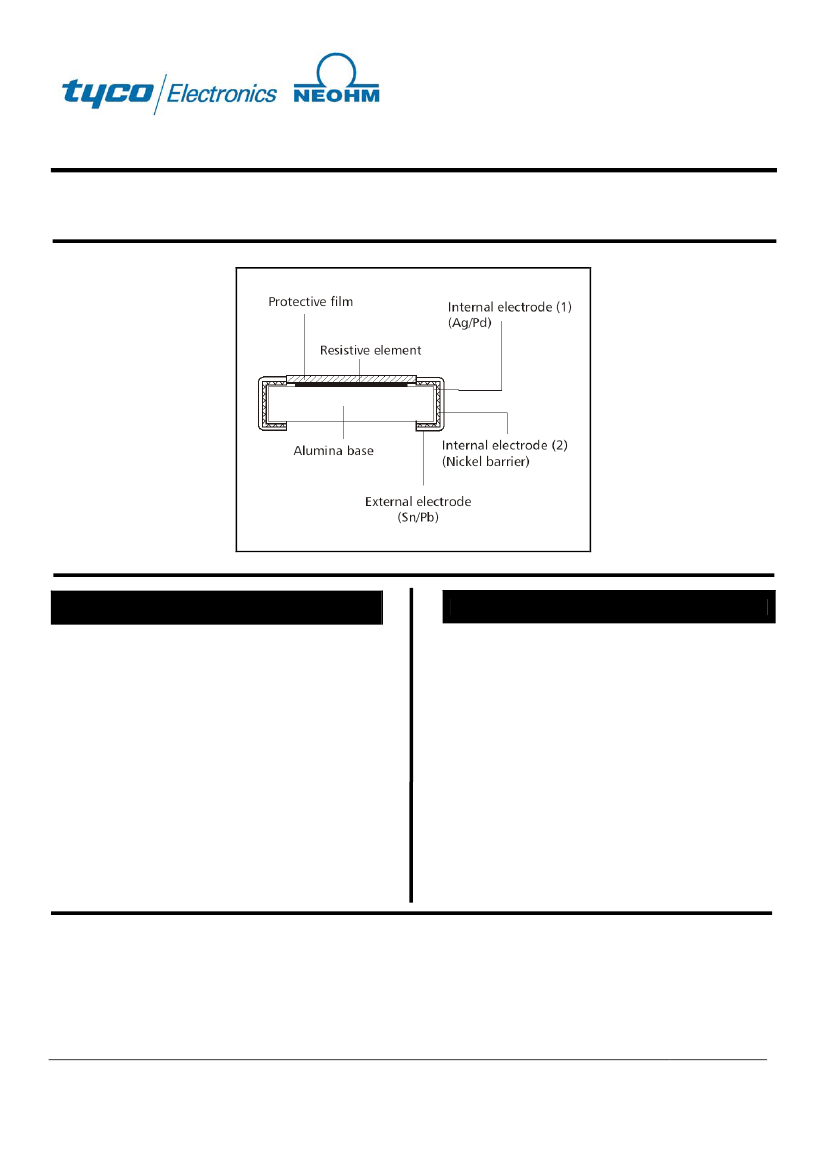

tile is broken into strips, the end plating is fired
on and the strips broken into individual
components. Final termination is made by
electroplating.
•
•
•
•
Case sizes 0603, 0805, 1206
A semi-precision thick film resistor
with a temperature coefficient of
50ppm/°C and tolerance down to 0.5%.
CPG chip resistors are suitable for most
applications, including high frequency
operation, owing to the short lead
structure and low capacitance.
Particularly suitable for use where low
TC or tolerance are important at a low
cost.
STOCKISTS:
This product is not available in Distribution.
Telephone Tyco Passive Product Support Team ++ 44 (0) 1793 572484
Page 1 of 3
Website – www.resistors.tycoelectronics.com
Email – passivesales@tycoelectronics.com
Product – Specification
TYPE CPG SERIES
SPECIFICATIONS
Rated Power @ 70 °C
Resistance Range Min
Max
Tolerance
Code letter
Selection Series
Temperature Coefficient
Code Letter
Limiting Element Voltage
Max Overload Voltage
Dielectric Strength Min
Operating Temperature Range
Climatic Category
Insulation Resistance Dry Min
Stability
Surface Temperature Rise Max
1
st
April 2003
ISSUE 2
UNITS
Watts
Ohms
Ohms
%
100
1M1
0.5
D
±50
C
10
91
0603
0.063
100
1M0
1
F
±50
C
10
3M3
0.5
D
E24 E96
±100
±50
D
C
150
300
300
-55 to +125
55/125/56
1000
0.5
400
1M1
3M3
0805
0.1
10
3M3
1
F
±50
C
10
4M7
0.5
D
±50
C
200
400
400
1206
0.125
10
4M7
1
F
±50
C
ppm/°C
Volts
Volts
V
°C
Mohms
%
°C
±100
D
50
100
100
DIMENSIONS
STYLE
0603
0805
1206
L
1.6 ± 0.1
2 ± 0.1
3.2 ± 0.15
W
0.85 ± 0.1
1.25 ± 0.1
1.6 ± 0.15
T
0.45 ± 0.1
0.6 ± 0.1
0.66 ± 0.1
a
0.25 ± 0.1
0.4 ± 0.2
0.5 ± 0.25
b
0.3 ± 0.1
0.4 ± 0.2
0.5 ± 0.25

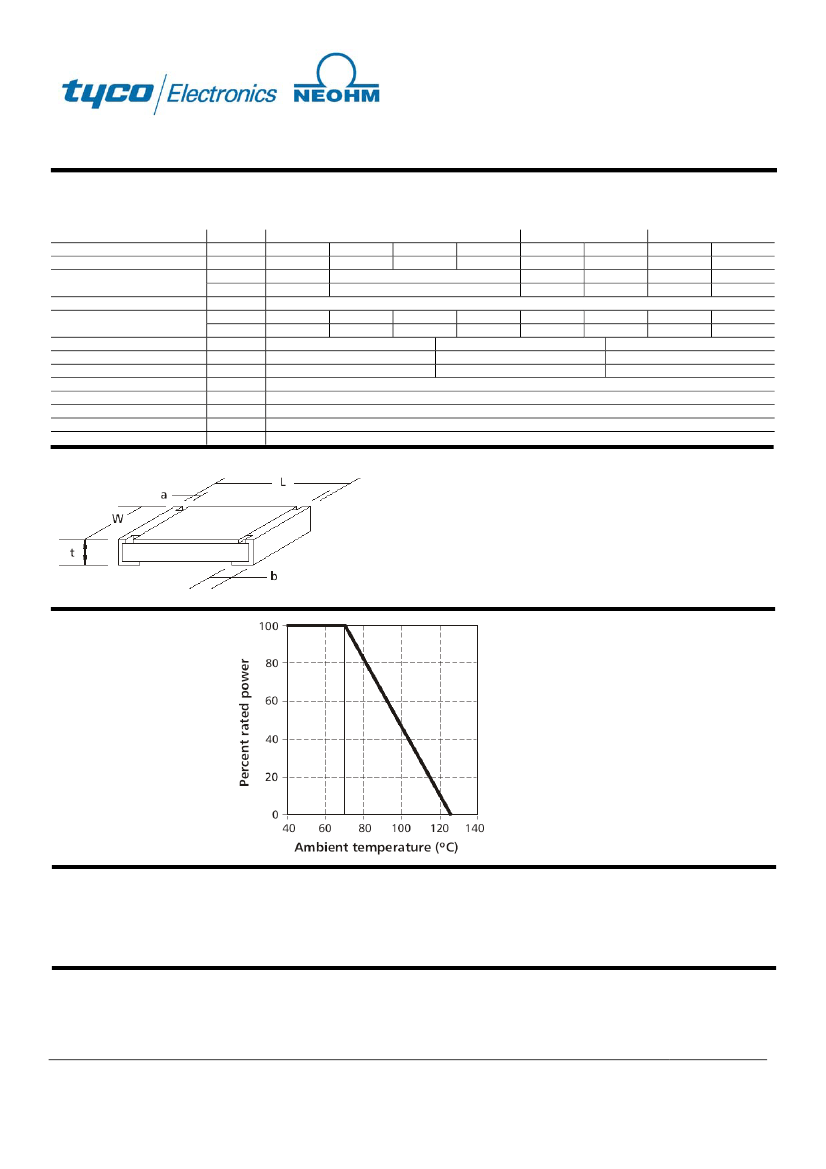

DERATING CURVE
MARKING
E24 series resistors are marked with a three digit code.
E96 series resistors are marked with a four digit code.
0603 E96 series are unmarked.
MOUNTING
The resistors are suitable for processing on automatic insertion equipment.
Telephone Tyco Passive Product Support Team ++ 44 (0) 1793 572484
Page 2 of 3
Website – www.resistors.tycoelectronics.com
Email – passivesales@tycoelectronics.com
Product – Specification
TYPE CPG SERIES
PACKAGING

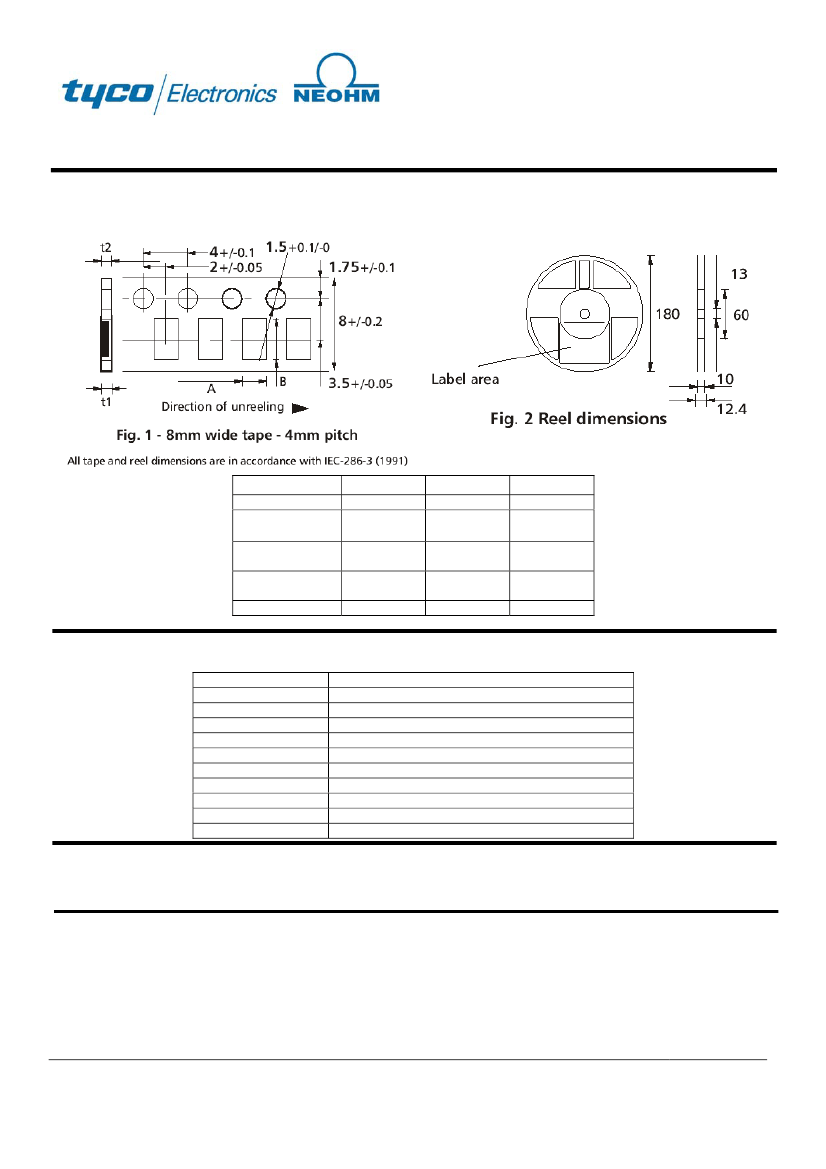

All chip resistors are supplied on reels of 5000 pieces. For details, see figures 1 - 2. Also available in bulk cassettes.
1
st
April 2003
ISSUE 2
0603
Tape Width
A
tol
B
tol
t1
tol
t2 max
8
1.15
± 0.15
1.9
± 0.2
0.6
± 0.1
0.8
0805
8
1.65
± 0.15
2.5
± 0.2
0.8
± 0.1
1
1206
8
2
± 0.15
3.6
± 0.2
0.8
± 0.1
1
PERFORMANCE CHARACTERISTICS
The evaluation of the performance characteristics is carried out with reference to IECQ specifications QC 400 000 and QC 400 100.
TEST REF
4.23
4.24
4.25.1
4.25.3
TEST REF
4.13
4.32
4.33
4.19
4.18
Long Term Tests ±(5% + 0.1 ohm)
Climatic sequence
Damp heat, steady state
Endurance at 70 °C
Endurance at 125 °C
Short Term Tests ±(1% + 0.05 ohm)
Overload
Adhesion
Bond strength of end face plating
Rapid change of temperature
Resistance to soldering heat
STORAGE
Unopened reels should be stored within a temperature range of +5 °C to +25 °C, separated from any dust, chemicals and
solvent based materials. Non-adherence to this procedure could affect the solderability of this product.
HOW TO ORDER
Orders for these components should include the following information:-
Type, tolerance code letter, value and temperature coefficient code letter e.g. CPG0603 F 1K0 C
This publication is issued to provide outline information only and (unless specifically agreed to the contrary by the Company in writing) is not to form part of any order or be
regarded as a representation relating to the products or service concerned. We reserve the right to alter without notice the specification, design, price or conditions of
supply of any product or service. Whilst Tyco Electronics Components products are of the very highest quality and reliability, all electronic components can occasionally
be subject to failure. Where failure of a Tyco Electronics Components product could result in life threatening consequences, then the circuit and application must
be discussed with the Company. Such areas might include ECG, respiratory and other medical and nuclear applications and any non fail-safe applications circuit.
Telephone Tyco Passive Product Support Team ++ 44 (0) 1793 572484
