DG182AA/883B datasheet, PDF - EEWORLD Datasheet

DG182AA/883B: DescriptionSPST, 2 Func, 1 Channel, BIPolar, MBCY10, PACKAGE-10; CategoryAnalog mixed-signal IC The signal circuit; File Size388KB，9 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

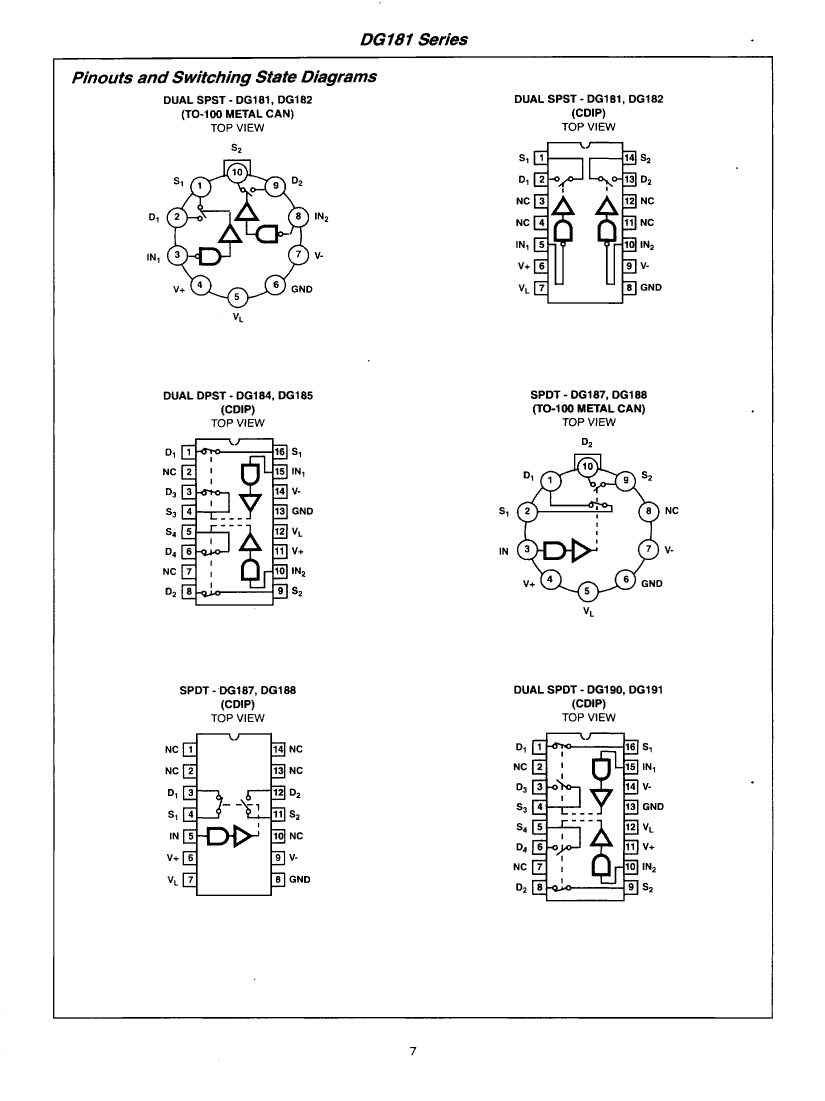

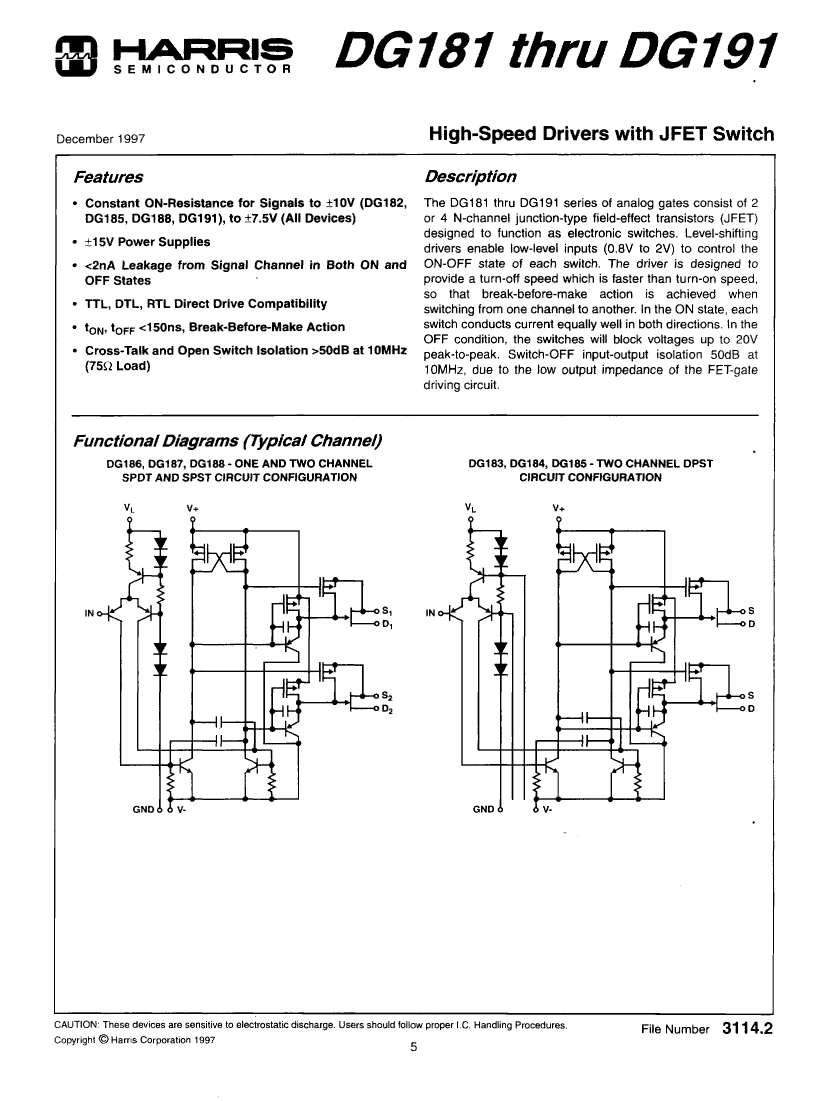

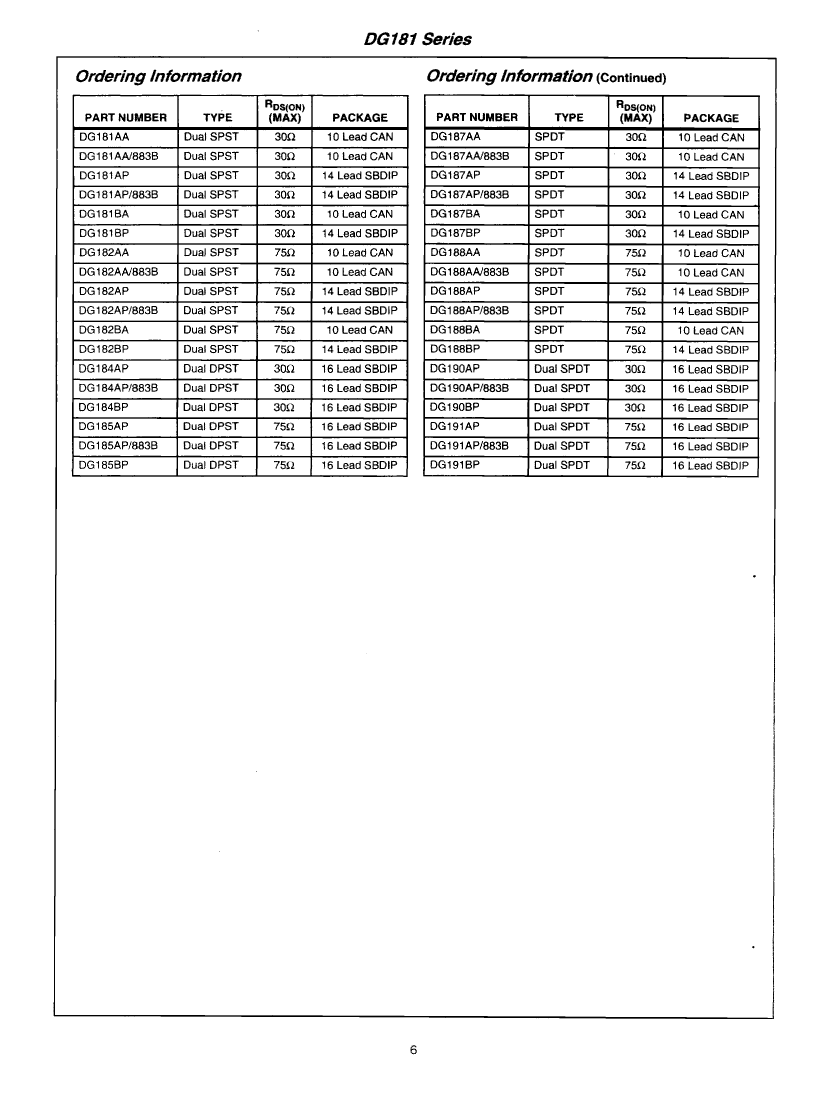

DG182AA/883B Overview

SPST, 2 Func, 1 Channel, BIPolar, MBCY10, PACKAGE-10

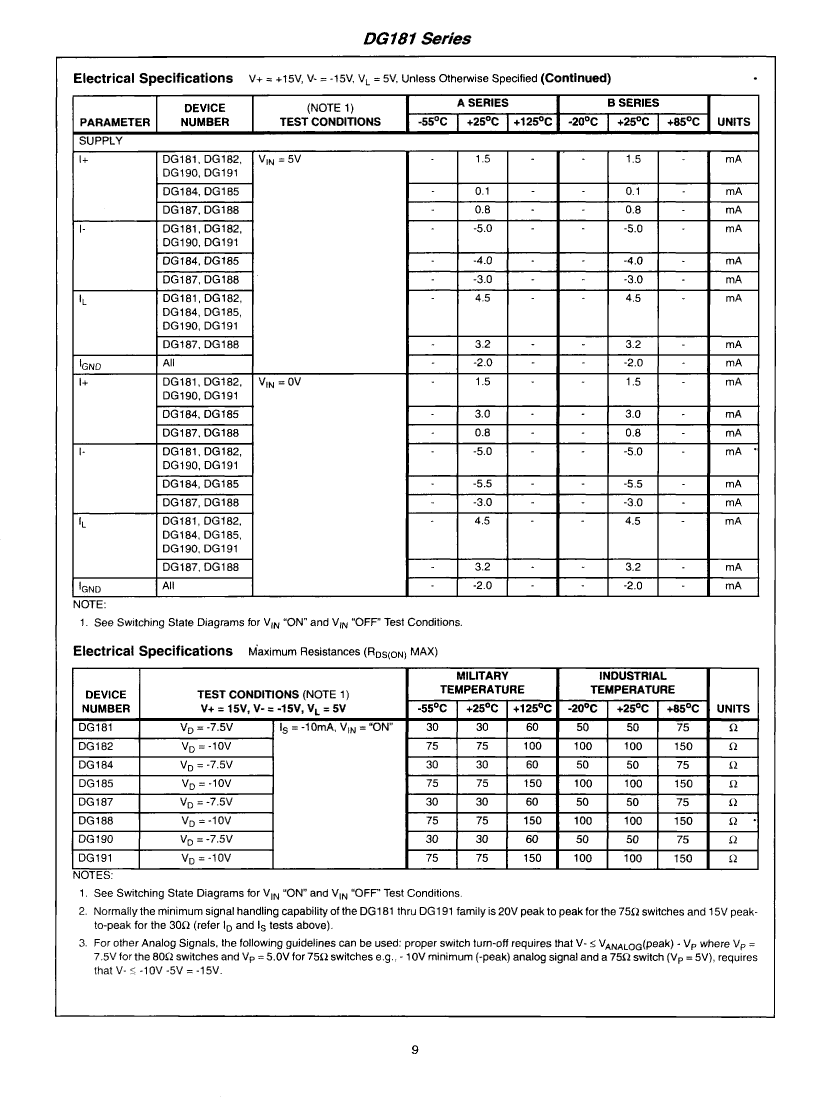

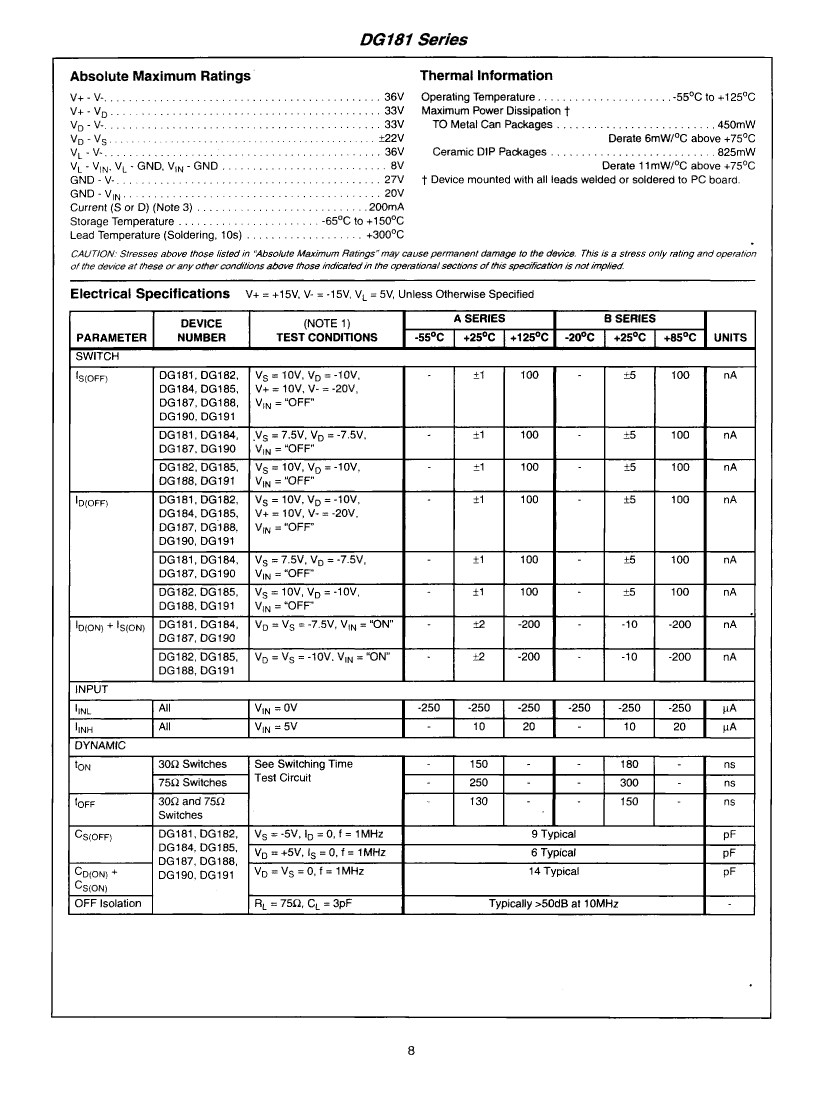

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknow
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	O-MBCY-W10
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	1
Number of functions	2
Number of terminals	10
Nominal off-state isolation	50 dB
Maximum on-state resistance (Ron)	75 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	METAL
Package shape	ROUND
Package form	CYLINDRICAL
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Maximum disconnect time	130 ns
Maximum connection time	250 ns
technology	BIPOLAR
Temperature level	MILITARY
Terminal form	WIRE
Terminal location	BOTTOM
Base Number Matches	1

	DG182AA/883B	DG184AP/883B
Description	SPST, 2 Func, 1 Channel, BIPolar, MBCY10, PACKAGE-10	DPST, 2 Func, 2 Channel, BIPolar, CDIP16, SBDIP-16
Reach Compliance Code	unknow	unknown
Analog Integrated Circuits - Other Types	SPST	DPST
JESD-30 code	O-MBCY-W10	R-GDIP-T16
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V
Number of channels	1	2
Number of functions	2	2
Number of terminals	10	16
Nominal off-state isolation	50 dB	50 dB
Maximum on-state resistance (Ron)	75 Ω	30 Ω
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	METAL	CERAMIC, GLASS-SEALED
Package shape	ROUND	RECTANGULAR
Package form	CYLINDRICAL	IN-LINE
Nominal supply voltage (Vsup)	15 V	15 V
surface mount	NO	NO
Maximum disconnect time	130 ns	130 ns
Maximum connection time	250 ns	150 ns
technology	BIPOLAR	BIPOLAR
Temperature level	MILITARY	MILITARY
Terminal form	WIRE	THROUGH-HOLE
Terminal location	BOTTOM	DUAL
