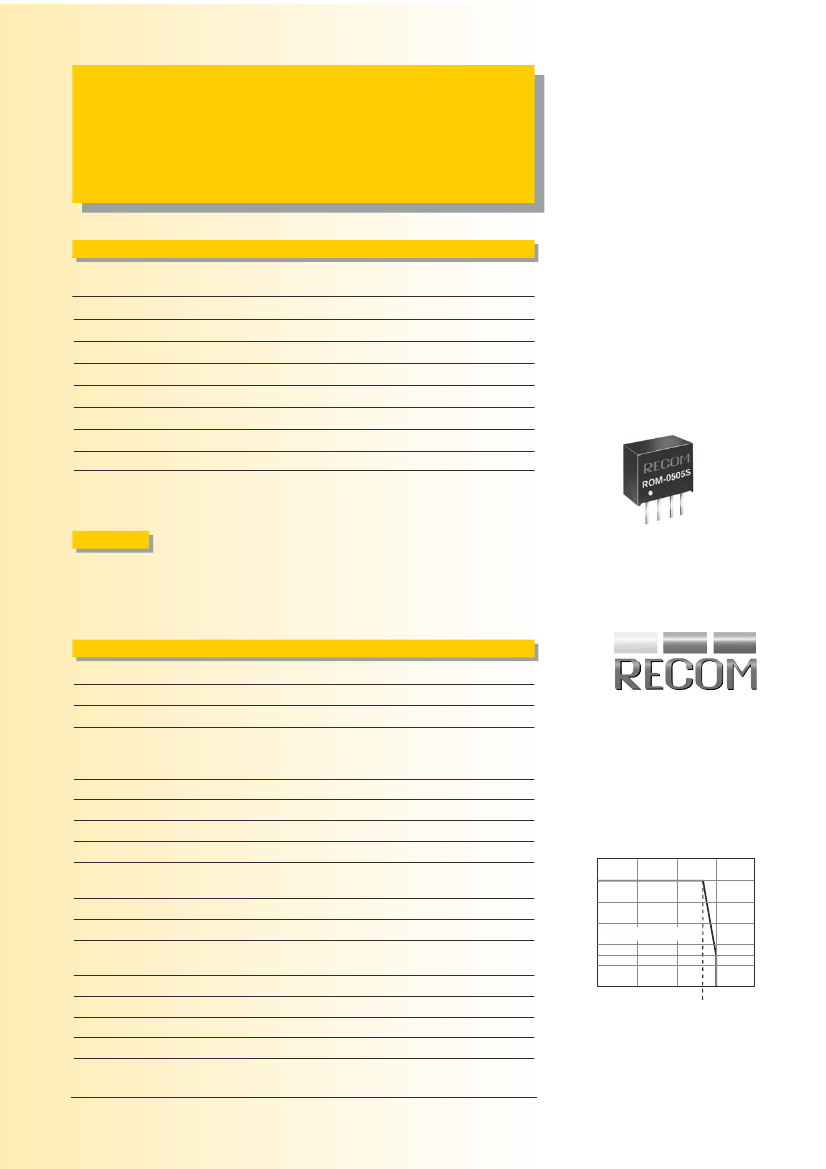

Features
Unregulated
Converters
●
●
●
●
●
●
●
Micro Size SIP4 Package
3kVDC Isolation
Industry Standard Pinout
UL94V-0 Package Material
Optional Continuous Short Circuit Protected
Cost Effective
Efficiency to 85%
ECONOLINE
DC/DC-Converter
ROM
Series
1 Watt
SIP4
Micro Size
Single Output
Selection Guide
Part
Number
SIP4 Micro Size Pack.
ROM-xx1.8S
ROM-xx3.3S
ROM-xx05S
ROM-xx09S
ROM-xx12S
ROM-xx15S
Input
Voltage
(VDC)
1.8, 3.3, 5, 9, 12, 15, 24
1.8, 3.3, 5, 9, 12, 15, 24
1.8, 3.3, 5, 9, 12, 15, 24
1.8, 3.3, 5, 9, 12, 15, 24
1.8, 3.3, 5, 9, 12, 15, 24
1.8, 3.3, 5, 9, 12, 15, 24
Output
Voltage
(VDC)
1.8
3.3
5
9
12
15
Output
Current
(mA)
550
303
200
111
83
66
Efficiency
(%))
70
75
70-78
70-78
78-82
80-84
74-85
ROM-xx24S
1.8, 3.3, 5, 9, 12, 15, 24
24
41
xx = Input Voltage
* add Suffix “P” for Continuous Short Circuit Protection, e.g.
ROM-051.8S/P
Description
The ROM Micro Size DC/DC converter has been designed for isolating or converting DC power rails
respectively. It provides a small micro-size package, high efficiency, low output ripple, high 3kVDC
Isolation and an extended –40°C to +85°C operating temperature range.
State of the art packaging and automated manufacturing ensures cost-effectiveness and short lead times.
EN-60950-1 Certified
EN-60601-1 Certified
Specifications
(Core Operating Area)
Input Voltage Range
Output Voltage Accuracy
Line Voltage Regulation
Load Voltage Regulation
(10% to 100% full load)
Output Ripple and Noise (20MHz limited)
Operating Frequency
Efficiency at Full Load
No Load Power Consumption
Isolation Voltage
Rated Working Voltage
Isolation Capacitance
Isolation Resistance
Short Circuit Protection
P-Suffix
Operating Temperature Range (free air convection)
Storage Temperature Range
Relative Humidity
Package Weight
MTBF (+25°C)
(+85°C)
(tested for 1 second)
(long term isolation)
1.8V, 3.3V output types
5V output type
9V, 12V, 15V, 24V output types
±10%
±5%
1.2%/1% of Vin typ.
20% max.
15% max.
10% max.
100mVp-p max.
50kHz min. / 100kHz typ. / 105kHz max.
70% min. / 80% typ.
101mW min. / 126mW typ. / 220mW max.
3000VDC min.
see Application Notes
20pF min. / 75pF max.
15 GΩ min.
1 Second
Continuous
-40°C to +85°C (see Graph)
-55°C to +125°C
95% RH
1g
Detailed Information see
Application Notes chapter "MTBF"
100
80
Derating-Graph
(Ambient Temperature)
Output Power (%)
60
40
30
20
0
Safe Operating Area
85
Operating Temperature °C
-40
0
50
100
150
}
using MIL-HDBK 217F
using MIL-HDBK 217F
July-2006
977 x 10
3
hours
189 x 10
3
hours

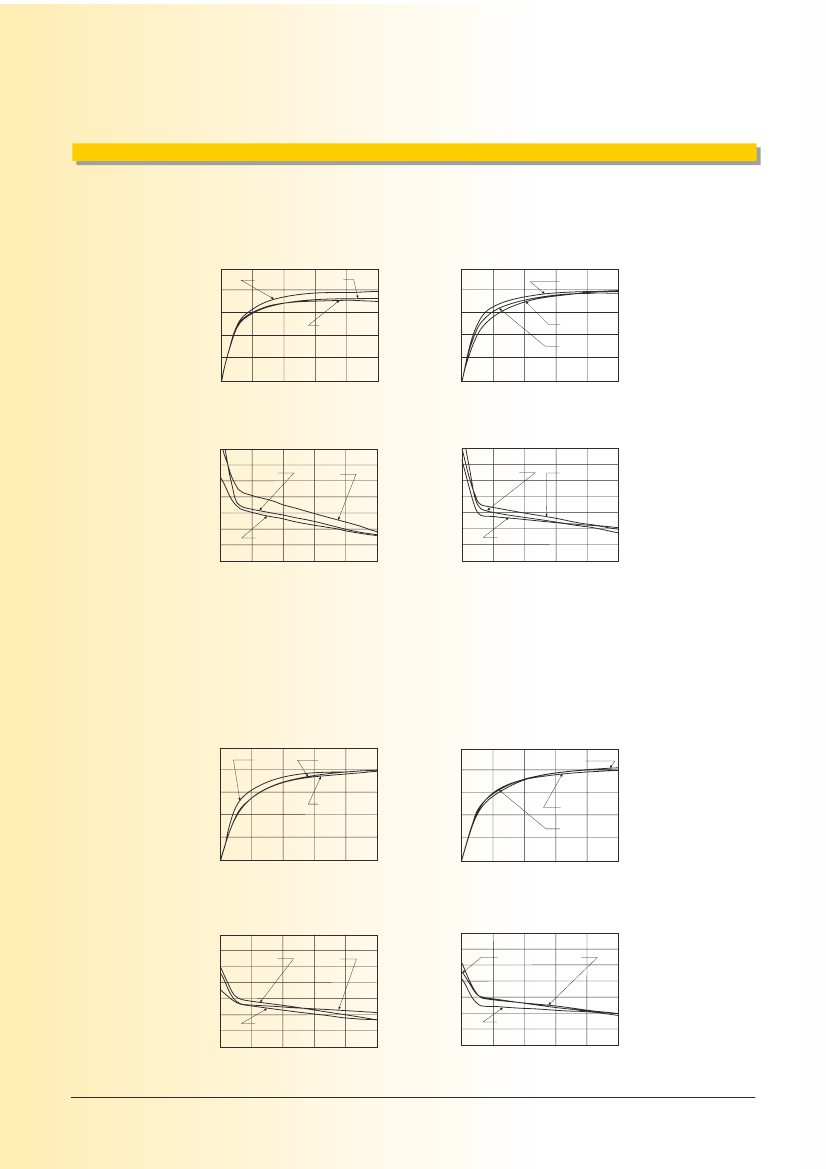

19
www.recom-international.com
