BCR 169L3 E6327

Description
trans prebias pnp 250mw tslp-3
Categorysemiconductor    Discrete semiconductor
File Size316KB,19 Pages
ManufacturerInfineon
Websitehttp://www.infineon.com/
Download Datasheet Parametric Compare View All

BCR 169L3 E6327 Overview

trans prebias pnp 250mw tslp-3

BCR 169L3 E6327 Parametric

Parameter NameAttribute value
Datasheets
BCR169 (2006)
Product Photos
TSLP-3-1
Standard Package15,000
CategoryDiscrete Semiconductor Products
FamilyTransistors (BJT) - Single, Pre-Biased
PackagingTape & Reel (TR)
Transistor TypePNP - Pre-Biased
Current - Collector (Ic) (Max)100mA
Voltage - Collector Emitter Breakdown (Max)50V
Resistor - Base (R1) (Ohms)4.7k
Resistor - Emitter Base (R2) (Ohms)-
DC Current Gain (hFE) (Min) @ Ic, Vce120 @ 5mA, 5V
Vce Saturation (Max) @ Ib, Ic300mV @ 500µA, 10mA
Current - Collector Cutoff (Max)100nA (ICBO)
Frequency - Transiti200MHz
Power - Max250mW
Mounting TypeSurface Mou
Package / CaseSC-101, SOT-883
Supplier Device PackagePG-TSLP-3
Other NamesBCR169L3E6327TSP000014871

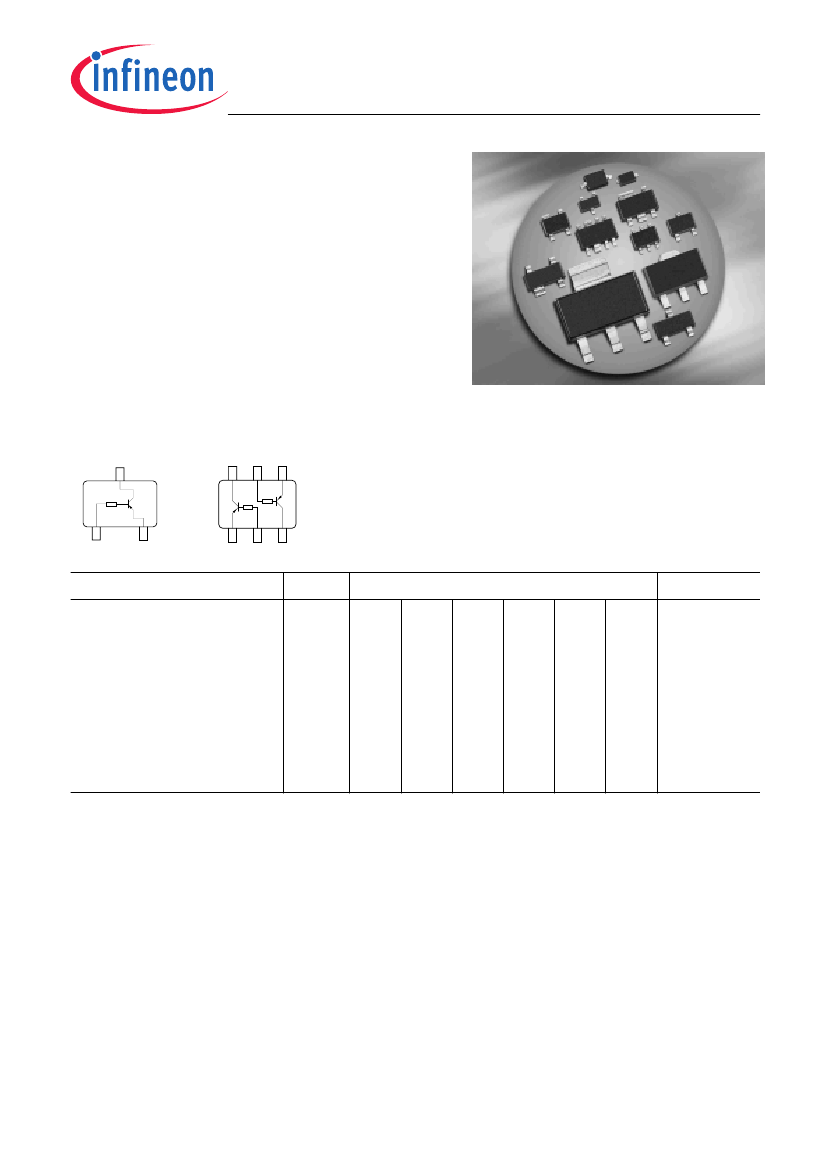

BCR169...
PNP Silicon Digital Transistor
Switching circuit, inverter, interface circuit,
driver circuit
Built in bias resistor (R
1
= 4.7 kΩ)
BCR169S / U: Two internally isolated
transistors with good matching
in one multichip package
BCR169S / U: For orientation in reel see
package information below
BCR169/F/L3
BCR169T/W
C
3
BCR169S/U
C1
6
B2
5
E2
4
R
1
R
1
TR1
R
1
TR2
1
B
2
E
EHA07180
1
E1
2
B1
3
C2
EHA07266
Type
BCR169
BCR169F
BCR169L3
BCR169S
BCR169T
BCR169U
BCR169W
Marking
WSs
WSs
WS
WSs
WS
WSs
WSs
1=B
1=B
1=B
1=B
1=B
Pin Configuration
2=E
2=E
2=E
2=E
2=E
3=C
3=C
3=C
3=C
3=C
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Package
SOT23
TSFP-3
TSLP-3-4
SC75
SOT323
1=E1 2=B1 3=C2 4=E2 5=B2 6=C1 SOT363
1=E1 2=B1 3=C2 4=E2 5=B2 6=C1 SC74
1
2006-05-10
