O-2.000000M-AQOE5032-50-3.3-A-/P/TR datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> O-2.000000M-AQOE5032-50-3.3-A-/P/TR

Preview

O-2.000000M-AQOE5032-50-3.3-A-/P/TR: DescriptionCRYSTAL OSCILLATOR, CLOCK, 2 MHz, CMOS OUTPUT, ROHS COMPLIANT, SMD, 4 PIN; CategoryPassive components oscillator; File Size262KB，1 Pages; ManufacturerAuris; Environmental Compliance

Download Datasheet Parametric View All

O-2.000000M-AQOE5032-50-3.3-A-/P/TR Overview

CRYSTAL OSCILLATOR, CLOCK, 2 MHz, CMOS OUTPUT, ROHS COMPLIANT, SMD, 4 PIN

O-2.000000M-AQOE5032-50-3.3-A-/P/TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1272760042
package instruction	DILCC4,.12
Reach Compliance Code	unknown
Other features	POWER DOWN; ENABLE/DISABLE FUNCTION; OUTPUT ALSO COMPATABLE WITH HCMOS,TTL,CMOS/TTL ; TAPE AND REEL
maximum descent time	8 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Manufacturer's serial number	AQOE5032
Installation features	SURFACE MOUNT
Number of terminals	4
Maximum operating frequency	48 MHz
Minimum operating frequency	2 MHz
Nominal operating frequency	2 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	CMOS
Output load	15 pF
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	DILCC4,.12
physical size	5.0mm x 3.2mm x 1.4mm
power supply	3.3 V
Certification status	COMMERCIAL
longest rise time	8 ns
Maximum slew rate	25 mA
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	60/40 %
Terminal surface	NOT SPECIFIED

O-2.000000M-AQOE5032-50-3.3-A-/P/TR Preview

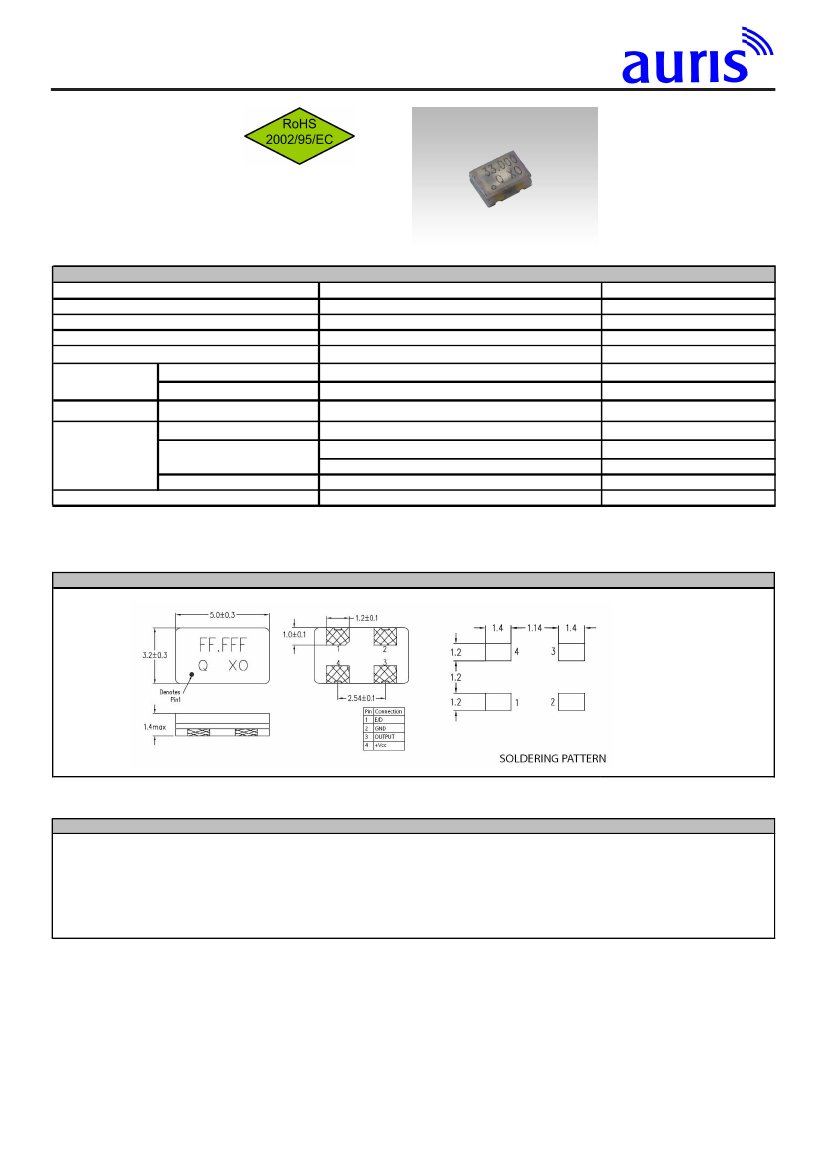

Oscillator SMD, clock-type

AQOE5032

Features:

- all Quartz

- Small size 5.0x3.2mm

- Low cost to performance

- Excellent in portable PC and telecommunication

- Tristate or power down available

Specifications

Frequency range

Frequency stability

Operating temperature

Storage temperature

Input

Voltage

Current

Output symmetry

Output

Rise and fall time

Logic "0" level

Logic "1" level

Output load

AQOE5032

2MHz ~ 48MHz

±50ppm ~ ±100ppm

0°C ~ +70°C - -20°C ~ +70°C

-55°C ~ +125°C

3.3V (+/-10%), 5.0V (+/-10%)

25mA Typ.

40% ~ 60%

8 ns

CMOS, HCMOS, TTL,CMOS/TTL compatable

10%VDD

90%VDD

CMOS, 15 pF

Remarks

Please specify

Max

Please specify

Max

Min

Please specify

* Inclusive of ini tial frequency tolerance at 25°C, operating temperature range, supply voltage change, load variation and 1st year aging.

Drawing

AQOE5032

Dimensions in mm

Order key

O

Part

O=Oscillator

- 10.000000M - AQOE5032

Frequency

M=MHz

Type/Package

AQOE=Quartz Oscillator all Quartz

AQOE5032=SMD 5,0x3,2

- 50

Tolerance

±ppm

- 3.3

Voltage

3.3=3.3Volt

5.0=5.0Volt

-D

Temperature

A=

0°C ~ +70°C

-

Load

blank = 15pF

3 = 30pF

5 = 50pF

/

T

Option

T=Tristate

P = Power down

/

TR

Packaging

TR = tape + reeled

B= -10°C ~ +60°C

C= -10°C ~ +70°C

D= -20°C ~ +70°C

auris-GmbH

office@auris-gmbh.de www.auris-gmbh.de

All specifications are subject to change without notice.
