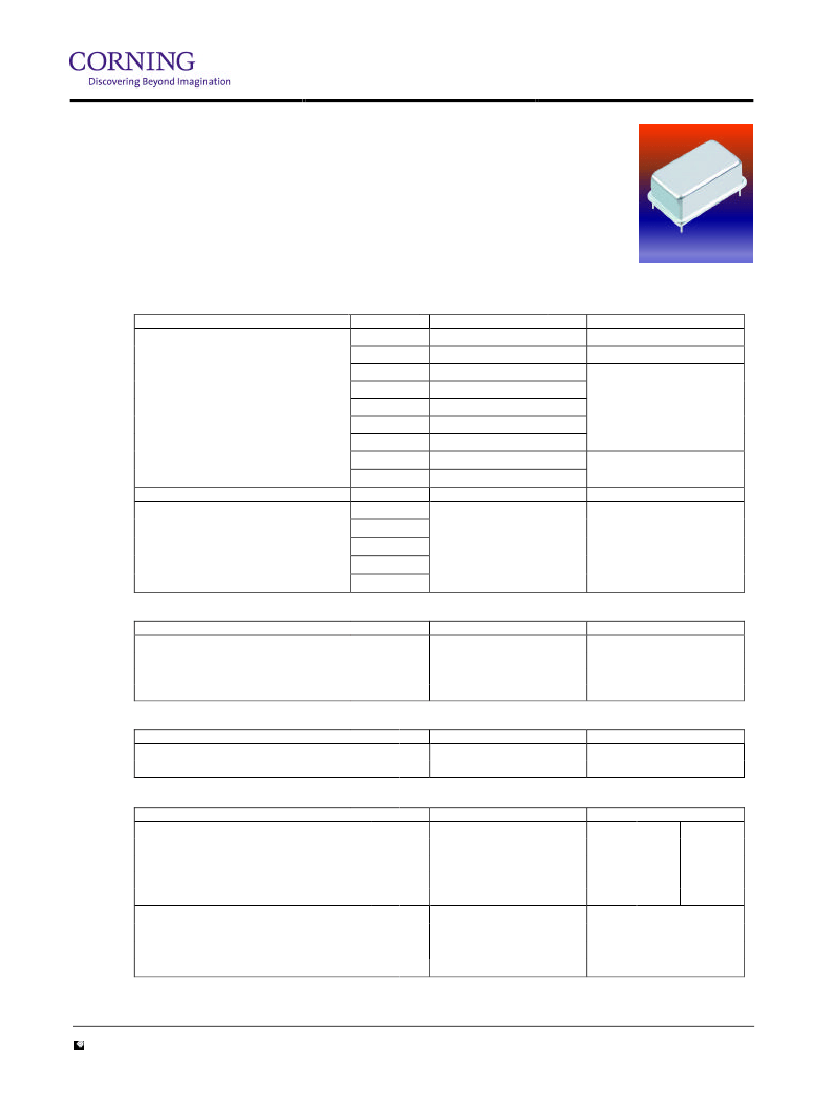

TQDILAC
Typical Applications
Base Stations
Test Equipment
Synthesizers
PXO
Features
AT-Cut Crystal
Dual-inline ACMOS-oscillator
Hermetically Sealed Package
Surface Mount Option
Frequency range
Standard frequencies
Frequency stabilities
Parameter
Code III
8 MHz – 80 MHz
10MHz; 16.384;19.44; 77.76 MHz
Frequency stability
Operating temp range
vs. operating temperature range
34
32
10
12
14
16
18
37
29
Code II
±
15 ppm
±
10 ppm
±
50 ppm
±
20 ppm
±
10 ppm
±
7.5 ppm
±
5.0 ppm
±
10 ppm
±
5.0 ppm
Frequency stability
-40 ... +90°C
-30 ... +80°C
-20 ... +70°C
0 ... +50°C
Condition
Parameter
Initial tolerance
01
02
03
05
07
±
100 ppm
±
50 ppm
±
20 ppm
±
10 ppm
±
5 ppm
Value
@ 25°C
RF output
Parameter
Condition
Signal
Load
Rise and Fall time
Duty cycle
ACMOS
15pF
±
10%
< 5ns
40/60 %
Value
@ 25pF & 10 to 90%
@Vs/2
Condition
Supply voltage
Parameter
Supply voltage (Vs)
Current consumption
5.0 V ± 5 %
< 60 mA
Value
Condition
Additional parameters
Parameter
Phase Noise
Weight
Operable temperature range
Storage temperature range
Processing & Packing
< - 80 dBc/Hz
< - 110 dBc/Hz
< - 135 dBc/Hz
< -145 dBc/Hz
< - 150 dBc/Hz
<6g
-40 ... +90°C
-60 ... +105°C
handling&processing note
10
100
1
10
100
Hz
Hz
kHz
kHz
kHz
Note 1
Corning Frequency Control • Worldwide Data Book 2001
v1.0.2000-10-31
Corning Frequency Control Inc.
• 100 Watts Street • Mt. Holly Springs, PA 17065 • Tel 1-717-486-3411 • Fax 1-717-486-5920 • www.corningfrequency.com
Tele Quarz GmbH & Co. KG
• Landstrasse • D-74924 Neckarbischofsheim, Germany • Tel +49-7268-801-0 • Fax +49-07268-801-281 • www.telequarz.de
1/2
TQDILAC
Enclosure
Type
Option I
Case
Condition
PXO
Blank
A

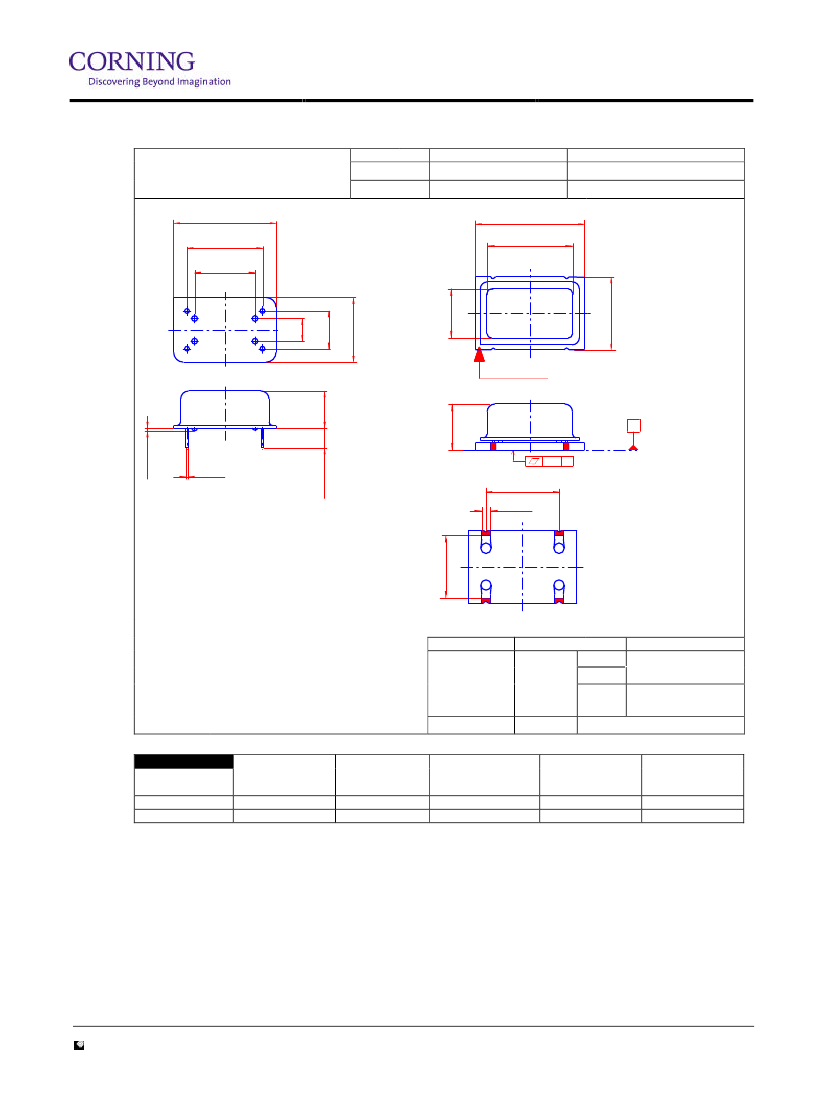

Drawing
20,7max.
±0,3
15,24
G125
G175
22,7max.
G 125
H = 7,5max.; G125 Standard
18,5max.
14
10,9max.
8
G 175
H = 9,4; G175 Standard
15,1max.
12,2
±0,5
4,58
±0,5
14
8
13,1max.
7,62
±0,3
1
7
1
Pin 1 corner
H
7
±0,2
H
S
Auflage
fläche
0,8max.
5,85min.
0,1
±0,1
S
ø0,45
15,24
1,8
±0,1
Pin Connections
Pin
Pin
Pin
Pin
1
7
8
14
Tri-State Control or N.C.
GND
RF output
Supply Voltage (V
s
)
Code I
Pin 1
13,2
±0,1
all units in mm
Output Pin8
E
Tri-
State
High
Open
Low
Output clock
High resistance
output
Blank
Ordering Code
Model
Example:
Order:
TQDILAC
TQDILAC
Code I
Enable
E
Code II
Adjustment
tolerance
05.
Code III
Frequency
Stability
14.
N.C.
Option I
Case
A
Frequency
30M00000
Note
1
Typical values @ 10 MHz
Unless otherwise stated all values are valid after warm-up time and refer to typical conditions for supply voltage,
frequency control voltage, load, temperature (25°C)
Subject to technical modification; Not all options and codes are available at all Frequencies
Corning Frequency Control • Worldwide Data Book 2001
v1.0.2000-10-31
Corning Frequency Control Inc.
• 100 Watts Street • Mt. Holly Springs, PA 17065 • Tel 1-717-486-3411 • Fax 1-717-486-5920 • www.corningfrequency.com
Tele Quarz GmbH & Co. KG
• Landstrasse • D-74924 Neckarbischofsheim, Germany • Tel +49-7268-801-0 • Fax +49-07268-801-281 • www.telequarz.de
2/2
