Semflex
High Performance Test Cable Assembly
HPT Series
120 Group
Emerson Network Power Connectivity Solutions offers the
Semflex HPT 120 test cable assembly series. This line
incorporates high performance HP120 cable with
equally high
performance connectors providing excellent test cables for a
wide range of applications up to 50 GHz. These assemblies
feature low loss triple shielded construction with a standard
FEP Teflon
®
jacket and optional polyurethane, ruggedized and
armored jackets. The triple shielded construction of these
cables give outstanding effectiveness of greater than -90dB at
18GHz. The precision stainless steel connector designs
include: 2.4mm, 2.92mm, 3.5mm and SMA, in which both jack
and plugs are available. All the connector interfaces are
designed to meet MIL-C-39012, MIL-STD-348a or applicable
industry specifications.
Key Features & Benefits
Excellent VSWR and phase stability
Low loss
FEP outer jacket
Triple shielded for >-90 dB leakage at 18GHz
Applications
High Frequency (50 GHz)
High Frequency test equipment
High temperature (+200° C)
Low temperature(-65°C)
Available Connectors
SMA, 3.5 mm, 2.92 mm, 2.4 mm
Emerson Network Power
Connectivity Solutions
Semflex
299 Johnson Ave.
Waseca, MN 56093
1-800-247-8256
Whilst due care has been taken to ensure the contents of this data sheet are
accurate, Emerson Network Power Connectivity Solutions cannot accept
liability for any errors or omissions that may occur. We reserve the right to
alter specifications of products without prior notice.
Emerson Network Power and the Emerson
Network Power logo are trademarks and
service marks of Emerson Electric Co.
2010 Emerson Electric Co.
pi-HPT-120.pdf

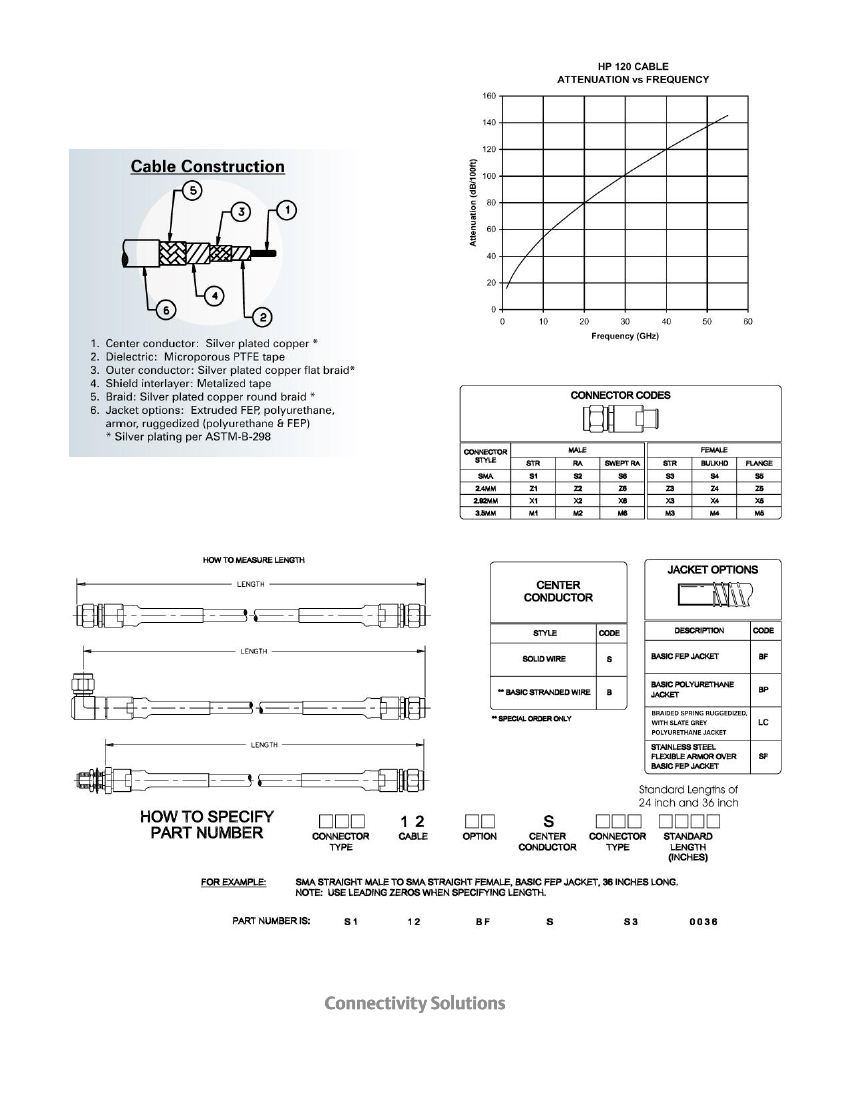

Additional Specifications
Assemby
Connectors
Cable size
Standard Lengths
SMA, 3.5mm, 2.92mm 2.4mm, straight jack and straight plug
0.125 inches, nominal outer diameter (FEP); 24 inch
24 inch and 36 inch
76%
-90 dB/ft
50 Nominal
27 pF/ft
>10kV
<.003 deg (deg of bend per GHz)
0.125 inches 0.318 cm
0.5 inches
0.02 lb./ft
Stainless Steel
Stainless Steel
Silicon Rubber
BeCu / Gold plated
PTFE
0.318 cm
29.31 g/m
-65 °C to + 200°C
88.58 pF/m
1.34 ns/ft 4.40 ns/m
Electricals
Velocity of Propagation
RF Leakage Min. @ 18GHz
Impedance
Capacitance
Delay
Breakdown Voltage
Phase Stability vs. Flexure
Mechanical/ Environmental
Nominal Diameter
Minimum Bend Radius
Temperature
Weight
Materials and Finishes Connector
Body
Nut
Gasket
Contact
Insulator
Emerson Network Power
Connectivity Solutions
Semflex
299 Johnson Ave.
Waseca, MN 56093
1-800-247-8256
Whilst due care has been taken to ensure the contents of this data sheet are
accurate, Emerson Network Power Connectivity Solutions cannot accept
liability for any errors or omissions that may occur. We reserve the right to
alter specifications of products without prior notice.
Emerson Network Power and the Emerson
Network Power logo are trademarks and
service marks of Emerson Electric Co.
2010 Emerson Electric Co.
pi-HPT-120.pdf
