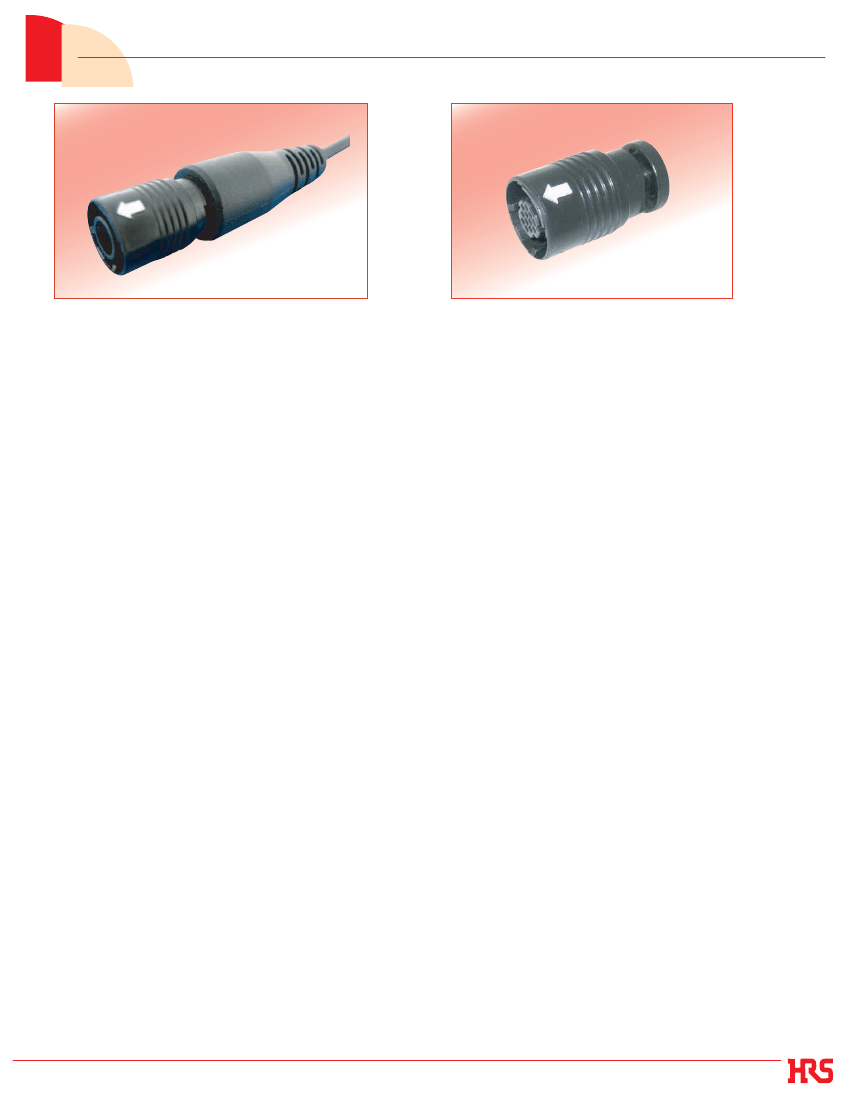

The product information in this catalog is for reference only. Please request the engineering drawing for the most current and accurate design information.
All non-RoHS products have been discontinued or will be discontinued soon. Please check the product status on the Hirose website RoHS search at www.hirose-connectors.com or contact your Hirose sales representative.
1
Ordering Information &
Product Specifications
1
2
HR30 - 6 P A - 6 S C (
* *
)
1
2
3
4
5
6
7
8
5
5
6
Series Name
Shell Size
:HR30
:Outside diameter/plug mating side
P: Plug
Number of contacts:
Contact type
3, 6, 10 and 12
S: Female contact
P: Male contact
3
Connector type
R: Receptacle
J: Jack
Blank: Standard
A: Fine wire
B: Overmold
7
Contact wiring type
Blank: Solder
C
D
: Crimping
: Through hole
4
Variation
8
Plating
(71) : Gold plated (except caps)
Characteristics
5m ohms max. (3 pos)
1. Contact resistance
Specification
Conditions
1A DC
15m ohms max. (Solder type: 6, 10, and 12 pos.)
30m ohms max. (Through hole type: 6 and 12 pos.)
2. Insulation resistance
3. Withstanding voltage
4. Vibration
1000M ohms min
No flashover or insulation breakdown
No Electrical discontinuity of 10 µs or more
100V DC
300V AC/one minute
Frequency: 10 to 55 Hz, single amplitude of 0.75mm
1 cycle = 5min, 10 cycles in each of the three directions
Contact resistance 10m ohms min. (3 pos.)
5. Durability (mating/unmating)
Contact resistance 30m ohms min. (Solder type: 6, 10, and 12 pos.)
Contact resistance 100m ohms min. (through hole type: 6 and 12 pos.)
6. Temperature cycle
Insulation resistance 100M ohms min.
Insulation resistance
7. Humidity resistance
10M ohms min. (when humidity is high)
100M ohms min. (when dry)
8. Waterproof performance
No penetration inside
9. Dust protection
While mated with corresponding or protective cap submerged at depth of 1
meter for 1/2 hour
96 hours at room temperature of 40 ohms and humidity of 90% to 95%
minutes Room temperature: 10 to 15 minutes) for 5 cycles
1000 cycles
Assembly
Component
PPS
Insulator
PBT
Polyacetal
Material
Black
Black
Finish
Remarks
UL94V-0
UL94V-0
-
-
-
Plug
Gasket
Contacts
Spring
Insulator
Gasket
Receptacles
Contacts
Hexagonal nut
Washer
Crimp Contact
(male/female)
Contacts
Silicone rubber, chloroprene rubber
Brass, phosphor bronze
Stainless steel
PPS
Chloroprene rubber
Brass, phosphor bronze
Zinc alloy
Phosphor bronze
Phosphor bronze
Natural
Red/Black
Gold plated
-
Black
Black
Gold plated
Chromate
Nickel plated
Selective gold plated
-
UL94V-0
-
-
-
-
-
Current rating
5A (3 pos)
2A (6, 10, 12 pos.)
100V AC, 140V DC (3, 6 pos.)
30V AC, 42V DC (10, 12 pos)
Operation Temperature Range
-25°C to +85°C
Ratings
Voltage rating
Storage Temperature Range
-25°C to +85°C
The product information in this catalog is for reference only. Please request the engineering drawing for the most current and accurate design information.
All non-RoHS products have been discontinued or will be discontinued soon. Please check the product status on the Hirose website RoHS search at www.hirose-connectors.com or contact your Hirose sales representative.
2
Solder Type Plugs
A
(Fully tightened)
B
HR30-6PB-6S
Part Number
HR30-6PB-3S
HR30-6PB-6P
HR30-6PB-6S
HR30-7PB-12S
HR30-8PB-12P
CL No.
130-0034-2 00
130-0037-0 00
130-0032-7-00
130-0035-5 00
130-0030-1-00
A
22.7
23.2
22.7
25.9
B
Solder Pot Inner Diameter
1.1 mm
Cable Diameter Range
Weight
3.1 g
RoHS
12.6
0.8 mm
O
5.2 MAX
2.84 g
2.91 g
Yes
O
15.5
0.6 mm
6.4 MAX.
4.7 g
4.4 g
25.9
O
6.4 MAX.
Crimp Type Plugs
A
(Fully tightened)
15.5
HR30-7PB-12SC
Part Number
HR30-7PB-10SC
HR30-7PB-12SC
HR30-8PB-12PC
CL No.
130-0036-8 00
A
Crimp Contact
Cable Diameter Range
Weight
RoHS
HR30-SC-211
130-0033-0 00
130-0031-4-00
25.9
HR30-PC-211
O 6.4 MAX
4.1 g
Yes
4.3 g
The product information in this catalog is for reference only. Please request the engineering drawing for the most current and accurate design information.
All non-RoHS products have been discontinued or will be discontinued soon. Please check the product status on the Hirose website RoHS search at www.hirose-connectors.com or contact your Hirose sales representative.
3

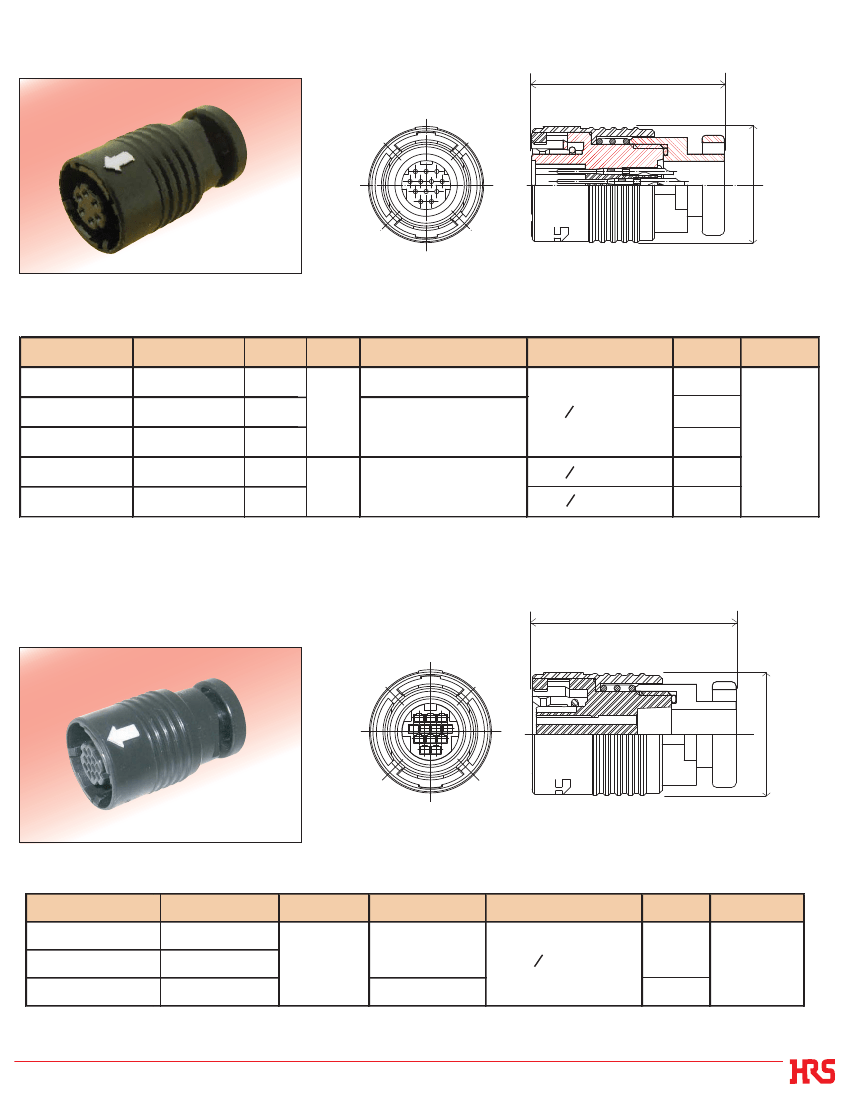

Solder and Crimp Type Jacks
A
B
(Fully tightened)
HR30-6JB-6P
Part Number
HR30-6JB-6P
HR30-7JB-12P
HR30-8JB-12S
HR30-7JB-10PC
HR30-7JB-12PC
HR30-8JB-12SC
CL No.
130-2021-1-00
130-2023-7 00
130-2024-0 00
130-2025-2 00
130-2022-4 00
130-2026-5 00
A
O 12
B
21.7
Solder Pot Inner Diameter Cable Diameter Range
0.8 mm
O 5.2 MAX.
O 6.4 MAX.
Weight
2.2 g
3.6 g
RoHS
Yes
O 15
23.7
0.6 mm
O 6.4 MAX.
4.0 g

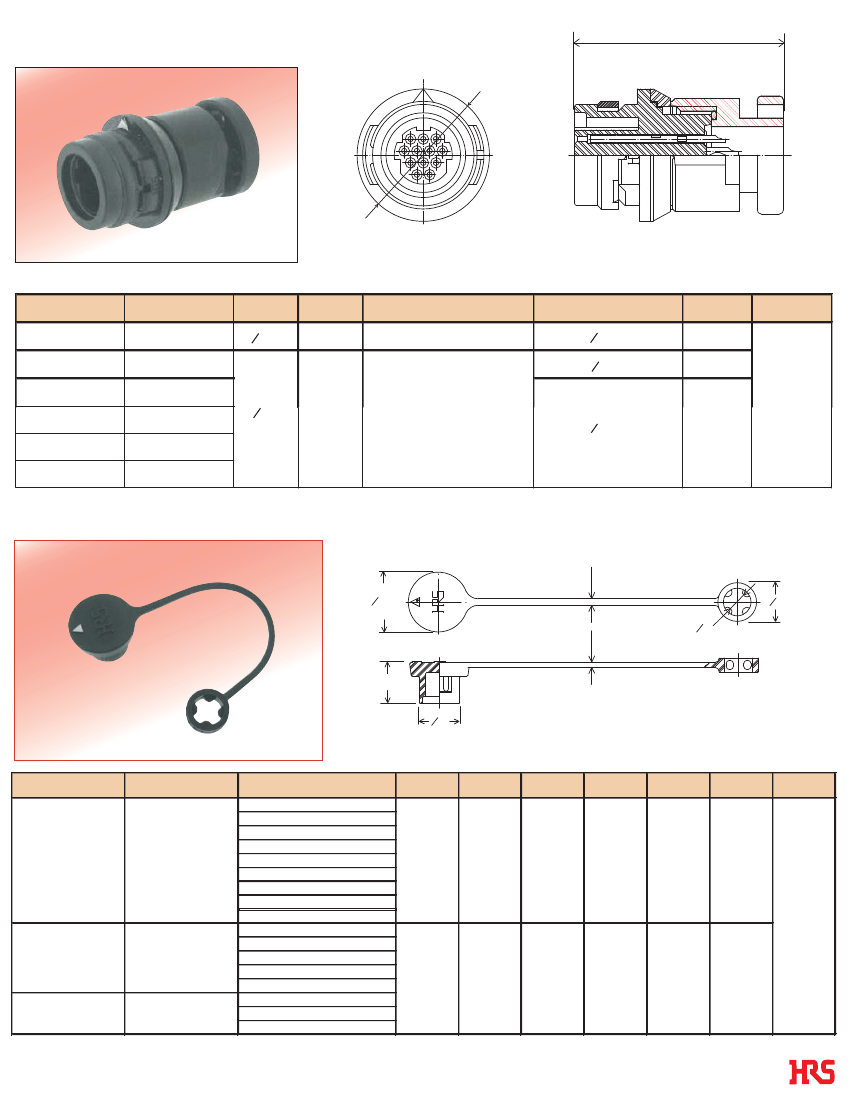

Caps
1.4
O
A
1.0
O
B
O
D
C
HR30-6P-C(71)
O
E
Part Number
CL No.
Applicable Connector
HR30-6P-3S(71)
HR30-6P-6S(71)
HR30-6P-6P(71)
HR30-6PA-3S(71)
HR30-6PA-6S(71)
HR30-6PA-6P(71)
HR30-6PB-3S
HR30-6PB-6P
HR30-6PB-6S
HR30-7P-10SC(71)
HR30-7PB-10SC
HR30-7P-12S(71)
HR30-7P-12SC(71)
HR30-7PB-12SC
HR30-8P-12P(71)
HR30-8P-12PC(71)
HR30-8PB-12PC
A
B
C
D
E
Weight
RoHS
HR30-6P-C(71)
130-3000-7 -71
13
8.4
8.9
4
8.8
1g
YES
HR30-7P-C(71)
130-3004-8-71
16
10.4
10.5
6
11.4
2g
HR30-8P-C(71)
130-3003-5-71
The product information in this catalog is for reference only. Please request the engineering drawing for the most current and accurate design information.
All non-RoHS products have been discontinued or will be discontinued soon. Please check the product status on the Hirose website RoHS search at www.hirose-connectors.com or contact your Hirose sales representative.
4

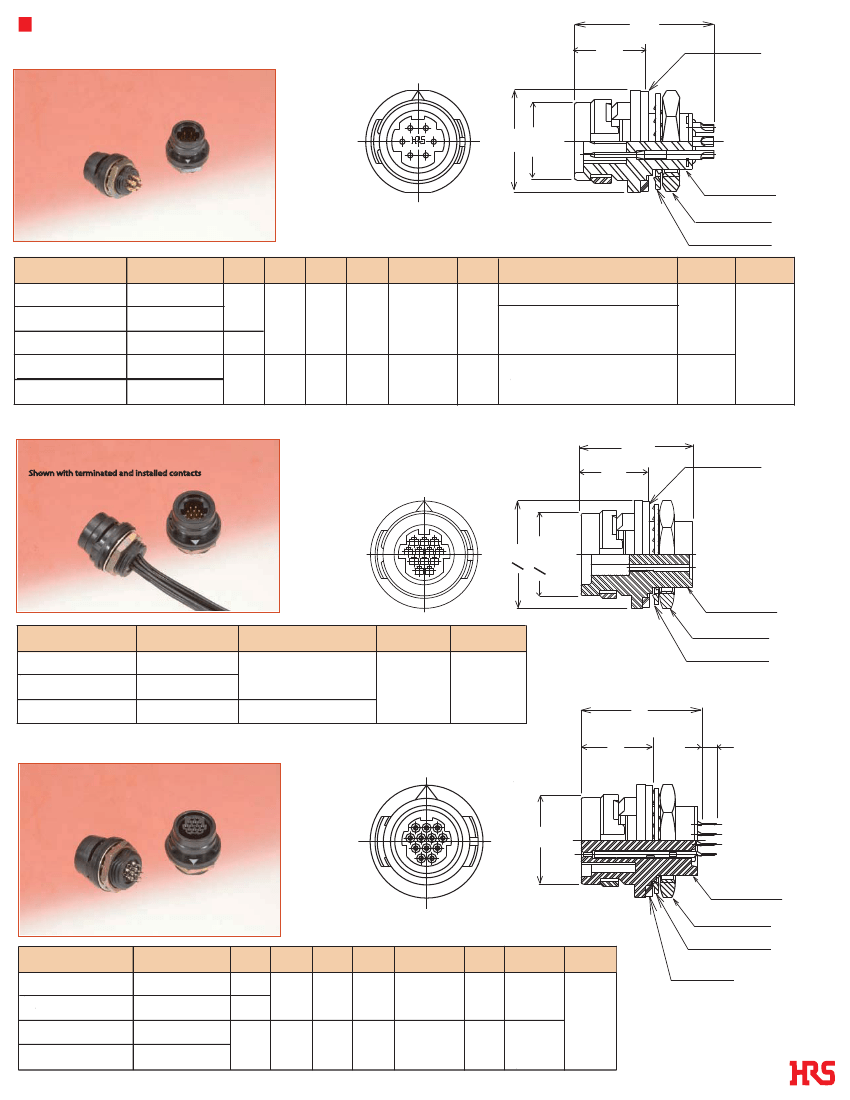

Receptacles
Solder Type
B
A
Gasket
C D
E (Thread)
HR30-6R-6P(71)
F (Hex nut)
Lock washer
Part Number
HR30-6R-3P(71)
HR30-6R-6P(71)
HR30-6R-6S(71)
HR30-7R-12P(71)
HR30-8R-12S(71)
CL No.
130-1003-4-71
130-1009-0-71
130-1008-8-71
130-1016-6-71
130-1018-1-71
A
16
18.4
B
C
D
E
F
Solder Pot Inner Diameter
1.1mm
Weight
RoHS
8.3
12
8.9
M8 x 0.75
10
0.8mm
2g
Yes
18.6
9.3
15
11.5
M11 x 1
13
0.6mm
3.4 g
Crimp Type
HR30-7R-12PC(71)
15.5
9.3
Gasket
O11.5
15
O
M11 x 1 (Thread)
Part Number
HR30-7R-10PC(71)
HR30-7R-12PC(71)
HR30-8R-12SC(71)
CL No.
130-1012-5-71
Crimp Contact
HR30-PC-211
Weight
RoHS
13 (Hex nut)
Lock washer
130-1013-8-71
130-1014-0-71
3g
Yes
HR30-SC-211
A
B
2
Dip Type
D
E (Thread)
HR30-8R-12SD(71)
C
12
F (Hex nut)
Lock washer
B
8.3
Part Number
HR30-6R-6PD(71)
HR30-6R-6SD(71)
CL No.
130-1020-3-71
130-1021-6-71
A
14.9
D
8.9
E
M8 x 0.75
F
10
Weight
2g
RoHS
Gasket
Yes
15.2
HR30-7R-12PD(71)
130-1017-9-71
HR30-8R-12SD(71)
16
130-1019-4-71
9.3
15
11.5
M11 x 1
13
3.4 g
